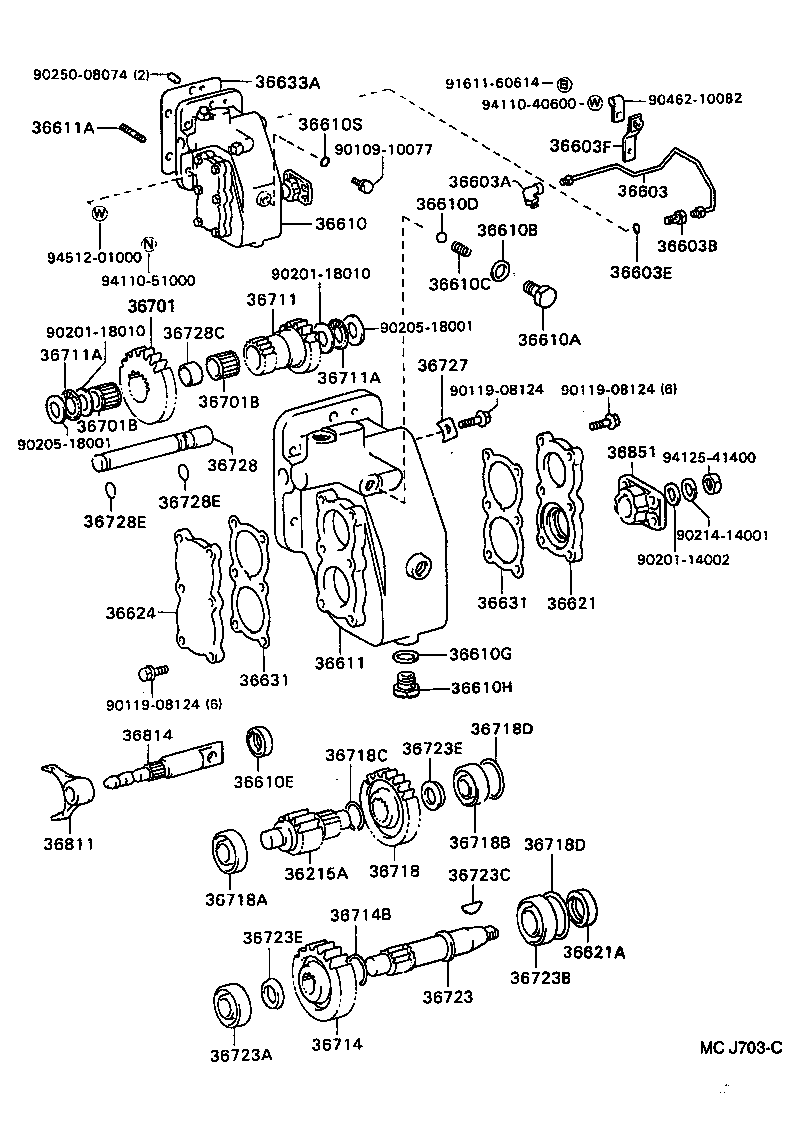

BU88-PDFHTJ3 (1988)
Toyota Dyna/Toyoace
(8808-9008)BU67..4FC ; (8808- )BU66,87,88..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36215A - GEAR, POWER TAKE-OFF DRIVE | ||||
| 36215-93100 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36215-93100 |
BU66,67,88..4FC |
1 | ||
| 36603 - TUBE SUB-ASSY, POWER TAKE-OFF LUBRICATION | ||||
| 36603-93101 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36603A - ELBOW (FOR POWER TAKE-OFF LUBRICATION TUBE) | ||||
| 90407-14003 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36603B - UNION (FOR POWER TAKE-OFF LUBRICATION TUBE) | ||||
| 90404-14007 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36603E - RING, O (FOR POWER TAKE-OFF LUBRICATION TUBE) | ||||
| 90301-10189 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36603F - BRACKET, POWER TAKE-OFF LUBRICATION TUBE | ||||
| 32913-93100 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 32913-93100 |
BU66,67,88..4FC |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-93104 |
BU66,67,88..4FC |
1 | ||
| 36610-93104 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90341-12001 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 90341-12001 |
BU66,67,88..4FC |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12004 |
BU66,67,88..4FC 厚さ=2,厚さ=2.0 |
1 | ||
| 90430-12006 |
BU66..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,68,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,73,74,78,83,84,88,91,94..TR..(CBU,IV3) 厚さ=1,厚さ=1.0 |
1 | ||
| 90430-12001 |
BU66..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,68,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,73,74,78,83,84,88,91,94..TR..(CBU,IV3) 厚さ=0.5,厚さ=0.5 |
1 | ||
| 90430-12006 |
BU66,67..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,67,96..(T3,T4)..5F;BU60,61,68,72,74,78,83,84,85,88,90,91,94,95..DM1,T1,T2,T3,T4,TW1,TW2,TW4 厚さ=1,厚さ=1.0 |
1 | ||
| 90430-12004 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 厚さ=2,厚さ=2.0 |
1 | ||
| 90430-12006 |
BU66..4FC;BU87..T4..CBU;BU87..5F..275;BU66..T2..5F..CBU;BU87..T4..5F..IV3;BU66..DYN..T2..5F..IV3;BU87..(T2,T3,TW1)..(20T,30T);BU66,68,73,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,74,78,83,84,88,91,94..TR 厚さ=1,厚さ=1.0 |
1 | ||
| 90430-12001 |
BU66..4FC;BU87..T4..CBU;BU87..5F..275;BU66..T2..5F..CBU;BU87..T4..5F..IV3;BU66..DYN..T2..5F..IV3;BU87..(T2,T3,TW1)..(20T,30T);BU66,68,73,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,74,78,83,84,88,91,94..TR 厚さ=0.5,厚さ=0.5 |
1 | ||
| 90430-12001 |
BU66,67..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,67,96..(T3,T4)..5F;BU60,61,68,72,74,78,83,84,85,88,90,91,94,95..DM1,T1,T2,T3,T4,TW1,TW2,TW4 厚さ=0.5,厚さ=0.5 |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90501-18001 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 90501-18001 |
BU66,67,88..4FC |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-06004 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 90360-06004 |
BU66,67,88..4FC |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20005 |
BU66,67,88..4FC |
1 | ||
| 90311-20005 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36610G - GASKET (FOR FRONT POWER TAKE-OFF DRAIN) | ||||
| 12157-10010 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36610H - PLUG (FOR FRONT POWER TAKE-OFF DRAIN) | ||||
| 90341-18057 |
BU66,73..IV4;BU66,67,88..4FC |
1 | ||
| 90341-18057 |
BU66,73..IV4;BU66,88..4FC |
1 | ||
| 90341-18057 |
BU73..IV4;BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3;BU66..(T3,TW1)..5F..WT..(20T,30T,IV4)..(IV3,IV4) |
1 | ||
| 36610S - RING, O (FOR POWER TAKE-OFF) | ||||
| 90301-13005 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| 36611-93105 |
BU66,67,88..4FC |
1 | ||
| 36611-93105 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE) | ||||
| 90116-10099 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
5 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93101 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36621-93101 |
BU66,67,88..4FC |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25012 |
BU66,67,88..4FC |
1 | ||
| 90311-25012 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36624 - CAP, POWER TAKE-OFF BEARING | ||||
| 36624-93100 |
BU66,67,88..4FC |
1 | ||
| 36624-93100 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36631-93102 |
BU66,67,88..4FC |
2 | ||
| 36631-93102 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36631-93102 |
BU66,67,88..4FC |
2 | ||
| 36631-93102 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36633A - GASKET, POWER TAKE-OFF COVER | ||||
| 36633-93102 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36701 - GEAR SUB-ASSY, POWER TAKE-OFF INPUT | ||||
| 36212-93100 |
BU66,67,88..4FC |
1 | ||
| 36212-93100 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36701B - BEARING (FOR POWER TAKE-OFF INPUT GEAR) | ||||
| 90364-18005 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36701B - BEARING (FOR POWER TAKE-OFF INPUT GEAR) | ||||
| 90364-18005 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36711 - GEAR, POWER TAKE-OFF INPUT | ||||
| 36711-93100 |
BU66,67,88..4FC |
1 | ||
| 36711-93100 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36711A - BEARING (FOR POWER TAKE-OFF INPUT GEAR) | ||||
| 90374-18003 |
BU66,67,88..4FC |
2 | ||
| 90374-18003 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36711A - BEARING (FOR POWER TAKE-OFF INPUT GEAR) | ||||
| 90374-18003 |
BU66,67,88..4FC |
2 | ||
| 90374-18003 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93103 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36714-93103 |
BU66,67,88..4FC |
1 | ||
| 36714B - RING (FOR POWER TAKE-OFF OUTPUT GEAR) | ||||
| 90520-28029 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 90520-28029 |
BU66,67,88..4FC |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93106 |
BU66,67,88..4FC |
1 | ||
| 36718-93106 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT) | ||||
| 90366-20002 |
BU66,67,88..4FC |
1 | ||
| 90366-20002 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36718B - BEARING(FOR POWER TAKE-OFF IDLER GEAR REAR) | ||||
| 90366-20002 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 90366-20002 |
BU66,67,88..4FC |
1 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90520-28029 |
BU66,67,88..4FC |
1 | ||
| 90520-28029 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36718D - SPACER(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90564-40003 |
BU66,67,88..4FC T=0.17-0.23 |
1 | ||
| 90564-40001 |
BU66,67,88..4FC T=0.02-0.08 |
1 | ||
| 90564-40001 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.02-0.08 |
1 | ||
| 90564-40005 |
BU66,67,88..4FC T=0.47-0.53 |
1 | ||
| 90564-40003 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.17-0.23 |
1 | ||
| 90564-40002 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.07-0.13 |
1 | ||
| 90564-40005 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.47-0.53 |
1 | ||
| 90564-40002 |
BU66,67,88..4FC T=0.07-0.13 |
1 | ||
| 36718D - SPACER(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90564-40003 |
BU66,67,88..4FC T=0.17-0.23 |
1 | ||
| 90564-40001 |
BU66,67,88..4FC T=0.02-0.08 |
1 | ||
| 90564-40001 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.02-0.08 |
1 | ||
| 90564-40005 |
BU66,67,88..4FC T=0.47-0.53 |
1 | ||
| 90564-40003 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.17-0.23 |
1 | ||
| 90564-40002 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.07-0.13 |
1 | ||
| 90564-40005 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.47-0.53 |
1 | ||
| 90564-40002 |
BU66,67,88..4FC T=0.07-0.13 |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93103 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36723-93103 |
BU66,67,88..4FC |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-20002 |
BU66,67,88..4FC ﾌﾛﾝﾄ |
1 | ||
| 90366-20002 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 ﾌﾛﾝﾄ |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-25001 |
BU66,67,88..4FC 厚さ=12 |
1 | ||
| 90363-25001 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 厚さ=12 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
BU66,67..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,67,96..(T3,T4)..5F;BU60,61,68,72,74,78,83,84,85,88,90,91,94,95..DM1,T1,T2,T3,T4,TW1,TW2,TW4 |
1 | ||
| 90280-07011 |
BU66..4FC;BU87..T4..CBU;BU87..5F..275;BU66..T2..5F..CBU;BU87..T4..5F..IV3;BU66..DYN..T2..5F..IV3;BU87..(T2,T3,TW1)..(20T,30T);BU66,68,73,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,74,78,83,84,88,91,94..TR |
1 | ||
| 90280-07011 |
BU66..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,68,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,73,74,78,83,84,88,91,94..TR..(CBU,IV3) |
1 | ||
| 36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING) | ||||
| 36645-93100 |
BU66,67,88..4FC |
2 | ||
| 36645-93100 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING) | ||||
| 36645-93100 |
BU66,67,88..4FC |
2 | ||
| 36645-93100 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36727 - STOPPER, POWER TAKE-OFF INPUT SHAFT | ||||
| 36727-93100 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93103 |
BU66,67,88..4FC |
1 | ||
| 36728-93103 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36728C - COLLER (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90387-20005 |
BU66,67,88..4FC |
1 | ||
| 90387-20005 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36728E - RING, 0 (FOR POWER TAKE-OFF IDLER) | ||||
| 90301-13005 |
BU66,67,88..4FC |
2 | ||
| 90301-13005 |
BU66,67,88..4FC |
2 | ||
| 36728E - RING, 0 (FOR POWER TAKE-OFF IDLER) | ||||
| 90301-13005 |
BU66,67,88..4FC |
2 | ||
| 90301-13005 |
BU66,67,88..4FC |
2 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93103 |
BU66,67,88..4FC |
1 | ||
| 36811-93103 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93102 |
BU66,67,88..4FC |
1 | ||
| 36814-93102 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-93101 |
BU66,67,88..4FC |
1 | ||
| 36851-93101 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| Common parts | ||||
| 90109-10077 | ||||
| 90119-08124 | ||||
| 90201-14002 | ||||
| 90201-18010 | ||||
| 90205-18001 | ||||
| 90214-14001 | ||||
| 90250-08074 | ||||
| 90462-10082 | ||||
| 91611-60614 | ||||
| 94110-40600 | ||||
| 94110-51000 | ||||
| 94125-41400 | ||||
| 94512-01000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-93104 |
BU66,67,88..4FC |
1 | ||
| 36610-93104 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-93104 |
BU66,67,88..4FC |
1 | ||
| 36610-93104 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90341-12001 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 90341-12001 |
BU66,67,88..4FC |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12004 |
BU66,67,88..4FC 厚さ=2,厚さ=2.0 |
1 | ||
| 90430-12006 |
BU66..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,68,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,73,74,78,83,84,88,91,94..TR..(CBU,IV3) 厚さ=1,厚さ=1.0 |
1 | ||
| 90430-12001 |
BU66..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,68,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,73,74,78,83,84,88,91,94..TR..(CBU,IV3) 厚さ=0.5,厚さ=0.5 |
1 | ||
| 90430-12006 |
BU66,67..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,67,96..(T3,T4)..5F;BU60,61,68,72,74,78,83,84,85,88,90,91,94,95..DM1,T1,T2,T3,T4,TW1,TW2,TW4 厚さ=1,厚さ=1.0 |
1 | ||
| 90430-12004 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 厚さ=2,厚さ=2.0 |
1 | ||
| 90430-12006 |
BU66..4FC;BU87..T4..CBU;BU87..5F..275;BU66..T2..5F..CBU;BU87..T4..5F..IV3;BU66..DYN..T2..5F..IV3;BU87..(T2,T3,TW1)..(20T,30T);BU66,68,73,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,74,78,83,84,88,91,94..TR 厚さ=1,厚さ=1.0 |
1 | ||
| 90430-12001 |
BU66..4FC;BU87..T4..CBU;BU87..5F..275;BU66..T2..5F..CBU;BU87..T4..5F..IV3;BU66..DYN..T2..5F..IV3;BU87..(T2,T3,TW1)..(20T,30T);BU66,68,73,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,74,78,83,84,88,91,94..TR 厚さ=0.5,厚さ=0.5 |
1 | ||
| 90430-12001 |
BU66,67..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,67,96..(T3,T4)..5F;BU60,61,68,72,74,78,83,84,85,88,90,91,94,95..DM1,T1,T2,T3,T4,TW1,TW2,TW4 厚さ=0.5,厚さ=0.5 |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90501-18001 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 90501-18001 |
BU66,67,88..4FC |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-06004 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 90360-06004 |
BU66,67,88..4FC |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20005 |
BU66,67,88..4FC |
1 | ||
| 90311-20005 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| 36611-93105 |
BU66,67,88..4FC |
1 | ||
| 36611-93105 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE) | ||||
| 90116-10099 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
5 | ||
| 36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE) | ||||
| 90116-10099 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
5 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93101 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36621-93101 |
BU66,67,88..4FC |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25012 |
BU66,67,88..4FC |
1 | ||
| 90311-25012 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36631-93102 |
BU66,67,88..4FC |
2 | ||
| 36631-93102 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36633A - GASKET, POWER TAKE-OFF COVER | ||||
| 36633-93102 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36633A - GASKET, POWER TAKE-OFF COVER | ||||
| 36633-93102 |
BU87..4FC..CBU;BU66,67,88..4FC;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93103 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36714-93103 |
BU66,67,88..4FC |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93106 |
BU66,67,88..4FC |
1 | ||
| 36718-93106 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT) | ||||
| 90366-20002 |
BU66,67,88..4FC |
1 | ||
| 90366-20002 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36718B - BEARING(FOR POWER TAKE-OFF IDLER GEAR REAR) | ||||
| 90366-20002 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 90366-20002 |
BU66,67,88..4FC |
1 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90520-28029 |
BU66,67,88..4FC |
1 | ||
| 90520-28029 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90520-28029 |
BU66,67,88..4FC |
1 | ||
| 90520-28029 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36718D - SPACER(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90564-40003 |
BU66,67,88..4FC T=0.17-0.23 |
1 | ||
| 90564-40001 |
BU66,67,88..4FC T=0.02-0.08 |
1 | ||
| 90564-40001 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.02-0.08 |
1 | ||
| 90564-40005 |
BU66,67,88..4FC T=0.47-0.53 |
1 | ||
| 90564-40003 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.17-0.23 |
1 | ||
| 90564-40002 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.07-0.13 |
1 | ||
| 90564-40005 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 T=0.47-0.53 |
1 | ||
| 90564-40002 |
BU66,67,88..4FC T=0.07-0.13 |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93103 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36723-93103 |
BU66,67,88..4FC |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-20002 |
BU66,67,88..4FC ﾌﾛﾝﾄ |
1 | ||
| 90366-20002 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 ﾌﾛﾝﾄ |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-25001 |
BU66,67,88..4FC 厚さ=12 |
1 | ||
| 90363-25001 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 厚さ=12 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
BU66,67..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,67,96..(T3,T4)..5F;BU60,61,68,72,74,78,83,84,85,88,90,91,94,95..DM1,T1,T2,T3,T4,TW1,TW2,TW4 |
1 | ||
| 90280-07011 |
BU66..4FC;BU87..T4..CBU;BU87..5F..275;BU66..T2..5F..CBU;BU87..T4..5F..IV3;BU66..DYN..T2..5F..IV3;BU87..(T2,T3,TW1)..(20T,30T);BU66,68,73,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,74,78,83,84,88,91,94..TR |
1 | ||
| 90280-07011 |
BU66..4FC;BU87..TR..5F;BU66..T2..5F..CBU;BU66..DYN..T2..5F..IV3;BU66,68,96..(DM1,T3,T4,TW4)..5F;BU60,61,67,72,73,74,78,83,84,88,91,94..TR..(CBU,IV3) |
1 | ||
| 36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING) | ||||
| 36645-93100 |
BU66,67,88..4FC |
2 | ||
| 36645-93100 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING) | ||||
| 36645-93100 |
BU66,67,88..4FC |
2 | ||
| 36645-93100 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93103 |
BU66,67,88..4FC |
1 | ||
| 36728-93103 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93103 |
BU66,67,88..4FC |
1 | ||
| 36811-93103 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93102 |
BU66,67,88..4FC |
1 | ||
| 36814-93102 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-93101 |
BU66,67,88..4FC |
1 | ||
| 36851-93101 |
BU66,88..4FC;BU87..4FC..CBU;BU87..T3..4FC..20T..IV3 |
1 | ||
| Common parts | ||||
| 90119-10029 | ||||
| 90170-10082 | ||||
| 90201-14002 | ||||
| 90214-14001 | ||||
| 91111-50820 | ||||
| 91611-61050 | ||||
| 94125-41400 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
