Toyota Dyna/toyoace BU88 SHIFT LEVER & RETAINER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BU88-PDFHT3 (1988)
3312 - SHIFT LEVER & RETAINER

BU88-PDFHT3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8910- )4FC

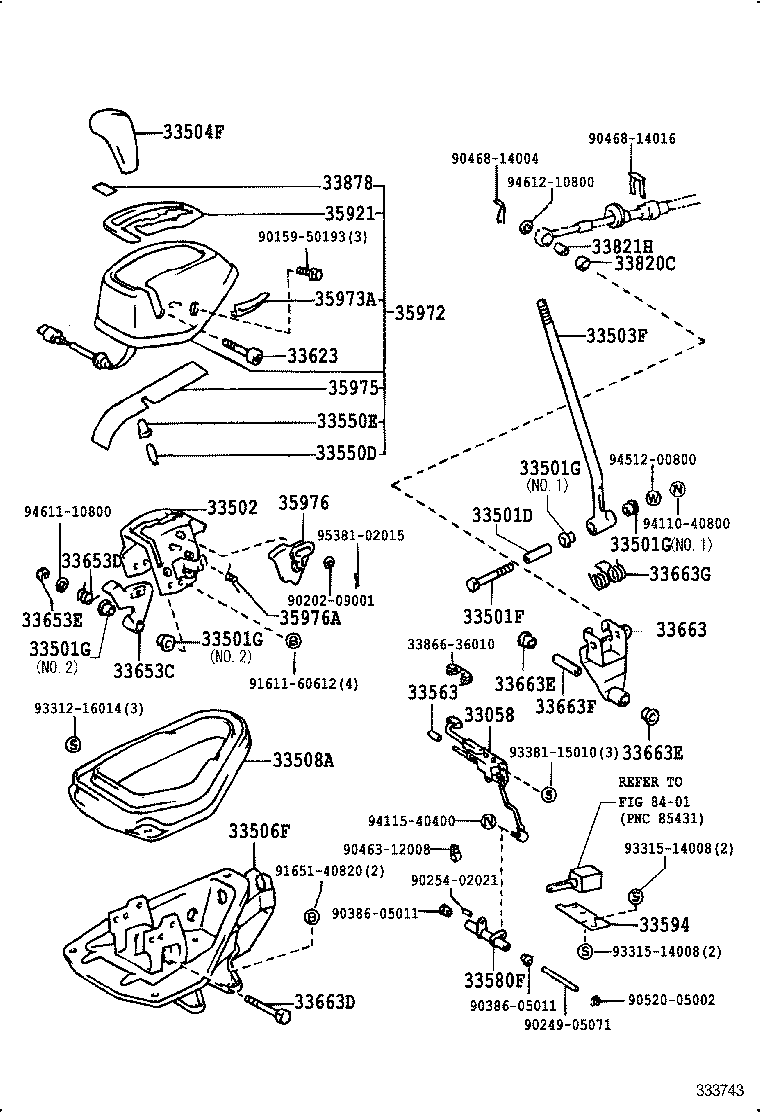

Click highlighted areas on diagram

Part #	Description	Period	Qty
33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33058-36010	BU66,67,87,88,96..4FC	10/1989 - 05/1995	1
33501D - COLLAR (FOR FLOOR SHIFT CONTROL SHAFT)
90387-08089	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
91121-40855	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-08014	BU66,67,87,88,96..4FC NO.2	08/1988 - 05/1995	2
90385-11003	BU66,67,87,88,96..4FC NO.1	08/1988 - 05/1995	2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-08014	BU66,67,87,88,96..4FC NO.2	08/1988 - 05/1995	2
90385-11003	BU66,67,87,88,96..4FC NO.1	08/1988 - 05/1995	2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-08014	BU66,67,87,88,96..4FC NO.2	08/1988 - 05/1995	2
90385-11003	BU66,67,87,88,96..4FC NO.1	08/1988 - 05/1995	2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-08014	BU66,67,87,88,96..4FC NO.2	08/1988 - 05/1995	2
90385-11003	BU66,67,87,88,96..4FC NO.1	08/1988 - 05/1995	2
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-36050	BU66,67,87,88,96..4FC	10/1989 - 05/1995	1
33502-36040	BU66,67,87,88,96..4FC	08/1988 - 10/1989	1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-36120	BU88,96..4FC	08/1988 - 05/1995	1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-3607006	BU66,67,87,88,96..DYN..4FC BROWN,TRIM4#	08/1988 - 09/1991	1
33504-36070B0	BU66,67,87,88,96..4FC GRAY,TRIM1#	09/1991 - 05/1995	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-36020	BU66,67,87,88,96..4FC	08/1988 - 10/1989	1
33570-36021	BU66,67,87,88,96..4FC	10/1989 - 09/1991	1
33570-36022	BU66,67,87,88,96..4FC	09/1991 - 05/1995	1
33508A - BOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT)
33508-36040	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33550D - BULB, POSITION INDICATOR LAMP
90981-16020	BU66,67,87,88,96..4FC 24V 1.8W	08/1988 - 05/1995	2
33550E - CAP, POSITION INDICATOR LAMP
90339-04014	BU66,67,87,88,96..4FC	08/1988 - 05/1995	2
33563 - BUTTON, SHIFT LOCK RELEASE
33563-36010	BU66,67,87,88,96..4FC	10/1989 - 05/1995	1
33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT)
33580-36060	BU66,67,87,88,96..4FC	10/1989 - 05/1995	1
33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT)
33594-36010	BU66,67,87,88,96..4FC	10/1989 - 05/1995	1
33623 - BUTTON, SHIFT LEVER KNOB
33623-36020B0	BU66,67,87,88,96..4FC GRAY,TRIM1#	09/1991 - 05/1995	1
33623-3602006	BU66,67,87,88,96..DYN..4FC BROWN,TRIM4#	08/1988 - 09/1991	1
33653C - GUIDE, SHIFT LEVER WIRE
33653-36030	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33653D - SPRING, TORSION (FOR FLOOR SHIFT LEVER GUIDE)
90508-16113	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33653E - RING, E (FOR FLOOR SHIFT LEVER GUIDE)
96160-00500	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33663 - LEVER, CONTROL
33663-36090	BU66,67,87,88,96..4FC	08/1988 - 10/1989	1
33663-36092	BU66,67,87,88,96..4FC	09/1991 - 05/1995	1
33663-36091	BU66,67,87,88,96..4FC	10/1989 - 09/1991	1
33663D - BOLT (FOR FLOOR SHIFT CONTROL LEVER)
91121-50845	BU66,67,87,88,96..4FC	08/1988 - 09/1991	1
91121-50850	BU66,67,87,88,96..4FC	09/1991 - 05/1995	1
33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER)
90385-11006	BU66,67,87,88,96..4FC	08/1988 - 05/1995	2
33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER)
90385-11006	BU66,67,87,88,96..4FC	08/1988 - 05/1995	2
33663F - COLLAR (FOR FLOOR SHIFT CONTROL LEVER)
90387-08080	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33663G - SPRING, TORSION (FOR FLOOR SHIFT CONTROL LEVER)
90508-26076	BU66,67,87,88,96..4FC	08/1988 - 10/1989	1
90508-25003	BU66,67,87,88,96..4FC	10/1989 - 05/1995	1
33820C - BUSH (FOR TRANSMISSION CONTROL CABLE)
90386-10025	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33821H - COLLAR (FOR TRANSMISSION CONTROL CABLE)
90560-08366	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33878 - LABEL, SHIFT LOCK INFORMATION, NO.2
33878-36010	BU66,67,87,88,96..4FC	10/1989 - 05/1995	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-36040	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
35972 - COVER, POSITION INDICATOR HOUSING
35902-3603006	BU66,67,87,88,96..DYN..4FC BROWN,TRIM4#	08/1988 - 10/1989	1
35902-3605006	BU66,67,87,88,96..DYN..4FC BROWN,TRIM4#	10/1989 - 09/1991	1
35902-36050B0	BU66,67,87,88,96..4FC GRAY,TRIM1#	09/1991 - 05/1995	1
35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER
35973-36010	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-36020	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-36010B0	BU66,67,87,88,96..4FC GRAY,TRIM1#	09/1991 - 05/1995	1
35976-3601006	BU66,67,87,88,96..DYN..4FC BROWN,TRIM4#	08/1988 - 09/1991	1
35976A - SPRING, TORSION (FOR POSITION INDICATER SLIDE COVER)
90508-10045	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
Common parts
33866-36010
90159-50193
90202-09001
90249-05071
90254-02021
90386-05011
90463-12008
90468-14004
90468-14016
90520-05002
91611-60612
91651-40820
93312-16014
93315-14008
93381-15010
94110-40800
94115-40400
94512-00800
94611-10800
94612-10800
95381-02015
Linked diagrams
8401

ILLUST NO. 1 OF 2(8808-8910)4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
33501D - COLLAR (FOR FLOOR SHIFT CONTROL SHAFT)
90387-08089	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
91121-40855	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-08014	BU66,67,87,88,96..4FC NO.2	08/1988 - 05/1995	2
90385-11003	BU66,67,87,88,96..4FC NO.1	08/1988 - 05/1995	2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-08014	BU66,67,87,88,96..4FC NO.2	08/1988 - 05/1995	2
90385-11003	BU66,67,87,88,96..4FC NO.1	08/1988 - 05/1995	2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-08014	BU66,67,87,88,96..4FC NO.2	08/1988 - 05/1995	2
90385-11003	BU66,67,87,88,96..4FC NO.1	08/1988 - 05/1995	2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-08014	BU66,67,87,88,96..4FC NO.2	08/1988 - 05/1995	2
90385-11003	BU66,67,87,88,96..4FC NO.1	08/1988 - 05/1995	2
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-36050	BU66,67,87,88,96..4FC	10/1989 - 05/1995	1
33502-36040	BU66,67,87,88,96..4FC	08/1988 - 10/1989	1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-36120	BU88,96..4FC	08/1988 - 05/1995	1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-3607006	BU66,67,87,88,96..DYN..4FC BROWN,TRIM4#	08/1988 - 09/1991	1
33504-36070B0	BU66,67,87,88,96..4FC GRAY,TRIM1#	09/1991 - 05/1995	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-36020	BU66,67,87,88,96..4FC	08/1988 - 10/1989	1
33570-36021	BU66,67,87,88,96..4FC	10/1989 - 09/1991	1
33570-36022	BU66,67,87,88,96..4FC	09/1991 - 05/1995	1
33508A - BOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT)
33508-36040	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33550D - BULB, POSITION INDICATOR LAMP
90981-16020	BU66,67,87,88,96..4FC 24V 1.8W	08/1988 - 05/1995	2
33550E - CAP, POSITION INDICATOR LAMP
90339-04014	BU66,67,87,88,96..4FC	08/1988 - 05/1995	2
33623 - BUTTON, SHIFT LEVER KNOB
33623-36020B0	BU66,67,87,88,96..4FC GRAY,TRIM1#	09/1991 - 05/1995	1
33623-3602006	BU66,67,87,88,96..DYN..4FC BROWN,TRIM4#	08/1988 - 09/1991	1
33653C - GUIDE, SHIFT LEVER WIRE
33653-36030	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33653D - SPRING, TORSION (FOR FLOOR SHIFT LEVER GUIDE)
90508-16113	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33653E - RING, E (FOR FLOOR SHIFT LEVER GUIDE)
96160-00500	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33663 - LEVER, CONTROL
33663-36090	BU66,67,87,88,96..4FC	08/1988 - 10/1989	1
33663-36092	BU66,67,87,88,96..4FC	09/1991 - 05/1995	1
33663-36091	BU66,67,87,88,96..4FC	10/1989 - 09/1991	1
33663D - BOLT (FOR FLOOR SHIFT CONTROL LEVER)
91121-50845	BU66,67,87,88,96..4FC	08/1988 - 09/1991	1
91121-50850	BU66,67,87,88,96..4FC	09/1991 - 05/1995	1
33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER)
90385-11006	BU66,67,87,88,96..4FC	08/1988 - 05/1995	2
33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER)
90385-11006	BU66,67,87,88,96..4FC	08/1988 - 05/1995	2
33663F - COLLAR (FOR FLOOR SHIFT CONTROL LEVER)
90387-08080	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33663G - SPRING, TORSION (FOR FLOOR SHIFT CONTROL LEVER)
90508-26076	BU66,67,87,88,96..4FC	08/1988 - 10/1989	1
90508-25003	BU66,67,87,88,96..4FC	10/1989 - 05/1995	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-36040	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
35972 - COVER, POSITION INDICATOR HOUSING
35902-3603006	BU66,67,87,88,96..DYN..4FC BROWN,TRIM4#	08/1988 - 10/1989	1
35902-3605006	BU66,67,87,88,96..DYN..4FC BROWN,TRIM4#	10/1989 - 09/1991	1
35902-36050B0	BU66,67,87,88,96..4FC GRAY,TRIM1#	09/1991 - 05/1995	1
35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER
35973-36010	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-36020	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-36010B0	BU66,67,87,88,96..4FC GRAY,TRIM1#	09/1991 - 05/1995	1
35976-3601006	BU66,67,87,88,96..DYN..4FC BROWN,TRIM4#	08/1988 - 09/1991	1
35976A - SPRING, TORSION (FOR POSITION INDICATER SLIDE COVER)
90508-10045	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
Common parts
90159-50193
90202-09001
91611-40612
91651-40820
93312-16014
94110-40800
94512-00800
94611-10800
95381-02015

ILLUST NO. 2 OF 2(8808- )4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
33671F - SUPPORT, CONTROL ROD, NO.1
33607-36080	BU78,85,88,9#	08/1988 - 05/1995	1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-28010	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-36060	BU88,96..4FC..DSL	08/1988 - 05/1995	1
33820C - BUSH (FOR TRANSMISSION CONTROL CABLE)
90386-10025	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33821H - COLLAR (FOR TRANSMISSION CONTROL CABLE)
90560-08366	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-36050	BU66,67,87,88,96..4FC	08/1988 - 05/1995	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-36050	BU88,96..4FC	08/1988 - 05/1995	1
Common parts
90119-10310
90119-10530
90170-10028
90179-08146
90386-10025
90461-10638
90468-14004
90468-14016
90560-08366
90949-01416
91611-60820
91611-61016
91651-40820
91651-60820
94612-10800
