BU88-PDDTJ3 (1988)
Toyota Dyna/Toyoace

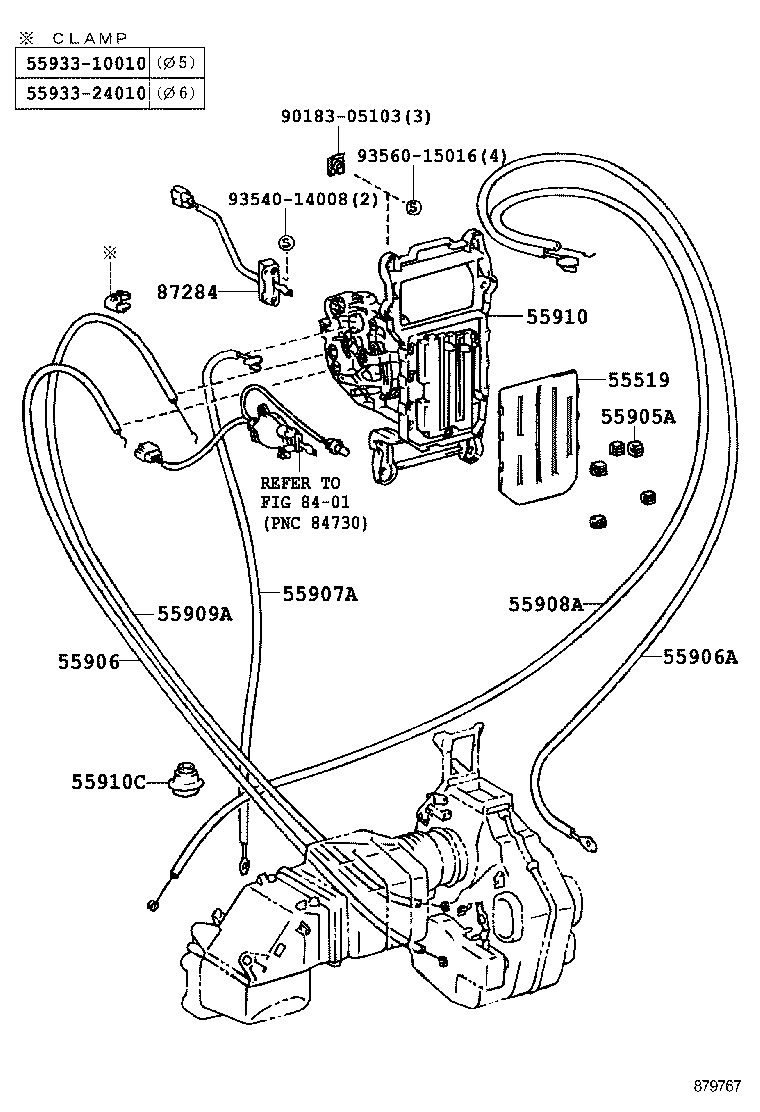

ILLUST NO. 1 OF 2(8808-9110)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95405 |
BU6#,70,8#,9# |
1 | ||
| 55519-95405 |
BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
BU6#,7#,83,84,87,88,91,94,96 ﾎﾜｲﾄ |
3 | ||
| 55905-95707 |
BU6#,70,8#,9# ﾌﾞﾙｰ |
1 | ||
| 55905-10110 |
BU6#,70,8#,9# ﾎﾜｲﾄ |
3 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55905-95402 |
BU85,88,9# |
1 | ||
| 55905-95402 |
BU78,88,91,94,96 |
1 | ||
| 55905-36020 |
BU78,88,9# |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95405 |
BU85,88,9# |
1 | ||
| 55906-95405 |
BU78,88,91,94,96 |
1 | ||
| 55906-36040 |
BU78,88,9# |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95405 |
BU85,88,9# |
1 | ||
| 55907-36020 |
BU78,88,9# |
1 | ||
| 55907-95405 |
BU78,88,91,94,96 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95403 |
BU78,88,91,94,96 |
1 | ||
| 55908-95403 |
BU85,88,9# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95405 |
BU85,88,9# |
1 | ||
| 55909-95405 |
BU78,88,91,94,96 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95408 |
BU60,68,83;BU66,67,87,88,96..4FC..DSL ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ) |
1 | ||
| 55910-36070 |
BU6#,7#,8#,9# |
1 | ||
| 55910-95408 |
BU60,61,68,83,84;BU66,67,87,88,96..4FC..DSL ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ) |
1 | ||
| 55910-95407 |
BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 55910-36080 |
BU60,61,68,83,84..DSL;BU66,67,87,88,96..4FC..DSL ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ) |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-15001 |
BU85,88,9# |
1 | ||
| 90480-15001 |
BU78,88,91,94,96 |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU88..TD..IV3;BU88..275..IV3;BU88..T4..30T..CBU;BU60,67,7#,83,84,9#;BU61,66..5F..ST..IV3;BU66,88..(T2,T3)..4FC;BU88..(T2,T3)..5F..CBU;BU66,87..5F..(275,30T);BU88..(T4,TW1)..5F..20T;BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU |
1 | ||
| 88032-95400 |
BU70,83;BU60..T3..ST..IV3;BU66,67,87,88..4FC;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU |
1 | ||
| 88032-95400 |
BU70,73,83;BU96..4FC..TD;BU60..T3..ST..IV3;BU66..T4..4FC..CBU;BU66..(T2,T3)..4FC;BU88..4FC..30T..CBU;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU;BU67,87,88..4FC..(20T,275) |
1 | ||
| 88032-95400 |
BU66..IV4;BU70,73,83;BU96..4FC..TD;BU60..T3..ST..IV3;BU66..T4..4FC..CBU;BU66..(T2,T3)..4FC;BU88..4FC..30T..CBU;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU;BU67,87,88..4FC..(20T,275) |
1 | ||
| 88032-95400 |
BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU88..TD..IV3;BU88..275..IV3;BU88..T4..30T..CBU;BU88..(T4,TW1)..20T;BU87..5F..(275,30T);BU66,96..275,30T,35T;BU61,66..5F..ST..IV3;BU66,88..(T2,T3)..4FC;BU88..(T2,T3)..5F..CBU;BU60,67,7#,83,84,91,94..5F;BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU |
1 | ||
| 88032-95400 |
BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4 |
1 | ||
| 88032-95400 |
BU87..V;BU87..T2,TW1;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU87..5F..(275,30T);BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU66,96..275,30T,35T;BU61,88..5F..03S..CBU;BU87,88..4FC..(20T,275);BU60,67,7#,83,84,91,94..5F;BU66..(T2,T3)..5F..20T..CBU;BU66,87..(T3,T4)..WT..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4 |
1 | ||
| Common parts | ||||
| 55933-10010 | ||||
| 55933-24010 | ||||
| 90183-05103 | ||||
| 93540-14008 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

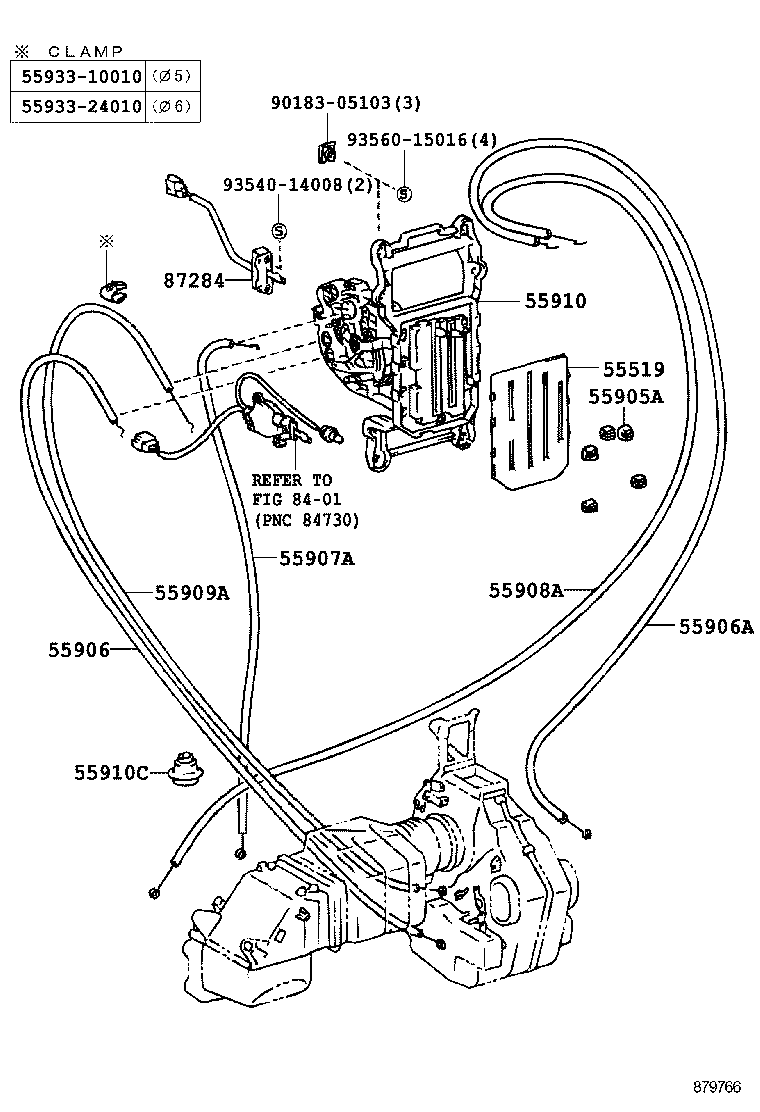

ILLUST NO. 1 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95405 |
BU6#,70,8#,9# |
1 | ||
| 55519-95405 |
BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
BU6#,7#,83,84,87,88,91,94,96 ﾎﾜｲﾄ |
3 | ||
| 55905-95707 |
BU6#,70,8#,9# ﾌﾞﾙｰ |
1 | ||
| 55905-10110 |
BU6#,70,8#,9# ﾎﾜｲﾄ |
3 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55905-95402 |
BU85,88,9# |
1 | ||
| 55905-95402 |
BU78,88,91,94,96 |
1 | ||
| 55905-36020 |
BU78,88,9# |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95405 |
BU85,88,9# |
1 | ||
| 55906-95405 |
BU78,88,91,94,96 |
1 | ||
| 55906-36040 |
BU78,88,9# |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95405 |
BU85,88,9# |
1 | ||
| 55907-36020 |
BU78,88,9# |
1 | ||
| 55907-95405 |
BU78,88,91,94,96 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95403 |
BU78,88,91,94,96 |
1 | ||
| 55908-95403 |
BU85,88,9# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95405 |
BU85,88,9# |
1 | ||
| 55909-95405 |
BU78,88,91,94,96 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95408 |
BU60,68,83;BU66,67,87,88,96..4FC..DSL ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ) |
1 | ||
| 55910-36070 |
BU6#,7#,8#,9# |
1 | ||
| 55910-95408 |
BU60,61,68,83,84;BU66,67,87,88,96..4FC..DSL ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ) |
1 | ||
| 55910-95407 |
BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 55910-36080 |
BU60,61,68,83,84..DSL;BU66,67,87,88,96..4FC..DSL ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ) |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-15001 |
BU85,88,9# |
1 | ||
| 90480-15001 |
BU78,88,91,94,96 |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU88..TD..IV3;BU88..275..IV3;BU88..T4..30T..CBU;BU60,67,7#,83,84,9#;BU61,66..5F..ST..IV3;BU66,88..(T2,T3)..4FC;BU88..(T2,T3)..5F..CBU;BU66,87..5F..(275,30T);BU88..(T4,TW1)..5F..20T;BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU |
1 | ||
| 88032-95400 |
BU70,83;BU60..T3..ST..IV3;BU66,67,87,88..4FC;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU |
1 | ||
| 88032-95400 |
BU70,73,83;BU96..4FC..TD;BU60..T3..ST..IV3;BU66..T4..4FC..CBU;BU66..(T2,T3)..4FC;BU88..4FC..30T..CBU;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU;BU67,87,88..4FC..(20T,275) |
1 | ||
| 88032-95400 |
BU66..IV4;BU70,73,83;BU96..4FC..TD;BU60..T3..ST..IV3;BU66..T4..4FC..CBU;BU66..(T2,T3)..4FC;BU88..4FC..30T..CBU;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU;BU67,87,88..4FC..(20T,275) |
1 | ||
| 88032-95400 |
BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU88..TD..IV3;BU88..275..IV3;BU88..T4..30T..CBU;BU88..(T4,TW1)..20T;BU87..5F..(275,30T);BU66,96..275,30T,35T;BU61,66..5F..ST..IV3;BU66,88..(T2,T3)..4FC;BU88..(T2,T3)..5F..CBU;BU60,67,7#,83,84,91,94..5F;BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU |
1 | ||
| 88032-95400 |
BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4 |
1 | ||
| 88032-95400 |
BU87..V;BU87..T2,TW1;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU87..5F..(275,30T);BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU66,96..275,30T,35T;BU61,88..5F..03S..CBU;BU87,88..4FC..(20T,275);BU60,67,7#,83,84,91,94..5F;BU66..(T2,T3)..5F..20T..CBU;BU66,87..(T3,T4)..WT..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4 |
1 | ||
| Common parts | ||||
| 55933-10010 | ||||
| 55933-24010 | ||||
| 90183-05103 | ||||
| 93540-14008 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

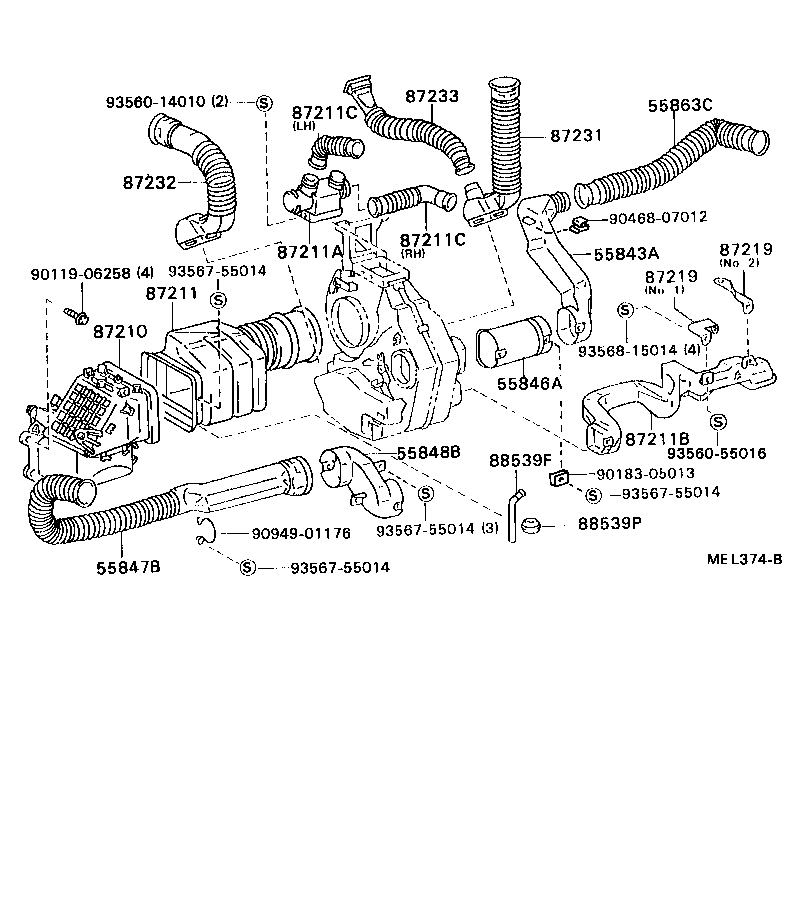

ILLUST NO. 2 OF 2(8808- )BU78,85,88,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-95407 |
BU78,85,88,9# |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-95400 |
BU78,85,88,9# |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-95401 |
BU78,85,88,9# |
1 | ||
| 55848B - DUCT, HEATER TO REGISTER, NO.6 | ||||
| 55848-95400 |
BU6#,7#,8#,9# |
1 | ||
| 55863C - BOOT, SIDE VENTILATOR DUCT | ||||
| 55863-95405 |
BU6#,7#,8#,9# |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95402 |
BU6#,70,8#,9# |
1 | ||
| 87210-95402 |
BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95406 |
BU78,88,91,94,96 |
1 | ||
| 87211-95406 |
BU85,88,9# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-95412 |
BU78,88,91,94,96 |
1 | ||
| 87211-95412 |
BU85,88,9# |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-95410 |
BU85,88,9# |
1 | ||
| 87211-95410 |
BU78,88,91,94,96 |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87211-95415 |
BU85,88,9# 右側 |
1 | ||
| 87211-95414 |
BU85,88,9# 左側 |
1 | ||
| 87211-95414 |
BU78,88,91,94,96 左側 |
1 | ||
| 87211-95415 |
BU78,88,91,94,96 右側 |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87211-95415 |
BU85,88,9# 右側 |
1 | ||
| 87211-95414 |
BU85,88,9# 左側 |
1 | ||
| 87211-95414 |
BU78,88,91,94,96 左側 |
1 | ||
| 87211-95415 |
BU78,88,91,94,96 右側 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
BU6#,70,8#,9# NO.1 |
1 | ||
| 87214-95403 |
BU6#,70,8#,9# NO.2 |
1 | ||
| 87214-95403 |
BU6#,7#,83,84,87,88,91,94,96 NO.2 |
1 | ||
| 87214-95402 |
BU6#,7#,83,84,87,88,91,94,96 NO.1 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
BU6#,70,8#,9# NO.1 |
1 | ||
| 87214-95403 |
BU6#,70,8#,9# NO.2 |
1 | ||
| 87214-95403 |
BU6#,7#,83,84,87,88,91,94,96 NO.2 |
1 | ||
| 87214-95402 |
BU6#,7#,83,84,87,88,91,94,96 NO.1 |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95409 |
BU78,88,91,94,96 |
1 | ||
| 87231-95409 |
BU85,88,9# |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95406 |
BU6#,70,8#,9# |
1 | ||
| 87231-95406 |
BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 87233 - HOSE, HEATER DEFROSTER, CENTER | ||||
| 87232-95403 |
BU78,88,91,94,96 |
1 | ||
| 87232-95403 |
BU85,88,9# |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-95403 |
BU6#,70,8#,9# |
1 | ||
| 88539-95403 |
BU6#,7#,83,84,87,88,91,94,96..DSL,TD |
1 | ||
| 88539P - GROMMET(FOR DRAIN HOSE) | ||||
| 88897-30580 |
BU6#,7#,83,84,87,88,91,94,96..DSL,TD |
1 | ||
| 88897-30580 |
BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90119-06258 | ||||
| 90183-05013 | ||||
| 90468-07012 | ||||
| 90949-01176 | ||||
| 93560-14010 | ||||
| 93560-55016 | ||||
| 93567-55014 | ||||
| 93568-15014 | ||||
