Toyota Dyna/toyoace BU88 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BU88-MDFHTJ3 (1988)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

BU88-MDFHTJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9309- )BU88,9#

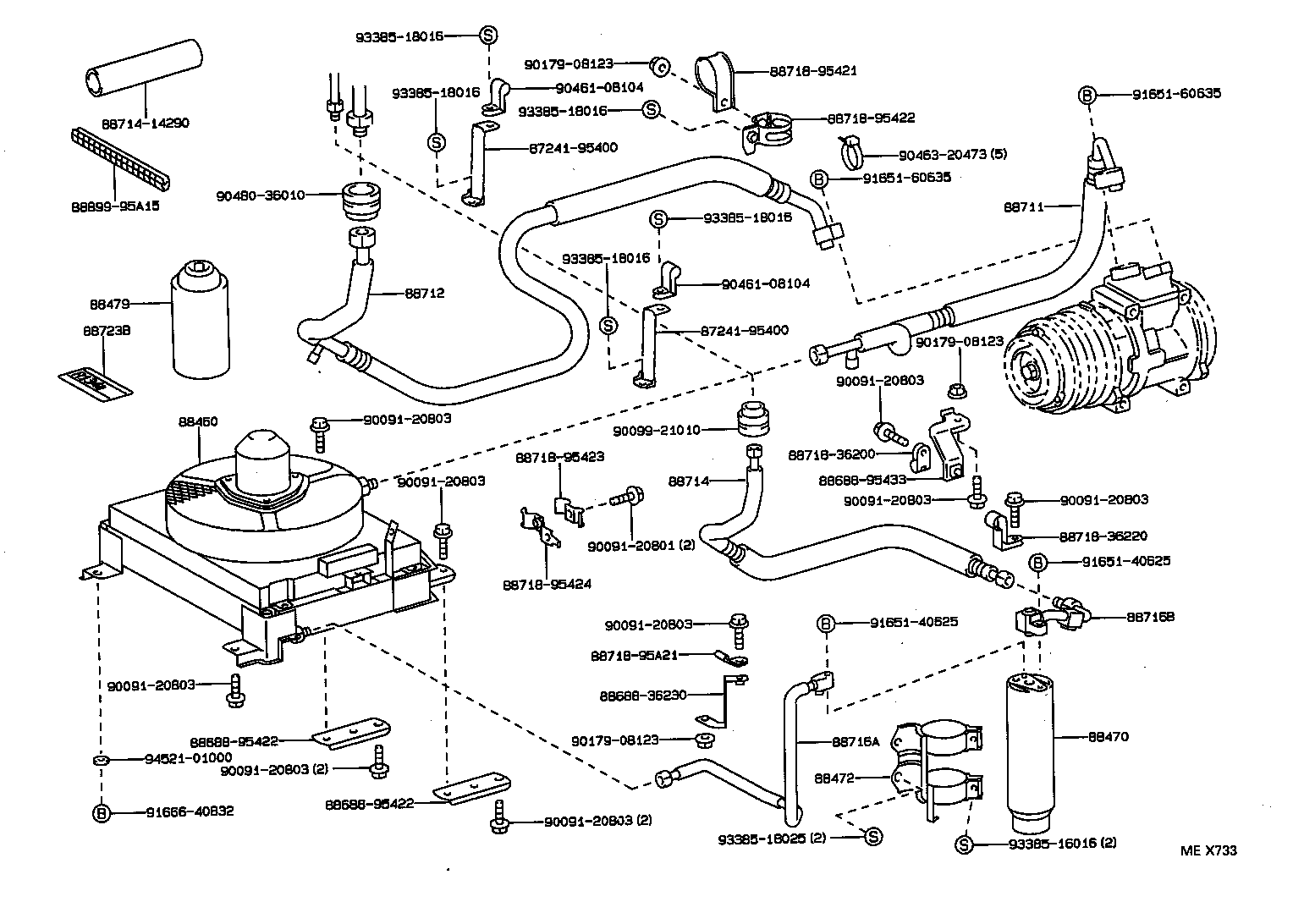

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-37100	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	09/1993 - 05/1995	1
88460-95409	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3	10/1989 - 03/1991	1
88460-95409	BU96..DSL;BU96..5F..TD;BU78,88,91,94..5F;BU88..4FC..30T..IV3	03/1991 - 09/1991	1
88460-95409	BU85,9#;BU88..275..IV3;BU88..(T4,TW1)..5F;BU88..(T2,T3)..5F..CBU	08/1988 - 10/1989	1
88460-95409	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3	09/1991 - 10/1992	1
88460-95409	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	10/1992 - 09/1993	1
88460-36090	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3 TECS ﾚｲﾄｳｼﾔ	03/1991 - 10/1992	1
88460-36090	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3 TECS ﾚｲﾄｳｼﾔ	10/1992 - 09/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95401	BU85,9#;BU88..275..IV3;BU88..(T4,TW1)..5F;BU88..(T2,T3)..5F..CBU	08/1988 - 10/1989	1
88471-95401	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	10/1992 - 09/1993	1
88471-95401	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3	10/1989 - 10/1992	1
88471-20050	BU66..T4..IV3;BU88..4FC..30T..IV3;BU87..(T3,T4)..5F..20T..IV3;BU66..(T2,T3)..5F..WT..20T..IV3;BU61,88..5F..03S..WT..(20T,30T)..DSL..IV3	09/1993 - 05/1995	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95406	BU85,9#;BU88..275..IV3;BU88..(T4,TW1)..5F;BU88..(T2,T3)..5F..CBU	08/1988 - 10/1989	1
88472-95406	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3	10/1989 - 10/1992	1
88472-95406	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	10/1992 - 09/1993	1
88472-37030	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	09/1993 - 05/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	BU96;BU61,66,84,87,88,91,94..5F..(CBU,IV3) 400G	08/1988 - 10/1989	2
90986-02004	BU88..T4..5F..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3 250G	10/1991 - 10/1992	2
90986-02004	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3 250G	09/1991 - 10/1991	2
90986-02004	BU88..5F..03S..(20T,30T)..DSL..IV3 250G	10/1992 - 09/1993	2
90986-02007	BU66..T4..IV3;BU88..4FC..30T..IV3;BU87..(T3,T4)..5F..20T..IV3;BU66..(T2,T3)..5F..WT..20T..IV3;BU61,88..5F..03S..WT..(20T,30T)..DSL..IV3 250G	09/1993 - 05/1995	1
90986-02004	BU66..T4..IV3;BU88..T4..30T..IV3;BU60,61..WT..20T..IV3;BU87..(T3,T4)..5F..20T..IV3;BU66..(T2,T3)..5F..WT..20T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3 250G	10/1989 - 09/1991	2
90986-02008	BU66..T4..IV3;BU88..4FC..30T..IV3;BU87..(T3,T4)..5F..20T..IV3;BU66..(T2,T3)..5F..WT..20T..IV3;BU61,88..5F..03S..WT..(20T,30T)..DSL..IV3 200G	09/1993 - 05/1995	2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36120	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3 TECS ﾚｲﾄｳｼﾔ	10/1989 - 03/1991	1
88711-95423	BU96..DSL;BU96..5F..TD;BU78,88,91,94..5F;BU88..4FC..30T..IV3	10/1989 - 09/1991	1
88711-95423	BU96;BU85,88,90,91,94,95..5F	08/1988 - 10/1989	1
88711-36130	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3 TECS ﾚｲﾄｳｼﾔ	03/1991 - 10/1992	1
88711-95423	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3	09/1991 - 10/1992	1
88711-36130	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3 TECS ﾚｲﾄｳｼﾔ	10/1992 - 09/1993	1
88711-95423	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	10/1992 - 09/1993	1
88711-36210	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3 TECS ﾚｲﾄｳｼﾔ	09/1993 - 05/1995	1
88711-37040	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	09/1993 - 05/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36130	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3 TECS ﾚｲﾄｳｼﾔ	03/1991 - 10/1992	1
88712-95417	BU96..DSL;BU96..5F..TD;BU78,88,91,94..5F;BU88..4FC..30T..IV3	10/1989 - 09/1991	1
88712-95417	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3	09/1991 - 10/1992	1
88712-36120	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3 TECS ﾚｲﾄｳｼﾔ	10/1989 - 03/1991	1
88712-95417	BU96;BU85,88,90,91,94,95..5F	08/1988 - 10/1989	1
88712-36190	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	09/1993 - 05/1995	1
88712-36130	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3 TECS ﾚｲﾄｳｼﾔ	10/1992 - 09/1993	1
88712-95417	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	10/1992 - 09/1993	1
88712-37060	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	09/1993 - 05/1995	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95409	BU85,9#;BU88..275..IV3;BU88..(T4,TW1)..5F;BU88..(T2,T3)..5F..CBU	08/1988 - 10/1989	1
88721-95409	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	10/1992 - 09/1993	1
88721-37060	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	09/1993 - 05/1995	1
88721-95409	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3	10/1989 - 10/1992	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95410	BU85,9#;BU88..275..IV3;BU88..(T4,TW1)..5F;BU88..(T2,T3)..5F..CBU	08/1988 - 10/1989	1
88716-95410	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	10/1992 - 09/1993	1
88716-37060	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	09/1993 - 05/1995	1
88716-95410	BU88..T4..30T..IV3;BU88..(T2,T3)..5F..(20T,30T)..DSL..IV3	10/1989 - 10/1992	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-37120	BU88..4FC..30T..IV3;BU88..5F..03S..(20T,30T)..DSL..IV3	09/1993 - 05/1995	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	BU66..T4..IV3;BU88..4FC..30T..IV3;BU87..(T3,T4)..5F..20T..IV3;BU66..(T2,T3)..5F..WT..20T..IV3;BU61,88..5F..03S..WT..(20T,30T)..DSL..IV3	09/1993 - 05/1995	1
Common parts
87241-95400
88688-95422
88714-12140
88714-30290
88718-36220
88718-87002
88718-95423
88718-95424
88718-95429
88718-95A21
88899-36030
90091-20801
90099-01225
90099-21010
90461-10240
90480-36010
91651-40625
91651-60635
91666-40832
93385-16016
93385-18016
93385-18020
93385-18025
