BU88-MDFHTJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU78,85,88,9#

Click highlighted areas on diagram

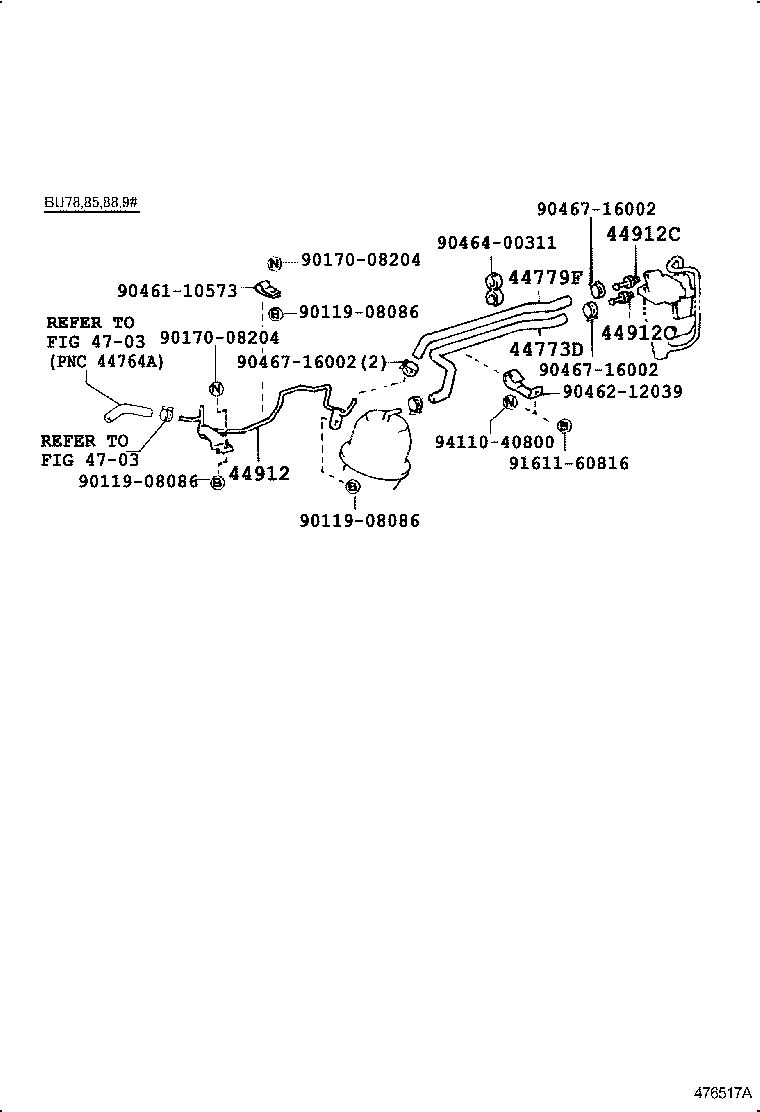

diagram 44773D 44779F 44912 44912C 44912C 4703 4703 9011908086 9011908086 9011908086 9017008204 9017008204 9046110573 9046212039 9046400311 9046716002 9046716002 9046716002 9161160816 9411040800
Part # Description Qty Price
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36041

BU78,85,88,9#

 1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36010

BU78,85,88,9#

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44912-36160

BU78,85,88,9#

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU78,85,88,9#

 2
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU78,85,88,9#

 2
Common parts
90119-08086
90170-08204
90461-10573
90462-12039
90464-00311
90467-16002
91611-60816
94110-40800
Linked diagrams
4703
