BU88-MDFHTJ3 (1988)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(8808- )13BT,14B#..BU78,85,88,9# ; (9008-)14B..BU67..DM1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58360 |
14B..BU96..5F;14B..BU78,88,91,94..03S |
1 | ||
| 17700-58360 |
14B..BU88,91,94,96..03S |
1 | ||
| 17700-58370 |
14B#..BU96..5F..IV3;14B..BU88..T4..30T..IV3 ｼﾕﾉ-ｹﾙ ﾀｲﾌﾟ |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 90175-08008 |
13BT,14B#..BU78,85,88,9# |
1 | ||
| 90175-08008 |
14B..BU72..DMP;14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56150 |
14BT..BU96..4FC;14B..BU78,88,91,94,96 |
1 | ||
| 17701-56150 |
14B..BU72..DMP;14B..BU67..DM1;14BT..BU96..4FC;14B..BU78,88,9# |
1 | ||
| 17701-56150 |
14B..BU67..DM1;14BT..BU96..4FC;14B..BU78,88,9# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56150 |
14BT..BU96..4FC;14B..BU78,88,91,94,96 |
1 | ||
| 17701-56150 |
14B..BU72..DMP;14B..BU67..DM1;14BT..BU96..4FC;14B..BU78,88,9# |
1 | ||
| 17701-56150 |
14B..BU67..DM1;14BT..BU96..4FC;14B..BU78,88,9# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58010 |
14BT..BU96..4FC;14B..BU78,88,91,94,96 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| Common parts | ||||
| 90179-10016 | ||||
| 90339-03002 | ||||
| 91621-61025 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8808-9008)B,11B,14B,3B..BU6#,70,83,84,87 ; (8910-9109)14B..BU72,73,74 ; (9008-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58360 |
14B..BU96..5F;14B..BU78,88,91,94..03S |
1 | ||
| 17700-58360 |
14B..BU96..5F;14B..BU78,88,91,94..03S |
1 | ||
| 17700-58360 |
14B..BU88,91,94,96..03S |
1 | ||
| 17700-58360 |
14B..BU88,91,94,96..03S |
1 | ||
| 17700-58370 |
14B#..BU96..5F..IV3;14B..BU88..T4..30T..IV3 ｼﾕﾉ-ｹﾙ ﾀｲﾌﾟ |
1 | ||
| 17700-58370 |
14B#..BU96..5F..IV3;14B..BU88..T4..30T..IV3 ｼﾕﾉ-ｹﾙ ﾀｲﾌﾟ |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 90175-08008 |
14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 90175-08008 |
13BT,14B#..BU78,85,88,9# |
1 | ||
| 90175-08008 |
13BT,14B#..BU78,85,88,9# |
1 | ||
| 90175-08008 |
14B..BU72..DMP;14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 90175-08008 |
14B..BU72..DMP;14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 90175-08008 |
14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 90175-08008 |
13BT,14B#..BU78,85,88,9# |
1 | ||
| 90175-08008 |
13BT,14B#..BU78,85,88,9# |
1 | ||
| 90175-08008 |
14B..BU72..DMP;14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 90175-08008 |
14B..BU72..DMP;14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56150 |
14BT..BU96..4FC;14B..BU78,88,91,94,96 |
1 | ||
| 17701-56150 |
14BT..BU96..4FC;14B..BU78,88,91,94,96 |
1 | ||
| 17701-56150 |
14B..BU72..DMP;14B..BU67..DM1;14BT..BU96..4FC;14B..BU78,88,9# |
1 | ||
| 17701-56150 |
14B..BU72..DMP;14B..BU67..DM1;14BT..BU96..4FC;14B..BU78,88,9# |
1 | ||
| 17701-56150 |
14B..BU67..DM1;14BT..BU96..4FC;14B..BU78,88,9# |
1 | ||
| 17701-56150 |
14B..BU67..DM1;14BT..BU96..4FC;14B..BU78,88,9# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17801-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58010 |
14BT..BU96..4FC;14B..BU78,88,91,94,96 |
1 | ||
| 17807-58010 |
14BT..BU96..4FC;14B..BU78,88,91,94,96 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17845-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 2 OF 2(8808-9008)B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 ; (9008- )B,11B,14B,3B..BU6#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58150 |
14B..BU78,88,91,94,96 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU78,88,91,94,96 INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9# PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU78,88,91,94,96 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9#;14B,27LPG..BU68,72..DMP PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BU67..DM1;14B..BU78,88,9# INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU78,88,91,94,96 INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9# PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU78,88,91,94,96 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9#;14B,27LPG..BU68,72..DMP PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BU67..DM1;14B..BU78,88,9# INTAKE MANIFOLD SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-58040 |
14B..BU78,88,91,94,96 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10930 |
14B..BU78,88,91,94,96 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
14B..BU78,88,91,94,96 PIPE SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10930 |
14B..BU78,88,91,94,96 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
14B..BU78,88,91,94,96 PIPE SIDE |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37080 |
BU78,88,9#..03S..DSL |
1 | ||
| 53097-95428 |
BU78,88,91,94,96..03S..DSL |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90202-05129 | ||||
| 90202-06119 | ||||
| 90468-14001 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91656-40820 | ||||
| 91665-40620 | ||||

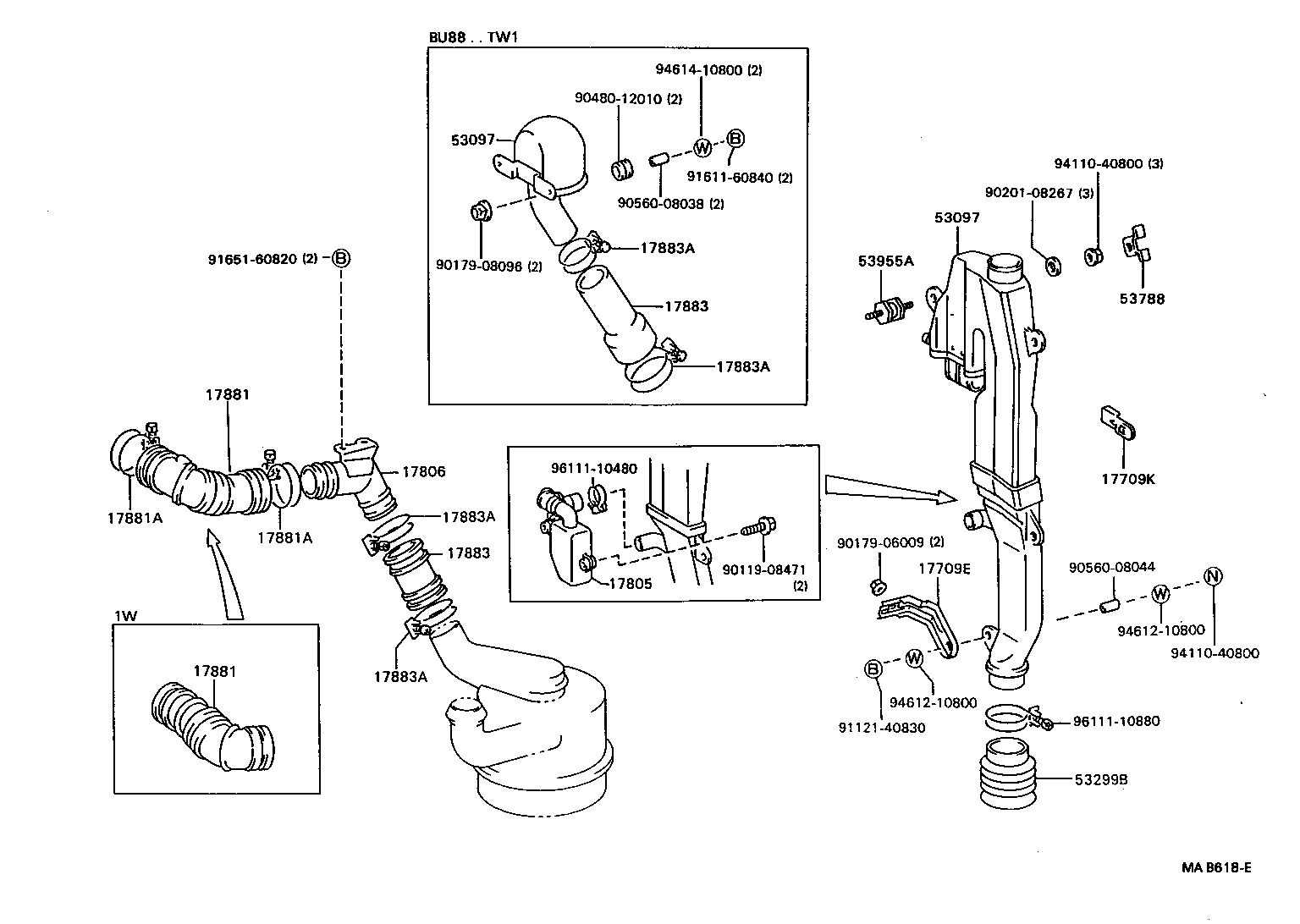

ILLUST NO. 2 OF 2(8808- )14B..BU78,88,91,94,96
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-95401 |
13BT,14B#..BU78,85,88,9#..03S |
1 | ||
| 17709K - BRACKET, AIR CLEANER INLET, NO.4 | ||||
| 53765-95402 |
14B..BU96..4FC;14B..BU78,88,91,94..T4 |
1 | ||
| 53765-95402 |
13BT,14B#..BU78,85,88,9#..03S |
1 | ||
| 53765-95402 |
14B..BU78,88,9#..03S |
1 | ||
| 53765-95402 |
14B..BU96..4FC;14B..BU91,94..T4;14B..BU78,88..03S |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-95400 |
14B..BU78,88,91,94,96..03S |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-58020 |
14B..BU78,88,91,94,96 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58150 |
14B..BU78,88,91,94,96 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58150 |
14B..BU78,88,91,94,96 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU78,88,91,94,96 INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9# PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU78,88,91,94,96 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9#;14B,27LPG..BU68,72..DMP PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BU67..DM1;14B..BU78,88,9# INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU78,88,91,94,96 INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9# PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU78,88,91,94,96 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9#;14B,27LPG..BU68,72..DMP PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BU67..DM1;14B..BU78,88,9# INTAKE MANIFOLD SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-58040 |
14B..BU78,88,91,94,96 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-58040 |
14B..BU78,88,91,94,96 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10930 |
14B..BU78,88,91,94,96 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
14B..BU78,88,91,94,96 PIPE SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10930 |
14B..BU78,88,91,94,96 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
14B..BU78,88,91,94,96 PIPE SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10930 |
14B..BU78,88,91,94,96 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
14B..BU78,88,91,94,96 PIPE SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10930 |
14B..BU78,88,91,94,96 AIR CLEANER SIDE |
1 | ||
| 96111-10750 |
14B..BU78,88,91,94,96 PIPE SIDE |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37080 |
BU78,88,9#..03S..DSL |
1 | ||
| 53097-95428 |
BU78,88,91,94,96..03S..DSL |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37080 |
BU78,88,9#..03S..DSL |
1 | ||
| 53097-95428 |
BU78,88,91,94,96..03S..DSL |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-95401 |
BU78,85,88,9#..03S |
1 | ||
| 53788 - BRACKET, AIR CLEANER INLET, NO.6 | ||||
| 53788-95400 |
BU96..4FC..DSL;BU91,94..T4..DSL;BU78,88..03S..DSL |
1 | ||
| 53788-95400 |
BU78,88,9#..03S..DSL |
1 | ||
| 53788-95400 |
BU78,85,88,9#..03S |
1 | ||
| 53788-95400 |
BU96..4FC..DSL;BU78,88,91,94..T4..DSL |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-95402 |
BU78,85,88,9#..03S |
3 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90179-06009 | ||||
| 90179-08096 | ||||
| 90201-08267 | ||||
| 90480-12010 | ||||
| 90560-08038 | ||||
| 90560-08044 | ||||
| 91121-40830 | ||||
| 91611-60840 | ||||
| 91651-60820 | ||||
| 94110-40800 | ||||
| 94612-10800 | ||||
| 94614-10800 | ||||
| 96111-10480 | ||||
| 96111-10880 | ||||
