BU88-MDDHTJ3 (1988)
Toyota Dyna/Toyoace

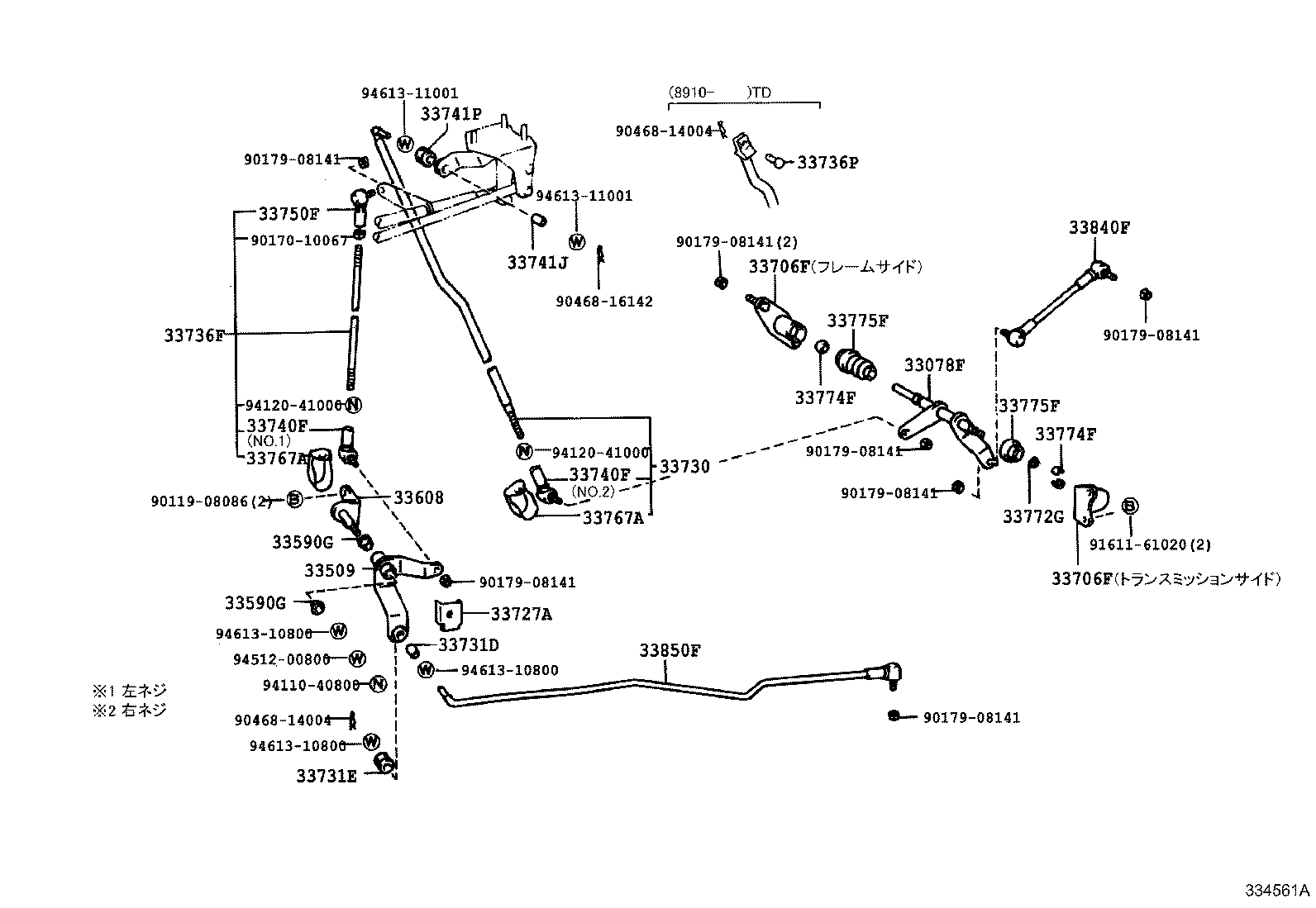

ILLUST NO. 2 OF 2(8808- )BU78,85,88,9#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33078F - SHAFT SUB-ASSY, CROSS, NO.2(FOR FLOOR SHIFT) | ||||
| 33078-36240 |
BU78,85,88,9#..5F |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-36010 |
BU78,85,88,9#..5F |
1 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 90386-13007 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 90386-13007 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-36010 |
BU78,85,88,9#..5F |
1 | ||
| 33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33706-36030 |
BU78,85,88,9#..5F FRAME SIDE |
1 | ||
| 33706-36040 |
BU85,88,9#..5F TRANSMISSION SIDE |
1 | ||
| 33706-36120 |
BU78,88,9#..5F TRANSMISSION SIDE |
1 | ||
| 33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33706-36030 |
BU78,85,88,9#..5F FRAME SIDE |
1 | ||
| 33706-36040 |
BU85,88,9#..5F TRANSMISSION SIDE |
1 | ||
| 33706-36120 |
BU78,88,9#..5F TRANSMISSION SIDE |
1 | ||
| 33730 - ROD ASSY, GEAR SHIFTING, NO.2 (FOR FLOOR SHIFT) | ||||
| 33730-36220 |
BU78,88,91,94,96..5F..DSL |
1 | ||
| 33731D - BUSH (FOR GEAR SELECTING ROD) | ||||
| 90389-08005 |
BU78,85,88,9#..5F |
1 | ||
| 33731E - GROMMET (FOR GEAR SELECTING ROD) | ||||
| 90480-17014 |
BU78,85,88,9#..5F |
1 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33790-36430 |
BU90..TOY..T3..IV3;BU78,88,91,94,96..5F..DSL |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-36050 |
BU73..03S;BU88..5F..DSL;BU90..TOY..T3..IV3;BU6#,70,72,74,83,84,87,91,94..5F NO.1 & NO.2 |
2 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-36050 |
BU73..03S;BU88..5F..DSL;BU90..TOY..T3..IV3;BU6#,70,72,74,83,84,87,91,94..5F NO.1 & NO.2 |
2 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90387-10063 |
BU78,85,90,95;BU88,91,94,96..5F..DSL |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17254 |
BU78,85,90,95;BU88,91,94,96..5F..DSL |
1 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-36030 |
BU88,96..5F |
2 | ||
| 33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) | ||||
| 33767-36010 |
BU88..5F;BU72,73,74,78,85,9#..5F..03S |
1 | ||
| 33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) | ||||
| 33767-36010 |
BU88..5F;BU72,73,74,78,85,9#..5F..03S |
1 | ||
| 33772G - RING, SNAP (FOR CROSS SAFT SUPPORT BUSH) | ||||
| 96151-01600 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-35011 |
BU78,85,88,9#..5F 右側 |
1 | ||
| 33772-20010 |
BU6#,70,78,8#,9#..5F 左側 |
2 | ||
| 33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-35011 |
BU78,85,88,9#..5F 右側 |
1 | ||
| 33772-20010 |
BU6#,70,78,8#,9#..5F 左側 |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F CROSS SHAFT NO.2,LH |
1 | ||
| 33775-35010 |
BU78,85,88,9#..5F CROSS SHAFT NO.2,RH |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F CROSS SHAFT NO.2,LH |
1 | ||
| 33775-35010 |
BU78,85,88,9#..5F CROSS SHAFT NO.2,RH |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-36350 |
BU78,88,91,94,96..5F..DSL |
1 | ||
| 33850F - ROD ASSY, GEAR SELECTING, NO.3 | ||||
| 33850-36250 |
BU78,85,88,9#..5F |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90170-10067 | ||||
| 90179-08141 | ||||
| 90468-14004 | ||||
| 90468-16142 | ||||
| 91611-61020 | ||||
| 94110-40800 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| 94613-11001 | ||||

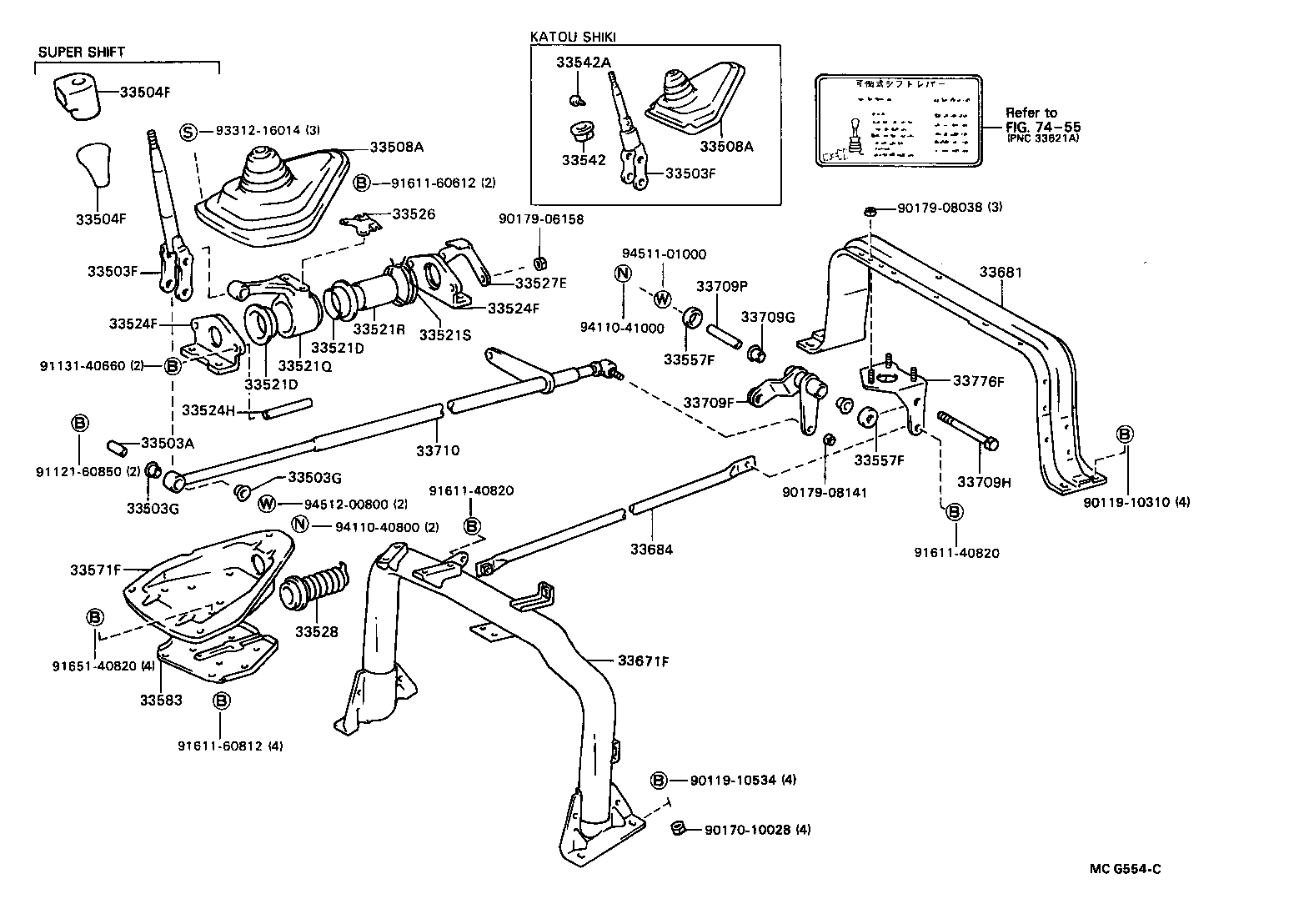

ILLUST NO. 1 OF 2(8808- )BU78,85,88,9#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08009 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 90387-08065 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-36060 |
BU6#,70,78,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33501-36210 |
BU6#,70,78,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33501-36211 |
BU6#,70,78,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33501-36210 |
BU6#,70,78,8#,9#..5F..(CBU,IV3) ｱﾘ(ｶﾄｳｼｷ ｼﾌﾄ ﾚﾊﾞ-) |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-36060 |
BU6#,70,78,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33501-36210 |
BU6#,70,78,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33501-36211 |
BU6#,70,78,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33501-36210 |
BU6#,70,78,8#,9#..5F..(CBU,IV3) ｱﾘ(ｶﾄｳｼｷ ｼﾌﾄ ﾚﾊﾞ-) |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90389-11006 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
4 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90389-11006 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
4 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-3605004 |
BU6#,72,74,78,8#,9#..TOY..5F BLUE,TRIM8# |
1 | ||
| 33504-36051B0 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F GRAY,TRIM1# |
1 | ||
| 33504-36050B0 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F GRAY,TRIM1# |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-3605004 |
BU6#,72,74,78,8#,9#..TOY..5F BLUE,TRIM8# |
1 | ||
| 33504-36051B0 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F GRAY,TRIM1# |
1 | ||
| 33504-36050B0 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F GRAY,TRIM1# |
1 | ||
| 33508A - BOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT) | ||||
| 33508-36030 |
BU6#,70,78,8#,9#..5F |
1 | ||
| 33508-36030 |
BU6#,70,78,8#,9#..5F ｱﾘ(ｶﾄｳｼｷ ｼﾌﾄ ﾚﾊﾞ-) |
1 | ||
| 33508-36010 |
BU6#,70,78,8#,9#..5F |
1 | ||
| 33508A - BOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT) | ||||
| 33508-36030 |
BU6#,70,78,8#,9#..5F |
1 | ||
| 33508-36030 |
BU6#,70,78,8#,9#..5F ｱﾘ(ｶﾄｳｼｷ ｼﾌﾄ ﾚﾊﾞ-) |
1 | ||
| 33508-36010 |
BU6#,70,78,8#,9#..5F |
1 | ||
| 33521D - BUSH (FOR SHIFT LEVER HOUSING) | ||||
| 90389-38004 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33521D - BUSH (FOR SHIFT LEVER HOUSING) | ||||
| 90389-38004 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33521-36050 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33521-36051 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33521R - COLLAR (FOR SHIFT LEVER HOUSING) | ||||
| 90387-34001 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33521S - SPRING (FOR SHIFT LEVER HOUSING) | ||||
| 90508-26067 |
BU78,85,88,9#..5F |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-36030 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-36030 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33524H - COLLER (FOR CONTROL LEVER HOUSING SUPPORT BRACKET) | ||||
| 90387-06026 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33526 - PLATE, SHIFT LEVER SUPPORT, NO.1 | ||||
| 33526-36030 |
BU78,85,88,9#..5F |
1 | ||
| 33527E - PLATE, SHIFT LEVER SUPPORT, NO.2 | ||||
| 33527-36130 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33528 - COVER, CONTROL SHAFT | ||||
| 33528-36020 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33542 - KNOB, SPRING BACK SHIFT LEVER | ||||
| 33542-25010 |
BU6#,70,78,8#,9#..5F |
1 | ||
| 33542A - SCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB) | ||||
| 90159-40109 |
BU6#,70,78,8#,9#..5F |
2 | ||
| 33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT) | ||||
| 33557-36020 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT) | ||||
| 33557-36020 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33571F - BRACKET, CONTROL SHAFT, LOWER NO.2 | ||||
| 33571-36090 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33583 - BRACKET, CONTROL SHAFT, LOWER NO.2 | ||||
| 33583-36050 |
BU6#,70,78,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33583-36050 |
BU6#,70,83,84,87,88,91,94,96..5F |
1 | ||
| 33583-36050 |
BU6#,70,78,8#,9#..5F |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33607-36080 |
BU78,85,88,9# |
1 | ||
| 33681 - MEMBER, CONTROL ROD, REAR | ||||
| 33681-36011 |
BU88,96..5F;BU6#,70,78,83,84,85,87,90,91,94,95 |
1 | ||
| 33681-36011 |
BU88,96..5F;BU67..DM4,T3;BU60,61,66,68,70,78,83,84,87,91,94 |
1 | ||
| 33684 - ROD, CONTROL MEMBER BRACE | ||||
| 33684-36030 |
BU78,85,88,9#..5F |
1 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-36310 |
BU78,85,90,95;BU88,91,94,96..5F..DSL |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13007 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33709H - BOLT, HEXAGON (FOR CROSS SHAFT) | ||||
| 90101-10117 |
BU78,85,88,9#..5F |
1 | ||
| 33709P - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-10064 |
BU78,85,88,9#..5F |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-36210 |
BU78,85,88,9#..5F |
1 | ||
| 33710-36211 |
BU78,88,9#..5F |
1 | ||
| 33776F - BRACKET, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33776-36190 |
BU78,85,88,9#..5F |
1 | ||
| Common parts | ||||
| 90119-10310 | ||||
| 90119-10534 | ||||
| 90170-10028 | ||||
| 90179-06158 | ||||
| 90179-08038 | ||||
| 90179-08141 | ||||
| 91121-60850 | ||||
| 91131-40660 | ||||
| 91611-40820 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91651-40820 | ||||
| 93312-16014 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 7455 | ||||
