BU87-MDPDTJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU60,66,87..06S..CBU,IV3

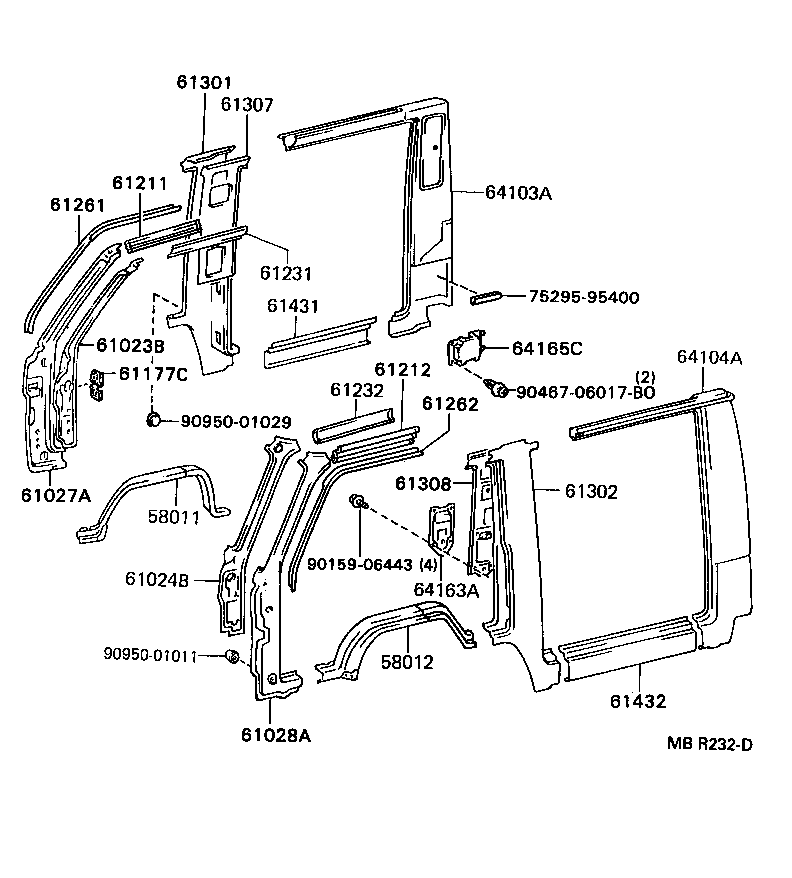

Click highlighted areas on diagram

diagram 58011 58012 61023B 61024B 61027A 61028A 61177C 61211 61212 61231 61232 61261 61262 61301 61302 61307 61308 61431 61432 64103A 64104A 64163A 64165C 7529595400 9015906443 9046706017B0 9095001011 9095001029
Part # Description Qty Price
58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
58011-95448

BU60,66,73,87,88..06S

 1
58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58012-95445

BU60,66,73,87,88..06S

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95400

BU6#,7#,8#,9#

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95400

BU6#,7#,8#,9#

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95400

BU6#,72,74,78,8#,9#..CBU,IV3

 1
61027-37010

BU6#,7#,8#,9#

 1
61027-95400

BU6#,70,8#,9#

 1
61027-37030

BU6#,7#,8#,9#

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95400

BU6#,7#,8#,9#

 1
61028-37030

BU6#,7#,8#,9#

 1
61177C - BRACKET, DOOR CHECK ARM
61177-37010

BU88..T2,T3;BU88..T4..30T;BU66..30T..IV3;BU72,73,94..(DM4,DM5,T3,T4)..DSL;BU60,61,67,68,74,78,83,84,87,91,96;BU66..(DM2,DM3,DM5,T2,T3,T4)..(20T,275)

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95404

BU60,66,73,87,88..06S

 1
61211-95404

BU60,66,73,87,88..06S

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95404

BU60,66,73,87,88..06S

 1
61231 - RAIL, ROOF SIDE, INNER RH
61203-95401

BU60,66,73,87..06S

 1
61232 - RAIL, ROOF SIDE, INNER LH
61204-95402

BU60,66,73,87..06S

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-95407

BU6#,72,73,74,78,8#,9#

 1
61261-95407

BU6#,72,73,74,78,8#,9#

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-95407

BU6#,72,73,74,78,8#,9#

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-95A08

BU60,66,73,87..06S

 1
61301-95A08

BU60,66,73,87..06S..(CBU,IV3)

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-95A12

BU60,66,73,87..06S

 1
61302-95A12

BU60,66,73,87..06S..(CBU,IV3)

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-95401

BU60,66,73,87..06S

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-95401

BU60,66,73,87..06S

 1
61308-95402

BU66..175;BU60,73,87..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
61431 - PANEL, ROCKER, OUTER REAR RH
61431-95401

BU60,66,73,87,88..06S

 1
61432 - PANEL, ROCKER, OUTER REAR LH
61431-95401

BU60,66,73,87,88..06S

 1
64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH
64103-95412

BU60,66,87..06S..(CBU,IV3)

 1
64103-37010

BU60,66,87..06S..(CBU,IV3)

 1
64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH
64104-95414

BU60,66,87..06S..(CBU,IV3)

 1
64104-37010

BU60,66,87..06S..(CBU,IV3)

 1
64163A - COVER, BACK CORNER, INNER
64163-9541013

BU6#,72,74,78,8#,9#..TOY

GRAY,TRIM8#

 2
64163-9541013

BU87..V;BU87..TOY;BU87..DYN..4FC;BU87..DYN..5F..(275,30T);BU87..DYN..(T2,T4,TW1)..5F;BU87..DYN..T3..5F..20T..CBU;BU6#,72,73,74,78,83,84,88,9#

GRAY,TRIM1#

 2
64163-9541006

BU87..V;BU87..DYN..4FC;BU87..DYN..T3..20T..CBU;BU87..DYN..5F..(275,30T);BU87..DYN..(T2,T4,TW1)..5F;BU6#,7#,83,84,85,88,9#..DYN

BROWN,TRIM4#

 2
64163-95410A0

BU60,66,70,73,87,88..HRF,SRF,TW1,TW2,TW4

WHITE,TRIM1#&048

 2
64165C - COVER, BACK CORNER, INNER REAR
64165-37010B0

BU60,66,87..06S..(CBU,IV3)

GRAY,TRIM1#

 2
Common parts
75295-95400
90159-06443
90467-06017B0
90950-01011
90950-01029

(8808- )V

Click highlighted areas on diagram

diagram 58241C 58242C 5852 5852 5852 61023B 61024B 61027A 61028A 61207A 61207A 61208A 61211 61212 61214B 61217A 61218A 61225A 61226A 61227D 61228D 61231 61232 61233A 61234A 61261 61262 61265B 61266B 61267A 61268 61301C 61302C 61307 61308 61351C 61351C 61363B 61364B 61423A 61424A 61605B 61606B 61607C 61608C 61611 61612 61613E 61614E 61621E 61631A 61632A 61641B 61641B 61642B 61642B 61645A 61646A 61665C 61666C 61671A 61673D 61675D 61677B 61678B 61681B 61703C 61703E 61704G 61705R 61706R 61714A 61725 61725C 61726C 61735B 61781C 61783 61795D 61796C 64015 64016 64163A 76607 76608 76628A 9016860004 9017906164 9095001006 9095001011 9095001011 9095001029 9095001306 9165140614 9165140614 9321016010 9351015010
Part # Description Qty Price
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95400

BU6#,7#,8#,9#

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95400

BU6#,7#,8#,9#

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95400

BU6#,72,74,78,8#,9#..CBU,IV3

 1
61027-37010

BU6#,7#,8#,9#

 1
61027-95400

BU6#,70,8#,9#

 1
61027-37030

BU6#,7#,8#,9#

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95400

BU6#,7#,8#,9#

 1
61028-37030

BU6#,7#,8#,9#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95404

BU60,66,73,87,88..06S

 1
61211-95404

BU60,66,73,87,88..06S

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95404

BU60,66,73,87,88..06S

 1
61231 - RAIL, ROOF SIDE, INNER RH
61203-95401

BU60,66,73,87..06S

 1
61232 - RAIL, ROOF SIDE, INNER LH
61204-95402

BU60,66,73,87..06S

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-95407

BU6#,72,73,74,78,8#,9#

 1
61261-95407

BU6#,72,73,74,78,8#,9#

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-95407

BU6#,72,73,74,78,8#,9#

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-95401

BU60,66,73,87..06S

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-95401

BU60,66,73,87..06S

 1
61308-95402

BU66..175;BU60,73,87..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
64163A - COVER, BACK CORNER, INNER
64163-9541013

BU6#,72,74,78,8#,9#..TOY

GRAY,TRIM8#

 2
64163-9541013

BU87..V;BU87..TOY;BU87..DYN..4FC;BU87..DYN..5F..(275,30T);BU87..DYN..(T2,T4,TW1)..5F;BU87..DYN..T3..5F..20T..CBU;BU6#,72,73,74,78,83,84,88,9#

GRAY,TRIM1#

 2
64163-9541006

BU87..V;BU87..DYN..4FC;BU87..DYN..T3..20T..CBU;BU87..DYN..5F..(275,30T);BU87..DYN..(T2,T4,TW1)..5F;BU6#,7#,83,84,85,88,9#..DYN

BROWN,TRIM4#

 2
64163-95410A0

BU60,66,70,73,87,88..HRF,SRF,TW1,TW2,TW4

WHITE,TRIM1#&048

 2
Common parts
90168-60004
90179-06164
90950-01006
90950-01011
90950-01029
90950-01306
91651-40614
93210-16010
93510-15010
Linked diagrams
5852
