Toyota Dyna/toyoace BU87 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BU87-MDPDTJ (1988)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

BU87-MDPDTJ (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8808-9309)BU6#,70,72,73,74,83,84,87

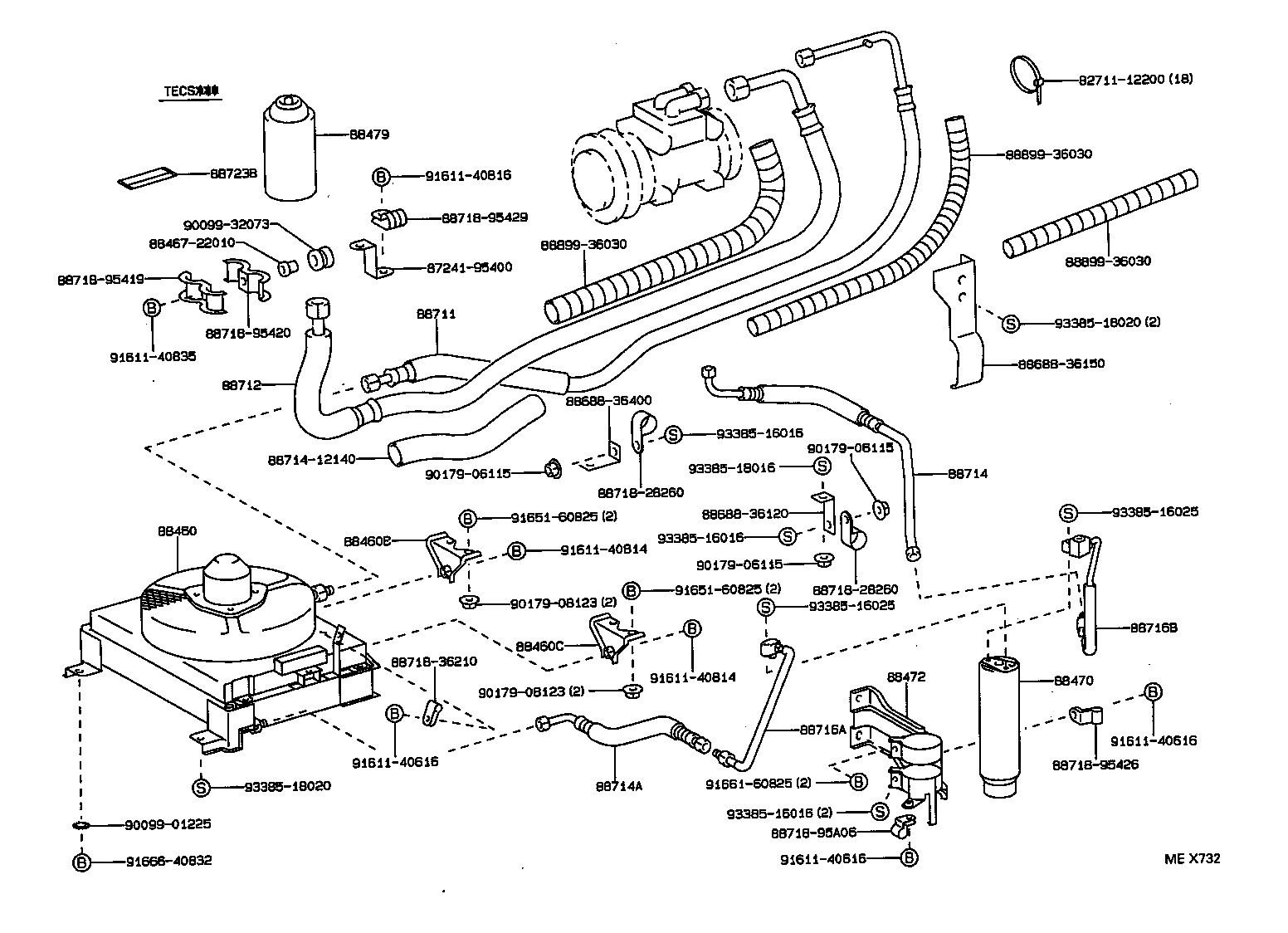

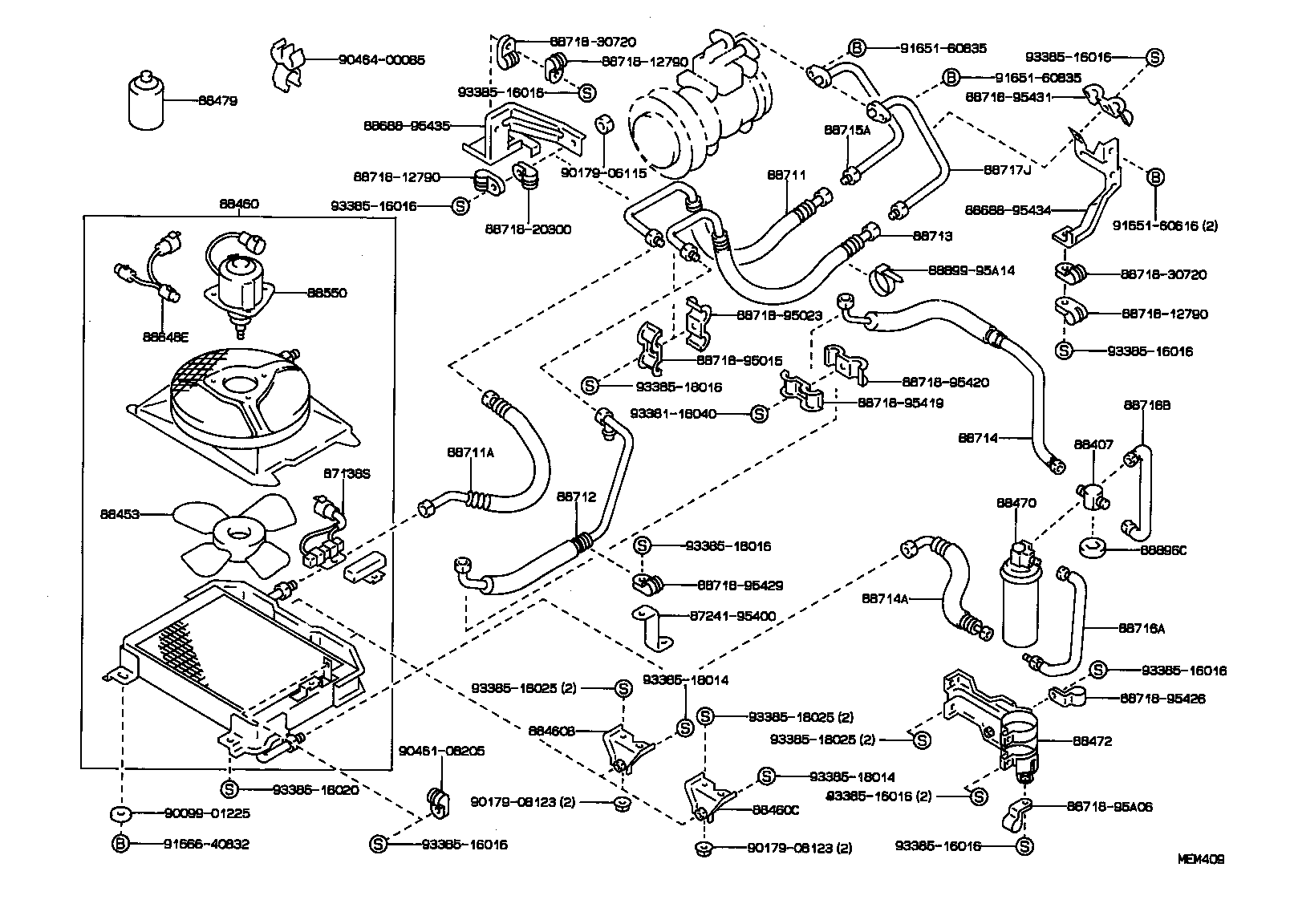

Click highlighted areas on diagram

Part #	Description	Period	Qty
87138S - RESISTOR, BLOWER
87138-95411	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
87138-95411	BU67..5F;BU88,96..4FC;BU60,61,66,68,70,72,73,74,83,84,87	10/1991 - 09/1993	1
87138-95411	BU96..4FC..TD;BU6#,70,72,73,74,83,84,87	09/1991 - 10/1991	1
87138-95411	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88407 - GLASS SUB-ASSY, SIGHT
88407-95701	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88407-95701	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88407-95701	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88407-95701	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-95A01	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88453-95A01	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88453-95A01	BU67..5F;BU88,96..4FC;BU60,61,66,68,70,72,73,74,83,84,87	10/1991 - 09/1993	1
88453-95A01	BU96..4FC..TD;BU6#,70,72,73,74,83,84,87	09/1991 - 10/1991	1
88460 - CONDENSER ASSY, COOLER
88460-95404	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88460-95404	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88460-95404	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,70,72,73,74,83,84;BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88460-95404	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,70,72,73,74,83,84..5F;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	10/1991 - 09/1993	1
88460-37090	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU60,67,70,72,73,74,84;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-95416	BU61,66,72,74,84,87..5F	10/1989 - 06/1991	1
88688-95416	BU61,66,84,87..5F;BU60..WT..20T..IV3	08/1988 - 10/1989	1
88688-95416	BU61,66,72,74,84,87..5F..(CBU,IV3)	06/1991 - 09/1991	1
88688-95416	BU68..LPG;BU60,61,66,70,72,73,74,84,87	09/1993 - 05/1995	1
88688-95416	BU60,61,66,68,70,72,73,74,83,84,87	09/1991 - 09/1993	1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95417	BU61,66,84,87..5F;BU60..WT..20T..IV3	08/1988 - 10/1989	1
88688-95417	BU68..LPG;BU60,61,66,70,72,73,74,84,87	09/1993 - 05/1995	1
88688-95417	BU61,66,72,74,84,87..5F..(CBU,IV3)	06/1991 - 09/1991	1
88688-95417	BU61,66,72,74,84,87..5F	10/1989 - 06/1991	1
88688-95417	BU60,61,66,68,70,72,73,74,83,84,87	09/1991 - 09/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88471-95400	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88471-95400	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88471-95400	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88471-20050	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95408	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88472-95408	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88472-37010	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88472-95408	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88472-95408	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU66..5F..ST..IV3;BU61,96..T3..DSL..IV3;BU66,87..5F..(275,30T);BU88..T4..5F..30T..CBU;BU87..(T3,T4)..20T..CBU;BU88..(T4,TW1)..5F..20T;BU67,78,84,91,94..5F..DSL;BU61,66..TR..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4 250G	10/1989 - 06/1991	2
90986-02001	BU96;BU61,66,84,87,88,91,94..5F..(CBU,IV3) 400G	08/1988 - 10/1989	2
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU66..5F..ST..IV3;BU61,96..T3..DSL..IV3;BU66,87..5F..(275,30T);BU88..T4..5F..30T..CBU;BU87..(T3,T4)..20T..CBU;BU88..(T4,TW1)..5F..20T;BU66..DM1,DM2,DM3,DM5,TW4;BU67,78,84,91,94..5F..DSL;BU61,66..TR..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU 250G	06/1991 - 09/1991	2
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU88..T4..5F..30T..CBU;BU87..(T3,T4)..20T..CBU;BU88..(T4,TW1)..5F..20T;BU61,66..TR..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU60,67,70,73,78,83,84,9#..5F..DSL 250G	10/1991 - 10/1992	2
90986-02004	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU88..275..IV3;BU88..T4..30T..CBU;BU61,66..5F..ST..IV3;BU66,88..(T2,T3)..4FC;BU66,87..5F..(275,30T);BU88..(T4,TW1)..5F..20T;BU66..(T2,T3)..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU60,67,70,73,78,83,84,9#..DSL;BU66,87..(T3,T4)..WT..20T..CBU 250G	09/1991 - 10/1991	2
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU88..5F..03S..DSL..CBU;BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU60,67,70,78,83,84,9#..5F..DSL;BU66,73,88..DM1,DM2,DM3,DM5,TW1,TW4 250G	10/1992 - 09/1993	2
90986-02008	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4 200G	09/1993 - 05/1995	2
90986-02007	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4 250G	09/1993 - 05/1995	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95407	BU96..4FC..TD;BU6#,70,72,73,74,83,84,87	09/1991 - 10/1991	1
87104-95407	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
87104-95407	BU67..5F;BU88,96..4FC;BU60,61,66,68,70,72,73,74,83,84,87	10/1991 - 09/1993	1
87104-95407	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
87104-95407	BU87..T2,TW1	09/1993 - 05/1995	1
88648E - WIRING, COOLER
88648-95419	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88648-95419	BU67..5F;BU88,96..4FC;BU60,61,66,68,70,72,73,74,83,84,87	10/1991 - 09/1993	1
88648-95419	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88648-95419	BU96..4FC..TD;BU6#,70,72,73,74,83,84,87	09/1991 - 10/1991	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95415	BU60..WT..20T..IV3;BU61,66,84,87..5F..(CBU,IV3)	08/1988 - 10/1989	1
88711-95415	BU60..WT..20T..IV3;BU66..T4..4FC..IV3;BU61,66,84,87..5F..(CBU,IV3)	10/1989 - 09/1991	1
88711-95415	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU60,68,70,83,84;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 09/1993	1
88711-37090	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU60,68,70,84..DSL;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU	09/1993 - 05/1995	1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-95417	BU61,66,67,72,74,84,87..5F..(CBU,IV3)	08/1988 - 09/1991	1
88711-37020	BU73..03S;BU6#,70,72,74,84,87..CBU,IV3	09/1993 - 05/1995	1
88711-95417	BU6#,70,72,74,83,84,87..CBU,IV3	09/1991 - 10/1991	1
88711-95417	BU67,73..5F..03S;BU60,61,66,68,70,72,74,83,84,87..CBU,IV3	10/1991 - 09/1993	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95420	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88712-95420	BU60..WT..20T..IV3;BU66..T4..4FC..IV3;BU61,66,67,72,74,84,87..5F..(CBU,IV3)	10/1989 - 09/1991	1
88712-95420	BU60..WT..20T..IV3;BU61,66,67,84,87..5F..(CBU,IV3)	08/1988 - 10/1989	1
88712-95420	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88712-37120	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU60,67,68,70,72,73,74,84..DSL	09/1993 - 05/1995	1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-95421	BU61,66,84,87..5F..(CBU,IV3)	08/1988 - 09/1991	1
88712-37130	BU60,61,66,68,70,84,87..DSL..(CBU,IV3)	09/1993 - 05/1995	1
88712-95421	BU60,61,66,68,70,83,84,87..CBU,IV3	09/1991 - 09/1993	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88721-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88721-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88721-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88721-37030	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-95405	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88721-95405	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88721-95405	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88721-95405	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88721-37010	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95407	BU61,66,67,84,87..5F..(CBU,IV3)	08/1988 - 09/1991	1
88715-37020	BU6#,70,84,87..DSL..(CBU,IV3)	09/1993 - 05/1995	1
88715-95407	BU67..5F;BU60,61,66,68,70,83,84,87..CBU,IV3	10/1991 - 09/1993	1
88715-95407	BU6#,70,83,84,87..CBU,IV3	09/1991 - 10/1991	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95412	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88716-95412	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88716-95412	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88716-37030	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88716-95412	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88716-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88716-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88716-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88716-37020	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88717J - PIPE, COOLER REFRIGERANT SUCTION, J
88717-95404	BU61,66,67,84,87..5F..(CBU,IV3)	08/1988 - 09/1991	1
88717-37020	BU6#,70,84,87..DSL..(CBU,IV3)	09/1993 - 05/1995	1
88717-95404	BU67..5F;BU60,61,66,68,70,83,84,87..CBU,IV3	10/1991 - 09/1993	1
88717-95404	BU6#,70,83,84,87..CBU,IV3	09/1991 - 10/1991	1
88896C - COVER, COOLER REFRIGERANT PIPE, NO.1
88896-95705	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88896-95705	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88896-95705	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88896-95705	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
Common parts
87241-95400
88688-95434
88688-95435
88718-12790
88718-20300
88718-30720
88718-95015
88718-95023
88718-95419
88718-95420
88718-95426
88718-95429
88718-95431
88718-95A06
88899-95A14
90099-01225
90179-06115
90179-08123
90461-08205
90464-00085
91651-60616
91651-60835
91666-40832
93381-18040
93385-16016
93385-18014
93385-18016
93385-18020
93385-18025

(8808-9309)BU6#,70,83,84,87

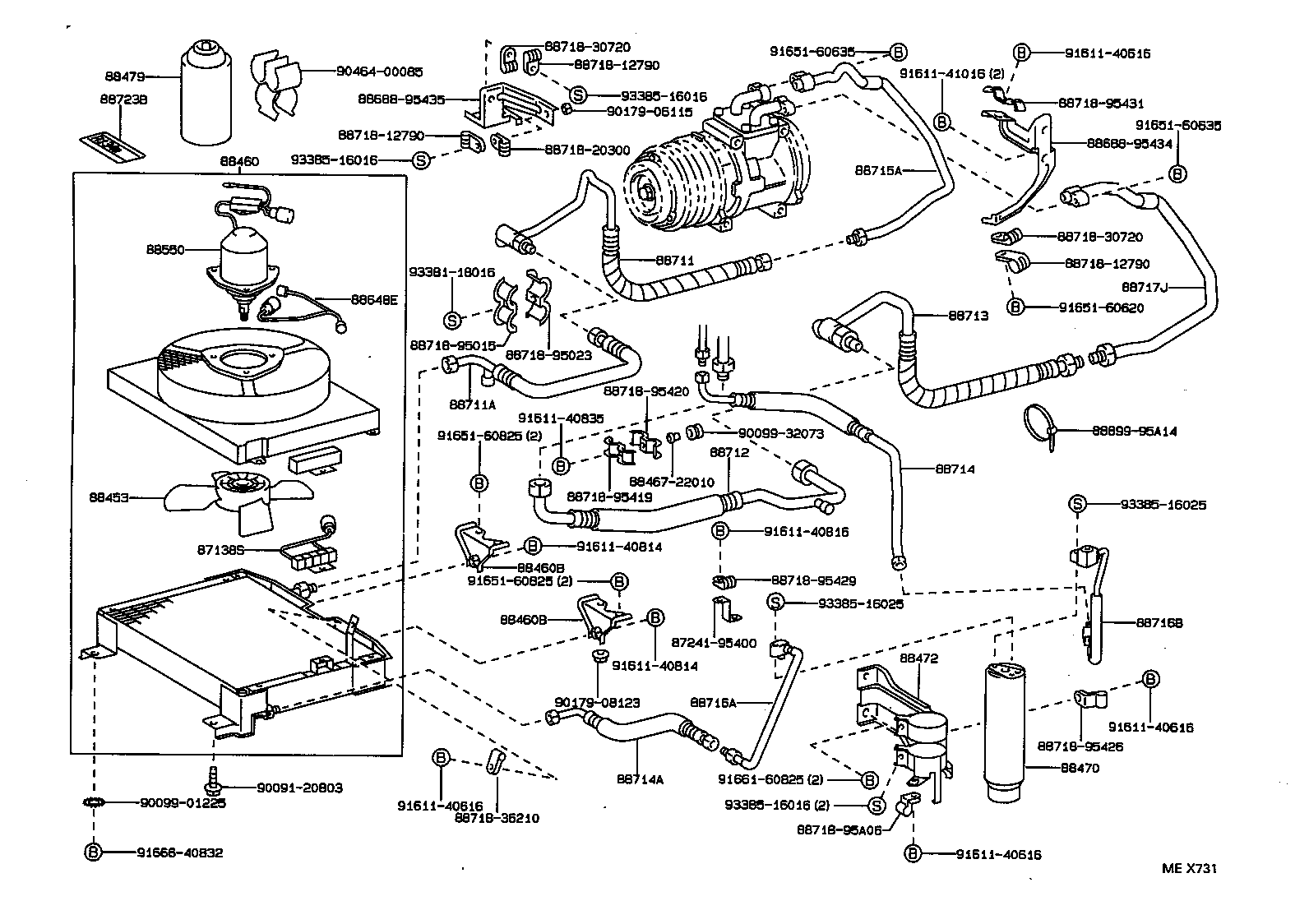

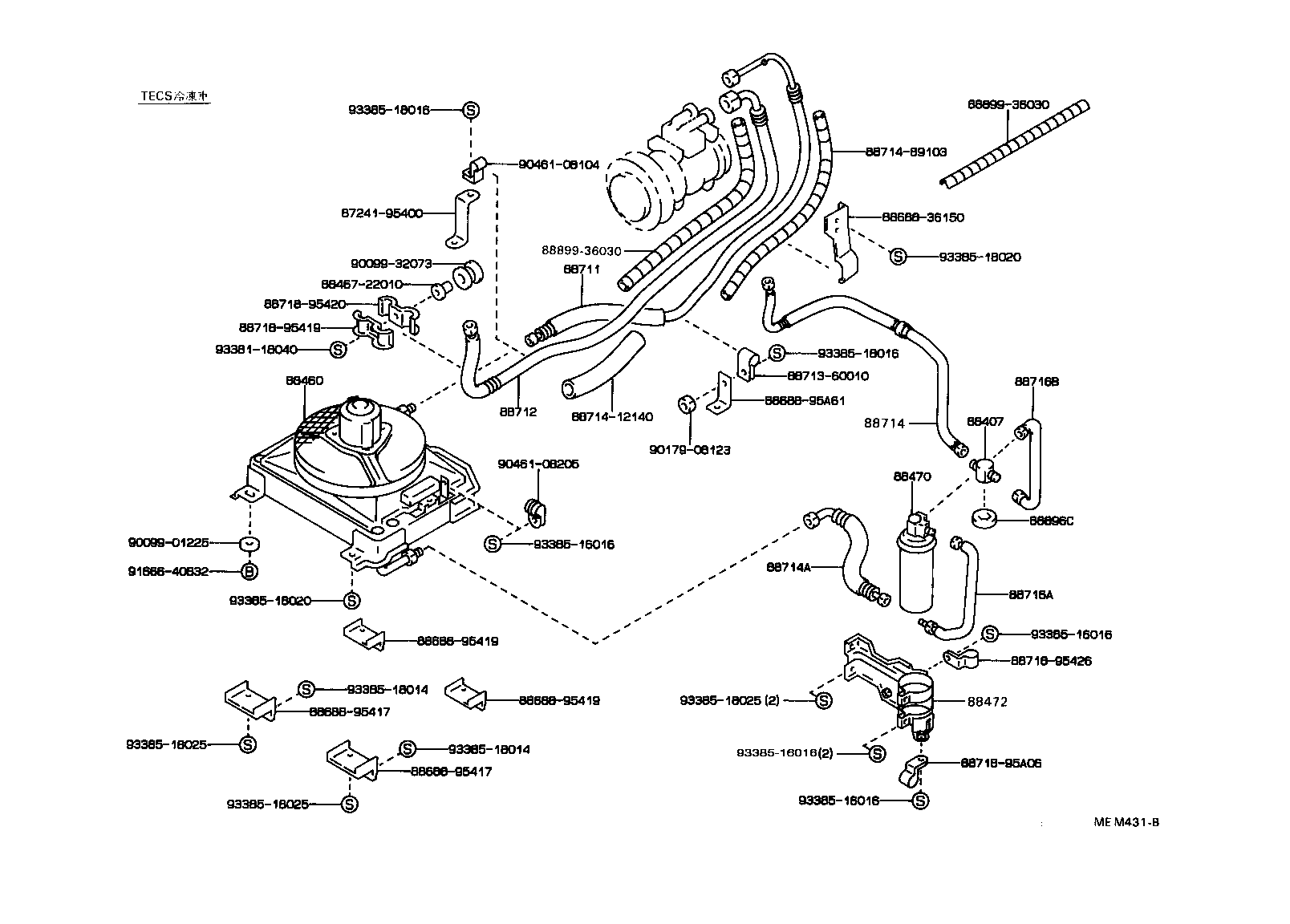

Click highlighted areas on diagram

Part #	Description	Period	Qty
88407 - GLASS SUB-ASSY, SIGHT
88407-95701	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88407-95701	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88407-95701	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88407-95701	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88460 - CONDENSER ASSY, COOLER
88460-95404	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88460-95404	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88460-95404	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,70,72,73,74,83,84;BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88460-95404	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,70,72,73,74,83,84..5F;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	10/1991 - 09/1993	1
88460-37090	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU60,67,70,72,73,74,84;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88471-95400	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88471-95400	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88471-95400	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88471-20050	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95408	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88472-95408	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88472-37010	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88472-95408	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88472-95408	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95415	BU60..WT..20T..IV3;BU61,66,84,87..5F..(CBU,IV3)	08/1988 - 10/1989	1
88711-95415	BU60..WT..20T..IV3;BU66..T4..4FC..IV3;BU61,66,84,87..5F..(CBU,IV3)	10/1989 - 09/1991	1
88711-95415	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU60,68,70,83,84;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 09/1993	1
88711-37090	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU60,68,70,84..DSL;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU	09/1993 - 05/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95420	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88712-95420	BU60..WT..20T..IV3;BU66..T4..4FC..IV3;BU61,66,67,72,74,84,87..5F..(CBU,IV3)	10/1989 - 09/1991	1
88712-95420	BU60..WT..20T..IV3;BU61,66,67,84,87..5F..(CBU,IV3)	08/1988 - 10/1989	1
88712-95420	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88712-37120	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU60,67,68,70,72,73,74,84..DSL	09/1993 - 05/1995	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88721-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88721-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88721-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88721-37030	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-95405	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88721-95405	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88721-95405	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88721-95405	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88721-37010	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95412	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88716-95412	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88716-95412	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88716-37030	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88716-95412	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88716-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88716-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88716-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88716-37020	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88896C - COVER, COOLER REFRIGERANT PIPE, NO.1
88896-95705	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88896-95705	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88896-95705	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88896-95705	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
Common parts
87241-95400
88467-22010
88688-36150
88688-95417
88688-95419
88688-95A61
88713-60010
88714-12140
88714-89103
88718-95419
88718-95420
88718-95426
88718-95A06
88899-36030
90099-01225
90099-32073
90179-08123
90461-08104
90461-08205
91666-40832
93381-18040
93385-16016
93385-18014
93385-18016
93385-18020
93385-18025

(9309- )BU6#,70,72,73,74,84,87..DSL

Click highlighted areas on diagram

Part #	Description	Period	Qty
87138S - RESISTOR, BLOWER
87138-95411	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
87138-95411	BU67..5F;BU88,96..4FC;BU60,61,66,68,70,72,73,74,83,84,87	10/1991 - 09/1993	1
87138-95411	BU96..4FC..TD;BU6#,70,72,73,74,83,84,87	09/1991 - 10/1991	1
87138-95411	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-95A01	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88453-95A01	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88453-95A01	BU67..5F;BU88,96..4FC;BU60,61,66,68,70,72,73,74,83,84,87	10/1991 - 09/1993	1
88453-95A01	BU96..4FC..TD;BU6#,70,72,73,74,83,84,87	09/1991 - 10/1991	1
88460 - CONDENSER ASSY, COOLER
88460-95404	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88460-95404	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88460-95404	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,70,72,73,74,83,84;BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88460-95404	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,70,72,73,74,83,84..5F;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	10/1991 - 09/1993	1
88460-37090	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU60,67,70,72,73,74,84;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-95416	BU61,66,72,74,84,87..5F	10/1989 - 06/1991	1
88688-95416	BU61,66,84,87..5F;BU60..WT..20T..IV3	08/1988 - 10/1989	1
88688-95416	BU61,66,72,74,84,87..5F..(CBU,IV3)	06/1991 - 09/1991	1
88688-95416	BU68..LPG;BU60,61,66,70,72,73,74,84,87	09/1993 - 05/1995	1
88688-95416	BU60,61,66,68,70,72,73,74,83,84,87	09/1991 - 09/1993	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-95416	BU61,66,72,74,84,87..5F	10/1989 - 06/1991	1
88688-95416	BU61,66,84,87..5F;BU60..WT..20T..IV3	08/1988 - 10/1989	1
88688-95416	BU61,66,72,74,84,87..5F..(CBU,IV3)	06/1991 - 09/1991	1
88688-95416	BU68..LPG;BU60,61,66,70,72,73,74,84,87	09/1993 - 05/1995	1
88688-95416	BU60,61,66,68,70,72,73,74,83,84,87	09/1991 - 09/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88471-95400	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88471-95400	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88471-95400	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88471-20050	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95408	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88472-95408	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88472-37010	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88472-95408	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88472-95408	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU66..5F..ST..IV3;BU61,96..T3..DSL..IV3;BU66,87..5F..(275,30T);BU88..T4..5F..30T..CBU;BU87..(T3,T4)..20T..CBU;BU88..(T4,TW1)..5F..20T;BU67,78,84,91,94..5F..DSL;BU61,66..TR..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4 250G	10/1989 - 06/1991	2
90986-02001	BU96;BU61,66,84,87,88,91,94..5F..(CBU,IV3) 400G	08/1988 - 10/1989	2
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU66..5F..ST..IV3;BU61,96..T3..DSL..IV3;BU66,87..5F..(275,30T);BU88..T4..5F..30T..CBU;BU87..(T3,T4)..20T..CBU;BU88..(T4,TW1)..5F..20T;BU66..DM1,DM2,DM3,DM5,TW4;BU67,78,84,91,94..5F..DSL;BU61,66..TR..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU 250G	06/1991 - 09/1991	2
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU88..T4..5F..30T..CBU;BU87..(T3,T4)..20T..CBU;BU88..(T4,TW1)..5F..20T;BU61,66..TR..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU60,67,70,73,78,83,84,9#..5F..DSL 250G	10/1991 - 10/1992	2
90986-02004	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU88..275..IV3;BU88..T4..30T..CBU;BU61,66..5F..ST..IV3;BU66,88..(T2,T3)..4FC;BU66,87..5F..(275,30T);BU88..(T4,TW1)..5F..20T;BU66..(T2,T3)..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU60,67,70,73,78,83,84,9#..DSL;BU66,87..(T3,T4)..WT..20T..CBU 250G	09/1991 - 10/1991	2
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU88..5F..03S..DSL..CBU;BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU60,67,70,78,83,84,9#..5F..DSL;BU66,73,88..DM1,DM2,DM3,DM5,TW1,TW4 250G	10/1992 - 09/1993	2
90986-02008	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4 200G	09/1993 - 05/1995	2
90986-02007	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4 250G	09/1993 - 05/1995	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95407	BU96..4FC..TD;BU6#,70,72,73,74,83,84,87	09/1991 - 10/1991	1
87104-95407	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
87104-95407	BU67..5F;BU88,96..4FC;BU60,61,66,68,70,72,73,74,83,84,87	10/1991 - 09/1993	1
87104-95407	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
87104-95407	BU87..T2,TW1	09/1993 - 05/1995	1
88648E - WIRING, COOLER
88648-95419	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88648-95419	BU67..5F;BU88,96..4FC;BU60,61,66,68,70,72,73,74,83,84,87	10/1991 - 09/1993	1
88648-95419	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88648-95419	BU96..4FC..TD;BU6#,70,72,73,74,83,84,87	09/1991 - 10/1991	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95415	BU60..WT..20T..IV3;BU61,66,84,87..5F..(CBU,IV3)	08/1988 - 10/1989	1
88711-95415	BU60..WT..20T..IV3;BU66..T4..4FC..IV3;BU61,66,84,87..5F..(CBU,IV3)	10/1989 - 09/1991	1
88711-95415	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU60,68,70,83,84;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 09/1993	1
88711-37090	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU60,68,70,84..DSL;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU	09/1993 - 05/1995	1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-95417	BU61,66,67,72,74,84,87..5F..(CBU,IV3)	08/1988 - 09/1991	1
88711-37020	BU73..03S;BU6#,70,72,74,84,87..CBU,IV3	09/1993 - 05/1995	1
88711-95417	BU6#,70,72,74,83,84,87..CBU,IV3	09/1991 - 10/1991	1
88711-95417	BU67,73..5F..03S;BU60,61,66,68,70,72,74,83,84,87..CBU,IV3	10/1991 - 09/1993	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95420	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88712-95420	BU60..WT..20T..IV3;BU66..T4..4FC..IV3;BU61,66,67,72,74,84,87..5F..(CBU,IV3)	10/1989 - 09/1991	1
88712-95420	BU60..WT..20T..IV3;BU61,66,67,84,87..5F..(CBU,IV3)	08/1988 - 10/1989	1
88712-95420	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88712-37120	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU60,67,68,70,72,73,74,84..DSL	09/1993 - 05/1995	1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-95421	BU61,66,84,87..5F..(CBU,IV3)	08/1988 - 09/1991	1
88712-37130	BU60,61,66,68,70,84,87..DSL..(CBU,IV3)	09/1993 - 05/1995	1
88712-95421	BU60,61,66,68,70,83,84,87..CBU,IV3	09/1991 - 09/1993	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88721-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88721-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88721-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88721-37030	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-95405	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88721-95405	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88721-95405	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88721-95405	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88721-37010	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95407	BU61,66,67,84,87..5F..(CBU,IV3)	08/1988 - 09/1991	1
88715-37020	BU6#,70,84,87..DSL..(CBU,IV3)	09/1993 - 05/1995	1
88715-95407	BU67..5F;BU60,61,66,68,70,83,84,87..CBU,IV3	10/1991 - 09/1993	1
88715-95407	BU6#,70,83,84,87..CBU,IV3	09/1991 - 10/1991	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95412	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88716-95412	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88716-95412	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88716-37030	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88716-95412	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88716-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88716-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88716-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88716-37020	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88717J - PIPE, COOLER REFRIGERANT SUCTION, J
88717-95404	BU61,66,67,84,87..5F..(CBU,IV3)	08/1988 - 09/1991	1
88717-37020	BU6#,70,84,87..DSL..(CBU,IV3)	09/1993 - 05/1995	1
88717-95404	BU67..5F;BU60,61,66,68,70,83,84,87..CBU,IV3	10/1991 - 09/1993	1
88717-95404	BU6#,70,83,84,87..CBU,IV3	09/1991 - 10/1991	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
Common parts
87241-95400
88467-22010
88688-95434
88688-95435
88718-12790
88718-20300
88718-30720
88718-36210
88718-95015
88718-95023
88718-95419
88718-95420
88718-95426
88718-95429
88718-95431
88718-95A06
88899-95A14
90091-20803
90099-01225
90099-32073
90179-06115
90179-08123
90464-00085
91611-40616
91611-40814
91611-40816
91611-40835
91611-41016
91651-60620
91651-60635
91651-60825
91661-60825
91666-40832
93381-18016
93385-16016
93385-16025

(9309- )BU6#,70,84,87..DSL

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-95404	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88460-95404	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88460-95404	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,70,72,73,74,83,84;BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88460-95404	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,70,72,73,74,83,84..5F;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	10/1991 - 09/1993	1
88460-37090	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU60,67,70,72,73,74,84;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-95416	BU61,66,72,74,84,87..5F	10/1989 - 06/1991	1
88688-95416	BU61,66,84,87..5F;BU60..WT..20T..IV3	08/1988 - 10/1989	1
88688-95416	BU61,66,72,74,84,87..5F..(CBU,IV3)	06/1991 - 09/1991	1
88688-95416	BU68..LPG;BU60,61,66,70,72,73,74,84,87	09/1993 - 05/1995	1
88688-95416	BU60,61,66,68,70,72,73,74,83,84,87	09/1991 - 09/1993	1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95417	BU61,66,84,87..5F;BU60..WT..20T..IV3	08/1988 - 10/1989	1
88688-95417	BU68..LPG;BU60,61,66,70,72,73,74,84,87	09/1993 - 05/1995	1
88688-95417	BU61,66,72,74,84,87..5F..(CBU,IV3)	06/1991 - 09/1991	1
88688-95417	BU61,66,72,74,84,87..5F	10/1989 - 06/1991	1
88688-95417	BU60,61,66,68,70,72,73,74,83,84,87	09/1991 - 09/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88471-95400	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88471-95400	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88471-95400	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88471-20050	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95408	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88472-95408	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88472-37010	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88472-95408	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88472-95408	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU66..5F..ST..IV3;BU61,96..T3..DSL..IV3;BU66,87..5F..(275,30T);BU88..T4..5F..30T..CBU;BU87..(T3,T4)..20T..CBU;BU88..(T4,TW1)..5F..20T;BU67,78,84,91,94..5F..DSL;BU61,66..TR..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4 250G	10/1989 - 06/1991	2
90986-02001	BU96;BU61,66,84,87,88,91,94..5F..(CBU,IV3) 400G	08/1988 - 10/1989	2
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU66..5F..ST..IV3;BU61,96..T3..DSL..IV3;BU66,87..5F..(275,30T);BU88..T4..5F..30T..CBU;BU87..(T3,T4)..20T..CBU;BU88..(T4,TW1)..5F..20T;BU66..DM1,DM2,DM3,DM5,TW4;BU67,78,84,91,94..5F..DSL;BU61,66..TR..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU 250G	06/1991 - 09/1991	2
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU88..T4..5F..30T..CBU;BU87..(T3,T4)..20T..CBU;BU88..(T4,TW1)..5F..20T;BU61,66..TR..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU60,67,70,73,78,83,84,9#..5F..DSL 250G	10/1991 - 10/1992	2
90986-02004	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU88..275..IV3;BU88..T4..30T..CBU;BU61,66..5F..ST..IV3;BU66,88..(T2,T3)..4FC;BU66,87..5F..(275,30T);BU88..(T4,TW1)..5F..20T;BU66..(T2,T3)..5F..20T..CBU;BU88..(T2,T3)..5F..DSL..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU60,67,70,73,78,83,84,9#..DSL;BU66,87..(T3,T4)..WT..20T..CBU 250G	09/1991 - 10/1991	2
90986-02004	BU87..V;BU87..T2,TW1;BU88..275..IV3;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU88..5F..03S..DSL..CBU;BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU60,67,70,78,83,84,9#..5F..DSL;BU66,73,88..DM1,DM2,DM3,DM5,TW1,TW4 250G	10/1992 - 09/1993	2
90986-02008	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4 200G	09/1993 - 05/1995	2
90986-02007	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4 250G	09/1993 - 05/1995	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95415	BU60..WT..20T..IV3;BU61,66,84,87..5F..(CBU,IV3)	08/1988 - 10/1989	1
88711-95415	BU60..WT..20T..IV3;BU66..T4..4FC..IV3;BU61,66,84,87..5F..(CBU,IV3)	10/1989 - 09/1991	1
88711-95415	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU60,68,70,83,84;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 09/1993	1
88711-37090	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU60,68,70,84..DSL;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU	09/1993 - 05/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95420	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88712-95420	BU60..WT..20T..IV3;BU66..T4..4FC..IV3;BU61,66,67,72,74,84,87..5F..(CBU,IV3)	10/1989 - 09/1991	1
88712-95420	BU60..WT..20T..IV3;BU61,66,67,84,87..5F..(CBU,IV3)	08/1988 - 10/1989	1
88712-95420	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88712-37120	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..DM1,DM2,DM3,DM5,TW4;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU60,67,68,70,72,73,74,84..DSL	09/1993 - 05/1995	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88721-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88721-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88721-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88721-37030	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-95405	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88721-95405	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88721-95405	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88721-95405	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88721-37010	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95412	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88716-95412	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88716-95412	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88716-37030	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88716-95412	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	08/1988 - 06/1991	1
88716-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU;BU60,67,68,70,72,73,74,83,84..5F	10/1991 - 09/1993	1
88716-95413	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU66..(T2,T3)..5F..20T..CBU;BU60,67,68,70,72,73,74,83,84;BU66..DM1,DM2,DM3,DM5,TW1,TW4;BU66,87..(T3,T4)..WT..20T..CBU	09/1991 - 10/1991	1
88716-95413	BU87..V;BU87..T2,TW1;BU67,72,74,84..5F;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU87..(T3,T4)..20T..CBU;BU61,66..TR..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW4	06/1991 - 09/1991	1
88716-37020	BU87..V;BU87..4FC;BU61..CBU;BU87..T2,TW1;BU66..T4..CBU;BU66..(T2,T3)..4FC;BU61,66..5F..ST..IV3;BU66,87..5F..(275,30T);BU60,67,68,70,72,73,74,84;BU66..(T2,T3)..5F..20T..CBU;BU87..(T3,T4)..5F..20T..CBU;BU66..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	BU87..V;BU87..T2,TW1;BU66..T4..CBU;BU88..TD..IV3;BU88..275..IV3;BU66..(T2,T3)..4FC;BU60,67,68,7#,84,9#;BU88..4FC..30T..CBU;BU61,66..5F..ST..IV3;BU61,88..5F..03S..CBU;BU66,87..5F..(275,30T);BU87,88..4FC..(20T,275);BU87..(T3,T4)..5F..20T..CBU;BU66..(T2,T3)..5F..20T..CBU;BU66,88..DM1,DM2,DM3,DM5,TW1,TW4	09/1993 - 05/1995	1
Common parts
82711-12200
87241-95400
88467-22010
88688-36120
88688-36150
88688-36400
88714-12140
88718-28260
88718-36210
88718-95419
88718-95420
88718-95426
88718-95429
88718-95A06
88899-36030
90099-01225
90099-32073
90179-06115
90179-08123
91611-40616
91611-40814
91611-40816
91611-40835
91651-60825
91661-60825
91666-40832
93385-16016
93385-16025
93385-18016
93385-18020

BU87-MDPDTJ (1988)

(8808-9309)BU6#,70,72,73,74,83,84,87

(8808-9309)BU6#,70,83,84,87

(9309- )BU6#,70,72,73,74,84,87..DSL

(9309- )BU6#,70,84,87..DSL

Part Price Details
