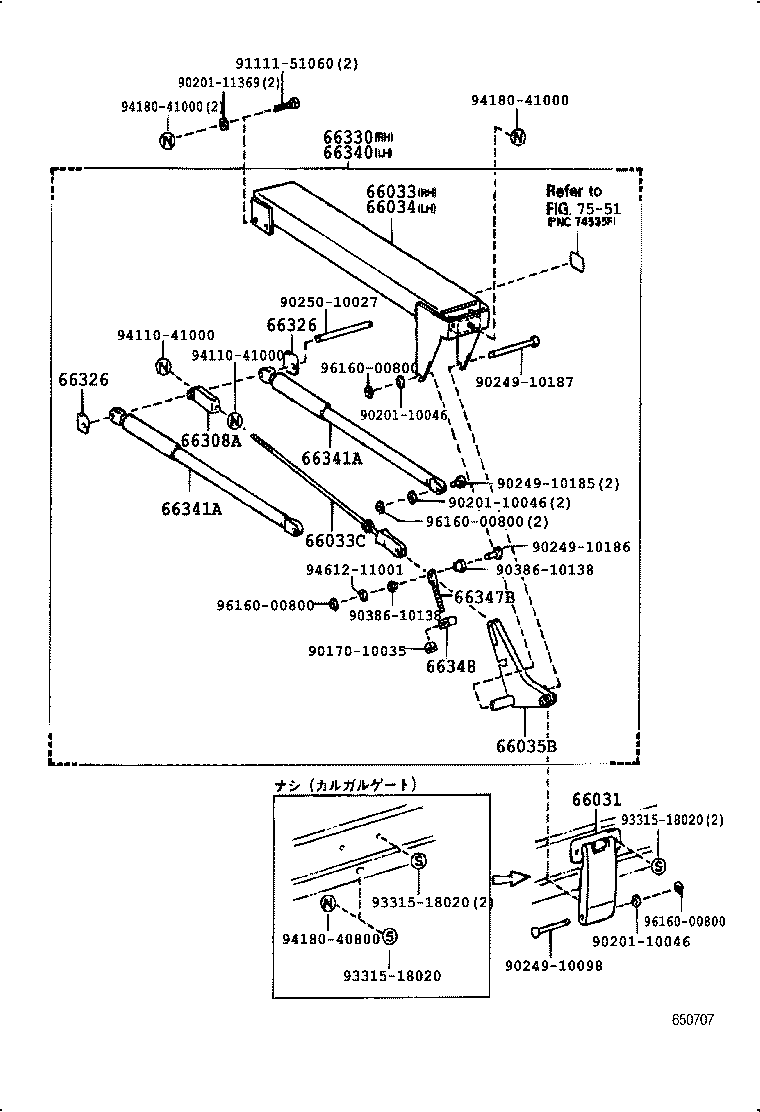

BU87-MDDTJ (1988)
Toyota Dyna/Toyoace
(9109- )T2,T3,T4
ｱﾘ(ｶﾙｶﾞﾙ ｹﾞ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1 | ||||
| 66031-92802 |
BU94..T3..CBU;BU87..T3..20T..CBU;BU85,88,90,91,95,96..(T3,T4)..CBU |
2 | ||
| 66031-37010 |
BU74,78,8#,9#..03S..CBU |
2 | ||
| 66031-92802 |
BU87..T3..20T..CBU;BU88,9#..(T3,T4)..CBU |
2 | ||
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66033-92806 |
BU87..T3..20T..CBU 右側 |
1 | ||
| 66034-92800 |
BU87..T3..20T..CBU 左側 |
1 | ||
| 66034-37010 |
BU74,83,84,87,94,96..03S..CBU |
1 | ||
| 66033C - ROD SUB-ASSY, GATE HELPER TENSION | ||||
| 66033-37080 |
BU74,78,8#,9#..03S..CBU |
2 | ||
| 66034 - BRACKET SUB-ASSY, GATE HELPER, NO.3 LH | ||||
| 66033-37070 |
BU74,83,84,87,94,96..03S..CBU |
1 | ||
| 66035B - BELLCRANK SUB-ASSY, GATE HELPER | ||||
| 66035-37010 |
BU74,78,8#,9#..03S..CBU |
2 | ||
| 66308A - END SUB-ASSY, GATE HELPER ROD, NO.2 | ||||
| 66308-37010 |
BU74,78,8#,9#..03S..CBU |
2 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
BU74,78,8#,9#..03S..CBU |
4 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
BU74,78,8#,9#..03S..CBU |
4 | ||
| 66330 - HELPER ASSY, GATE, RH | ||||
| 66340-37030 |
BU87..T3..20T..CBU ***,ｱﾘ(*66) |
1 | ||
| 66340-37010 |
BU94,96..CBU;BU87..T3..20T..CBU *** |
1 | ||
| 66340 - HELPER ASSY, GATE, LH | ||||
| 66330-37010 |
BU94,96..CBU;BU87..T3..20T..CBU *** |
1 | ||
| 66330-37030 |
BU87..T3..20T..CBU ***,ｱﾘ(*66) |
1 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37060 |
BU74,8#,9#..03S..CBU |
4 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37060 |
BU74,8#,9#..03S..CBU |
4 | ||
| 66347B - BOLT, GATE HELPER BELLCRANK ADJUST | ||||
| 66347-37010 |
BU74,78,8#,9#..03S..CBU |
2 | ||
| 66348 - RETAINER, GATE HELPER BELLCRANK ADJUST BOLT | ||||
| 66348-37010 |
BU74,78,8#,9#..03S..CBU |
2 | ||
| Common parts | ||||
| 90170-10035 | ||||
| 90201-10046 | ||||
| 90201-11369 | ||||
| 90249-10098 | ||||
| 90249-10185 | ||||
| 90249-10186 | ||||
| 90249-10187 | ||||
| 90250-10027 | ||||
| 90386-10138 | ||||
| 91111-51060 | ||||
| 93315-18020 | ||||
| 94110-41000 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
| 94612-11001 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7551 | ||||

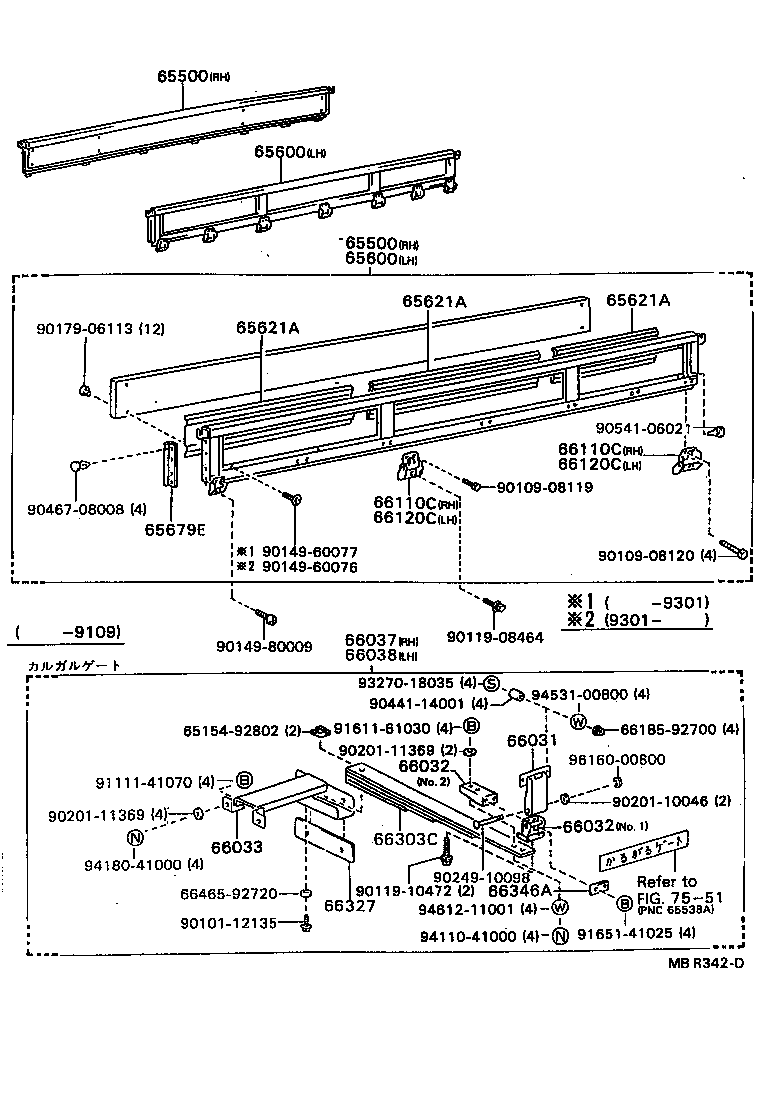

(8808- )BU8#,90,91
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92858 |
BU87..T3..20T..CBU |
1 | ||
| 65500-37060 |
BU87..T3..20T..CBU ｱﾘ(*66) |
1 | ||
| 65500-37070 |
BU87..T3..20T..CBU |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92858 |
BU87..T3..20T..CBU |
1 | ||
| 65500-37060 |
BU87..T3..20T..CBU ｱﾘ(*66) |
1 | ||
| 65500-37070 |
BU87..T3..20T..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92858 |
BU87..T3..20T..CBU |
1 | ||
| 65600-37070 |
BU87..T3..20T..CBU |
1 | ||
| 65600-37060 |
BU87..T3..20T..CBU ｱﾘ(*66) |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92858 |
BU87..T3..20T..CBU |
1 | ||
| 65600-37070 |
BU87..T3..20T..CBU |
1 | ||
| 65600-37060 |
BU87..T3..20T..CBU ｱﾘ(*66) |
1 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92824 |
BU74,83,84,87..03S..CBU L=1324,RH-FRONT |
1 | ||
| 65621-92840 |
BU83,84,87..03S..CBU L=1607,LH-CENTER |
1 | ||
| 65621-92822 |
BU74,83,84,87..03S..CBU L=1324,LH-FRONT |
1 | ||
| 65621-92841 |
BU83,84,87..03S..CBU L=1061.5,RH-REAR |
1 | ||
| 65621-92839 |
BU83,84,87..03S..CBU L=1607,RH-CENTER |
1 | ||
| 65621-92842 |
BU83,84,87..03S..CBU L=1061.5,LH-REAR |
1 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92824 |
BU74,83,84,87..03S..CBU L=1324,RH-FRONT |
1 | ||
| 65621-92840 |
BU83,84,87..03S..CBU L=1607,LH-CENTER |
1 | ||
| 65621-92822 |
BU74,83,84,87..03S..CBU L=1324,LH-FRONT |
1 | ||
| 65621-92841 |
BU83,84,87..03S..CBU L=1061.5,RH-REAR |
1 | ||
| 65621-92839 |
BU83,84,87..03S..CBU L=1607,RH-CENTER |
1 | ||
| 65621-92842 |
BU83,84,87..03S..CBU L=1061.5,LH-REAR |
1 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92824 |
BU74,83,84,87..03S..CBU L=1324,RH-FRONT |
1 | ||
| 65621-92840 |
BU83,84,87..03S..CBU L=1607,LH-CENTER |
1 | ||
| 65621-92822 |
BU74,83,84,87..03S..CBU L=1324,LH-FRONT |
1 | ||
| 65621-92841 |
BU83,84,87..03S..CBU L=1061.5,RH-REAR |
1 | ||
| 65621-92839 |
BU83,84,87..03S..CBU L=1607,RH-CENTER |
1 | ||
| 65621-92842 |
BU83,84,87..03S..CBU L=1061.5,LH-REAR |
1 | ||
| 65679E - SEAL, SIDE GATE | ||||
| 65679-92706 |
BU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,72,74,78,8#,90,91..TR..CBU |
1 | ||
| 65679-92706 |
BU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,72,73,74,78,8#,9#..TR..CBU |
1 | ||
| 66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1 | ||||
| 66031-92802 |
BU94..T3..CBU;BU87..T3..20T..CBU;BU85,88,90,91,95,96..(T3,T4)..CBU |
2 | ||
| 66031-37010 |
BU74,78,8#,9#..03S..CBU |
2 | ||
| 66031-92802 |
BU87..T3..20T..CBU;BU88,9#..(T3,T4)..CBU |
2 | ||
| 66032 - BRACKET SUB-ASSY, GATE HELPER, NO.2 | ||||
| 66032-92804 |
BU94..T3..CBU;BU87..T3..20T..CBU;BU85,88,90,91,95,96..(T3,T4)..CBU NO.1 |
2 | ||
| 66032-92803 |
BU87..T3..20T..CBU;BU88,9#..(T3,T4)..CBU NO.2 |
2 | ||
| 66032-92803 |
BU94..T3..CBU;BU87..T3..20T..CBU;BU85,88,90,91,95,96..(T3,T4)..CBU NO.2 |
2 | ||
| 66032-92804 |
BU87..T3..20T..CBU;BU88,9#..(T3,T4)..CBU NO.1 |
2 | ||
| 66032 - BRACKET SUB-ASSY, GATE HELPER, NO.2 | ||||
| 66032-92804 |
BU94..T3..CBU;BU87..T3..20T..CBU;BU85,88,90,91,95,96..(T3,T4)..CBU NO.1 |
2 | ||
| 66032-92803 |
BU87..T3..20T..CBU;BU88,9#..(T3,T4)..CBU NO.2 |
2 | ||
| 66032-92803 |
BU94..T3..CBU;BU87..T3..20T..CBU;BU85,88,90,91,95,96..(T3,T4)..CBU NO.2 |
2 | ||
| 66032-92804 |
BU87..T3..20T..CBU;BU88,9#..(T3,T4)..CBU NO.1 |
2 | ||
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66033-92806 |
BU87..T3..20T..CBU 右側 |
1 | ||
| 66034-92800 |
BU87..T3..20T..CBU 左側 |
1 | ||
| 66034-37010 |
BU74,83,84,87,94,96..03S..CBU |
1 | ||
| 66037 - GATE HELPER SET, SIDE, RH | ||||
| 66037-92806 |
BU87..T3..20T..CBU |
1 | ||
| 66038 - GATE HELPER SET, SIDE, LH | ||||
| 66038-92806 |
BU87..T3..20T..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65050-92704 |
BU87..T3..20T..CBU;BU85,88,90,91..03S..CBU 1ST,7TH |
2 | ||
| 65010-92702 |
BU87..T3..20T..CBU;BU85,88,90,91..03S..CBU 2ND,3RD,4TH,5TH,6TH |
5 | ||
| 65010-92700 |
BU87..T3..20T..CBU ｱﾘ(*66),2ND,3RD,4TH,5TH,6TH |
5 | ||
| 65050-37040 |
BU88,91..03S..CBU;BU87..T3..20T..CBU 1ST,7TH |
2 | ||
| 65050-37030 |
BU87..T3..20T..CBU ｱﾘ(*66),1ST,7TH |
2 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65050-92704 |
BU87..T3..20T..CBU;BU85,88,90,91..03S..CBU 1ST,7TH |
2 | ||
| 65010-92702 |
BU87..T3..20T..CBU;BU85,88,90,91..03S..CBU 2ND,3RD,4TH,5TH,6TH |
5 | ||
| 65010-92700 |
BU87..T3..20T..CBU ｱﾘ(*66),2ND,3RD,4TH,5TH,6TH |
5 | ||
| 65050-37040 |
BU88,91..03S..CBU;BU87..T3..20T..CBU 1ST,7TH |
2 | ||
| 65050-37030 |
BU87..T3..20T..CBU ｱﾘ(*66),1ST,7TH |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65060-92703 |
BU87..T3..20T..CBU;BU85,88,90,91..03S..CBU 1ST,7TH |
2 | ||
| 65020-92700 |
BU87..T3..20T..CBU;BU85,88,90,91..03S..CBU 2ND,3RD,4TH,5TH,6TH |
5 | ||
| 65060-37030 |
BU88,91..03S..CBU;BU87..T3..20T..CBU 1ST,7TH |
2 | ||
| 65050-37030 |
BU87..T3..20T..CBU ｱﾘ(*66),1ST,7TH |
2 | ||
| 65010-92700 |
BU87..T3..20T..CBU ｱﾘ(*66),2ND,3RD,4TH,5TH,6TH |
5 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65060-92703 |
BU87..T3..20T..CBU;BU85,88,90,91..03S..CBU 1ST,7TH |
2 | ||
| 65020-92700 |
BU87..T3..20T..CBU;BU85,88,90,91..03S..CBU 2ND,3RD,4TH,5TH,6TH |
5 | ||
| 65060-37030 |
BU88,91..03S..CBU;BU87..T3..20T..CBU 1ST,7TH |
2 | ||
| 65050-37030 |
BU87..T3..20T..CBU ｱﾘ(*66),1ST,7TH |
2 | ||
| 65010-92700 |
BU87..T3..20T..CBU ｱﾘ(*66),2ND,3RD,4TH,5TH,6TH |
5 | ||
| 66303C - SPRING SUB-ASSY, GATE HELPER SET | ||||
| 66303-92805 |
BU87..T3..20T..CBU;BU88,9#..(T3,T4)..CBU |
2 | ||
| 66303-92805 |
BU94..T3..CBU;BU87..T3..20T..CBU;BU85,88,90,91,95,96..(T3,T4)..CBU |
2 | ||
| 66346A - PLATE, GATE HELPER BRACKET, NO.2 | ||||
| 66346-92803 |
BU94..T3..CBU;BU87..T3..20T..CBU;BU85,88,90,91,95,96..(T3,T4)..CBU |
2 | ||
| 66346-92803 |
BU87..T3..20T..CBU;BU88,9#..(T3,T4)..CBU |
2 | ||
| Common parts | ||||
| 65154-92802 | ||||
| 66185-92700 | ||||
| 66465-92720 | ||||
| 90101-12135 | ||||
| 90109-08119 | ||||
| 90109-08120 | ||||
| 90119-08464 | ||||
| 90119-10472 | ||||
| 90149-60076 | ||||
| 90149-60077 | ||||
| 90149-80009 | ||||
| 90179-06113 | ||||
| 90201-10046 | ||||
| 90201-11369 | ||||
| 90249-10098 | ||||
| 90441-14001 | ||||
| 90467-08008 | ||||
| 90541-06021 | ||||
| 91111-41070 | ||||
| 91611-61030 | ||||
| 91651-41025 | ||||
| 93270-18035 | ||||
| 94110-41000 | ||||
| 94180-41000 | ||||
| 94531-00800 | ||||
| 94612-11001 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7551 | ||||
