BU87-MDDHTJ3 (1988)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 3(8808- )BU6#,70,83,84,87
ﾏﾆｭｱﾙｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-26010 |
BU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL |
1 | ||
| 45222-26010 |
BU87..V;BU88..(T2,T3)..5F..20T..DSL;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45240-36140 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
BU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL |
2 | ||
| 90363-20024 |
BU87..V;BU88..(T2,T3)..5F..20T..DSL;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
BU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL |
2 | ||
| 90363-20024 |
BU87..V;BU88..(T2,T3)..5F..20T..DSL;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 90311-19001 |
BU6#,70,83,84,87..DSL |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-36170 |
BU87..V;BU60,61,66,68,70,84,87..(DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45301-37030 |
BU87..V;BU60,61,66,68,70,84,87..(DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73060 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 90999-73060 |
BU6#,70,83,84,87..DSL |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-36104 |
BU6#,70,83,84,87..DSL |
1 | ||
| 90311-36104 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-14004 |
BU87..V;BU60,61,66,68,70,84,87..(DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
2 | ||
| 90116-14004 |
BU60,61,66,68,70,83,84,87..DSL |
2 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-14004 |
BU87..V;BU60,61,66,68,70,84,87..(DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
2 | ||
| 90116-14004 |
BU60,61,66,68,70,83,84,87..DSL |
2 | ||
| 45301G - PLUG, STEERING GEAR BOX OIL | ||||
| 90345-53005 |
BU6#,70,83,84,87..DSL |
1 | ||
| 90345-53005 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73060 |
BU6#,70,83,84,87..DSL |
1 | ||
| 90999-73060 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-36190 |
BU87..V;BU60,61,66,68,70,84,87..DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2 |
1 | ||
| 45310-36191 |
BU87..V;BU60,61,66,68,70,84,87..(DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45310-37030 |
BU87..V;BU60,61,66,68,70,84,87..(DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36050 |
BU6#,70,83,84,87..DSL |
1 | ||
| 45321-36050 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45322 - GASKET, GEAR HOUSING END COVER | ||||
| 45322-37010 |
BU6#,70,83,84,87..DSL |
1 | ||
| 45322-37010 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45323 - SHIM, GEAR HOUSING END COVER | ||||
| 45323-37050 |
BU6#,70,83,84,87..DSL 厚さ=0.20 |
1 | ||
| 45323-37010 |
BU6#,70,83,84,87..DSL 厚さ=0.05 |
1 | ||
| 45323-37030 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL 厚さ=0.07 |
1 | ||
| 45323-37060 |
BU6#,70,83,84,87..DSL 厚さ=0.50 |
1 | ||
| 45323-37020 |
BU6#,70,83,84,87..DSL 厚さ=0.06 |
1 | ||
| 45323-37040 |
BU6#,70,83,84,87..DSL 厚さ=0.10 |
1 | ||
| 45323-37030 |
BU6#,70,83,84,87..DSL 厚さ=0.07 |
1 | ||
| 45323-37020 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL 厚さ=0.06 |
1 | ||
| 45323-37040 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL 厚さ=0.10 |
1 | ||
| 45323-37010 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL 厚さ=0.05 |
1 | ||
| 45323-37050 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL 厚さ=0.20 |
1 | ||
| 45323-37060 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL 厚さ=0.50 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36050 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-37010 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36030 |
BU87..V;BU6#,70,84,87..DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2 |
1 | ||
| 45351-36031 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-27033 |
BU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL |
1 | ||
| 90170-27033 |
BU87..V;BU88..(T2,T3)..5F..20T..DSL;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45354-37010 |
BU87..V;BU88..(T2,T3)..5F..20T..DSL;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL 厚さ=2.05 |
1 | ||
| 45352-37010 |
BU87..V;BU88..(T2,T3)..5F..20T..DSL;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL 厚さ=1.95 |
1 | ||
| 45353-37010 |
BU87..V;BU88..(T2,T3)..5F..20T..DSL;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL 厚さ=2.00 |
1 | ||
| 45352-37010 |
BU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL 厚さ=1.95 |
1 | ||
| 45353-37010 |
BU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL 厚さ=2.00 |
1 | ||
| 45354-37010 |
BU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL 厚さ=2.05 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
BU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL |
1 | ||
| 45357-36010 |
BU87..V;BU88..(T2,T3)..5F..20T..DSL;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03095 |
BU6#,70,83,84,87..DSL |
1 | ||
| 90930-03095 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-36510 |
BU87..V;BU61,67,84,87..T2,T3,TW1;BU66,68..DM1,DM2,DM3,T2,T3,TW1 ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-36540 |
BU87..V;BU66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-36540 |
BU66..T3..WT;BU87..T3..5F ｵ-ﾅ- ｶｽﾀﾑ B ｼﾖｳ & ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 45411-36511 |
BU87..V;BU66,68..DM1,DM2,DM3,T2,T3,TW1;BU60,61,67,70,84,87..HRF,SRF,T1,T2,T3,TW1,TW2 ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-36540 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-36541 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-36510 |
BU87..V;BU66,68..DM1,DM2,DM3,T2,T3,TW1;BU60,61,67,70,84,87..HRF,SRF,T1,T2,T3,TW1,TW2 ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-36541 |
BU66..T3..WT;BU87..T3..5F ｵ-ﾅ- ｶｽﾀﾑ B ｼﾖｳ & ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 45411-36511 |
BU87..V;BU87..4FC..275;BU66,68..(DM1,DM2,DM3,T2,T3,TW1)..DSL;BU60,61,67,70,84,87..(HRF,SRF,T1,T2,T3,TW1,TW2)..5F..(03S,06S) ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-37050 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-37050 |
BU66..T3..WT;BU87..T3..5F ｵｰﾅｰ ｶｽﾀﾑ B & ｱﾘ(ﾘﾔﾌﾞﾚｰｷ ｵｰﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| Common parts | ||||
| 90101-14015 | ||||
| 90101-14470 | ||||
| 90119-10238 | ||||
| 90119-10239 | ||||
| 90170-12011 | ||||
| 90170-14012 | ||||
| 90201-14005 | ||||
| 90204-27020 | ||||

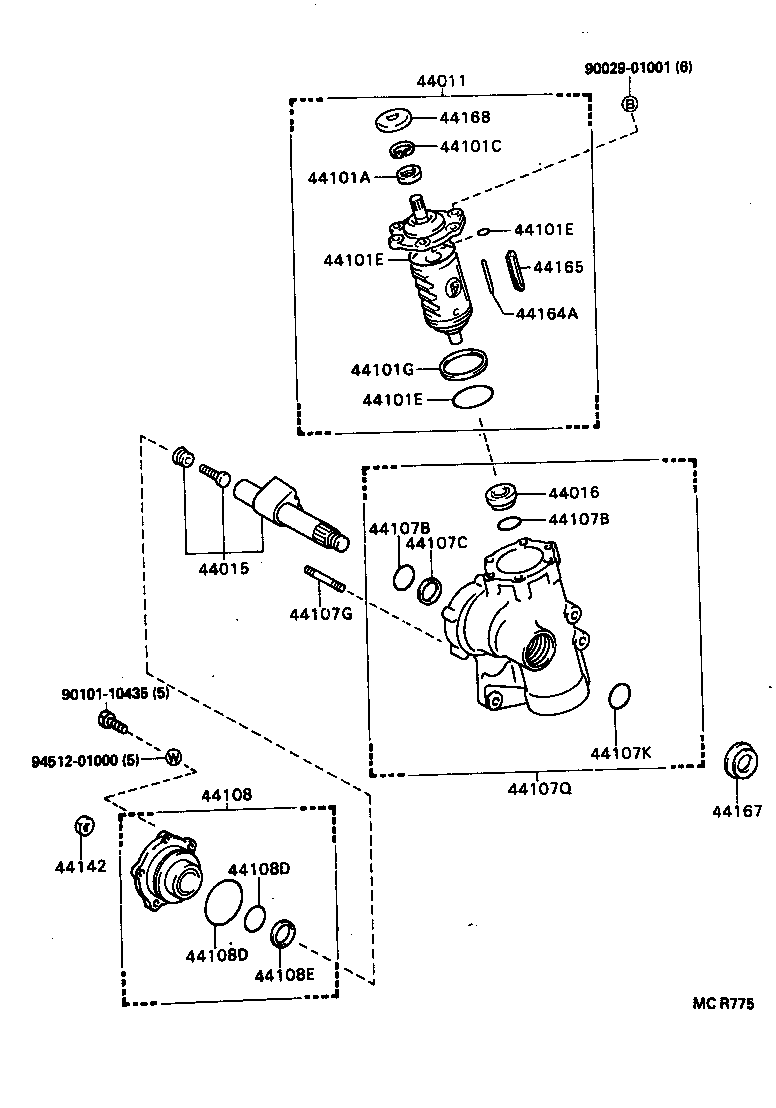

ILLUST NO. 1 OF 3(8808- )BU6#,70,78,8#,9#
ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-36070 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 04445-36110 |
BU88,9#;BU87..V;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-36060 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-36220 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44110-36221 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44110-37040 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-36220 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44110-36221 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44110-37040 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14477 |
BU60,61,66,68,70,83,84,87 長さ=60 |
1 | ||
| 90101-14477 |
BU61,66,68,83,84,87;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 長さ=60 |
1 | ||
| 90101-14017 |
BU61,66,68,72,74,83,84,87;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 長さ=45 |
1 | ||
| 90101-14017 |
BU60,61,66,68,70,72,73,74,83,84,87 長さ=45 |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14477 |
BU60,61,66,68,70,83,84,87 長さ=60 |
1 | ||
| 90101-14477 |
BU61,66,68,83,84,87;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 長さ=60 |
1 | ||
| 90101-14017 |
BU61,66,68,72,74,83,84,87;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 長さ=45 |
1 | ||
| 90101-14017 |
BU60,61,66,68,70,72,73,74,83,84,87 長さ=45 |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14477 |
BU60,61,66,68,70,83,84,87 長さ=60 |
1 | ||
| 90101-14477 |
BU61,66,68,83,84,87;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 長さ=60 |
1 | ||
| 90101-14017 |
BU61,66,68,72,74,83,84,87;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 長さ=45 |
1 | ||
| 90101-14017 |
BU60,61,66,68,70,72,73,74,83,84,87 長さ=45 |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14477 |
BU60,61,66,68,70,83,84,87 長さ=60 |
1 | ||
| 90101-14477 |
BU61,66,68,83,84,87;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 長さ=60 |
1 | ||
| 90101-14017 |
BU61,66,68,72,74,83,84,87;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 長さ=45 |
1 | ||
| 90101-14017 |
BU60,61,66,68,70,72,73,74,83,84,87 長さ=45 |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-30171 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-30171 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-30040 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-30040 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-36510 |
BU87..V;BU61,67,84,87..T2,T3,TW1;BU66,68..DM1,DM2,DM3,T2,T3,TW1 ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-36540 |
BU87..V;BU66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-36540 |
BU66..T3..WT;BU87..T3..5F ｵ-ﾅ- ｶｽﾀﾑ B ｼﾖｳ & ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 45411-36511 |
BU87..V;BU66,68..DM1,DM2,DM3,T2,T3,TW1;BU60,61,67,70,84,87..HRF,SRF,T1,T2,T3,TW1,TW2 ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-36540 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-36541 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-36510 |
BU87..V;BU66,68..DM1,DM2,DM3,T2,T3,TW1;BU60,61,67,70,84,87..HRF,SRF,T1,T2,T3,TW1,TW2 ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-36541 |
BU66..T3..WT;BU87..T3..5F ｵ-ﾅ- ｶｽﾀﾑ B ｼﾖｳ & ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 45411-36511 |
BU87..V;BU87..4FC..275;BU66,68..(DM1,DM2,DM3,T2,T3,TW1)..DSL;BU60,61,67,70,84,87..(HRF,SRF,T1,T2,T3,TW1,TW2)..5F..(03S,06S) ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-37050 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-37050 |
BU66..T3..WT;BU87..T3..5F ｵｰﾅｰ ｶｽﾀﾑ B & ｱﾘ(ﾘﾔﾌﾞﾚｰｷ ｵｰﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-36510 |
BU87..V;BU61,67,84,87..T2,T3,TW1;BU66,68..DM1,DM2,DM3,T2,T3,TW1 ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-36540 |
BU87..V;BU66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-36540 |
BU66..T3..WT;BU87..T3..5F ｵ-ﾅ- ｶｽﾀﾑ B ｼﾖｳ & ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 45411-36511 |
BU87..V;BU66,68..DM1,DM2,DM3,T2,T3,TW1;BU60,61,67,70,84,87..HRF,SRF,T1,T2,T3,TW1,TW2 ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-36540 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-36541 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-36510 |
BU87..V;BU66,68..DM1,DM2,DM3,T2,T3,TW1;BU60,61,67,70,84,87..HRF,SRF,T1,T2,T3,TW1,TW2 ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-36541 |
BU66..T3..WT;BU87..T3..5F ｵ-ﾅ- ｶｽﾀﾑ B ｼﾖｳ & ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 45411-36511 |
BU87..V;BU87..4FC..275;BU66,68..(DM1,DM2,DM3,T2,T3,TW1)..DSL;BU60,61,67,70,84,87..(HRF,SRF,T1,T2,T3,TW1,TW2)..5F..(03S,06S) ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45411-37050 |
BU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411-37050 |
BU66..T3..WT;BU87..T3..5F ｵｰﾅｰ ｶｽﾀﾑ B & ｱﾘ(ﾘﾔﾌﾞﾚｰｷ ｵｰﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| Common parts | ||||
| 90170-14012 | ||||
| 90201-14005 | ||||
ILLUST NO. 3 OF 3(8808- )BU6#,70,83,84,87
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39185 |
BU6#,70,83,84,87 |
1 | ||
| 45046-39186 |
BU6#,70,83,84,87 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 94146-71800 |
BU6#,7#,8#,9# |
2 | ||
| 94146-71800 |
BU6#,70,78,8#,9# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 94146-71800 |
BU6#,7#,8#,9# |
2 | ||
| 94146-71800 |
BU6#,70,78,8#,9# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39115 |
BU6#,70,83,84,87 |
1 | ||
| 45047-39116 |
BU6#,70,83,84,87 |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39045 |
BU6#,70,83,84,87 |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 94146-71800 |
BU6#,70,78,8#,9# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39235 |
BU6#,70,83,84,87 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-25020 |
BU6#,70,83,84,87 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36020 |
BU6#,70,83,84,87 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36020 |
BU6#,70,83,84,87 |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-39025 |
BU87..V;BU6#,70,84,87..DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2 |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
BU6#,70,78,8#,94 |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
BU6#,70,78,8#,94 |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07012 |
BU6#,70,78,8#,94 |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07012 |
BU6#,70,78,8#,94 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-39095 |
BU87..V;BU6#,70,84,87..DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2 |
1 | ||
| Common parts | ||||
| 90252-04005 | ||||
| 91619-61250 | ||||
| 94115-41200 | ||||
ILLUST NO. 2 OF 3(8808- )BU61,68,70,78,8#,9# ; (8808- )BU60,66,67..DM4,DM5,T1,T2,T4,TW2,TW4
ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-36220 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44011-37040 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-36120 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44015-36121 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44016 - CASE SUB-ASSY, WORM BEARING | ||||
| 44016-36030 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90029-21010 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101C - RING, HOLE SNAP(FOR STEERING WORM OIL SEAL) | ||||
| 90029-52002 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) ID=8.8 |
1 | ||
| 90029-20005 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 96711-19009 |
BU6#,7#,8#,9# ID=8.8 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) ID=8.8 |
1 | ||
| 90029-20005 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 96711-19009 |
BU6#,7#,8#,9# ID=8.8 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) ID=8.8 |
1 | ||
| 90029-20005 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 96711-19009 |
BU6#,7#,8#,9# ID=8.8 |
1 | ||
| 44101G - SEAL, DUST(FOR STEERING WORM) | ||||
| 90029-20700 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 内径=39.4 |
1 | ||
| 90029-20009 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT 内径=41 |
1 | ||
| 90029-20007 |
BU6#,7#,8#,9# 内径=39.4 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 内径=39.4 |
1 | ||
| 90029-20009 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT 内径=41 |
1 | ||
| 90029-20007 |
BU6#,7#,8#,9# 内径=39.4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-56602 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT 内径=42 |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01502 |
BU61,66,68,72,74,83,84,87;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) |
2 | ||
| 90029-01502 |
BU60,61,66,68,70,72,73,74,83,84,87 |
2 | ||
| 44107K - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-35042 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107Q - HOUSING SUB-ASSY, STEERING W/NAME PLATE | ||||
| 44107-37040 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107-36220 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-36050 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=84.4 |
1 | ||
| 90029-20009 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=84.4 |
1 | ||
| 90029-20009 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44108E - RING(FOR SECTOR COVER) | ||||
| 90029-56602 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) |
1 | ||
| 44142-37010 |
BU6#,7#,8#,9# |
1 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36040 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44165 - RING, SEAL, NO.1 | ||||
| 44165-36040 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-36011 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44168-36020 |
BU88,9#;BU87..V;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| Common parts | ||||
| 90029-01001 | ||||
| 90029-01002 | ||||
| 91611-61025 | ||||
ILLUST NO. 2 OF 3(8808- )BU87..V ; (8808- )BU60,66,67,87..DM1,DM2,DM3,T3,TW1
ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-36220 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44011-37040 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-36120 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44015-36121 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44016 - CASE SUB-ASSY, WORM BEARING | ||||
| 44016-36030 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90029-21010 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101C - RING, HOLE SNAP(FOR STEERING WORM OIL SEAL) | ||||
| 90029-52002 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) ID=8.8 |
1 | ||
| 90029-20005 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 96711-19009 |
BU6#,7#,8#,9# ID=8.8 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) ID=8.8 |
1 | ||
| 90029-20005 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 96711-19009 |
BU6#,7#,8#,9# ID=8.8 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) ID=8.8 |
1 | ||
| 90029-20005 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 96711-19009 |
BU6#,7#,8#,9# ID=8.8 |
1 | ||
| 44101G - SEAL, DUST(FOR STEERING WORM) | ||||
| 90029-20700 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 内径=39.4 |
1 | ||
| 90029-20009 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT 内径=41 |
1 | ||
| 90029-20007 |
BU6#,7#,8#,9# 内径=39.4 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) 内径=39.4 |
1 | ||
| 90029-20009 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT 内径=41 |
1 | ||
| 90029-20007 |
BU6#,7#,8#,9# 内径=39.4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-56602 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT 内径=42 |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01502 |
BU61,66,68,72,74,83,84,87;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) |
2 | ||
| 90029-01502 |
BU60,61,66,68,70,72,73,74,83,84,87 |
2 | ||
| 44107K - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-35042 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107Q - HOUSING SUB-ASSY, STEERING W/NAME PLATE | ||||
| 44107-37040 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107-36220 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-36050 |
BU67,68,87..DMP,V;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=84.4 |
1 | ||
| 90029-20009 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT ID=84.4 |
1 | ||
| 90029-20009 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44108E - RING(FOR SECTOR COVER) | ||||
| 90029-56602 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) |
1 | ||
| 44142-37010 |
BU6#,7#,8#,9# |
1 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36040 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44165 - RING, SEAL, NO.1 | ||||
| 44165-36040 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-36011 |
BU87..V;BU85,88,9#;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| 44168-36020 |
BU88,9#;BU87..V;BU67,68,78..DM1,DM4,T4;BU60,66,87..(DM1,DM2,DM3,T3,TW1)..WT |
1 | ||
| Common parts | ||||
| 90029-01001 | ||||
| 90101-10435 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
