BU85-PDDT (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU8#,90..TR..03S

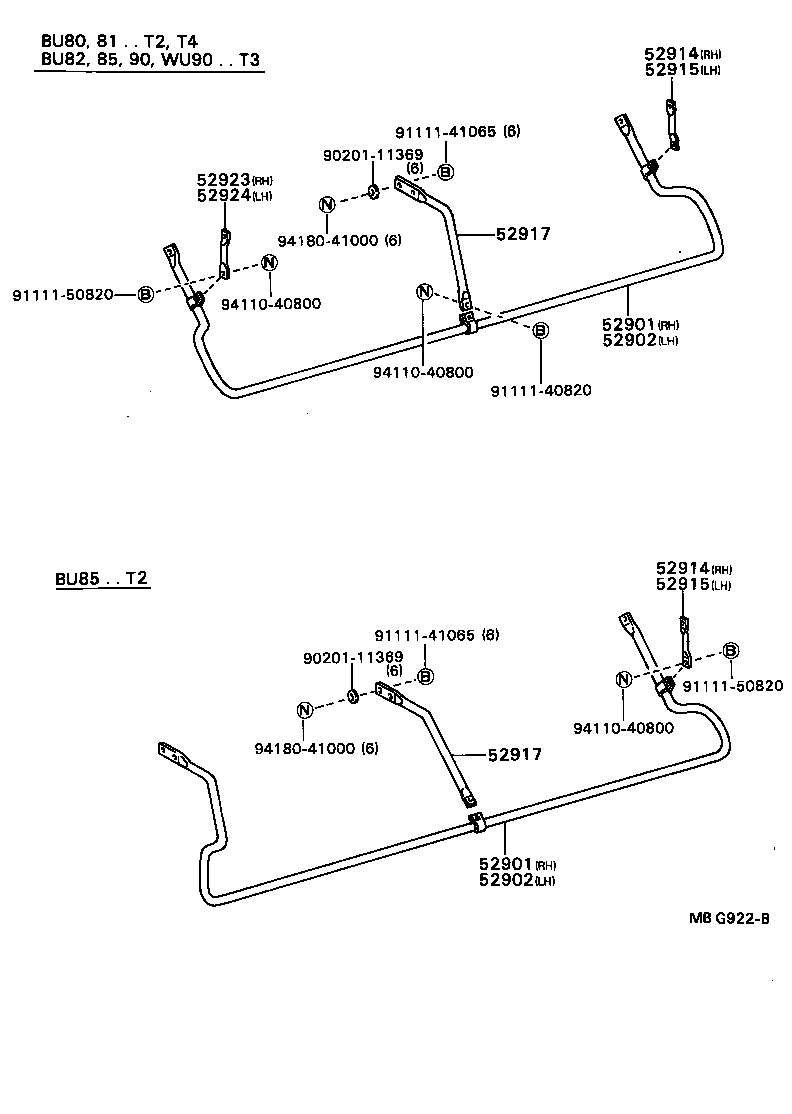

Click highlighted areas on diagram

diagram 52901 52901 52902 52902 52914 52914 52915 52915 52917 52917 52923 52924 9020111369 9020111369 9111140820 9111141065 9111141065 9111150820 9111150820 9411040800 9411040800 9411040800 9418041000 9418041000
Part # Description Qty Price
52901 - BUMPER SUB-ASSY, SIDE, RH NO.1
52901-92804

BU85,90..T3

 1
52901 - BUMPER SUB-ASSY, SIDE, RH NO.1
52901-92804

BU85,90..T3

 1
52902 - BUMPER SUB-ASSY, SIDE, LH NO.1
52902-92804

BU85,90..T3

 1
52902 - BUMPER SUB-ASSY, SIDE, LH NO.1
52902-92804

BU85,90..T3

 1
52914 - STAY, SIDE BUMPER REAR, RH NO.1
52913-92701

BU85..T3,TW1;BU82..06S..ATP;BU77,82,90,93,95..03S

 1
52914 - STAY, SIDE BUMPER REAR, RH NO.1
52913-92701

BU85..T3,TW1;BU82..06S..ATP;BU77,82,90,93,95..03S

 1
52915 - STAY, SIDE BUMPER REAR, LH NO.1
52913-92701

BU85..T3,TW1;BU82..06S..ATP;BU82,90,93,95..03S

 1
52915 - STAY, SIDE BUMPER REAR, LH NO.1
52913-92701

BU85..T3,TW1;BU82..06S..ATP;BU82,90,93,95..03S

 1
52917 - STAY, SIDE BUMPER CENTER, NO.1
52915-92802

BU82,85,90..T3

 2
52917 - STAY, SIDE BUMPER CENTER, NO.1
52915-92802

BU82,85,90..T3

 2
52923 - STAY, SIDE BUMPER, FRONT RH
52913-92701

BU62,77,82,85,90,93,95..T3,TW1

 1
52924 - STAY, SIDE BUMPER, FRONT LH
52913-92701

BU62,77,82,85,90,93,95..T3,TW1

 1
Common parts
90201-11369
91111-40820
91111-41065
91111-50820
94110-40800
94180-41000
