BU85-PDDT (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU77,80,81,85,90,93,95

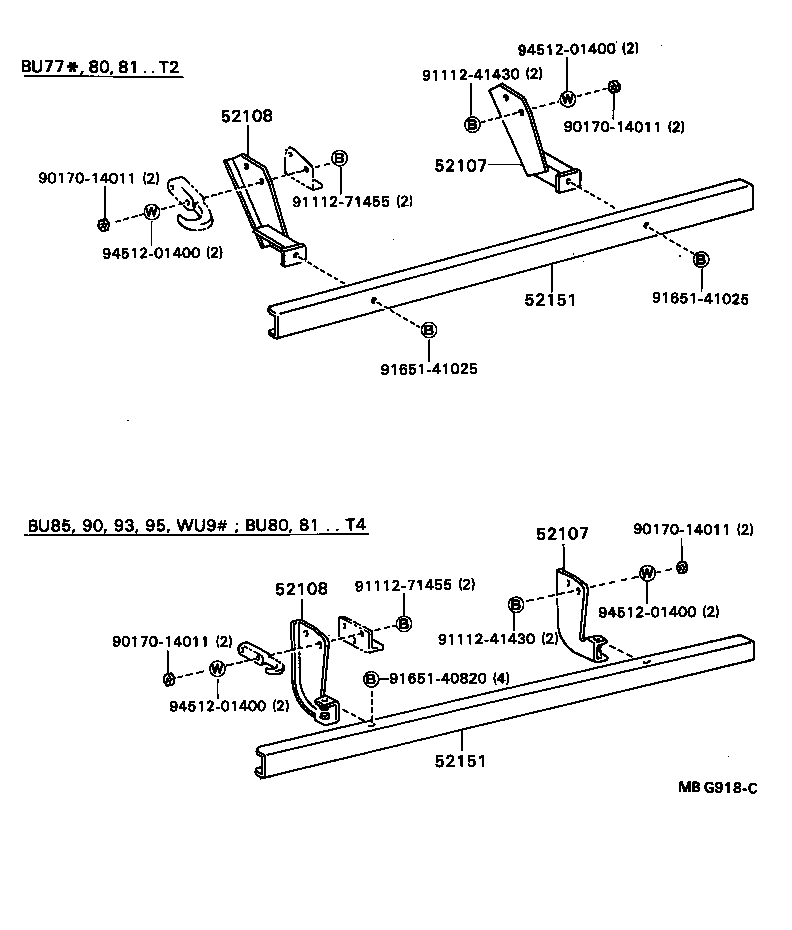

Click highlighted areas on diagram

diagram 52107 52107 52108 52108 52151 52151 9017014011 9017014011 9017014011 9017014011 9111241430 9111241430 9111271455 9111271455 9165140820 9165141025 9165141025 9451201400 9451201400 9451201400 9451201400
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52153-92820

BU85,90,93,95

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52153-92820

BU85,90,93,95

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52154-92820

BU85,90,93,95

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52154-92820

BU85,90,93,95

 1
52151 - BUMPER ASSY, REAR
52151-92820

BU85;BU80,81..T4

 1
52151 - BUMPER ASSY, REAR
52151-92820

BU85;BU80,81..T4

 1
Common parts
90170-14011
91112-41430
91112-71455
91651-40820
91651-41025
94512-01400
