Toyota Dyna/toyoace BU85 AIR CLEANER

BU85-PDDT (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987

Engine 13B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8409- )13B#..BU77,85,9#..03S

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-58110	13B#..BU77,85,9#..03S	09/1984 - 08/1987	1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008	13B#..BU77,85,9#	09/1984 - 08/1987	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-58040	13B#..BU77,85,9#	09/1984 - 08/1987	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-68020	13B#..BU77,85,9#	09/1984 - 08/1987	1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-68010	13B#..BU77,85,9#	09/1984 - 08/1987	1
17841 - GASKET, FILTER ELEMENT
17841-68010	13B#..BU77,85,9#	09/1984 - 08/1987	2
17841 - GASKET, FILTER ELEMENT
17841-68010	13B#..BU77,85,9#	09/1984 - 08/1987	2
17845 - GASKET, AIR CLEANER CAP
17845-68020	13B#..BU77,85,9#	09/1984 - 08/1987	1
Common parts
90179-10016
91651-61025
Linked diagrams
1709
8401

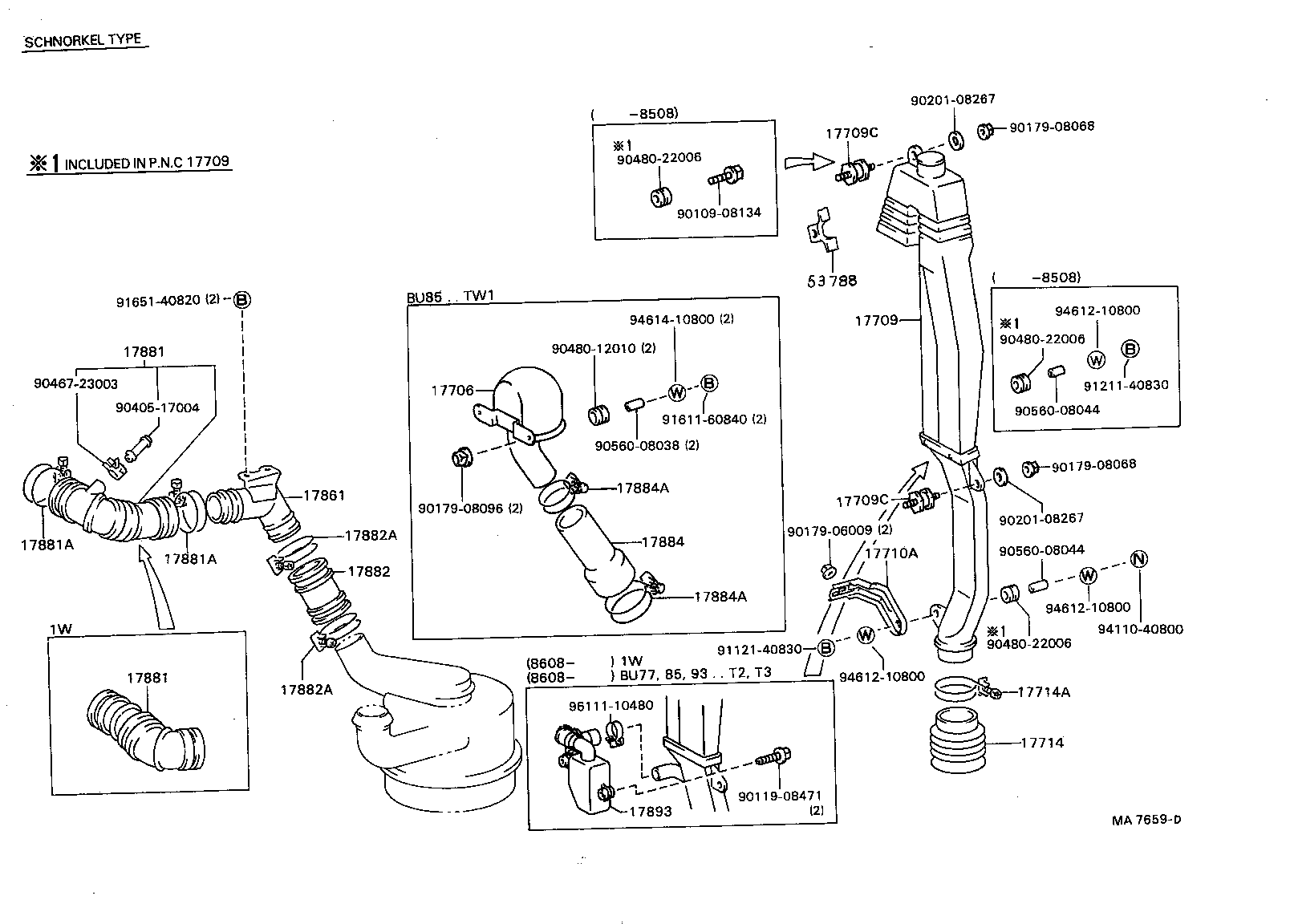

(8409- )13B..BU77,85,93,98

Click highlighted areas on diagram

Part #	Description	Period	Qty
17709 - INLET SUB-ASSY, AIR CLEANER
53097-95404	13B#..BU85,9#..03S	09/1984 - 08/1985	1
53097-95409	13BT..BU85;13B#..BU77,85,9#..TR..03S	08/1985 - 08/1986	1
53097-95411	13B..BU77,85,93..TR..03S	08/1986 - 08/1987	1
17709C - CUSHION, AIR CLEANER INLET
53955-95402	13B#..BU77,85,9#..03S	08/1985 - 08/1987	2
17709C - CUSHION, AIR CLEANER INLET
53955-95402	13B#..BU77,85,9#..03S	08/1985 - 08/1987	2
17710A - BRACKET SUB-ASSY, AIR CLEANER INLET DUCT
53773-95401	13B#..BU77,85,9#..03S	09/1984 - 08/1987	1
17714 - RUBBER SEAL, AIR INTAKE
53299-95400	13B#..BU77,85,9#..03S	09/1984 - 08/1987	1
17714A - CLAMP(FOR AIR INTAKE RUBBER SEAL)
96111-10880	13B#..BU77,85,9#..03S	09/1984 - 08/1987	1
17861 - CONNECTOR, INTAKE AIR
17886-58010	13B#..BU77,85,9#	09/1984 - 03/1986	1
17886-58030	13B..BU77,85,93,98	03/1986 - 08/1987	1
17881 - HOSE, AIR CLEANER, NO.1
17880-58020	13B..BU77,85,93,98	09/1984 - 05/1986	1
17880-58021	13B..BU77,85,93,98	05/1986 - 08/1987	1
17881 - HOSE, AIR CLEANER, NO.1
17880-58020	13B..BU77,85,93,98	09/1984 - 05/1986	1
17880-58021	13B..BU77,85,93,98	05/1986 - 08/1987	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	13B..BU77,85,93,98 INTAKE MANIFOLD SIDE	09/1984 - 08/1987	1
96111-10930	13B..BU77,85,93,98 CONNECTOR SIDE	09/1984 - 08/1987	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	13B..BU77,85,93,98 INTAKE MANIFOLD SIDE	09/1984 - 08/1987	1
96111-10930	13B..BU77,85,93,98 CONNECTOR SIDE	09/1984 - 08/1987	1
17882 - HOSE, AIR CLEANER, NO.2
17883-58030	13B..BU77,85,93,98	05/1986 - 08/1987	1
17883-58010	13B..BU77,85,93,98	09/1984 - 05/1986	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10930	13B..BU77,85,93,98	09/1984 - 05/1986	2
96111-10750	13B..BU77,85,93,98	05/1986 - 08/1987	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10930	13B..BU77,85,93,98	09/1984 - 05/1986	2
96111-10750	13B..BU77,85,93,98	05/1986 - 08/1987	2
17893 - RESONATOR, INTAKE AIR
17805-95400	13B..BU77,85,93..TR..03S	08/1986 - 08/1987	1
Common parts
90109-08134
90119-08471
90179-06009
90179-08068
90179-08096
90201-08267
90405-17004
90467-23003
90480-12010
90480-22006
90560-08038
90560-08044
91121-40830
91211-40830
91611-60840
91651-40820
94110-40800
94612-10800
94614-10800
96111-10480

ILLUST NO. 1 OF 2(8808-9008)B,11B,14B,3B..BU6#,70,83,84,87 ; (8910-9109)14B..BU72,73,74 ; (9008-

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-08104
91661-60825
Linked diagrams
1709

ILLUST NO. 2 OF 2(8808-9008)B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 ; (9008- )B,11B,14B,3B..BU6#,

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-08471
90159-60168
90202-05129
90202-06119
90468-14001
91651-40814
91651-40820
91656-40820
91665-40620
