Toyota Dyna/toyoace BU85 EXHAUST PIPE

BU85-PDDT (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987

Engine 13B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

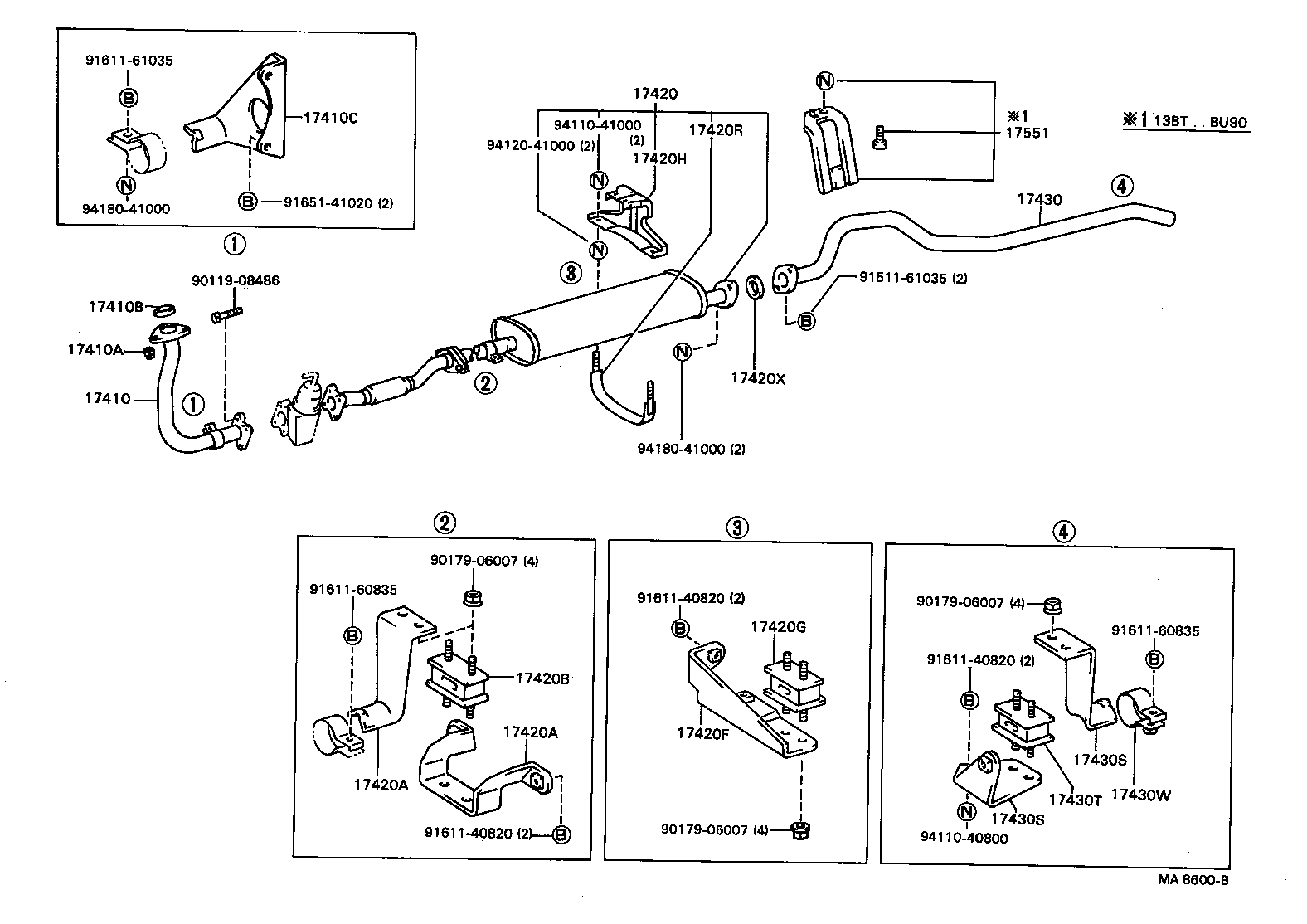

(8409- )13B#..BU77,85,93

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
17410B - GASKET, EXHAUST PIPE
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17572-58030	13B#..BU85,90,93,95 BODY SIDE	09/1984 - 08/1987	1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17572-58030	13B#..BU85,90,93,95 BODY SIDE	09/1984 - 08/1987	1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17572-58030	13B#..BU85,90,93,95 BODY SIDE	09/1984 - 08/1987	1
17420B - CUSHION, EXHAUST PIPE CENTER, FRONT
17567-61030	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
17444A - SPACER, EXHAUST FRONT PIPE
17444-58010	13B..BU62,85..4FC	09/1984 - 08/1987	1
17451 - GASKET, EXHAUST PIPE
46759-36030	13B..BU62,85..4FC	09/1984 - 08/1987	2
17451 - GASKET, EXHAUST PIPE
46759-36030	13B..BU62,85..4FC	09/1984 - 08/1987	2
Common parts
90119-08486
90179-06007
91511-61035
91611-60820
91611-60835
91651-41020
94110-40800
94110-41000
94120-41000
94180-41000

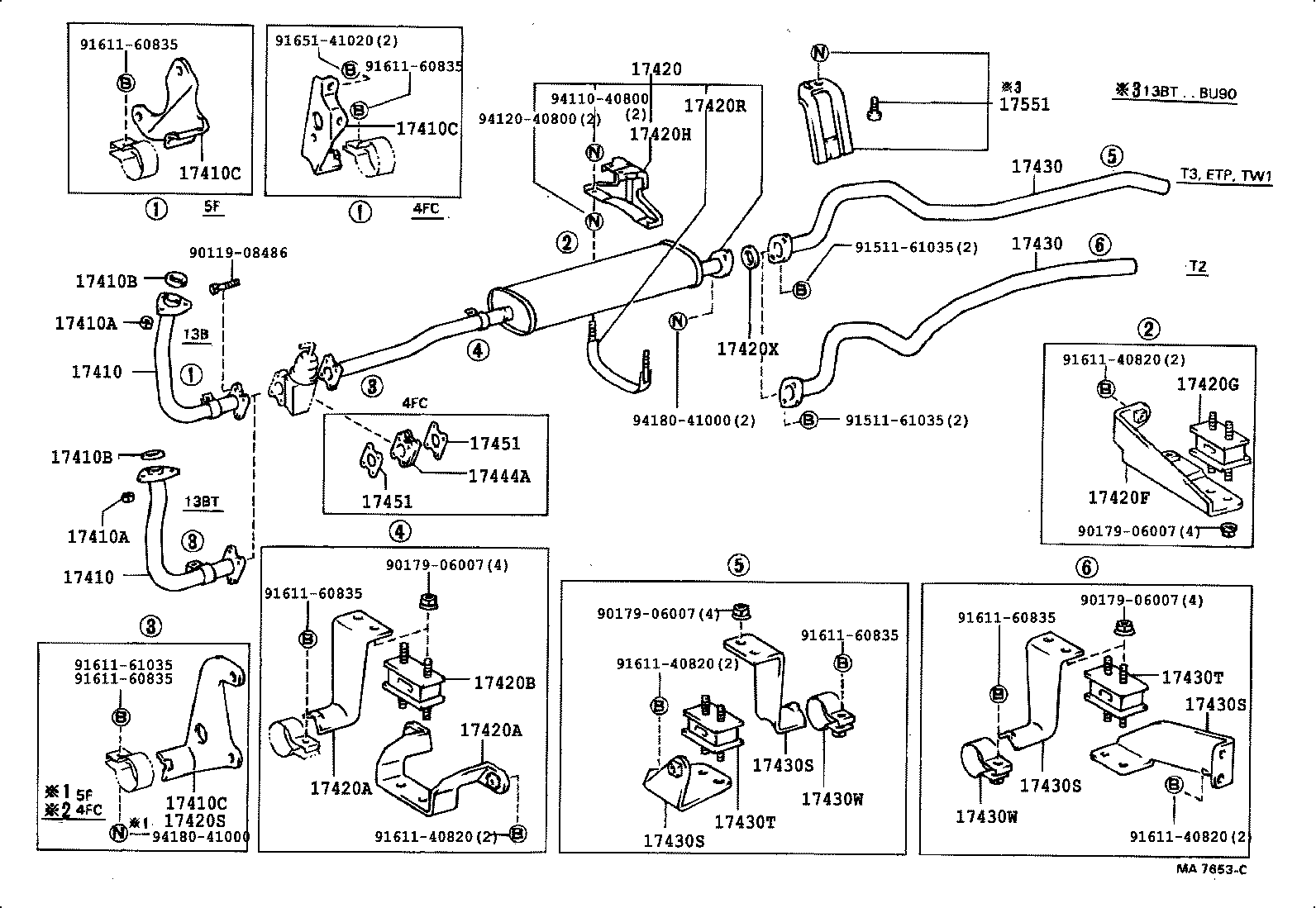

(8409-8508)13B#..BU85,9#

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
17410B - GASKET, EXHAUST PIPE
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
17410B - GASKET, EXHAUST PIPE
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17572-58030	13B#..BU85,90,93,95 BODY SIDE	09/1984 - 08/1987	1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17572-58030	13B#..BU85,90,93,95 BODY SIDE	09/1984 - 08/1987	1
17420B - CUSHION, EXHAUST PIPE CENTER, FRONT
17567-61030	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17571-58110	13B..BU85..4FC	09/1984 - 08/1985	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
17444A - SPACER, EXHAUST FRONT PIPE
17444-58010	13B..BU62,85..4FC	09/1984 - 08/1987	1
17451 - GASKET, EXHAUST PIPE
46759-36030	13B..BU62,85..4FC	09/1984 - 08/1987	2
17451 - GASKET, EXHAUST PIPE
46759-36030	13B..BU62,85..4FC	09/1984 - 08/1987	2
Common parts
90119-08486
90179-06007
91511-61035
91611-40820
91611-60835
91611-61035
91651-41020
94110-40800
94120-40800
94180-41000

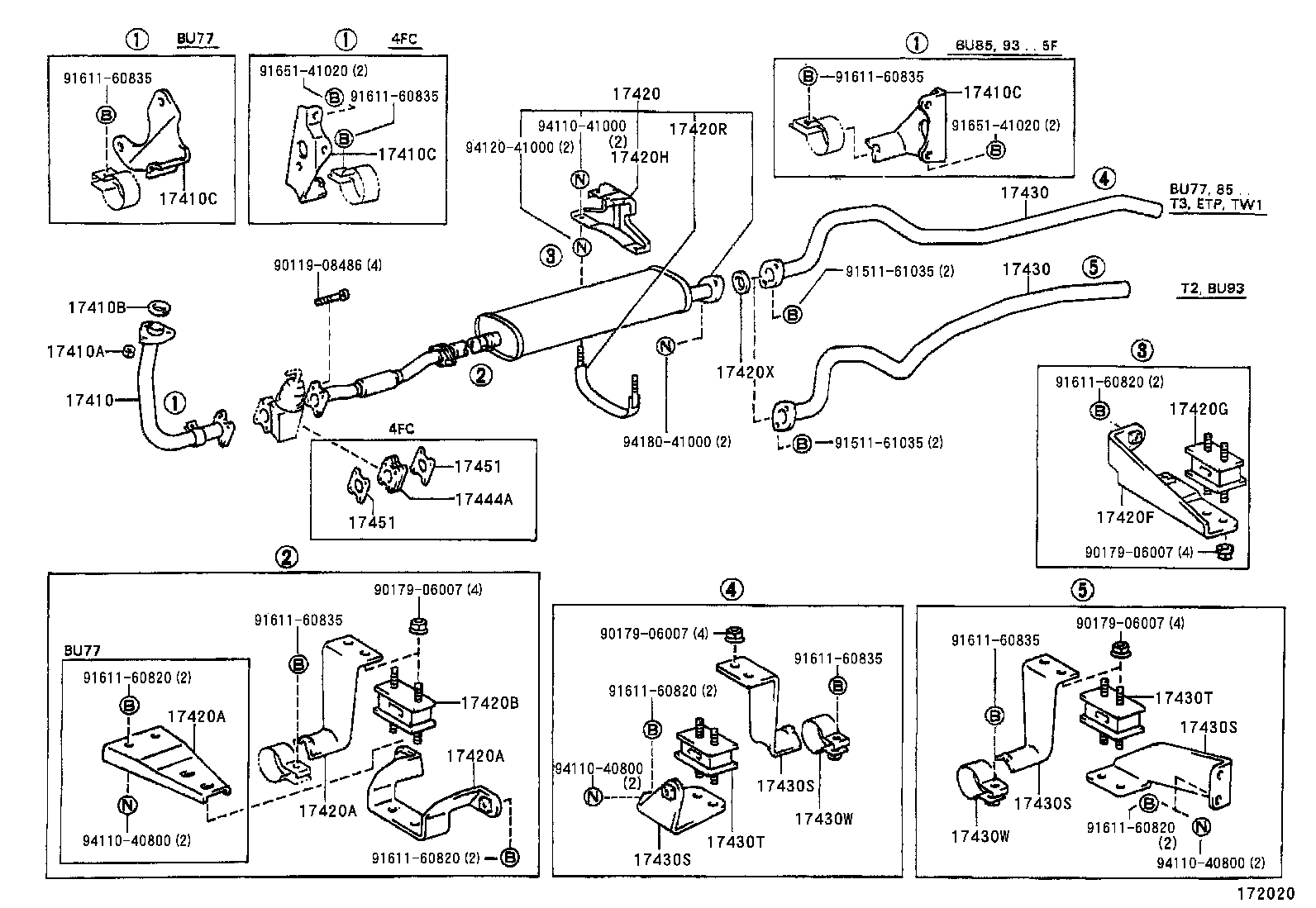

(8410- )13B..BU62,85..DYN..CTP,ETP ; (8410-)13B..BU62..TOY..5F..ST..ATP ; (8

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
17410B - GASKET, EXHAUST PIPE
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
Common parts
90179-06007
91611-40820
91611-60820
91611-60835
91615-40825
94110-40800
94120-40800
94180-40800

(8410- )13B..BU64..TOY..L2 ; (8410- )13B..BU62..TOY..DTP ; (8410- )13B..BU

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
17410B - GASKET, EXHAUST PIPE
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
Common parts
90179-06007
91611-40820
91611-60820
91611-60835
91615-40825
94110-40800
94120-40800
94180-40800

(8410- )13B..BU64..TOY..T3..CBU ; (8410- )13B..BU82..DYN..275..CBU ; (8410-

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
17410B - GASKET, EXHAUST PIPE
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
Common parts
90179-06007
91611-40820
91611-60820
91611-60835
91615-40825
94110-40800
94120-40800
94180-40800

(8410- )13B..BU85..DYN..T3..4FC..CBU ; (8410-)11B..BU61..TOY..T3,T4..20T..AT

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
17410B - GASKET, EXHAUST PIPE
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
Common parts
90179-06007
91611-40820
91611-60820
91611-60835
91615-40825
94110-40800
94120-40800
94180-40800

(8410- )B..BU60..TOY..T3..ST..CBU ; (8410-)13BT..BU85..TOY..30T..CBU ; (8410

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
17410B - GASKET, EXHAUST PIPE
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
Common parts
90179-06007
91611-40820
91611-60820
91611-60835
91615-40825
94110-40800
94120-40800
94180-40800

(8409- )13B#..BU85,90,95

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58040	13B..BU85,93,98	05/1986 - 08/1987	1
17401-58010	13B..BU85	09/1984 - 08/1985	1
17401-58040	13B..BU85,98	08/1985 - 05/1986	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	B,11B,13B#..BU6#,70,8#,9#	09/1984 - 08/1987	3
17410B - GASKET, EXHAUST PIPE
90917-06012	B,11B,13B..BU6#,7#,8#,93,98	09/1984 - 08/1987	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58120	13B..BU85..4FC	09/1984 - 08/1987	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56270	13B..BU85..4FC	09/1984 - 08/1985	1
17420-56290	13B..BU85	08/1985 - 08/1987	1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17572-58030	13B#..BU85,90,93,95 BODY SIDE	09/1984 - 08/1987	1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17572-58030	13B#..BU85,90,93,95 BODY SIDE	09/1984 - 08/1987	1
17420B - CUSHION, EXHAUST PIPE CENTER, FRONT
17567-61030	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58060	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17567-58010	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020	13B#..BU77,85,90,93,95	09/1984 - 08/1987	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012	13B#..BU85,9#	09/1984 - 08/1985	1
90917-06008	B,11B,13B#..BU6#,7#,8#,9#	08/1985 - 08/1987	2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58030	13B#..BU85,9#..T3	09/1984 - 08/1985	1
17405-58031	13B..BU93;13B#..BU85,90,95..T3	08/1985 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010	13B#..BU85,90,93,95 PIPE SIDE	09/1984 - 08/1987	1
17574-58040	13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1 BODY SIDE	09/1984 - 08/1987	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030	B,11B,13B#..BU6#,7#,8#,90,93,95	09/1984 - 08/1987	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007	13B#..BU85,90,93,95	09/1984 - 08/1987	1
Common parts
90119-08486
90179-06007
91511-61035
91611-40820
91611-60835
91611-61035
91651-41020
94110-40800
94110-41000
94120-41000
94180-41000

BU85-PDDT (1984)

(8409- )13B#..BU77,85,93

(8409-8508)13B#..BU85,9#

(8410- )13B..BU62,85..DYN..CTP,ETP ; (8410-)13B..BU62..TOY..5F..ST..ATP ; (8

(8410- )13B..BU64..TOY..L2 ; (8410- )13B..BU62..TOY..DTP ; (8410- )13B..BU

(8410- )13B..BU64..TOY..T3..CBU ; (8410- )13B..BU82..DYN..275..CBU ; (8410-

(8410- )13B..BU85..DYN..T3..4FC..CBU ; (8410-)11B..BU61..TOY..T3,T4..20T..AT

(8410- )B..BU60..TOY..T3..ST..CBU ; (8410-)13BT..BU85..TOY..30T..CBU ; (8410

(8409- )13B#..BU85,90,95

Part Price Details
