BU85-MDPDTJ (1985)

Toyota Dyna/Toyoace

Production Aug 1985 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

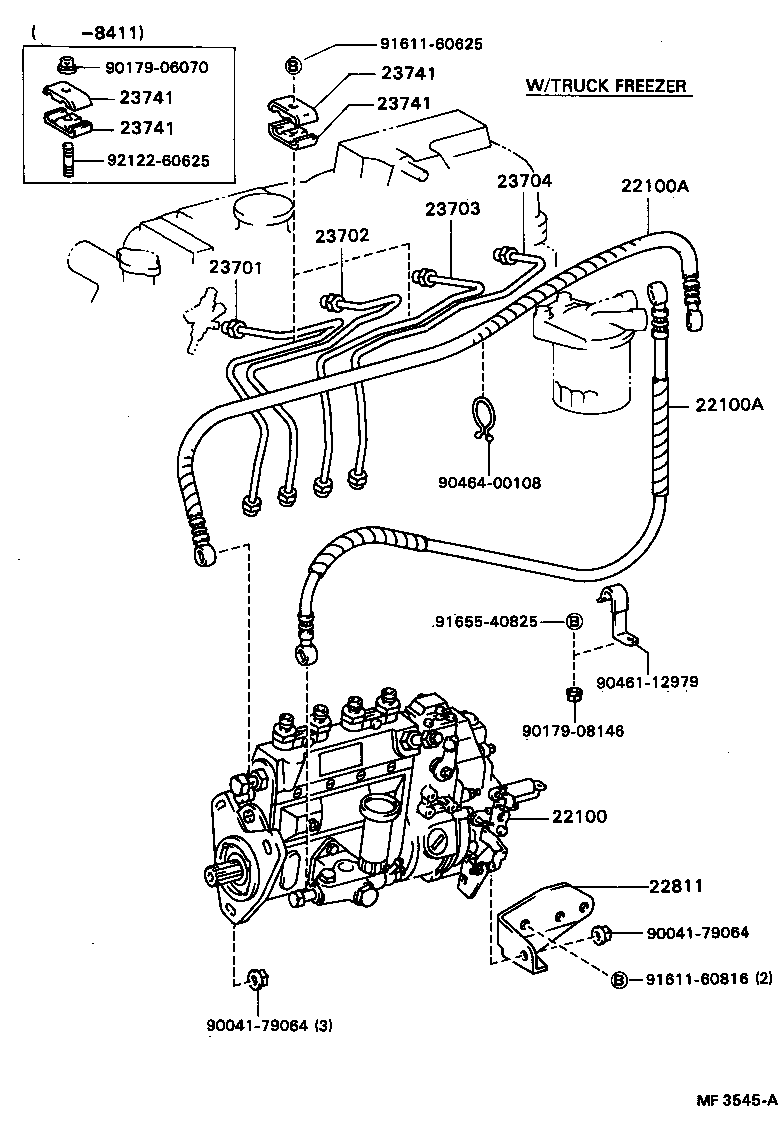

(8409-8510)13B..BU62..BTP ; (8409-8510)13B..BU62..TR..5F..WT..20T..ATP ; (8504-8510

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 23701 23702 23703 23704 23741 23741 23741 23741 9004179064 9004179064 9017906070 9017908146 9046112979 9046400108 9161160625 9161160816 9165540825 9212260625
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-58230

13B..BU62,64,77,82,85,93,98..5F..(CBU,IV3)

 1
22100-58231

13B..BU62,85..5F..(CBU,IV3)

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23802-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾎｰｽ 長さ=210

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23802-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾎｰｽ 長さ=210

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B#..BU6#,7#,8#,9#

 6
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B#..BU6#,7#,8#,9#

 6
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B#..BU6#,7#,8#,9#

 6
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B#..BU6#,7#,8#,9#

 6
Common parts
90041-79064
90179-06070
90179-08146
90461-12979
90464-00108
91611-60625
91611-60816
91655-40825
92122-60625

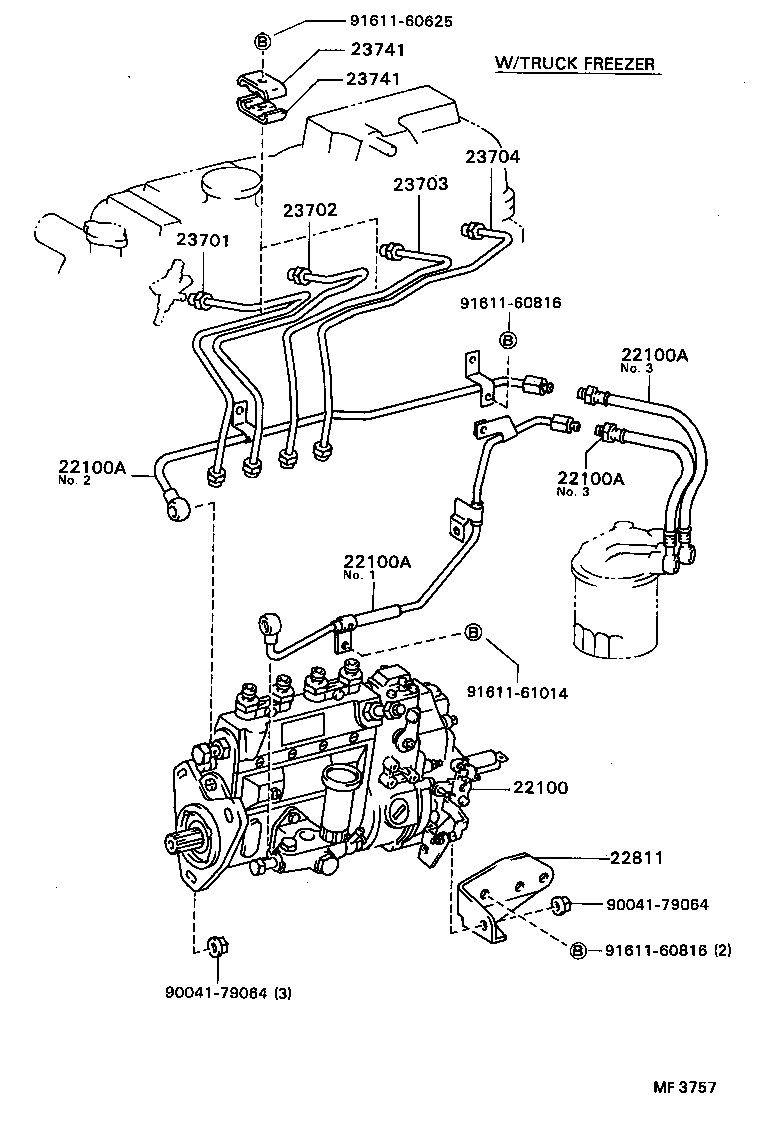

(8510- )13B..BU62..BTP ; (8510- )11B,13B..BU61,62..TR..5F..WT..20T..ATP ; (86

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22100A 22100A 22811 23701 23702 23703 23704 23741 23741 9004179064 9004179064 9161160625 9161160816 9161160816 9161161014
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-58230

13B..BU62,64,77,82,85,93,98..5F..(CBU,IV3)

 1
22100-58230

13B..BU62,64,77,82,85,93,98..5F..(CBU,IV3)

 1
22100-58231

13B..BU62,85..5F..(CBU,IV3)

 1
22100-58231

13B..BU62,85..5F..(CBU,IV3)

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23801-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23802-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾎｰｽ 長さ=210

 1
23802-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾎｰｽ 長さ=210

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23801-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23802-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾎｰｽ 長さ=210

 1
23802-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾎｰｽ 長さ=210

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23801-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23802-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾎｰｽ 長さ=210

 1
23802-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾎｰｽ 長さ=210

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23801-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23802-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾎｰｽ 長さ=210

 1
23802-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

ﾎｰｽ 長さ=210

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
22811-56040

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23701-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23702-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23703-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23704-56060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B#..BU6#,7#,8#,9#

 6
23741-56010

B,11B,13B#..BU6#,7#,8#,9#

 6
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

B,11B,13B#..BU6#,7#,8#,9#

 6
23741-56010

B,11B,13B#..BU6#,7#,8#,9#

 6
Common parts
90041-79064
91611-60625
91611-60816
91611-61014
