BU85-MDPDT3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )V

Click highlighted areas on diagram

diagram 58241C 58242C 5852 5852 5852 5852 61023B 61024B 61027A 61028A 61207A 61208A 61211 61212 61214B 61217A 61218A 61225A 61226A 61227D 61228D 61231 61232 61233A 61234A 61261 61262 61265B 61266B 61267A 61268 61301C 61302C 61307 61308 61351C 61351C 61363B 61364B 61423A 61424A 61605B 61606B 61607C 61608C 61611 61612 61613E 61614E 61621E 61631A 61632A 61641B 61641B 61642B 61642B 61645A 61646A 61665C 61666C 61671A 61673D 61675D 61677B 61678B 61681B 61703C 61703E 61704G 61705R 61706R 61714A 61725 61725C 61726C 61735B 61781C 61783 64015 64016 64163A 66224A 67172B 76607 76608 76628A 9016860004 9017906162 9095001006 9095001011 9095001011 9095001029 9095001306 9165140614 9165140614 9165140616 9356015010
Part # Description Qty Price
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95400

BU6#,70,8#,9#

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95400

BU6#,70,8#,9#

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95400

BU6#,70,8#,9#

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95400

BU6#,70,8#,9#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95404

BU60,62,82,85..06S

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95404

BU60,62,82,85..06S

 1
61214B - RAIL, ROOF SIDE, OUTER NO.2 LH
61213-95402

BU62,85..06S

 1
61231 - RAIL, ROOF SIDE, INNER RH
61203-92600

BU85..06S

 1
61232 - RAIL, ROOF SIDE, INNER LH
61204-92601

BU85..06S

 1
61233A - RAIL, ROOF SIDE, INNER NO.2 RH
61233-95401

BU62,85..06S

 1
61234A - RAIL, ROOF SIDE, INNER NO.2 LH
61234-95401

BU62,85..06S

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-95407

BU6#,8#,9#

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-95407

BU6#,8#,9#

 1
61267A - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-92602

BU85..06S

 1
61268 - CHANNEL, ROOF DRIP SIDE, REAR LH
61267-92602

BU85..06S

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-92611

BU85..06S

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-92621

BU85..06S

 1
61308-92622

BU85..06S

ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
64163A - COVER, BACK CORNER, INNER
64163-95404

BU85..06S;BU6#,80,81,82

 2
Common parts
90168-60004
90179-06162
90950-01006
90950-01011
90950-01029
90950-01306
91651-40614
91651-40616
93560-15010
Linked diagrams
5852

(8708- )BU62,85..06S

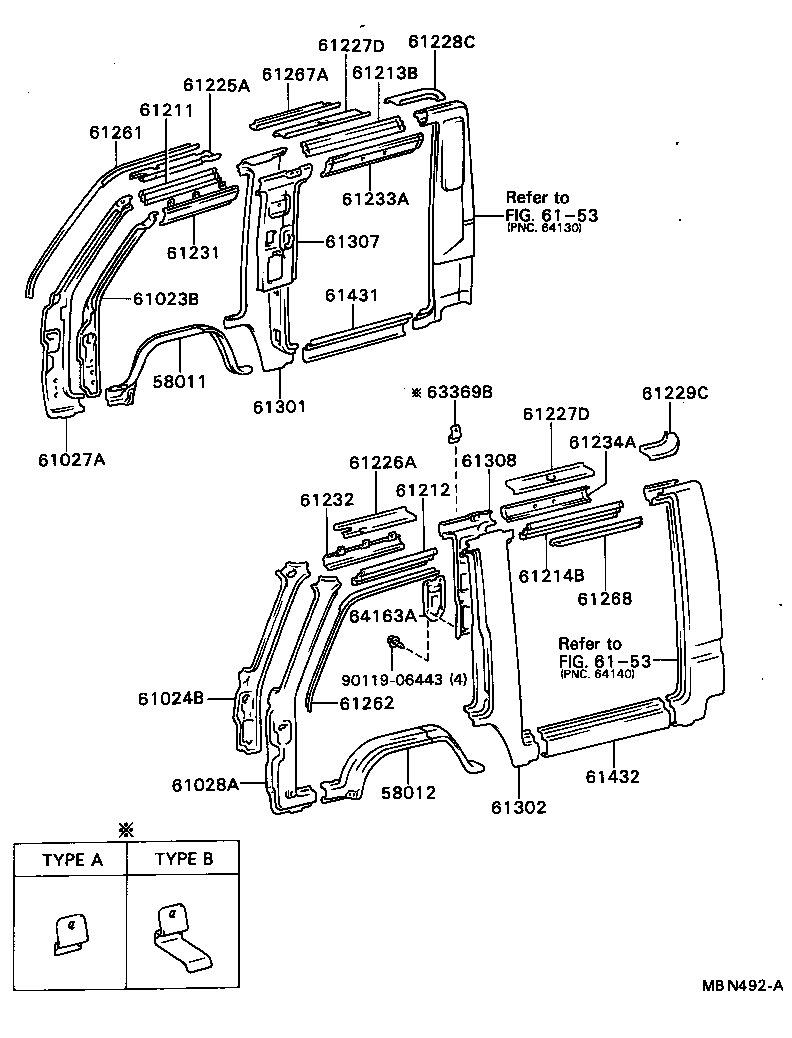

Click highlighted areas on diagram

diagram 58011 58012 61023B 61024B 61027A 61028A 61211 61212 61213B 61214B 61225A 61226A 61227D 61227D 61228C 61229C 61231 61232 61233A 61234A 61261 61262 61267A 61268 61301 61302 61307 61308 61431 61432 6153 6153 63369B 64163A 9011906443
Part # Description Qty Price
58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
58011-95448

BU60,62,82,85..06S

 1
58011-95444

BU85..V;BU85,90..T2,T3;BU6#,80,81,82,93,95,98..03S

 1
58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58012-95442

BU62,64..TR..20T;BU85..(T2,T3)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
58012-95445

BU60,62,82,85..06S

 1
58012-95440

BU85..V;BU85,90..T2,T3;BU6#,80,81,82,93,95,98..03S

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95400

BU6#,70,8#,9#

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95400

BU6#,70,8#,9#

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95400

BU6#,70,8#,9#

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95400

BU6#,70,8#,9#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95404

BU60,62,82,85..06S

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95404

BU60,62,82,85..06S

 1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61213-95402

BU62,85..06S

 1
61214B - RAIL, ROOF SIDE, OUTER NO.2 LH
61213-95402

BU62,85..06S

 1
61231 - RAIL, ROOF SIDE, INNER RH
61203-92600

BU85..06S

 1
61232 - RAIL, ROOF SIDE, INNER LH
61204-92601

BU85..06S

 1
61233A - RAIL, ROOF SIDE, INNER NO.2 RH
61233-95401

BU62,85..06S

 1
61234A - RAIL, ROOF SIDE, INNER NO.2 LH
61234-95401

BU62,85..06S

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-95407

BU6#,8#,9#

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-95407

BU6#,8#,9#

 1
61267A - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-92602

BU85..06S

 1
61268 - CHANNEL, ROOF DRIP SIDE, REAR LH
61267-92602

BU85..06S

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-92608

BU85..06S

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-92610

BU85..06S

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-92611

BU85..06S

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-92621

BU85..06S

 1
61308-92622

BU85..06S

ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
61431 - PANEL, ROCKER, OUTER REAR RH
61431-95401

BU60,62,82,85..06S

 1
61432 - PANEL, ROCKER, OUTER REAR LH
61431-95401

BU60,62,82,85..06S

 1
63369B - BRACKET, ROOF SILENCER, SIDE
63369-92600

BU85..06S

TYPE A

 1
63369-92601

BU85..06S

ﾀｲﾌﾟ B

 6
64163A - COVER, BACK CORNER, INNER
64163-95404

BU85..06S;BU6#,80,81,82

 2
Common parts
90119-06443
Linked diagrams
6153
