BU85-MDPDT3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )DYN

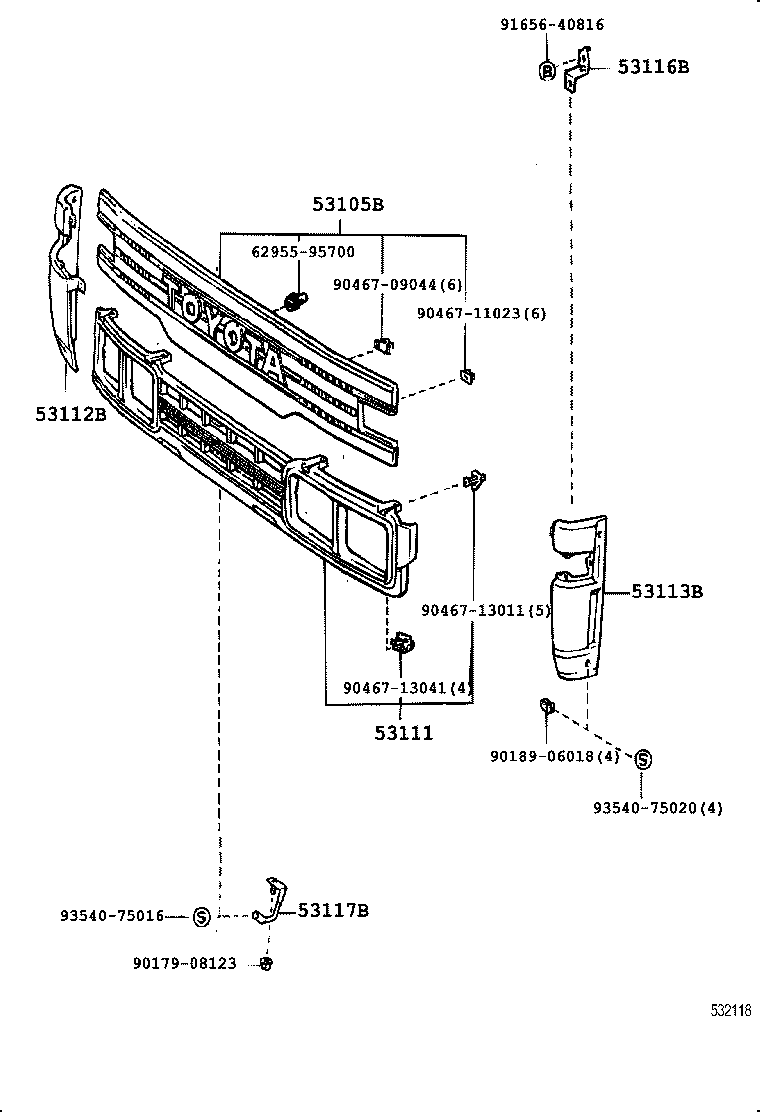

Click highlighted areas on diagram

diagram 53105B 53111 53112B 53113B 53116B 53117B 6295595700 9017908123 9018906018 9046709044 9046711023 9046713011 9046713041 9165640816 9354075016 9354075020
Part # Description Qty Price
53105B - GARNISH SUB-ASSY, RADIATOR GRILLE
53105-95409

BU85..DYN..06S;BU6#,70,80,81,82..DYN

ｱﾘ(ﾒﾂｷ ﾗｼﾞｴ-ﾀ ｸﾞﾘﾙ)

 1
53105-95408

BU85,9#..DYN

GRAY M

 1
53105-95406

BU85,9#..DYN

BEIGE M

 1
53111 - GRILLE, RADIATOR
53111-95422

BU85..V;BU93,95,98..DYN

BEIGE M

 1
53111-95424

BU85..DYN..T3..5F..20T..DSL..IV3

GRAY M

 1
53111-95422

BU85..DYN..T3..5F..20T..DSL..IV3

BEIGE M

 1
53111-95424

BU85..V;BU93,95,98..DYN

GRAY M

 1
53111-95422

BU85,90..DYN..TR

 1
53111-95424

BU85,90..DYN..TR

GRAY M

 1
53111-95425

BU85..DYN..06S;BU6#,70,80,81,82..DYN

ｱﾘ(ﾒﾂｷ ﾗｼﾞｴ-ﾀ ｸﾞﾘﾙ)

 1
53112B - GRILLE, RADIATOR SIDE, RH
53112-95404

BU6#,70,8#,90..DYN..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,T4,TW1,TW2,TW4)

BEIGE M

 1
53112-95405

BU85..V;BU93,95,98..DYN

BEIGE M

 1
53112-95406

BU6#,70,8#,90..DYN..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,T4,TW1,TW2,TW4)

GRAY M

 1
53112-95405

BU85..DYN..T3..5F..20T..DSL..IV3

ｱﾘ(ｻｲﾄﾞ ﾘﾌﾚｸﾀ),BEIGE M

 1
53112-95407

BU85..V;BU93,95,98..DYN

GRAY M

 1
53112-95407

BU85..DYN..T3..5F..20T..DSL..IV3

ｱﾘ(ｻｲﾄﾞ ﾘﾌﾚｸﾀ),GRAY M

 1
53112-95408

BU85..DYN..06S;BU6#,70,80,81,82..DYN

ｱﾘ(ﾒﾂｷ ﾗｼﾞｴ-ﾀ ｸﾞﾘﾙ)

 1
53113B - GRILLE, RADIATOR SIDE, LH
53113-95409

BU85..V;BU93,95,98..DYN

GRAY M

 1
53113-95408

BU6#,70,8#,90..DYN..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,T4,TW1,TW2,TW4)

GRAY M

 1
53113-95407

BU85..DYN..T3..5F..20T..DSL..IV3

ｱﾘ(ｻｲﾄﾞ ﾘﾌﾚｸﾀ),BEIGE M

 1
53113-95410

BU85..DYN..06S;BU6#,70,80,81,82..DYN

ｱﾘ(ﾒﾂｷ ﾗｼﾞｴ-ﾀ ｸﾞﾘﾙ)

 1
53113-95407

BU85..V;BU93,95,98..DYN

BEIGE M

 1
53113-95406

BU6#,70,8#,90..DYN..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,T4,TW1,TW2,TW4)

BEIGE M

 1
53113-95409

BU85..DYN..T3..5F..20T..DSL..IV3

ｱﾘ(ｻｲﾄﾞ ﾘﾌﾚｸﾀ),GRAY M

 1
53116B - BRACKET, RADIATOR GRILLE, NO.2
53116-95404

BU85,9#

 1
53117B - BRACKET, RADIATOR GRILLE, LOWER
53117-95406

BU85,9#

 1
Common parts
62955-95700
90179-08123
90189-06018
90467-09044
90467-11023
90467-13011
90467-13041
91656-40816
93540-75016
93540-75020
