BU85-MDGT (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8409- )BU77,85,9#

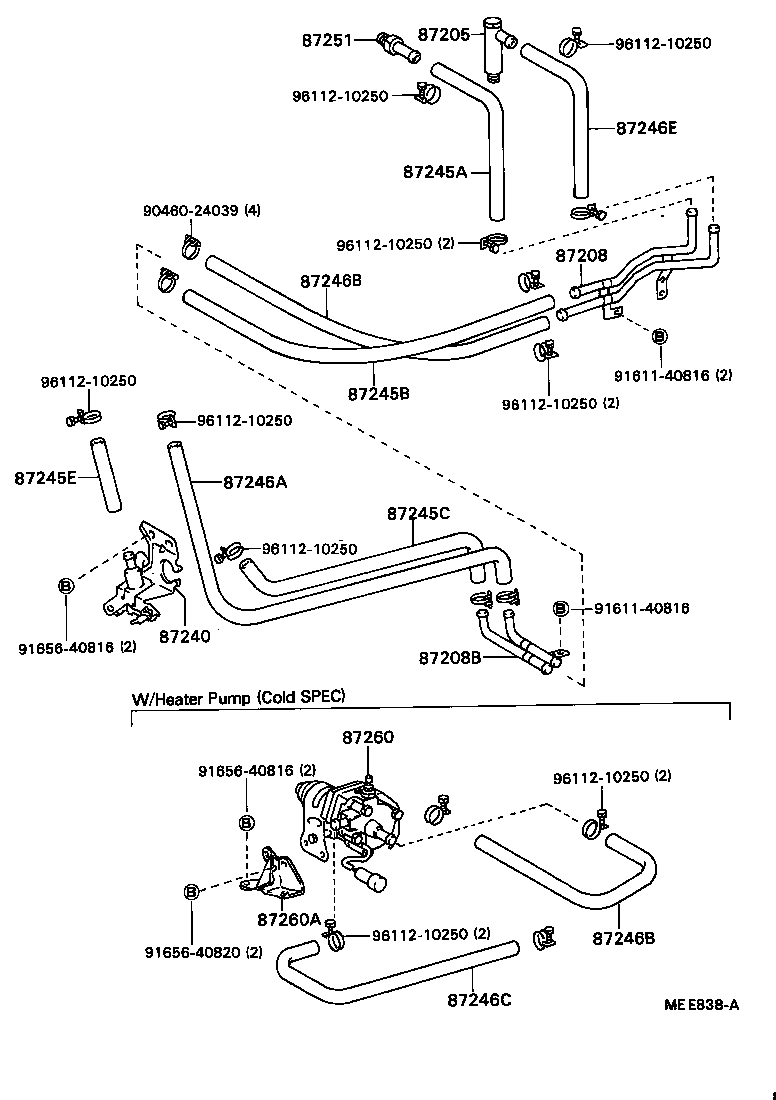

Click highlighted areas on diagram

diagram 87205 87208 87208B 87240 87245A 87245B 87245C 87245E 87246A 87246B 87246B 87246C 87246E 87251 87260 87260A 9046024039 9161140816 9161140816 9165640816 9165640816 9165640820 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

BU6#,7#,8#,9#

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95402

BU85,90,95

 1
87208-95402

BU77,85,9#..03S

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95406

BU77,85,9#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95405

BU6#,7#,8#,9#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95467

BU77,85,9#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95463

BU77,85,9#

 1
87245C - HOSE, HEATER WATER ,INLET C
99556-30500

BU77,85,9#

*H,L=400

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

BU6#,7#,8#,9#

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30700

BU77,85,9#

*H,L=520

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-95462

BU85,9#

 1
99556-30500

BU77,85,9#

*H,L=370

 1
87245-95453

BU77,85,9#

COLD SPEC

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-95462

BU85,9#

 1
99556-30500

BU77,85,9#

*H,L=370

 1
87245-95453

BU77,85,9#

COLD SPEC

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-95443

BU77,85,9#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95466

BU77,85,9#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BU6#,7#,8#,9#

FR HEATER

 1
87260 - PUMP ASSY, HEATER
87260-95401

BU77,85,9#

 1
87260A - BRACKET, HEATER PUMP
87261-95401

BU77,85,9#

 1
Common parts
90460-24039
91611-40816
91656-40816
91656-40820
96112-10250
