BU85-MDFHTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )13B..BU85,93,98

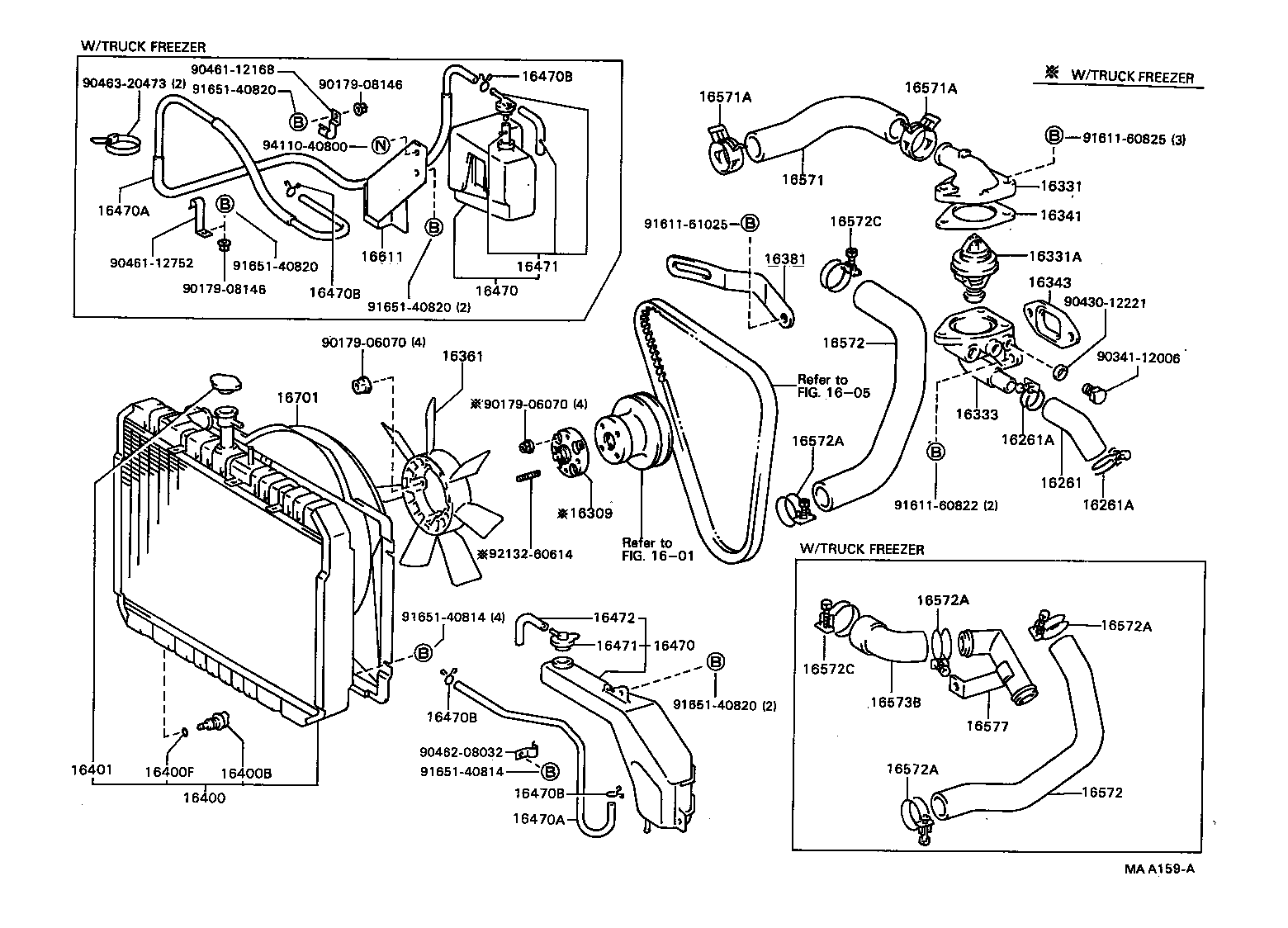

Click highlighted areas on diagram

diagram 1601 1605 16261 16261A 16261A 16309 16331 16331A 16333 16341 16343 16361 16381 16400 16400B 16400F 16401 16470 16470 16470A 16470A 16470B 16470B 16470B 16470B 16471 16471 16472 16571 16571A 16571A 16572 16572 16572A 16572A 16572A 16572A 16572C 16572C 16573B 16577 16611 16701 9017906070 9017906070 9017908146 9017908146 9034112006 9043012221 9046112168 9046112752 9046208032 9046320473 9161160822 9161160825 9161161025 9165140814 9165140814 9165140820 9165140820 9165140820 9165140820 9213260614 9411040800
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-56012

B,11B,13B#..BU6#,70,8#,9#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-67103

B,11B,13B#..BU6#,70,8#,9#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-67103

B,11B,13B#..BU6#,70,8#,9#

 2
16331 - OUTLET, WATER
16331-56020

13B..BU85,93,98

 1
16331A - THERMOSTAT
90916-03059

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

*WAX 88−100,*WAX 88-100

 1
16333 - HOUSING, WATER OUTLET
16333-56060

B,11B,13B#..BU6#,70,8#,9#

 1
16341 - GASKET, WATER OUTLET
16341-56020

B,11B,13B#..BU6#,70,8#,9#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-56020

B,11B,13B#..BU6#,70,8#,9#

 1
16361 - FAN
16361-38010

13B..BU85,93,98

 1
16381 - BAR, FAN BELT ADJUSTING
16381-56030

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 1
16400 - RADIATOR ASSY
16400-58142

13B..BU85..V

 1
16400-58230

13B..BU85..T4

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24051

13B#..BU85,9#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24051

B,11B,13B#..BU6#,70,8#,9#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

B,11B,13B#..BU6#,70,8#,9#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58020

13B#..BU85,9#

 1
16470-58010

13B..BU93;13B#..BU85,90,95..TR..03S

ｶｽﾀﾑ ﾊﾟｯｹ-ｼﾞ

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58020

13B#..BU85,9#

 1
16470-58010

13B..BU93;13B#..BU85,90,95..TR..03S

ｶｽﾀﾑ ﾊﾟｯｹ-ｼﾞ

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12143

13B..BU85,93,98

長さ=620

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12143

13B..BU85,93,98

長さ=620

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13B#..BU85,9#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13B#..BU85,9#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13B#..BU85,9#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13B#..BU85,9#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-56070

13B#..BU85,9#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-56070

13B#..BU85,9#

 1
16472 - HOSE, BREATHER
16472-58010

13B#..BU85,9#

 1
16571 - HOSE, RADIATOR, INLET
16571-58030

13B#..BU85,9#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10490

B,11B,13B#..BU6#,70,8#,9#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10490

B,11B,13B#..BU6#,70,8#,9#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-58031

13B#..BU85,9#

 1
16572 - HOSE, RADIATOR, OUTLET
16572-58031

13B#..BU85,9#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

13B#..BU85,9#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

13B#..BU85,9#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

13B#..BU85,9#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

13B#..BU85,9#

 1
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10570

13B#..BU85,93,98;13B#..BU62,90,95..35T,IV4

 1
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10570

13B#..BU85,93,98;13B#..BU62,90,95..35T,IV4

 1
16701 - SHROUD SUB-ASSY, FAN
16701-58080

13B..BU85..T4

 1
16701-58040

13B..BU85..V;13B..BU85,93,98..T2,T3,TW1

 1
Common parts
90179-06070
90179-08146
90341-12006
90430-12221
90461-12168
90461-12752
90462-08032
90463-20473
91611-60822
91611-60825
91611-61025
91651-40814
91651-40820
92132-60614
94110-40800
