BU85-MDFHTJ (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )13B..BU85,93

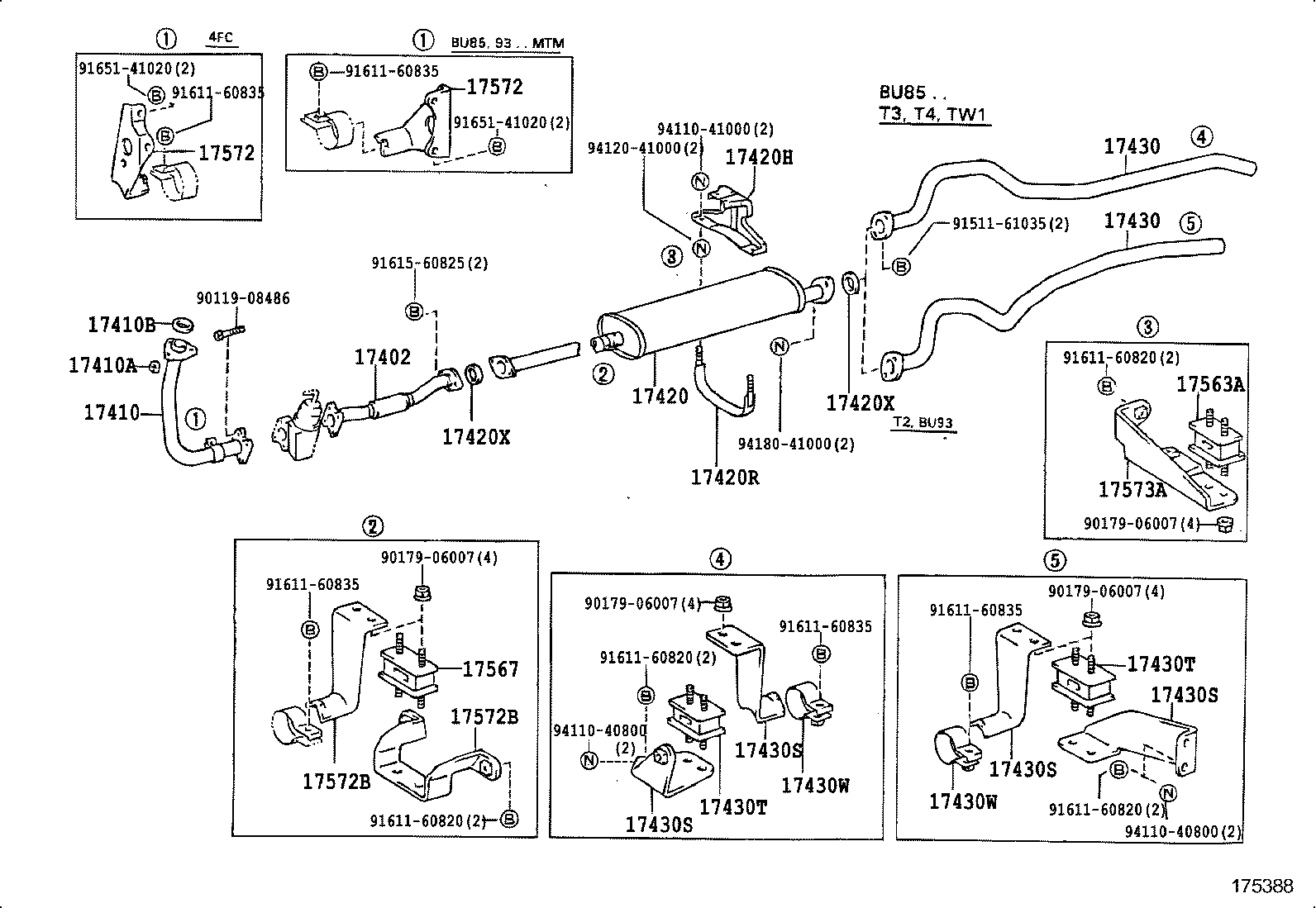

Click highlighted areas on diagram

diagram 17402 17410 17410A 17410B 17420 17420H 17420R 17420X 17420X 17430 17430 17430S 17430S 17430S 17430S 17430T 17430T 17430W 17430W 17563A 17567 17572 17572 17572B 17572B 17573A 9011908486 9017906007 9017906007 9017906007 9017906007 9151161035 9161160820 9161160820 9161160820 9161160820 9161160835 9161160835 9161160835 9161160835 9161160835 9161560825 9165141020 9165141020 9411040800 9411040800 9411041000 9412041000 9418041000
Part # Description Qty Price
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-56040

13B#..BU85,90,93,95

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58040

13B..BU85,93,98

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

B,11B,13B#..BU6#,70,8#,9#

 3
17410B - GASKET, EXHAUST PIPE
90917-06012

B,11B,13B..BU6#,70,8#,93,98

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-56280

13B..BU85

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040

13B#..BU85,90,93,95

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020

13B#..BU85,90,93,95

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

13B#..BU85,90,93,95

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

13B#..BU85,90,93,95

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58210

13B..BU93;13B..BU85..V;13B#..BU85,90,95..T3,T4,TW1

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58210

13B..BU93;13B..BU85..V;13B#..BU85,90,95..T3,T4,TW1

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

13B..BU85..V;13B..BU62..275,30T;B,11B,13BT..BU61,80,85,90,95..WT;11B,13B..BU81,82,85,93..T3,T4,TW1;B,13B..BU60,62..DM2,T2,T4,TW2,TW4

BODY SIDE

 1
17561-47010

13B#..BU85,90,93,95

PIPE SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

13B..BU85..V;13B..BU62..275,30T;B,11B,13BT..BU61,80,85,90,95..WT;11B,13B..BU81,82,85,93..T3,T4,TW1;B,13B..BU60,62..DM2,T2,T4,TW2,TW4

BODY SIDE

 1
17561-47010

13B#..BU85,90,93,95

PIPE SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

13B..BU85..V;13B..BU62..275,30T;B,11B,13BT..BU61,80,85,90,95..WT;11B,13B..BU81,82,85,93..T3,T4,TW1;B,13B..BU60,62..DM2,T2,T4,TW2,TW4

BODY SIDE

 1
17561-47010

13B#..BU85,90,93,95

PIPE SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

13B..BU85..V;13B..BU62..275,30T;B,11B,13BT..BU61,80,85,90,95..WT;11B,13B..BU81,82,85,93..T3,T4,TW1;B,13B..BU60,62..DM2,T2,T4,TW2,TW4

BODY SIDE

 1
17561-47010

13B#..BU85,90,93,95

PIPE SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

B,11B,13B#..BU6#,70,8#,90,93,95

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

B,11B,13B#..BU6#,70,8#,90,93,95

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007

13B#..BU85,90,93,95

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007

13B#..BU85,90,93,95

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-58010

13B#..BU85,90,93,95

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-61030

13B#..BU85,90,93,95

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58030

13B..BU85,93,98..5F

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58030

13B..BU85,93,98..5F

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17561-47010

13B#..BU85,90,93,95

 1
17572-58030

13B#..BU85,90,93,95

BODY SIDE

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17561-47010

13B#..BU85,90,93,95

 1
17572-58030

13B#..BU85,90,93,95

BODY SIDE

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-58060

13B#..BU85,90,93,95

 1
Common parts
90119-08486
90179-06007
91511-61035
91611-60820
91611-60835
91615-60825
91651-41020
94110-40800
94110-41000
94120-41000
94180-41000
