BU85-MDFHT3 (1987)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(8708- )BU6#,8#,90,93,98..DM1,DM2,DM4,T1,T2,T3,T4,TW2,TW4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38901D - LEVER SUB-ASSY, VALVE CONTROL | ||||
| 38901-96315 |
BU62..5F..ST;BU62..275,30T;BU60..T3..CBU;BU61,64,8#,90,93,95..TR..5F;BU60,62..(T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER | ||||
| 38902-96314 |
BU85,90,93,95..TR..5F |
1 | ||
| 38902C - BUSH (FOR VALVE CONTROL LEVER) | ||||
| 90386-13007 |
BU62..5F..ST;BU62..275,30T;BU60..T3..CBU;BU61,64,8#,90,93,95..TR..5F;BU60,62..(T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 38902C - BUSH (FOR VALVE CONTROL LEVER) | ||||
| 90386-13007 |
BU62..5F..ST;BU62..275,30T;BU60..T3..CBU;BU61,64,8#,90,93,95..TR..5F;BU60,62..(T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 38908A - KNOB SUB-ASSY, CONTROL LEVER | ||||
| 38908-36010 |
BU62..5F..ST;BU62..275,30T;BU60..T3..CBU;BU61,64,8#,90,93,95..TR..5F;BU60,62..(T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 91611-60616 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||

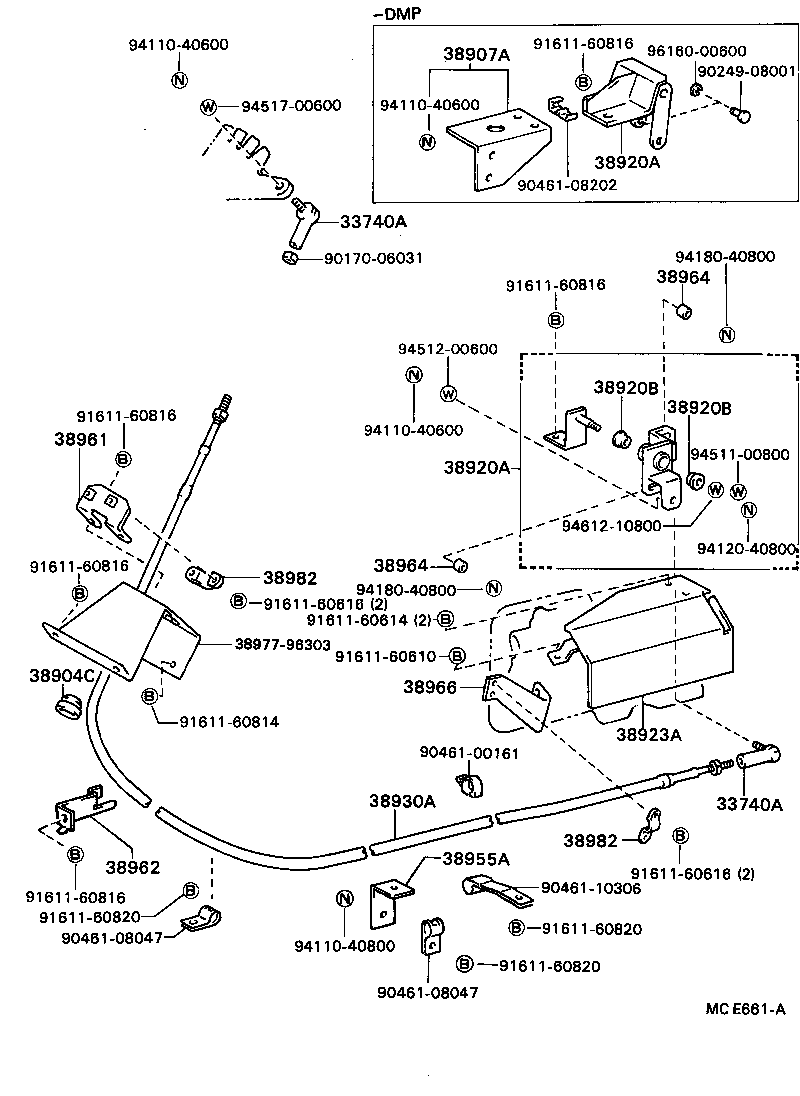

ILLUST NO. 2 OF 2(8708- )BU85,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33740A - END ASSY, PUSH-PULL CONTROL CABLE | ||||
| 33740-96301 |
BU62..5F..ST;BU62..275,30T;BU60..T3..CBU;BU61,64,8#,90,93,95..TR..5F;BU60,62..(T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 33740A - END ASSY, PUSH-PULL CONTROL CABLE | ||||
| 33740-96301 |
BU62..5F..ST;BU62..275,30T;BU60..T3..CBU;BU61,64,8#,90,93,95..TR..5F;BU60,62..(T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 38904C - GROMMET, PUSH PULL CABLE | ||||
| 90480-22013 |
BU62..5F..ST;BU62..275,30T;BU60..T3..CBU;BU61,64,8#,90,93,95..TR..5F;BU60,62..(T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1 | ||||
| 38920-93108 |
BU6#,8#,90,93,95..TR..5F..(CBU,IV3) |
1 | ||
| 38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1 | ||||
| 38920-93108 |
BU6#,8#,90,93,95..TR..5F..(CBU,IV3) |
1 | ||
| 38930A - CABLE ASSY, PUSH PULL | ||||
| 38930-93117 |
BU85,90,93,95..TR..5F |
1 | ||
| 38955A - BRACKET, CONTROL CABLE, NO.5 | ||||
| 38955-93101 |
BU85,90,93,95..TR..5F |
1 | ||
| 38962 - BRACKET, CABLE CLAMP, NO.2 | ||||
| 38962-96304 |
BU62..5F..ST;BU62..275,30T;BU60..T3..CBU;BU61,8#,90,93,95..TR..5F;BU60,62..(T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 38982 - CLAMP, PUSH PULL CABLE, NO.1 | ||||
| 38982-96302 |
BU62..5F..ST;BU62..275,30T;BU60..T3..CBU;BU61,64,8#,90,93,95..TR..5F;BU60,62..(T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 38982 - CLAMP, PUSH PULL CABLE, NO.1 | ||||
| 38982-96302 |
BU62..5F..ST;BU62..275,30T;BU60..T3..CBU;BU61,64,8#,90,93,95..TR..5F;BU60,62..(T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| Common parts | ||||
| 38977-96303 | ||||
| 90170-06031 | ||||
| 90249-08001 | ||||
| 90461-00161 | ||||
| 90461-08047 | ||||
| 90461-08202 | ||||
| 90461-10306 | ||||
| 91611-60610 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94180-40800 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94517-00600 | ||||
| 94612-10800 | ||||
| 96160-00600 | ||||
ILLUST NO. 1 OF 3(8808-9008)BU67..4FC ; (8808- )BU66,88..4FC ;(8808- )BU87..4FC..CBU ; (8808-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-95410 | ||||
| 90109-06043 | ||||
| 90249-10110 | ||||
| 90461-07033 | ||||
| 90480-40004 | ||||
| 90520-15002 | ||||
| 91111-60670 | ||||
| 91611-60610 | ||||
| 91611-60855 | ||||
| 91611-61025 | ||||
| 91611-61055 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94611-11600 | ||||
| 96160-00900 | ||||
| 96451-01000 | ||||
| Linked diagrams | ||||
| 8413 | ||||
