BU85-MDFHT (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )B,11B,13B#..CBU,IV3

Click highlighted areas on diagram

24V 30A

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 9004179064 9009220604 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9009914055 9010510041 9011908344 9017906158 9165140616 9331515012
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56370

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-57080

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

12V 30A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27333-57060

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56110

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-57060

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56360

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56110

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27350B - CONDENSER, ALTERNATOR
90099-52066

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

12V 30A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

B,11B,13B#..BU6#,70,8#,9#

 1
27352 - COVER, FRAME BRUSH
27388-56100

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-56310

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-57080

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 1
27371 - BRUSH, ALTERNATOR
27371-56070

B,11B,13B#..BU6#,70,8#,9#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

B,11B,13B#..BU6#,70,8#,9#

 2
27410 - STATOR ASSY, ALTERNATOR
27410-56310

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27411 - PULLEY, ALTERNATOR
27411-57060

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27441 - FAN, ALTERNATOR
27441-56090

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-57040

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90092-20604
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90105-10041
90119-08344
90179-06158
91651-40616
93315-15012

(8708- )B,13B#..BU60,62,82,85

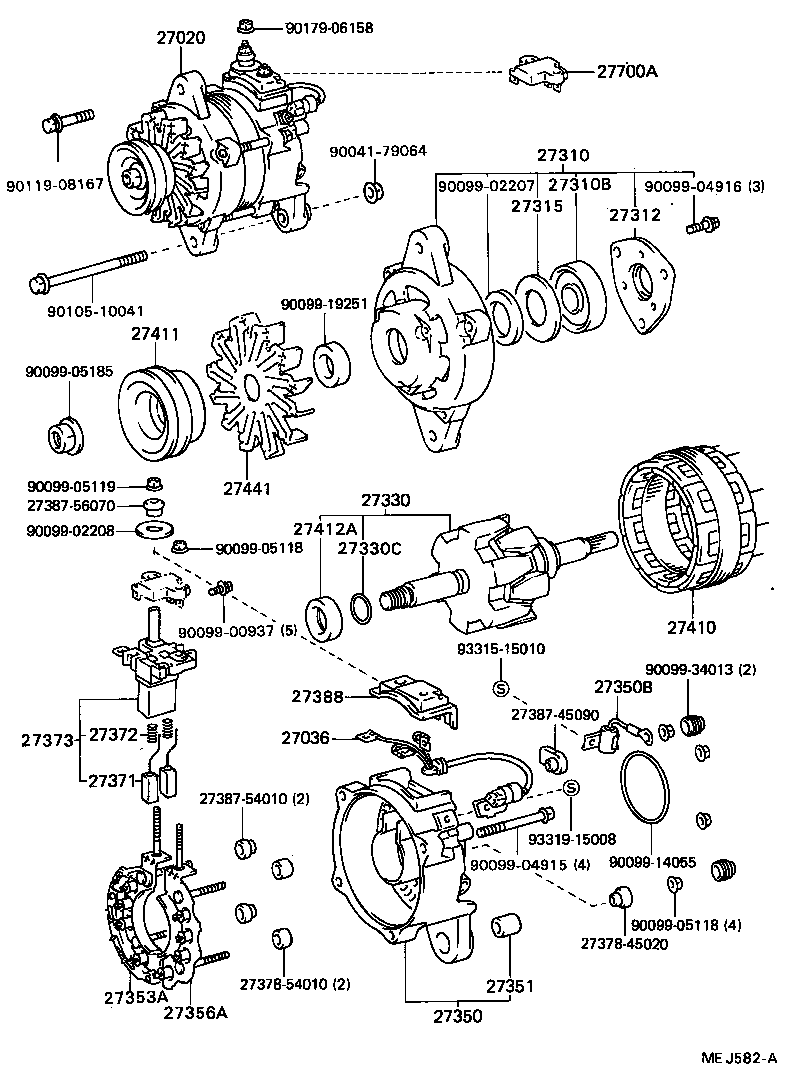

Click highlighted areas on diagram

24V 40A

diagram 27020 27036 27310 27310B 27312 27315 27330 27330C 27350 27350B 27351 27353A 27356A 27371 27372 27373 2737845020 2737854010 2738745090 2738754010 2738756070 27388 27410 27411 27412A 27441 27700A 9004179064 9009900937 9009902207 9009902208 9009904915 9009904916 9009905118 9009905118 9009905119 9009905185 9009914055 9009919251 9009934013 9010510041 9011908167 9017906158 9331515010 9331915008
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56370

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-57080

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

12V 30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56110

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56360

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56110

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27350B - CONDENSER, ALTERNATOR
90099-52066

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

12V 30A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

B,11B,13B#..BU6#,70,8#,9#

 1
27371 - BRUSH, ALTERNATOR
27371-56070

B,11B,13B#..BU6#,70,8#,9#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

B,11B,13B#..BU6#,70,8#,9#

 2
27410 - STATOR ASSY, ALTERNATOR
27410-56310

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27411 - PULLEY, ALTERNATOR
27411-57060

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27441 - FAN, ALTERNATOR
27441-56090

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-57040

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

24V 30A

 1
Common parts
27378-45020
27378-54010
27387-45090
27387-54010
27387-56070
90041-79064
90099-00937
90099-02207
90099-02208
90099-04915
90099-04916
90099-05118
90099-05119
90099-05185
90099-14055
90099-19251
90099-34013
90105-10041
90119-08167
90179-06158
93315-15010
93319-15008

(0610-1010)N04C..XZU378..IV4 ; (0610-1010)N04C..XZU304..T3,T4,T5..IV3,IV4 ; (0610-1

Click highlighted areas on diagram

24V 80A

diagram 27020 27020E 27352 27370 27387 27411 9009905171 9009905284 9017906158
Part # Description Qty Price
Common parts
90099-05171
90099-05284
90179-06158
