BU85-MDDTXJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - Oct 1989
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU78,85,88,9#

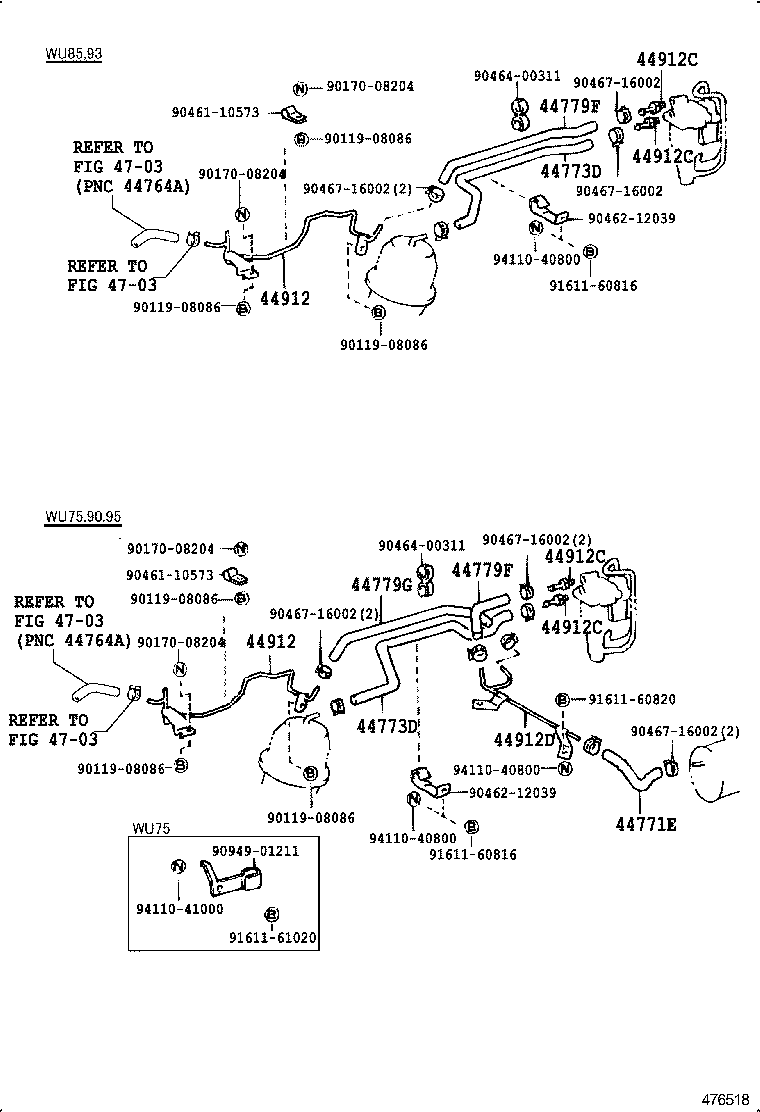

Click highlighted areas on diagram

diagram 44773D 44779F 44912 44912C 44912C 4703 4703 9011908086 9011908086 9011908086 9017008204 9017008204 9046110573 9046212039 9046400311 9046716002 9046716002 9046716002 9161160816 9411040800
Part # Description Qty Price
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36041

BU78,85,88,9#

 1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36010

BU78,85,88,9#

 1
44912 - TUBE, 3 WAY TO MAGNETIC VALVE
44912-36160

BU78,85,88,9#

 1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU78,85,88,9#

 2
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319

BU78,85,88,9#

 2
Common parts
90119-08086
90170-08204
90461-10573
90462-12039
90464-00311
90467-16002
91611-60816
94110-40800
Linked diagrams
4703

(8808- )WU75,85,9#

Click highlighted areas on diagram

diagram 44771E 44773D 44773D 44779F 44779F 44779G 44912 44912 44912C 44912C 44912C 44912C 44912D 4703 4703 4703 4703 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9017008204 9017008204 9017008204 9017008204 9046110573 9046110573 9046212039 9046212039 9046400311 9046400311 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9094901211 9161160816 9161160816 9161160820 9161161020 9411040800 9411040800 9411040800 9411041000
Part # Description Qty Price
Common parts
90119-08086
90170-08204
90461-10573
90462-12039
90464-00311
90467-16002
90949-01211
91611-60816
91611-60820
91611-61020
94110-40800
94110-41000
Linked diagrams
4703
