BU85-MDDTX3 (1988)
Toyota Dyna/Toyoace

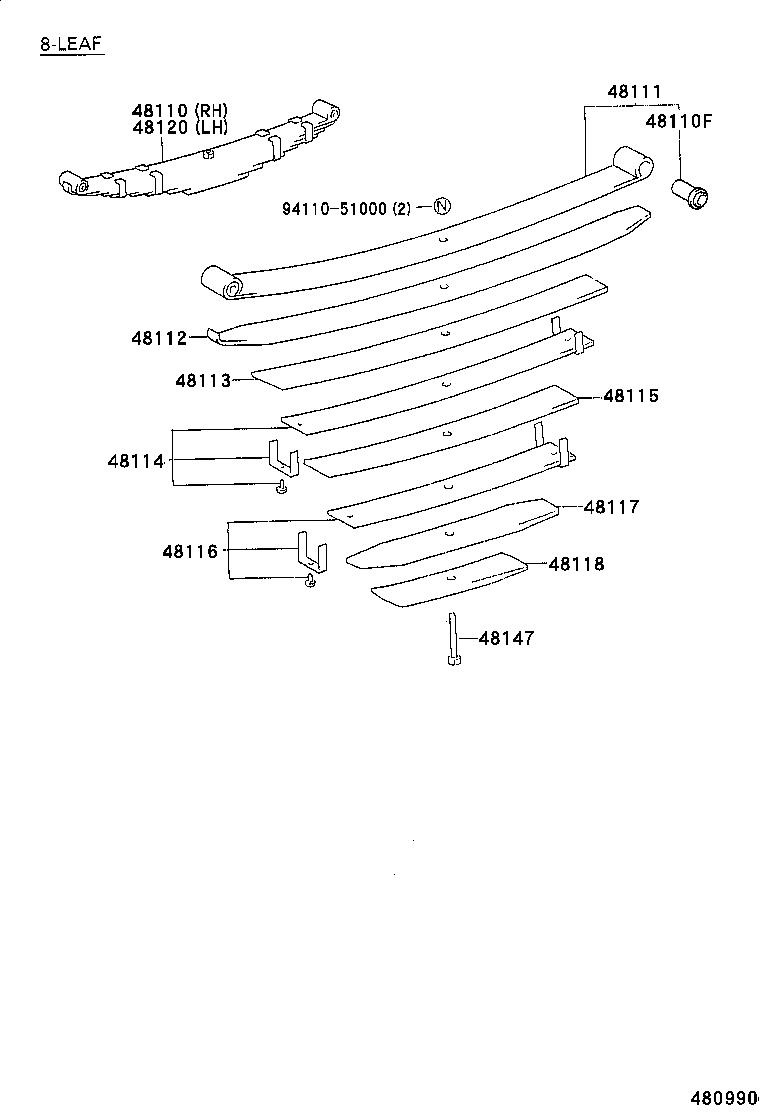

ILLUST NO. 2 OF 2(8808- )
8-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU78,85,88,9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,運転席側 |
1 | ||
| 48101-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48101-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,助手席側 |
1 | ||
| 48101-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48112-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48112-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48112-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48113-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48113-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48114-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48102-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,運転席側 |
1 | ||
| 48115-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,助手席側 |
1 | ||
| 48115-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-3B560 |
BU78,85,88,94..T3,T4,TW1 TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48103-3B550 |
BU78,85,88,94..T3,T4,TW1 TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-3B560 |
BU78,85,88,94..T3,T4,TW1 助手席側 |
1 | ||
| 48117-3B550 |
BU78,85,88,94..T3,T4,TW1 運転席側 |
1 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-3B550 |
BU78,85,88,94..T3,T4,TW1 運転席側 |
1 | ||
| 48118-3B560 |
BU78,85,88,94..T3,T4,TW1 助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48147-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8808- )BU78,85,88,94..20T
2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU78,85,88,9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,運転席側 |
1 | ||
| 48101-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48101-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,助手席側 |
1 | ||
| 48101-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48112-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48112-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48112-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48113-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48113-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48113-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48113-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48114-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48102-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,運転席側 |
1 | ||
| 48115-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,助手席側 |
1 | ||
| 48115-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48141-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48141-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48142A - CLIP, FRONT SPRING | ||||
| 48142-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48142A - CLIP, FRONT SPRING | ||||
| 48142-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48145A - SEAT, SPRING CLIP(FOR FRONT SPRING) | ||||
| 48145-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48145A - SEAT, SPRING CLIP(FOR FRONT SPRING) | ||||
| 48145-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48147-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C |
2 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| 48152-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| 48152-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48155 - NUT, SPRING CENTER(FOR FRONT SPRING) | ||||
| 48155-3B470 |
BU78,85,88,94..20T |
2 | ||

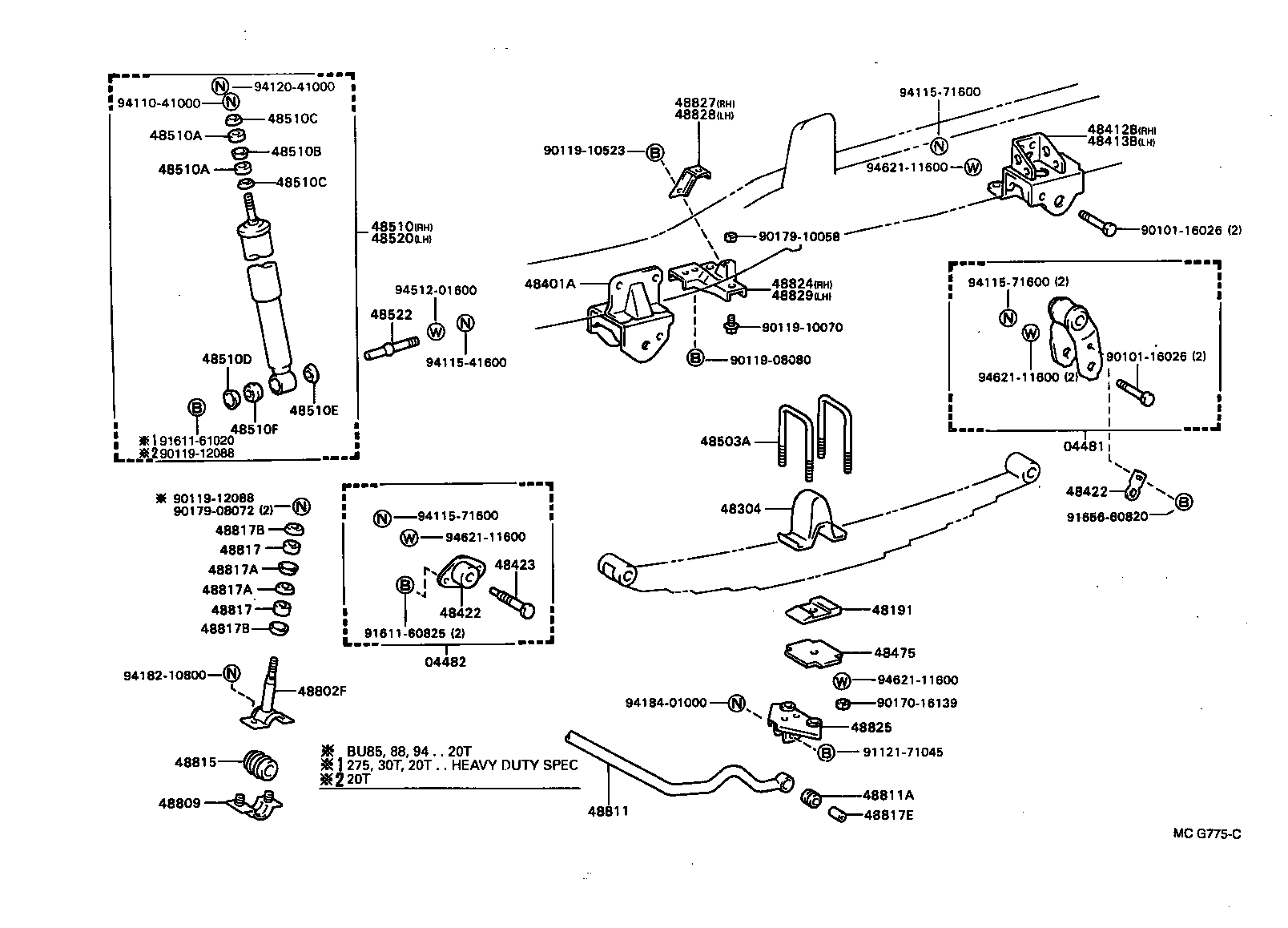

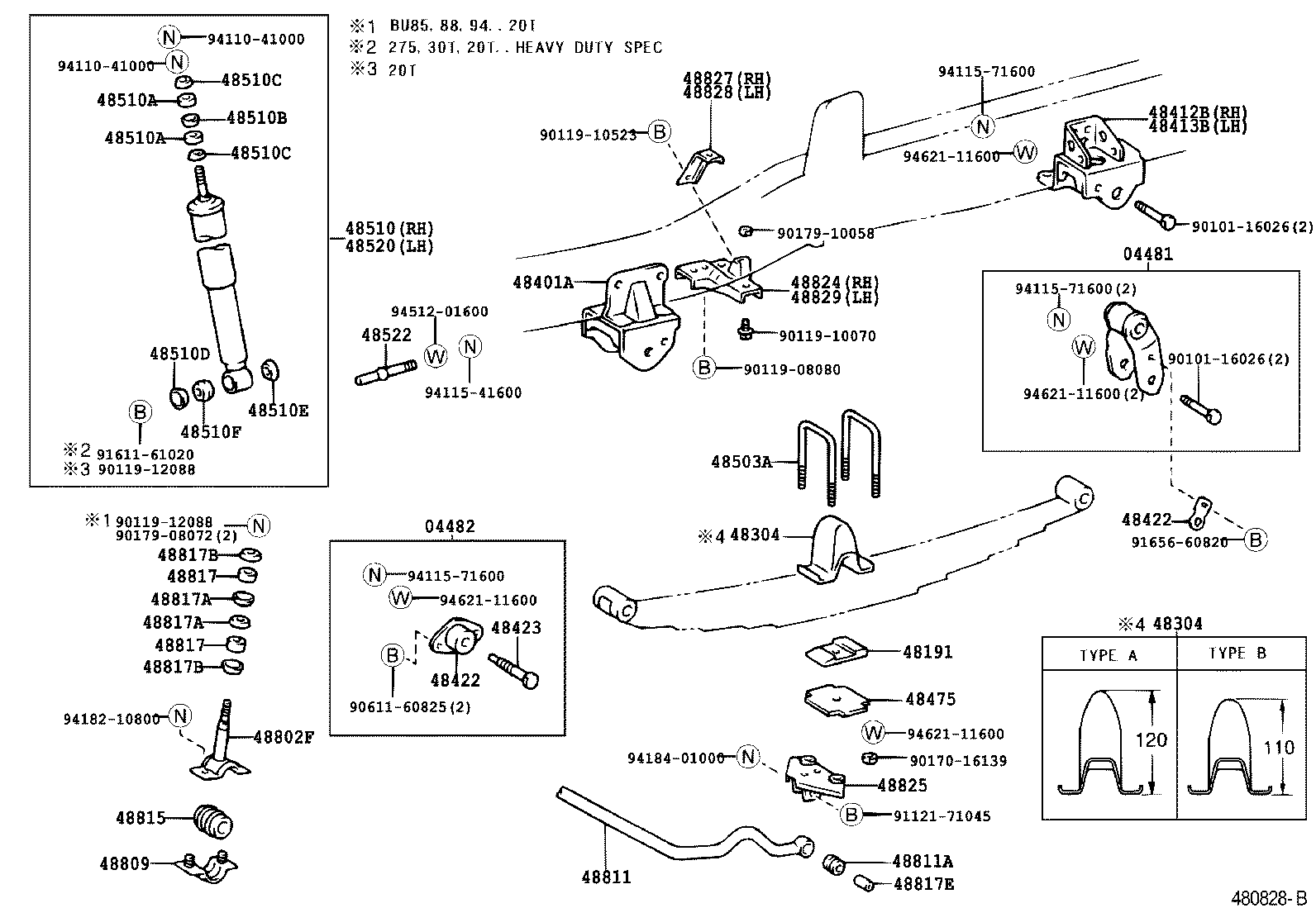

ILLUST NO. 1 OF 2(8808- )BU78,85,88,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36080 |
BU78,85,88,9# |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36020 |
BU78,85,88,9# |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-35020 |
BU85,88,9# |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36120 |
BU78,85,88,9#..(T3,T4,TW1)..(20T,35T) TYPE A |
2 | ||
| 48304-36110 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE B |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36120 |
BU78,85,88,9#..(T3,T4,TW1)..(20T,35T) TYPE A |
2 | ||
| 48304-36110 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE B |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48411-36130 |
BU78,85,88,94 右側 |
1 | ||
| 48412-36130 |
BU78,85,88,94 左側 |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48433-36060 |
BU78,85,88,9# |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48434-36060 |
BU78,85,88,9# |
1 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36050 |
BU78,85,88,94 |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36050 |
BU78,85,88,94 |
2 | ||
| 48423 - PIN, FRONT SPRING BRACKET | ||||
| 48423-36020 |
BU78,85,88,9# |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
BU6#,70,78,8#,9# |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16047 |
BU66..30T;BU87..275,30T;BU67,78,85,88,94..TR..20T 長さ=115 |
1 | ||
| 90117-16093 |
BU66..30T;BU87..275,30T;BU67,78,85,88,94..TR..20T 長さ=105 |
4 | ||
| 90117-16017 |
BU78,85,88,94..(T3,T4,TW1)..20T 長さ=130,HEAVY DUTY SPEC |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-39545 |
BU78,85,88,94..20T ﾏｰｸ 48511―36220 |
1 | ||
| 48511-39495 |
BU78,85,88,94..(T3,T4,TW1)..20T ﾏｰｸ 48511―36090,HEAVY DUTY SPEC |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU6#,7#,8#,9# |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU6#,7#,8#,9# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU6#,7#,8#,9# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU6#,7#,8#,9# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU6#,7#,8#,9# |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU78,85,88,94..20T |
1 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
BU78,85,88,94..20T |
1 | ||
| 90948-03004 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-19006 |
BU78,85,88,94..20T |
2 | ||
| 90385-16011 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-39545 |
BU78,85,88,94..20T ﾏｰｸ 48511―36220 |
1 | ||
| 48511-39495 |
BU78,85,88,94..(T3,T4,TW1)..20T ﾏｰｸ 48511―36090,HEAVY DUTY SPEC |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25010 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC |
2 | ||
| 48522-36041 |
BU78,85,88,94..20T |
2 | ||
| Common parts | ||||
| 90101-16026 | ||||
| 90119-08080 | ||||
| 90119-10070 | ||||
| 90119-10523 | ||||
| 90119-12088 | ||||
| 90170-16139 | ||||
| 90179-08072 | ||||
| 90179-10058 | ||||
| 90611-60825 | ||||
| 91121-71045 | ||||
| 91611-61020 | ||||
| 91656-60820 | ||||
| 94110-41000 | ||||
| 94115-41600 | ||||
| 94115-71600 | ||||
| 94182-10800 | ||||
| 94184-01000 | ||||
| 94512-01600 | ||||
| 94621-11600 | ||||
ILLUST NO. 2 OF 2(8808- )
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU78,85,88,9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU78,85,88,9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU78,85,88,9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU78,85,88,9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,運転席側 |
1 | ||
| 48101-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48101-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,助手席側 |
1 | ||
| 48101-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,運転席側 |
1 | ||
| 48101-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48101-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,助手席側 |
1 | ||
| 48101-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48112-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48112-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48112-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48112-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48112-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48112-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48113-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48113-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48113-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48113-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48114-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48102-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48114-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48102-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,運転席側 |
1 | ||
| 48115-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,助手席側 |
1 | ||
| 48115-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48147-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48147-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C |
2 | ||
| Common parts | ||||
| 90179-10043 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU78,85,88,9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU78,85,88,9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,運転席側 |
1 | ||
| 48101-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48101-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,助手席側 |
1 | ||
| 48101-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48112-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48112-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48112-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48113-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48113-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48114-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48102-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,運転席側 |
1 | ||
| 48115-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,助手席側 |
1 | ||
| 48115-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-3B560 |
BU78,85,88,94..T3,T4,TW1 TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48103-3B550 |
BU78,85,88,94..T3,T4,TW1 TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48147-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU78,85,88,9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU78,85,88,9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,運転席側 |
1 | ||
| 48101-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48101-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T HEAVY DUTY SPEC,助手席側 |
1 | ||
| 48101-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48112-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48112-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 助手席側 |
1 | ||
| 48112-3B490 |
BU78,85,88,94..(T3,T4,TW1)..20T 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48113-3B470 |
BU78,85,88,94..20T |
4 | ||
| 48113-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,PASSENGER SEAT SIDE |
1 | ||
| 48114-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48102-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C,DRIVER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,運転席側 |
1 | ||
| 48115-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,助手席側 |
1 | ||
| 48115-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B560 |
BU78,85,88,94..(T3,T4,TW1)..20T 8枚ﾘｰﾌ,TYPE C |
1 | ||
| 48110-3B500 |
BU78,85,88,94..(T3,T4,TW1)..20T 2枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B470 |
BU78,85,88,94..20T |
2 | ||
| 48147-3B550 |
BU78,85,88,94..(T3,T4,TW1)..20T TYPE C |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8808- )WU75,85,90,95 ; (9109- )WU93
8-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8808- )
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10043 | ||||
ILLUST NO. 1 OF 2(8808- )WU75,85,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-16026 | ||||
| 90119-08080 | ||||
| 90119-10070 | ||||
| 90119-10523 | ||||
| 90119-12088 | ||||
| 90170-16139 | ||||
| 90179-08072 | ||||
| 90179-10058 | ||||
| 91121-71045 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 91656-60820 | ||||
| 94110-41000 | ||||
| 94115-41600 | ||||
| 94115-71600 | ||||
| 94120-41000 | ||||
| 94182-10800 | ||||
| 94184-01000 | ||||
| 94512-01600 | ||||
| 94621-11600 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
