BU85-MDDTX3 (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 88031 88031 88031 88645A 88645B 88645B 88648B 88691 88691 9046320473 9046400082 9046400082 9046400141 9046400233 9046400233 9165146016 9165146016 9165146016 9338518016 9338518016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-36041

BU61,62,64,77,81,82,85,9#..CBU,IV3

 1
88031 - ACTUATOR SET, IDLE-UP
88031-36041

BU61,62,64,77,81,82,85,9#..CBU,IV3

 1
88031 - ACTUATOR SET, IDLE-UP
88031-36041

BU61,62,64,77,81,82,85,9#..CBU,IV3

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

BU61,62,64,77,81,82,85,9#..CBU,IV3

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

BU61,62,64,77,81,82,85,9#..CBU,IV3

 1
88648B - WIRING, COOLER, NO.1
88648-95425

BU77,85,9#

COLD SPEC

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95419

BU77,85,9#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95419

BU77,85,9#

 1
Common parts
90463-20473
90464-00082
90464-00141
90464-00233
91651-46016
93385-18016

(8612- )

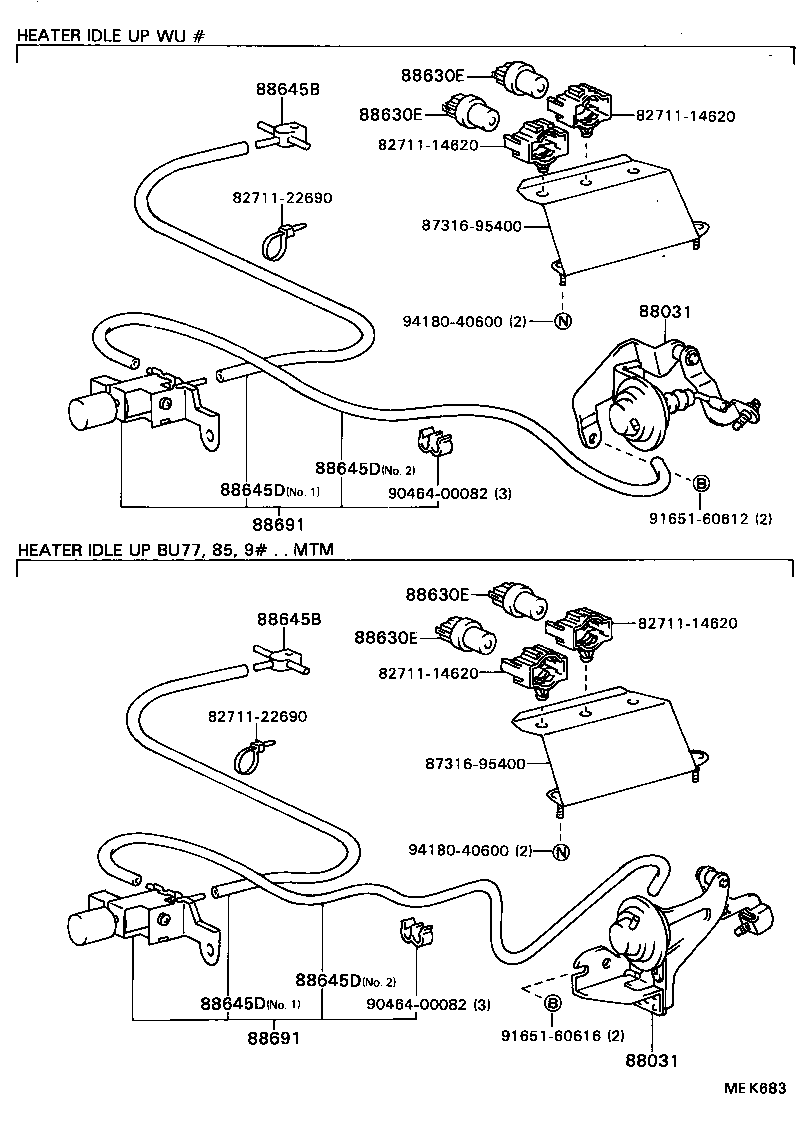

Click highlighted areas on diagram

diagram 8271114620 8271114620 8271114620 8271114620 8271122690 8271122690 8731695400 8731695400 88031 88031 88630E 88630E 88630E 88630E 88645B 88645B 88645D 88645D 88645D 88645D 88691 88691 9046400082 9046400082 9165160612 9165160616 9418040600 9418040600
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-36041

BU61,62,64,77,81,82,85,9#..CBU,IV3

 1
88031 - ACTUATOR SET, IDLE-UP
88031-36041

BU61,62,64,77,81,82,85,9#..CBU,IV3

 1
88630E - RELAY ASSY, COOLER
90987-02005

BU77,85,9#..5F

NO.1

 1
90987-03002

BU77,85,9#..5F

NO.2

 1
88630E - RELAY ASSY, COOLER
90987-02005

BU77,85,9#..5F

NO.1

 1
90987-03002

BU77,85,9#..5F

NO.2

 1
88630E - RELAY ASSY, COOLER
90987-02005

BU77,85,9#..5F

NO.1

 1
90987-03002

BU77,85,9#..5F

NO.2

 1
88630E - RELAY ASSY, COOLER
90987-02005

BU77,85,9#..5F

NO.1

 1
90987-03002

BU77,85,9#..5F

NO.2

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

BU61,62,64,77,81,82,85,9#..CBU,IV3

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

BU61,62,64,77,81,82,85,9#..CBU,IV3

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19995

BU85,9#

*H,L=800,ﾏｰｸ=#*,NO.2

 1
95411-10060

BU85,9#

*H,L=510,ﾏｰｸ=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19995

BU85,9#

*H,L=800,ﾏｰｸ=#*,NO.2

 1
95411-10060

BU85,9#

*H,L=510,ﾏｰｸ=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19995

BU85,9#

*H,L=800,ﾏｰｸ=#*,NO.2

 1
95411-10060

BU85,9#

*H,L=510,ﾏｰｸ=#0,NO.1

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19995

BU85,9#

*H,L=800,ﾏｰｸ=#*,NO.2

 1
95411-10060

BU85,9#

*H,L=510,ﾏｰｸ=#0,NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95419

BU77,85,9#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95419

BU77,85,9#

 1
Common parts
82711-14620
82711-22690
87316-95400
90464-00082
91651-60612
91651-60616
94180-40600
