BU85-MDDHTXJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - Oct 1989
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU85,90,95

Click highlighted areas on diagram

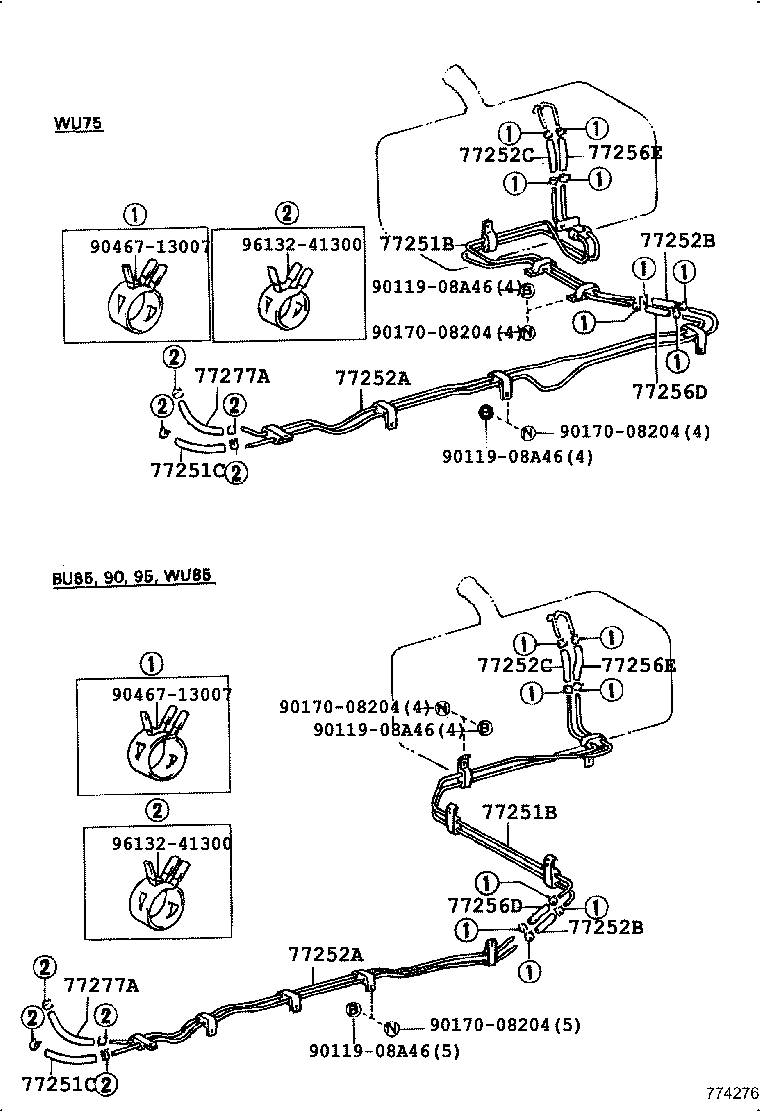

diagram 77251B 77251B 77251C 77251C 77252A 77252A 77252B 77252B 77252C 77252C 77256D 77256D 77256E 77256E 77277A 77277A 9011908A46 9011908A46 9011908A46 9011908A46 9017008204 9017008204 9017008204 9017008204 9046713007 9046713007 9613241300 9613241300
Part # Description Qty Price

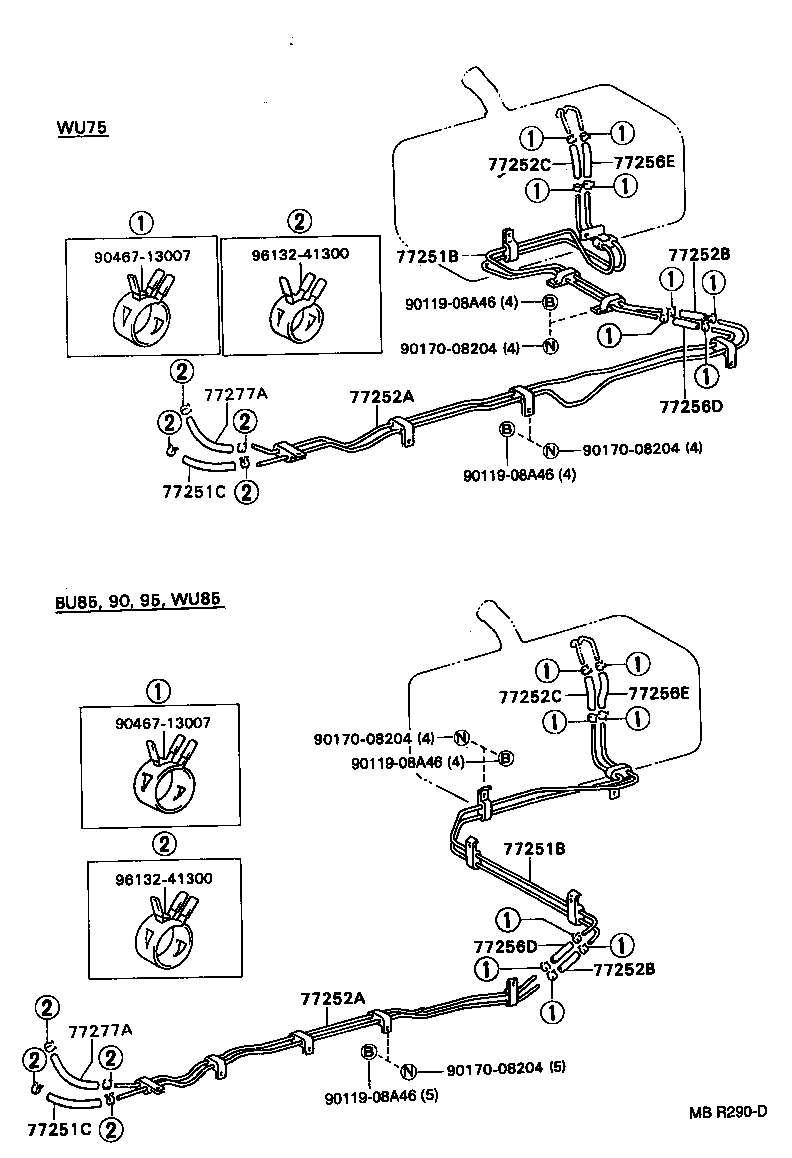

77251B - TUBE, FUEL MAIN
77205-36170

BU85

 1
77251B - TUBE, FUEL MAIN
77205-36170

BU85

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
23271-56050

BU85,90,95

*H,L=180

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
23271-56050

BU85,90,95

*H,L=180

 1
77252A - TUBE, FUEL MAIN, NO.2
77206-36310

BU85,90,95

 1
77252A - TUBE, FUEL MAIN, NO.2
77206-36310

BU85,90,95

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95333-08020

BU85,90

長さ=200,内径=8

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95333-08020

BU85,90

長さ=200,内径=8

 1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95333-08030

BU85,90,95

 1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95333-08030

BU85,90,95

 1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
95333-08020

BU85,90

 1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
95333-08020

BU85,90

 1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
95333-08030

BU85,90,95

 1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
95333-08030

BU85,90,95

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-08020

BU85,90,95

長さ=200,内径=8

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-08020

BU85,90,95

長さ=200,内径=8

 1
Common parts
90119-08A46
90170-08204
90467-13007
96132-41300

(8808- )DMP,TR..DSL,TD

Click highlighted areas on diagram

diagram 77017B 77018 77018 77022A 77022A 77022A 77022A 77022A 77100 77100A 77100B 77275B 77601A 77611A 77633 77651A 9011910533 9015940155 9017010028 9046713007 9161240616 9165140616 9165140616 9411040800 9411040800 9613230600
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36181

BU85,90,95..T3

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

 2
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77100 - TANK ASSY, FUEL
77001-3B100

BU87..V;BU88..T3,TW1;BU87..5F..275;BU85,9#..T3..5F;BU87..(T3,TW1)..(20T,30T)

H=310,W=385,L=960(100L)

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

BU6#,7#,8#,9#..DSL,TD

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU6#,7#,8#,9#..DSL,TD

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

BU87..V;BU66..275,30T;BU87,88..T3,TW1;BU60,66..T3..ST;BU61,85,9#..T3..5F

 2
77601-36150

BU88..T3..IV3;BU85,87,9#..T3..5F..IV3

ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

 2
77633 - STAY, FUEL TANK
77501-36080

BU96..5F..IV3;BU85,88,90,91,94,95..T3..IV3

ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-)

 2
77633-36090

BU87..V;BU66..275,30T;BU87,88..T3,TW1;BU60,66..T3..ST;BU61,85,9#..T3..5F

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-36100

BU87..V;BU60,61,85,9#..T3..5F;BU66,87,88..(DM3,T3,TW1)..(CBU,IV3)

 2
Common parts
90119-10533
90159-40155
90170-10028
90467-13007
91612-40616
91651-40616
94110-40800
96132-30600

(8808- )BU87..V ; (8808- )BU87..06S..IV3 ;(8808- )BU66..175..CBU ; (8808-

Click highlighted areas on diagram

diagram 61739E 77017B 77018 77018 77022A 77022A 77022A 77022A 77022A 77100 77100A 77100B 77100D 77308A 77310B 77411A 77601A 77603A 77611A 77633 77641A 77651A 9011910581 9015940155 9015960047 9017010028 9046713007 9161110533 9165140614 9165140616 9165140616 9331515012 9331515012 9411040800 9411041000 9411041000 9461211001 9613230600
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36181

BU85,90,95..T3

 1
77017-36181

BU85,90,95..T3

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

 2
77018-36230

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

 2
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

 2
77018-36230

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77100 - TANK ASSY, FUEL
77001-3B100

BU87..V;BU88..T3,TW1;BU87..5F..275;BU85,9#..T3..5F;BU87..(T3,TW1)..(20T,30T)

H=310,W=385,L=960(100L)

 1
77001-3B100

BU87..V;BU88..T3,TW1;BU87..5F..275;BU85,9#..T3..5F;BU87..(T3,TW1)..(20T,30T)

H=310,W=385,L=960(100L)

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

BU6#,7#,8#,9#..DSL,TD

 1
90105-12116

BU6#,7#,8#,9#..DSL,TD

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU6#,7#,8#,9#..DSL,TD

 1
90430-12245

BU6#,7#,8#,9#..DSL,TD

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

BU87..V;BU66..275,30T;BU87,88..T3,TW1;BU60,66..T3..ST;BU61,85,9#..T3..5F

 2
77601-36140

BU87..V;BU66..275,30T;BU87,88..T3,TW1;BU60,66..T3..ST;BU61,85,9#..T3..5F

 2
77601-36150

BU88..T3..IV3;BU85,87,9#..T3..5F..IV3

ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-)

 2
77601-36150

BU88..T3..IV3;BU85,87,9#..T3..5F..IV3

ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

 2
77629-36010

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

 2
77633 - STAY, FUEL TANK
77501-36080

BU96..5F..IV3;BU85,88,90,91,94,95..T3..IV3

ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-)

 2
77501-36080

BU96..5F..IV3;BU85,88,90,91,94,95..T3..IV3

ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-)

 2
77633-36090

BU87..V;BU66..275,30T;BU87,88..T3,TW1;BU60,66..T3..ST;BU61,85,9#..T3..5F

 2
77633-36090

BU87..V;BU66..275,30T;BU87,88..T3,TW1;BU60,66..T3..ST;BU61,85,9#..T3..5F

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-36100

BU87..V;BU60,61,85,9#..T3..5F;BU66,87,88..(DM3,T3,TW1)..(CBU,IV3)

 2
77651-36100

BU87..V;BU60,61,85,9#..T3..5F;BU66,87,88..(DM3,T3,TW1)..(CBU,IV3)

 2
Common parts
90119-10581
90159-40155
90159-60047
90170-10028
90467-13007
91611-10533
91651-40614
91651-40616
93315-15012
94110-40800
94110-41000
94612-11001
96132-30600

(8808- )BU85,87,88,9#..T3

Click highlighted areas on diagram

diagram 77018 77022A 77022A 77100E 77100E 77100T 77100T 77100Z 77601A 77611A 77633 77651A 77710 77712 77713 77714 9011910531 9017010028 9020209047 9025003031 9038608164 9040112007 9040112007 9046107033 9046713007 9048014006 9165140616 9331915010 9411040800 9411040800 9411040800 9613230600 9613231000 9671319019 9671319019 9671319019 9671319019 9671324011
Part # Description Qty Price

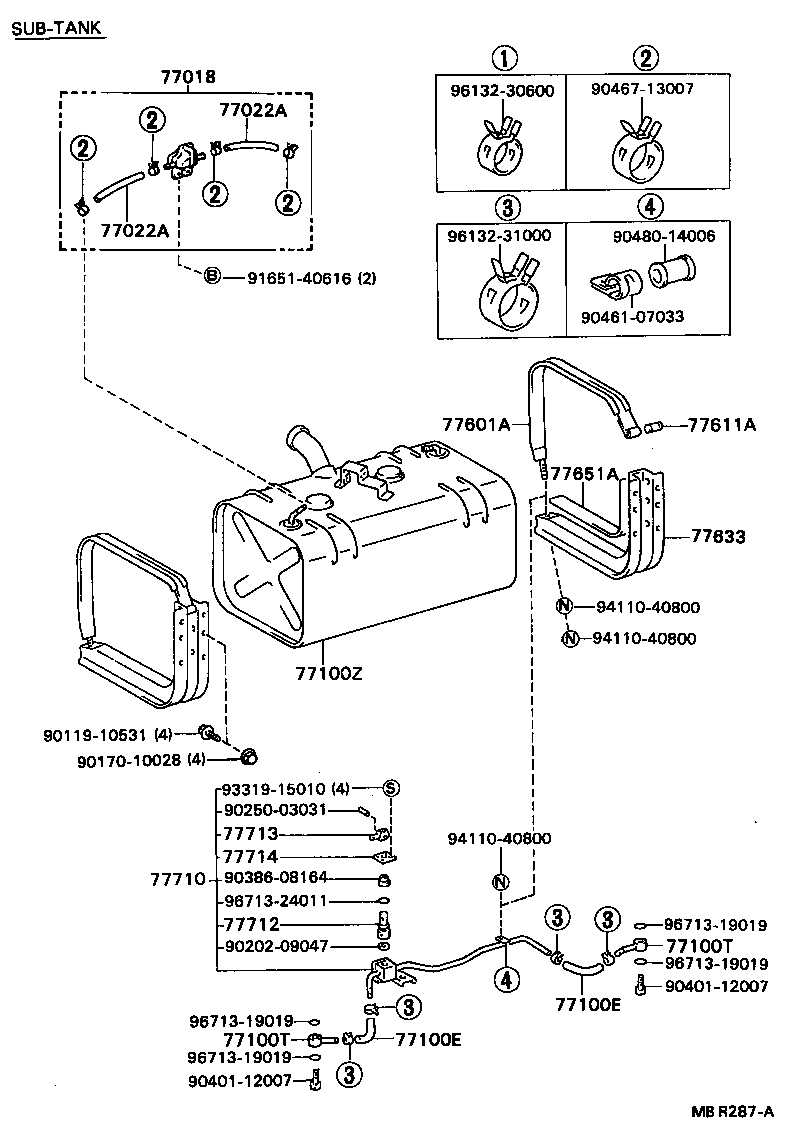

77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

*H,L=300

 2
77100E - HOSE, FUEL, NO.2(FOR FUEL TANK)
95332-10014

BU88..T3;BU85,87,9#..T3..5F

*H,L=140

 2
77100E - HOSE, FUEL, NO.2(FOR FUEL TANK)
95332-10014

BU88..T3;BU85,87,9#..T3..5F

*H,L=140

 2
77100T - UNION(FOR FUEL SUB-TANK)
90405-10008

BU88..T3;BU85,87,9#..T3..5F

 2
77100T - UNION(FOR FUEL SUB-TANK)
90405-10008

BU88..T3;BU85,87,9#..T3..5F

 2
77100Z - TANK SUB-ASSY, FUEL SUB
77001-3B130

BU88..T3;BU85,87,9#..T3..5F

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

BU87..V;BU66..275,30T;BU87,88..T3,TW1;BU60,66..T3..ST;BU61,85,9#..T3..5F

 2
77601-36150

BU88..T3..IV3;BU85,87,9#..T3..5F..IV3

ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD)

 2
77633 - STAY, FUEL TANK
77501-36080

BU96..5F..IV3;BU85,88,90,91,94,95..T3..IV3

ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-)

 2
77633-36090

BU87..V;BU66..275,30T;BU87,88..T3,TW1;BU60,66..T3..ST;BU61,85,9#..T3..5F

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-36100

BU87..V;BU60,61,85,9#..T3..5F;BU66,87,88..(DM3,T3,TW1)..(CBU,IV3)

 2
77710 - COCK ASSY, FUEL CHANGE
77710-36030

BU88..T3;BU85,87,9#..T3..5F

 1
77712 - VALVE, FUEL CHANGE COCK
77712-36011

BU88..T3;BU85,87,9#..T3..5F

 1
77713 - LEVER, FUEL CHANGE COCK
77713-36010

BU88..T3;BU85,87,9#..T3..5F

 1
77714 - CAP, FUEL CHANGE COCK
77714-36010

BU88..T3;BU85,87,9#..T3..5F

 1
Common parts
90119-10531
90170-10028
90202-09047
90250-03031
90386-08164
90401-12007
90461-07033
90467-13007
90480-14006
91651-40616
93319-15010
94110-40800
96132-30600
96132-31000
96713-19019
96713-24011

(8808- )WU75,85

Click highlighted areas on diagram

diagram 77251B 77251B 77251C 77251C 77252A 77252A 77252B 77252B 77252C 77252C 77256D 77256D 77256E 77256E 77277A 77277A 9011908A46 9011908A46 9011908A46 9011908A46 9017008204 9017008204 9017008204 9017008204 9046713007 9046713007 9613241300 9613241300
Part # Description Qty Price
Common parts
90119-08A46
90170-08204
90467-13007
96132-41300
