BU85-MDDHTXJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - Oct 1989
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )B,3B

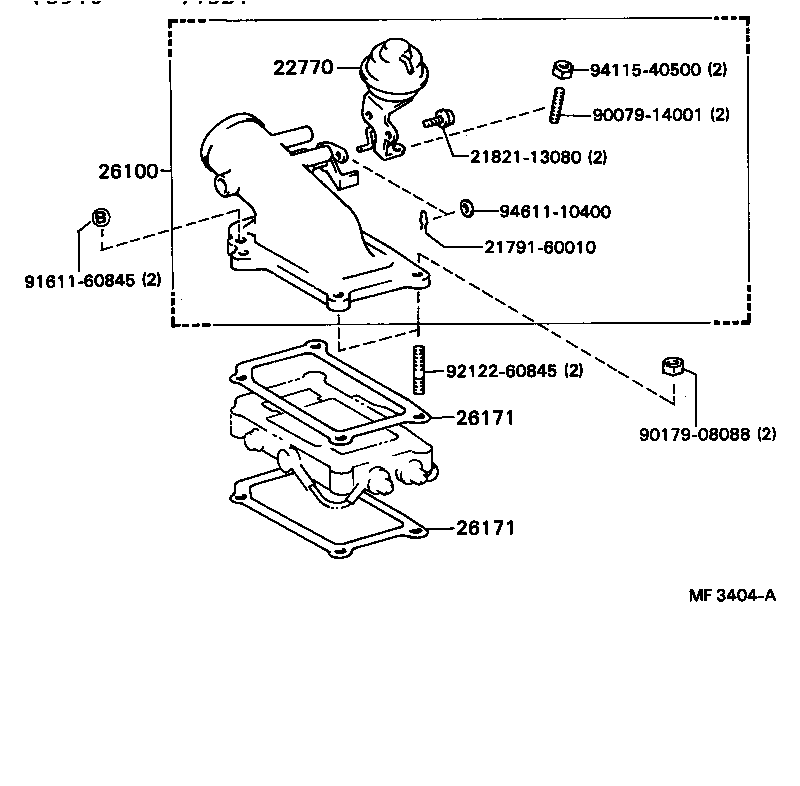

Click highlighted areas on diagram

diagram 21905C 26100 26171 7819710010 9161160630
Part # Description Qty Price
26100 - VENTURI ASSY
26100-58061

13BT..BU85,90,95

 1
26171 - GASKET, VENTURI
26171-56060

13BT..BU85,90,95

 2
Common parts
78197-10010
91611-60630

(8808- )13BT

Click highlighted areas on diagram

diagram 2179160010 2182113080 22770 26100 26171 26171 9007914001 9017908088 9161160845 9212260845 9411540500 9461110400
Part # Description Qty Price
22770 - ACTUATOR, IDEL UP
26133-58060

13BT..BU85,90,95

 1
26100 - VENTURI ASSY
26100-58061

13BT..BU85,90,95

 1
26171 - GASKET, VENTURI
26171-56060

13BT..BU85,90,95

 2
26171 - GASKET, VENTURI
26171-56060

13BT..BU85,90,95

 2
Common parts
21791-60010
21821-13080
90079-14001
90179-08088
91611-60845
92122-60845
94115-40500
94611-10400
