BU85-MDDHTX (1988)
Toyota Dyna/Toyoace
(8808- )BU8#,94 ; (8808- )BU66..275,30T ;(8910- )BU74,78

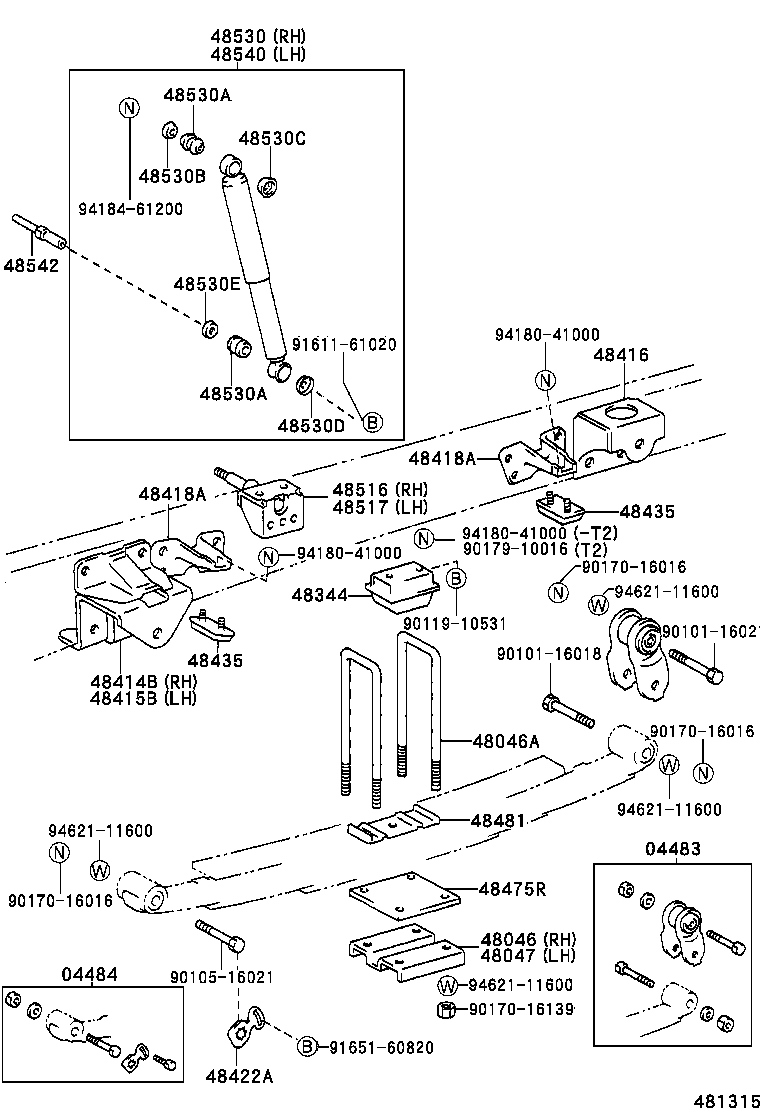

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36070 |
BU66..275,30T;BU73,74,78,8#,94 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36050 |
BU74,78,8#,94;BU66..275,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36110 |
BU85,94;BU66,87,88..275,30T |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
BU78,85,87,88,94..275,30T 長さ=300 |
4 | ||
| 90117-16025 |
BU78,85,87,88,94..275,30T 長さ=305 |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36110 |
BU85,94;BU66,87,88..275,30T |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36200 |
BU85,88,94..T3..30T;BU78,83,84,87,88,94..T4 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36210 |
BU74,78,8#,94;BU66..275,30T |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36210 |
BU74,78,8#,94;BU66..275,30T |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36190 |
BU66..275,30T;BU73,74,78,8#,94 |
2 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-36090 |
BU74,78,8#,94;BU66..275,30T |
4 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-36090 |
BU74,78,8#,94;BU66..275,30T |
4 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36030 |
BU74,78,8#,94;BU66..275,30T |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU74,78,8#,94;BU66..275,30T |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU74,78,8#,94;BU66..275,30T |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36090 |
BU85,87,88,94..275,30T |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36050 |
BU88..T4;BU74,78,85,94;BU88..20T..TD;BU66,87,88..T3..(275,30T) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36040 |
BU94;BU66..DM5;BU78,85,87,88..275,30T |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36040 |
BU94;BU66..DM5;BU78,85,87,88..275,30T |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39735 |
BU85,88,94 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU6#,70,8#,9#..CBU,IV3 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU6#,70,8#,9#..CBU,IV3 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
BU67..DMP;BU85,88,94 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU6#,8#,9#..WT..(CBU,IV3) |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
BU66..20T;BU60,61,70,85,88,94 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU6#,70,8#,9#..CBU,IV3 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39735 |
BU85,88,94 |
1 | ||
| 48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR | ||||
| 48542-26020 |
BU66..275,30T;BU73,74,78,8#,94 |
2 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90101-16021 | ||||
| 90105-16021 | ||||
| 90119-10531 | ||||
| 90170-16016 | ||||
| 90170-16139 | ||||
| 90179-10016 | ||||
| 91611-61020 | ||||
| 91651-60820 | ||||
| 94180-41000 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48224-3B060 |
BU88..T2;BU85,87,88,94..T3..30T |
2 | ||
| 48222-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85,88,94..T3..30T |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU85,88,94..T3..30T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )BU73..20T,IV4 ; (8808- )BU6#,70,72,74,78,8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48224-3B060 |
BU88..T2;BU85,87,88,94..T3..30T |
2 | ||
| 48222-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94184-61000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48224-3B060 |
BU88..T2;BU85,87,88,94..T3..30T |
2 | ||
| 48222-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48224-3B060 |
BU88..T2;BU85,87,88,94..T3..30T |
2 | ||
| 48222-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48224-3B060 |
BU88..T2;BU85,87,88,94..T3..30T |
2 | ||
| 48222-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48224-3B060 |
BU88..T2;BU85,87,88,94..T3..30T |
2 | ||
| 48222-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48224-3B060 |
BU88..T2;BU85,87,88,94..T3..30T |
2 | ||
| 48222-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48224-3B060 |
BU88..T2;BU85,87,88,94..T3..30T |
2 | ||
| 48222-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48224-3B060 |
BU88..T2;BU85,87,88,94..T3..30T |
2 | ||
| 48222-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85,88,94..T3..30T |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85,88,94..T3..30T |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU85,88,94..T3..30T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48224-3B060 |
BU88..T2;BU85,87,88,94..T3..30T |
2 | ||
| 48222-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48223-36690 |
BU85,88,94..T3..30T |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48224-36690 |
BU85,88,94..T3..30T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-71000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 48216-3B060 | ||||
| 94110-71000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY |
1 | ||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU87..30T;BU74,78,85,88,94..20T,30T |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48201-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48202-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48203-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48214-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48215-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC(MAIN 5+HELPER 8) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B060 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B060 |
BU85,87,88,94..T3..30T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-36690 |
BU85,88,94..T3..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ,HEAVY DUTY SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36160 |
BU78,85,87,88,94..275,30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48216-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48219-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48217-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48204-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48222-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| 48219-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48221-36690 |
BU85,88,94..T3..30T HEAVY DUTY SPEC |
2 | ||
| 48223-3B060 |
BU85,87,88,94..T3..30T |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
