BU85-MDDHTX (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - Oct 1989
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )B,11B,14B#,3B..CBU,IV3

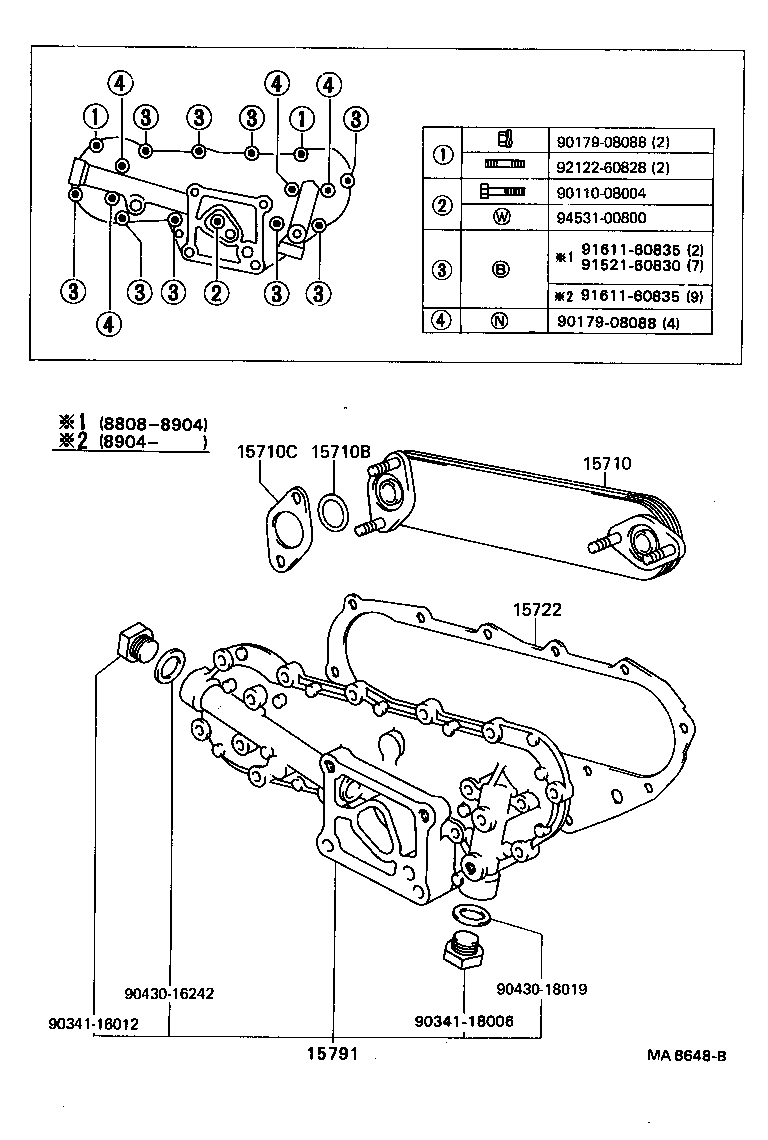

Click highlighted areas on diagram

diagram 15710 15710B 15710C 15722 15791 9011008004 9017908040 9017908040 9034116012 9034118006 9034452013 9043016242 9043018019 9152160830 9161160835 9212260828 9453100800
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-56051

13BT..BU85,90,95

 1
15710B - RING, O(FOR OIL COOLER)
90301-20001

B,11B,13BT,14B#,3B..BU6#,7#,8#,9#

 2
15722 - GASKET, OIL COOLER
15725-56011

13BT..BU85,90,95

 1
15791 - CASE, OIL COOLER
15701-58010

13BT..BU85,90,95

 1
Common parts
90110-08004
90179-08040
90341-16012
90341-18006
90344-52013
90430-16242
90430-18019
91521-60830
91611-60835
92122-60828
94531-00800

(8808- )13BT

Click highlighted areas on diagram

diagram 15710 15710B 15710C 15722 15791 9011008004 9017908088 9017908088 9034116012 9034118006 9043016242 9152160830 9161160835 9161160835 9212260828 9453100800 9643018019
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-56051

13BT..BU85,90,95

 1
15710B - RING, O(FOR OIL COOLER)
90301-20001

B,11B,13BT,14B#,3B..BU6#,7#,8#,9#

 2
15722 - GASKET, OIL COOLER
15725-56011

13BT..BU85,90,95

 1
15791 - CASE, OIL COOLER
15701-58010

13BT..BU85,90,95

 1
Common parts
90110-08004
90179-08088
90341-16012
90341-18006
90430-16242
91521-60830
91611-60835
92122-60828
94531-00800
96430-18019
