BU85-MDDHTX (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU61,62,64,77,81,82,85,9#

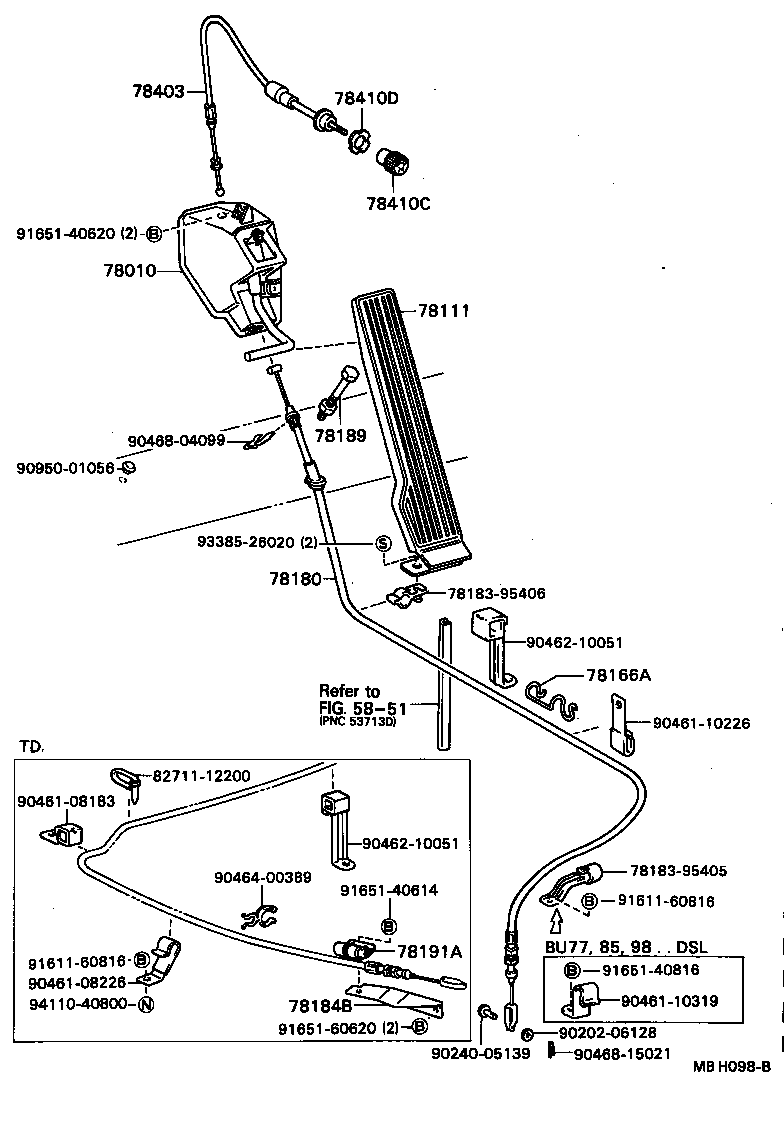

Click highlighted areas on diagram

diagram 5851 78010 78111 78166A 78180 7818395405 7818395406 78184B 78189 78191A 78403 78410C 78410D 8271112200 9020206128 9024005139 9046108183 9046108226 9046110226 9046110319 9046210051 9046210051 9046400389 9046804099 9046815021 9095001056 9161160816 9161160816 9165140614 9165140620 9165140816 9165160620 9338526020 9411040800
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95402

BU77,85,9#

 1
78111 - PEDAL, ACCELERATOR
78110-95410

BU6#,7#,8#,9#

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95472

BU85,90,95..TD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95405

BU85,90,95..TD

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95400

BU6#,7#,8#,9#

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
90461-10434

BU85,90,95..TD

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78404-95400

BU6#,70,8#,9#

 1
78404-95011

BU6#,7#,8#,9#

 1
78410C - KNOB, THROTTLE CABLE
78411-22010

BU6#,7#,8#,9#

 1
78410D - NUT, THROTTLE
78413-95J00

BU6#,70,8#,9#

 1
78314-95010

BU6#,7#,8#,9#

 1
Common parts
78183-95405
78183-95406
82711-12200
90202-06128
90240-05139
90461-08183
90461-08226
90461-10226
90461-10319
90462-10051
90464-00389
90468-04099
90468-15021
90950-01056
91611-60816
91651-40614
91651-40620
91651-40816
91651-60620
93385-26020
94110-40800
Linked diagrams
5851
