BU85-MDDHTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )DMP,TR

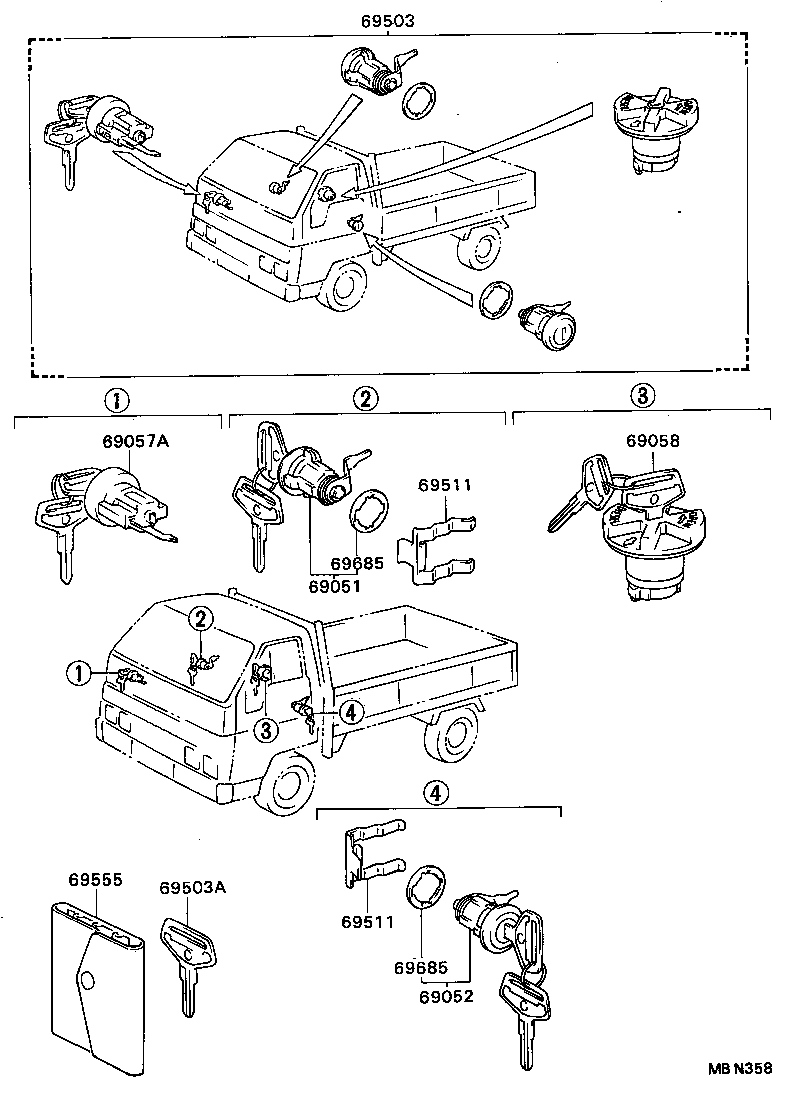

Click highlighted areas on diagram

diagram 69051 69052 69057A 69058 69503 69503A 69511 69511 69555 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95403

BU6#,8#,9#..CBU,IV3

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95403

BU6#,8#,9#..CBU,IV3

 1
69052-95405

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95412

BU85..03S;BU6#,80,81,82,9#..CBU,IV3

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-95406

BU82,85,90,93,95..T3

ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ)

 2
69058-95406

BU6#,8#,9#..CBU,IV3

 1
69503 - CYLINDER SET, LOCK
69503-95453

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69503-95452

BU6#,8#,9#

 1
69503-95455

BU85..T3..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ)

 1
69503-95454

BU82,85,90,93,95..T3

ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ)

 1
69503A - KEY, BLANK
90999-00129

BU6#,70,8#,9#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00066

BU6#,70,8#,9#

ﾏｽﾀｰｷｰ

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),右側

 1
69511-95400

BU6#,70,8#,9#

 2
69511-32010

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),左側

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),右側

 1
69511-95400

BU6#,70,8#,9#

 2
69511-32010

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),左側

 1
69555 - COVER, KEY
69555-20010

BU6#,70,8#,9#

 1
69685 - PAD, LOCK CYLINDER
69513-32010

BU6#,8#,9#..CBU,IV3

 2
69685 - PAD, LOCK CYLINDER
69513-32010

BU6#,8#,9#..CBU,IV3

 2

(8708- )V

Click highlighted areas on diagram

diagram 6762 69051 69052 69054B 69055B 69057A 69058 69503 69503A 69511 69511 69555 69681 69681 69685 69685 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95403

BU6#,8#,9#..CBU,IV3

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95403

BU6#,8#,9#..CBU,IV3

 1
69052-95405

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95412

BU85..03S;BU6#,80,81,82,9#..CBU,IV3

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-95406

BU82,85,90,93,95..T3

ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ)

 2
69058-95406

BU6#,8#,9#..CBU,IV3

 1
69503 - CYLINDER SET, LOCK
69503-95453

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
69503-95452

BU6#,8#,9#

 1
69503-95455

BU85..T3..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ)

 1
69503-95454

BU82,85,90,93,95..T3

ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ)

 1
69503A - KEY, BLANK
90999-00129

BU6#,70,8#,9#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00066

BU6#,70,8#,9#

ﾏｽﾀｰｷｰ

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),右側

 1
69511-95400

BU6#,70,8#,9#

 2
69511-32010

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),左側

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),右側

 1
69511-95400

BU6#,70,8#,9#

 2
69511-32010

BU62..TR..20T;BU60,61,64,85,98..(T2,T3,T4)..DSL

ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),左側

 1
69555 - COVER, KEY
69555-20010

BU6#,70,8#,9#

 1
69685 - PAD, LOCK CYLINDER
69513-32010

BU6#,8#,9#..CBU,IV3

 2
69685 - PAD, LOCK CYLINDER
69513-32010

BU6#,8#,9#..CBU,IV3

 2
69685 - PAD, LOCK CYLINDER
69513-32010

BU6#,8#,9#..CBU,IV3

 2
69685 - PAD, LOCK CYLINDER
69513-32010

BU6#,8#,9#..CBU,IV3

 2
Linked diagrams
6762
