BU85-MDDHTJ3 (1987)
Toyota Dyna/Toyoace

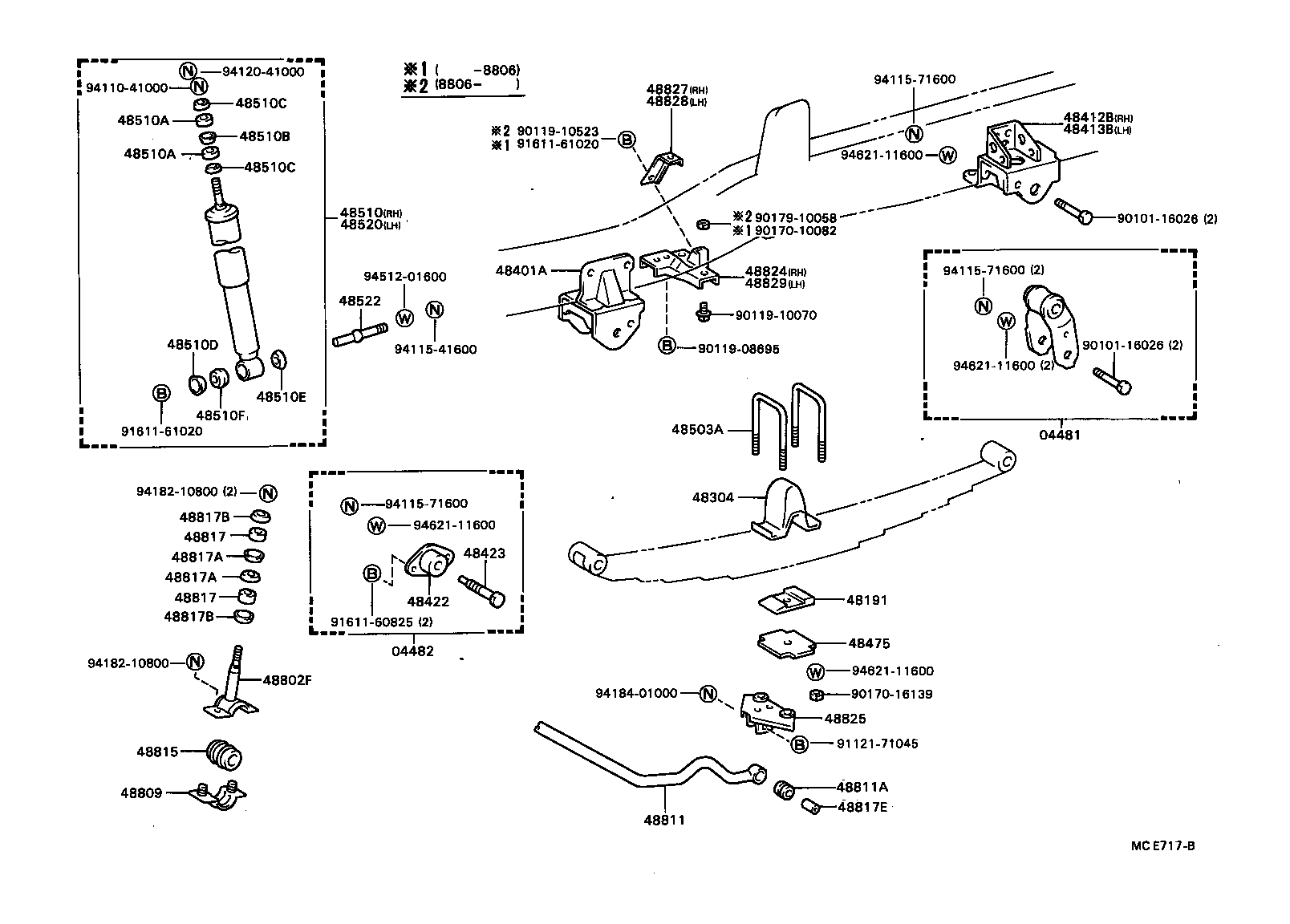

ILLUST NO. 1 OF 2(8708- )BU85,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36080 |
BU85,9# |
1 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36020 |
BU85,9# |
1 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-35020 |
BU85,9# |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36120 |
BU85..V;BU85,90,93,95..(T3,T4,TW1)..(20T,35T) |
2 | ||
| 48304-36110 |
BU85..T2,T4;BU85,93,98..T3..(275,30T) |
2 | ||
| 48304-36110 |
BU85..V;BU85,93..(T3,TW1)..20T ｷﾖｳｶ ﾀｲﾌﾟ |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48411-36130 |
BU85,93 RH |
1 | ||
| 48412-36130 |
BU85,93 LH |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48433-36060 |
BU85,90,93,95 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48434-36060 |
BU85,93 |
1 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-36050 |
BU85,9# |
2 | ||
| 48423 - PIN, FRONT SPRING BRACKET | ||||
| 48423-36020 |
BU85,9# |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
BU6#,70,8#,9# |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16017 |
BU85..V;BU85,93..(T3,TW1)..20T 長さ=130,ｷﾖｳｶ ﾀｲﾌﾟ |
1 | ||
| 90117-16017 |
BU85,93,98..275,30T 長さ=130 |
1 | ||
| 90117-16093 |
BU85..V;BU62..30T;BU82..275,30T;BU64,85,93..TR..20T 長さ=105 |
4 | ||
| 90117-16047 |
BU85..V;BU62..30T;BU82..275,30T;BU64,85,93..TR..20T 長さ=115 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-39495 |
BU85,93,98 ﾏｰｸ 48511―36090 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU6#,70,8#,9# |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU6#,70,8#,9# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU6#,70,8#,9# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU6#,70,8#,9# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU6#,70,8#,9# |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
BU6#,70,8#,9# |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU6#,70,8#,9# |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16009 |
BU6#,70,8#,9# |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-39495 |
BU85,93,98 ﾏｰｸ 48511―36090 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25010 |
BU6#,70,8#,9# |
2 | ||
| Common parts | ||||
| 90101-16026 | ||||
| 90119-08695 | ||||
| 90119-10070 | ||||
| 90119-10523 | ||||
| 90170-10082 | ||||
| 90170-16139 | ||||
| 90179-10058 | ||||
| 91121-71045 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 94110-41000 | ||||
| 94115-41600 | ||||
| 94115-71600 | ||||
| 94120-41000 | ||||
| 94182-10800 | ||||
| 94184-01000 | ||||
| 94512-01600 | ||||
| 94621-11600 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B530 |
BU85..V 7枚ﾘｰﾌ |
1 | ||
| 48110-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8枚ﾘｰﾌ |
1 | ||
| 48110-3B570 |
BU85,93,98..275,30T 8枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48110-3B550 |
BU85,93,98..275,30T 8枚ﾘｰﾌ |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B530 |
BU85..V 7枚ﾘｰﾌ |
1 | ||
| 48110-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8枚ﾘｰﾌ |
1 | ||
| 48110-3B570 |
BU85,93,98..275,30T 8枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48110-3B550 |
BU85,93,98..275,30T 8枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU85,9# |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU85,9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48101-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48101-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48101-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48101-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48101-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48101-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48101-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48101-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48101-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48101-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48101-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48101-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48101-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48101-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48112-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48112-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48112-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48112-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48112-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48112-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48112-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48112-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48112-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48112-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48112-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48112-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48112-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48112-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48113-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48113-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48113-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48113-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48113-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48113-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48102-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48113-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48113-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48113-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48113-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48113-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48113-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48102-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48102-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48102-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48102-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48102-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48102-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48114-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48114-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48102-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48102-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48102-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48102-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48102-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48114-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48114-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48103-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48115-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48115-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48115-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48115-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 運転席側 |
1 | ||
| 48115-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48115-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48103-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48115-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48115-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48115-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48115-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 運転席側 |
1 | ||
| 48115-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48115-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48103-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48103-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48116-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 運転席側 |
1 | ||
| 48103-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48103-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48116-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 助手席側 |
1 | ||
| 48103-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48103-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48103-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48116-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 運転席側 |
1 | ||
| 48103-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48103-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48116-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 助手席側 |
1 | ||
| 48103-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48117-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 助手席側 |
1 | ||
| 48117-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48117-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 運転席側 |
1 | ||
| 48117-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48117-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48117-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48117-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 運転席側 |
1 | ||
| 48118-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48118-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48118-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48118-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 助手席側 |
1 | ||
| 48118-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B540 |
BU85..V 7枚ﾘｰﾌ |
1 | ||
| 48110-3B580 |
BU85,93,98..275,30T 8枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48110-3B560 |
BU85,93,98..275,30T 8枚ﾘｰﾌ |
1 | ||
| 48110-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8枚ﾘｰﾌ |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B540 |
BU85..V 7枚ﾘｰﾌ |
1 | ||
| 48110-3B580 |
BU85,93,98..275,30T 8枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48110-3B560 |
BU85,93,98..275,30T 8枚ﾘｰﾌ |
1 | ||
| 48110-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36620 |
BU85,93,98..275,30T NO.6 LEAF T=7 |
2 | ||
| 48147-3B510 |
BU85..V NO.3 LEAF L=850 |
2 | ||
| 48147-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T NO.3 LEAF L=1000 |
2 | ||
| 48147-3B550 |
BU85,93,98..275,30T NO.6 LEAF T=8 |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36620 |
BU85,93,98..275,30T NO.6 LEAF T=7 |
2 | ||
| 48147-3B510 |
BU85..V NO.3 LEAF L=850 |
2 | ||
| 48147-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T NO.3 LEAF L=1000 |
2 | ||
| 48147-3B550 |
BU85,93,98..275,30T NO.6 LEAF T=8 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B530 |
BU85..V 7枚ﾘｰﾌ |
1 | ||
| 48110-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8枚ﾘｰﾌ |
1 | ||
| 48110-3B570 |
BU85,93,98..275,30T 8枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48110-3B550 |
BU85,93,98..275,30T 8枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU85,9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48101-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48101-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48101-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48101-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48101-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48101-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48101-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48112-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48112-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48112-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48112-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48112-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48112-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48112-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48113-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48113-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48113-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48113-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48113-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48113-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48102-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48102-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48102-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48102-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48102-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48102-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48114-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48114-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48103-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48115-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48115-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48115-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48115-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 運転席側 |
1 | ||
| 48115-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48115-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B540 |
BU85..V 7枚ﾘｰﾌ |
1 | ||
| 48110-3B580 |
BU85,93,98..275,30T 8枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48110-3B560 |
BU85,93,98..275,30T 8枚ﾘｰﾌ |
1 | ||
| 48110-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36620 |
BU85,93,98..275,30T NO.6 LEAF T=7 |
2 | ||
| 48147-3B510 |
BU85..V NO.3 LEAF L=850 |
2 | ||
| 48147-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T NO.3 LEAF L=1000 |
2 | ||
| 48147-3B550 |
BU85,93,98..275,30T NO.6 LEAF T=8 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B530 |
BU85..V 7枚ﾘｰﾌ |
1 | ||
| 48110-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8枚ﾘｰﾌ |
1 | ||
| 48110-3B570 |
BU85,93,98..275,30T 8枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48110-3B550 |
BU85,93,98..275,30T 8枚ﾘｰﾌ |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48101-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48101-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48101-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48101-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48101-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48101-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48101-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48112-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48112-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48112-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48112-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48112-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48112-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48112-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48113-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48113-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48113-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48113-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48113-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48113-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48102-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48102-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48102-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48102-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48102-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48102-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48114-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48114-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48103-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48115-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48115-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48115-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48115-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 運転席側 |
1 | ||
| 48115-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48115-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48103-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48103-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48116-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 運転席側 |
1 | ||
| 48103-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48103-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48116-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 助手席側 |
1 | ||
| 48103-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48117-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 助手席側 |
1 | ||
| 48117-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48117-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 運転席側 |
1 | ||
| 48117-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48117-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48117-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48117-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B540 |
BU85..V 7枚ﾘｰﾌ |
1 | ||
| 48110-3B580 |
BU85,93,98..275,30T 8枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48110-3B560 |
BU85,93,98..275,30T 8枚ﾘｰﾌ |
1 | ||
| 48110-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36620 |
BU85,93,98..275,30T NO.6 LEAF T=7 |
2 | ||
| 48147-3B510 |
BU85..V NO.3 LEAF L=850 |
2 | ||
| 48147-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T NO.3 LEAF L=1000 |
2 | ||
| 48147-3B550 |
BU85,93,98..275,30T NO.6 LEAF T=8 |
2 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| 48152-3B510 |
BU85..V;BU85,93..20T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B530 |
BU85..V 7枚ﾘｰﾌ |
1 | ||
| 48110-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8枚ﾘｰﾌ |
1 | ||
| 48110-3B570 |
BU85,93,98..275,30T 8枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48110-3B550 |
BU85,93,98..275,30T 8枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16015 |
BU85,9# |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48101-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48101-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48101-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48101-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48101-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48101-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48101-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48112-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48112-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48112-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48112-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48112-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48112-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48112-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48113-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48113-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48113-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48113-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48113-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48113-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48102-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48102-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,運転席側 |
1 | ||
| 48102-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48102-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48102-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48102-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48114-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48114-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-3B540 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,助手席側 |
1 | ||
| 48103-3B530 |
BU85..V;BU85,93..(T3,TW1)..20T 7-LEAF,運転席側 |
1 | ||
| 48115-3B550 |
BU85,93,98..275,30T 運転席側 |
1 | ||
| 48115-3B560 |
BU85,93,98..275,30T 助手席側 |
1 | ||
| 48115-3B580 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,助手席側 |
1 | ||
| 48115-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T 運転席側 |
1 | ||
| 48115-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8-LEAF,助手席側 |
1 | ||
| 48115-3B570 |
BU85,93,98..275,30T ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ,運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B540 |
BU85..V 7枚ﾘｰﾌ |
1 | ||
| 48110-3B580 |
BU85,93,98..275,30T 8枚ﾘｰﾌ,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ |
1 | ||
| 48110-3B560 |
BU85,93,98..275,30T 8枚ﾘｰﾌ |
1 | ||
| 48110-3B560 |
BU85..V;BU85,93..(T3,TW1)..20T 8枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36620 |
BU85,93,98..275,30T NO.6 LEAF T=7 |
2 | ||
| 48147-3B510 |
BU85..V NO.3 LEAF L=850 |
2 | ||
| 48147-3B550 |
BU85..V;BU85,93..(T3,TW1)..20T NO.3 LEAF L=1000 |
2 | ||
| 48147-3B550 |
BU85,93,98..275,30T NO.6 LEAF T=8 |
2 | ||
| Common parts | ||||
| 90179-10043 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
