BU83-MDFT3 (1988)
Toyota Dyna/Toyoace
(8808- )BU67..DM1 ; (8808- )BU60,61,66,68,70,83,84,87..DSL

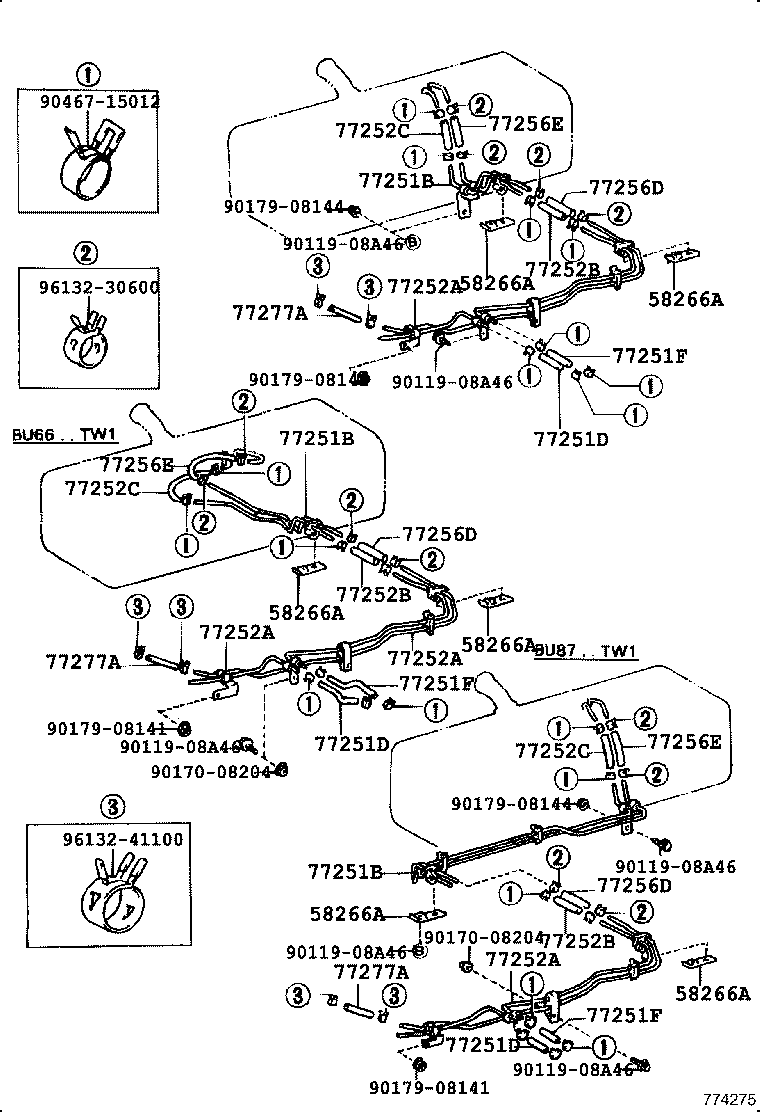

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36200 |
BU60,61,66,68,70,83,84,87..DSL |
2 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36200 |
BU60,61,66,68,70,83,84,87..DSL |
2 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36200 |
BU60,61,66,68,70,83,84,87..DSL |
2 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36200 |
BU60,61,66,68,70,83,84,87..DSL |
2 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36200 |
BU60,61,66,68,70,83,84,87..DSL |
2 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36200 |
BU60,61,66,68,70,83,84,87..DSL |
2 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-36480 |
BU87..03S;BU60,61,66,70,83,84..CBU,IV3 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-36480 |
BU87..03S;BU60,61,66,70,83,84..CBU,IV3 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-36480 |
BU87..03S;BU60,61,66,70,83,84..CBU,IV3 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-36051 |
BU73..03S;BU60,61,66,68,70,72,74,83,84,87..CBU,IV3 |
1 | ||
| 77259-36051 |
BU60,61,66,70,83,84,87 |
1 | ||
| 77259-36050 |
BU60,61,66,70,83,84,87 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-36051 |
BU73..03S;BU60,61,66,68,70,72,74,83,84,87..CBU,IV3 |
1 | ||
| 77259-36051 |
BU60,61,66,70,83,84,87 |
1 | ||
| 77259-36050 |
BU60,61,66,70,83,84,87 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-36051 |
BU73..03S;BU60,61,66,68,70,72,74,83,84,87..CBU,IV3 |
1 | ||
| 77259-36051 |
BU60,61,66,70,83,84,87 |
1 | ||
| 77259-36050 |
BU60,61,66,70,83,84,87 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 95332-10020 |
BU60,61,66,70,83,84,87,88,91,94,96 *H,L=200 |
1 | ||
| 95332-10014 |
BU60,61,66,70,83,84,87 *H,L=140 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 95332-10020 |
BU60,61,66,70,83,84,87,88,91,94,96 *H,L=200 |
1 | ||
| 95332-10014 |
BU60,61,66,70,83,84,87 *H,L=140 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 95332-10020 |
BU60,61,66,70,83,84,87,88,91,94,96 *H,L=200 |
1 | ||
| 95332-10014 |
BU60,61,66,70,83,84,87 *H,L=140 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-36320 |
BU60,61,66,70,83,84,87 |
1 | ||
| 77206-36320 |
BU60,61,66,68,70,83,84,87..CBU,IV3 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-36320 |
BU60,61,66,70,83,84,87 |
1 | ||
| 77206-36320 |
BU60,61,66,68,70,83,84,87..CBU,IV3 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-36320 |
BU60,61,66,70,83,84,87 |
1 | ||
| 77206-36320 |
BU60,61,66,68,70,83,84,87..CBU,IV3 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-36320 |
BU60,61,66,70,83,84,87 |
1 | ||
| 77206-36320 |
BU60,61,66,68,70,83,84,87..CBU,IV3 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10014 |
BU60,61,66,68,70,72,73,74,83,84,87..DSL *H,L=140 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10014 |
BU60,61,66,68,70,72,73,74,83,84,87..DSL *H,L=140 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10014 |
BU60,61,66,68,70,72,73,74,83,84,87..DSL *H,L=140 |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10030 |
BU87..T2,T4;BU60..T3..WT;BU66..WT..20T;BU88,91,94,96;BU87..T3..5F..IV3;BU60,61,68,72,73,78,83,84..(DM1,DM5,T1,T2,T4,TW1)..(20T,30T,IV4)..DSL |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10030 |
BU87..T2,T4;BU60..T3..WT;BU66..WT..20T;BU88,91,94,96;BU87..T3..5F..IV3;BU60,61,68,72,73,78,83,84..(DM1,DM5,T1,T2,T4,TW1)..(20T,30T,IV4)..DSL |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-10030 |
BU87..T2,T4;BU60..T3..WT;BU66..WT..20T;BU88,91,94,96;BU87..T3..5F..IV3;BU60,61,68,72,73,78,83,84..(DM1,DM5,T1,T2,T4,TW1)..(20T,30T,IV4)..DSL |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06020 |
BU60,61,66,68,7#,83,84,87,88,91 |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06020 |
BU60,61,66,68,7#,83,84,87,88,91 |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06020 |
BU60,61,66,68,7#,83,84,87,88,91 |
1 | ||
| 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06030 |
BU60..T3..WT;BU87..T3..5F..IV3;BU66..WT..(20T,IV4);BU60,61,83,84,87..(T1,T2,T4,TW1)..20T |
1 | ||
| 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06030 |
BU60..T3..WT;BU87..T3..5F..IV3;BU66..WT..(20T,IV4);BU60,61,83,84,87..(T1,T2,T4,TW1)..20T |
1 | ||
| 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-06030 |
BU60..T3..WT;BU87..T3..5F..IV3;BU66..WT..(20T,IV4);BU60,61,83,84,87..(T1,T2,T4,TW1)..20T |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-56010 |
BU6#,7#,83,84,87,88,91,94,96..DSL,TD 長さ=220 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-56010 |
BU6#,7#,83,84,87,88,91,94,96..DSL,TD 長さ=220 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-56010 |
BU6#,7#,83,84,87,88,91,94,96..DSL,TD 長さ=220 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90170-08204 | ||||
| 90179-08141 | ||||
| 90179-08144 | ||||
| 90467-15012 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
(8808- )DMP,TR..DSL,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36340 |
BU87,96..4FC..(275,35T);BU60,61,66,72,78,83,84,87,88,91,94..DM2,DM5,T1,T2,T4 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B080 |
BU87,96..4FC..(275,35T);BU78,83,84,87,88,90,91,94..T2,T4 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
BU96..4FC;BU87,88..T2,T4;BU60,61,66,83,84,90,91..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36120 |
BU60,61,66,83,84,87..DM2,T1,T2,T4 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36110 |
BU96..4FC;BU87,88..T2,T4;BU61,67,83,84..WT;BU60,66,90,91..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| Common parts | ||||
| 90119-10533 | ||||
| 90159-40155 | ||||
| 90170-10028 | ||||
| 90467-13007 | ||||
| 91612-40616 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 96132-30600 | ||||
(8808- )BU87..V ; (8808- )BU87..06S..IV3 ;(8808- )BU66..175..CBU ; (8808-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36340 |
BU87,96..4FC..(275,35T);BU60,61,66,72,78,83,84,87,88,91,94..DM2,DM5,T1,T2,T4 |
1 | ||
| 77017-36340 |
BU87,96..4FC..(275,35T);BU60,61,66,72,78,83,84,87,88,91,94..DM2,DM5,T1,T2,T4 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B080 |
BU87,96..4FC..(275,35T);BU78,83,84,87,88,90,91,94..T2,T4 |
1 | ||
| 77001-3B080 |
BU87,96..4FC..(275,35T);BU78,83,84,87,88,90,91,94..T2,T4 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 90105-12116 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 90430-12245 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36090 |
BU96..4FC;BU87,88..T2,T4;BU60,61,66,83,84,90,91..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| 77601-36090 |
BU96..4FC;BU87,88..T2,T4;BU60,61,66,83,84,90,91..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77629-36010 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36120 |
BU60,61,66,83,84,87..DM2,T1,T2,T4 |
2 | ||
| 77633-36120 |
BU60,61,66,83,84,87..DM2,T1,T2,T4 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36110 |
BU96..4FC;BU87,88..T2,T4;BU61,67,83,84..WT;BU60,66,90,91..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| 77651-36110 |
BU96..4FC;BU87,88..T2,T4;BU61,67,83,84..WT;BU60,66,90,91..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| Common parts | ||||
| 90119-10581 | ||||
| 90159-40155 | ||||
| 90159-60047 | ||||
| 90170-10028 | ||||
| 90467-13007 | ||||
| 91611-10533 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 93315-15012 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
