BU82-MDPDTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )T1,TW1

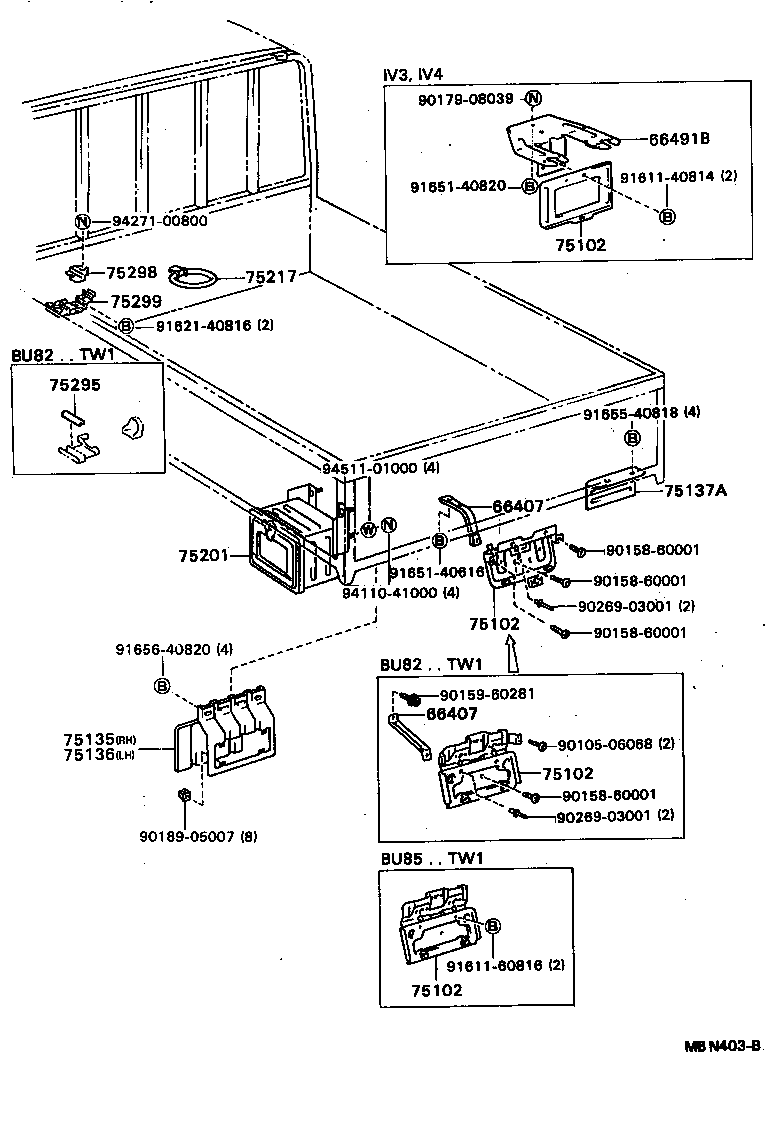

Click highlighted areas on diagram

diagram 66407 66407 66491B 75102 75102 75102 75102 75135 75136 75137A 75201 75217 75295 75298 75299 9010506068 9015860001 9015860001 9015860001 9015860001 9015960281 9017908039 9018905007 9026903001 9026903001 9161140814 9161160816 9162140816 9165140616 9165140820 9165540818 9165640820 9411041000 9427100800 9451101000
Part # Description Qty Price
66491B - HANGER, LICENSE PLATE BRACKET
66491-95412

BU62..DMP..CBU;BU85..06S..IV3;BU82..(T3,TW1)..IV3;BU6#..(DM2,T1,T2,T3,T4,TW1,TW2,TW4)..(IV3,IV4)

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU82..(T3,TW1)..IV3

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU82..(T3,TW1)..IV3

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU82..(T3,TW1)..IV3

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU82..(T3,TW1)..IV3

 1
75217 - BAND, TOOL BAG
58705-95A01

BU6#,8#,9#..CBU,IV3

 1
75295 - PROTECTOR, JACK SUPPORT
75295-95400

BU82..06S

長さ=70

 1
Common parts
90105-06068
90158-60001
90159-60281
90179-08039
90189-05007
90269-03001
91611-40814
91611-60816
91621-40816
91651-40616
91651-40820
91655-40818
91656-40820
94110-41000
94271-00800
94511-01000

(8708- )V

Click highlighted areas on diagram

diagram 58762 58762 58762 58762 58777 58790 66493A 66493A 74724 75102 75102 75123A 75123A 75217 75217 75298 75298 75299 9011908282 9011908282 9161160616 9161160616 9161160616 9161160616 9162140614 9162140614 9162140816 9165140620 9354014012 9354014012 9411040600 9411040600 9427100800 9427100800
Part # Description Qty Price
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU82..(T3,TW1)..IV3

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU82..(T3,TW1)..IV3

 1
75217 - BAND, TOOL BAG
58705-95A01

BU6#,8#,9#..CBU,IV3

 1
75217 - BAND, TOOL BAG
58705-95A01

BU6#,8#,9#..CBU,IV3

 1
Common parts
90119-08282
91611-60616
91621-40614
91621-40816
91651-40620
93540-14012
94110-40600
94271-00800
