BU82-MDPDTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU85..03S ; (8708- )BU6#,70,80,81,82,9#..DM1,DM2,DM3,DM4,HRF,SRF,T1,T

Click highlighted areas on diagram

diagram 58839A 58839A 58936A 71011S 71013S 71014S 71035S 71071S 71072S 71073S 71074S 71305S 71311B 71319A 71319A 71350S 71365S 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71709B 71709B 71811C 71812 71812 71812 71815A 71910A 71910A 71910A 72090 72110A 72510 9011906214 9011906214 9011908079 9011908079 9011908079 9011908079 9011908086 9011908469 9011910116 9014950039 9016840043 9017908039 9017908039 9018304066 9033325001 9052308001 9053006001 9053018003 9054006006 9054006006 9054006006 9054006006 9054006007 9054006007 9161161020 9356015014 9356015014
Part # Description Qty Price
58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570004

BU6#,8#,9#..TOY

BLUE,TRIM8#

 1
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95414

BU6#,70,8#,9#

 1
71011-95417

BU85..V;BU70,80,81;BU60,82,85..T1,TW1,TW2,TW4

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-95412

BU85..V;BU70,80,81;BU60,82,85..T1,TW1,TW2,TW4

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71013-95413

BU6#,70,8#,9#

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-9541801

BU60,62,82..06S

BLACK,TRIM4#,8#

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9547204

BU85..TOY..TD;BU62..TOY..DM2..IV3;BU80,81,82,90,93,95..TOY;BU62..TOY..(275,30T)..IV3;BU62..TOY..(DM2,DM3,T3)..WT..CBU;BU60,64,85..TOY..(DM1,DM4,T1,TW1,TW2,TW4)

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71071-9547404

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9547404

BU6#,80,81,82..TOY

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
71072-9548604

BU6#,80,81,82..TOY

BLUE,TRIM8#

 1
71072-95B2904

BU6#,80,81,82..TOY

BLUE,TRIM8#

 1
71072-95B3104

BU6#,80,81,82..TOY

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9547704

BU60,82,85..TOY..06S

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71073-9548204

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95B4904

BU60,82..TOY..06S

BLUE,TRIM8#

 1
71074-95B4704

BU60,82..TOY..06S

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95404

BU60,62,82..06S

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95404

BU60,62,82..06S

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540004

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9546004

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
71410-9546404

BU85..TOY..TD;BU62..TOY..DM2..IV3;BU80,81,82,90,93,95..TOY;BU62..TOY..(275,30T)..IV3;BU62..TOY..(DM2,DM3,T3)..WT..CBU;BU60,64,85..TOY..(DM1,DM4,T1,TW1,TW2,TW4)

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9545804

BU6#,80,81,82..TOY

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
71420-9547104

BU6#,80,81,82..TOY

BLUE,TRIM8#

 1
71420-95B1504

BU6#,80,81,82..TOY

BLUE,TRIM8#

 1
71420-95B1704

BU6#,80,81,82..TOY

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9545904

BU60,82,85..TOY..06S

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71430-9546504

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95B0504

BU60,82..TOY..06S

BLUE,TRIM8#

 1
71440-95B0704

BU60,82..TOY..06S

BROWN,TRIM8#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95400

BU6#,70,8#,9#

 1
71511-95404

BU85..V;BU70,80,81;BU60,82,85..T1,TW1,TW2,TW4

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-95400

BU6#,80,81,82..TOY

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95404

BU6#,70,8#,9#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-95403

BU60,62,82..06S

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-95J00

BU85..V;BU70,80,81;BU60,82,85..T1,TW1,TW2,TW4

 2
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J0114

BU6#,8#,9#..TOY

BLUE,TRIM8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

BU82

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

BU82

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

BU82

 1
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J0014

BU6#,8#,9#..TOY

BLUE,TRIM8#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260304

BU60,82..TOY..06S

BLUE,TRIM8#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260304

BU60,82..TOY..06S

BLUE,TRIM8#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260304

BU60,82..TOY..06S

BLUE,TRIM8#

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540004

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408

BU6#,70,8#,9#

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95J0014

BU6#,8#,9#..TOY

BLUE,TRIM8#

 1
Common parts
90119-06214
90119-08079
90119-08086
90119-08469
90119-10116
90149-50039
90168-40043
90179-08039
90183-04066
90333-25001
90523-08001
90530-06001
90530-18003
90540-06006
90540-06007
91611-61020
93560-15014

(8708- )

Click highlighted areas on diagram

diagram 58936A 71011S 71013S 71014S 71071S 71072S 71073S 71074S 71311B 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71811C 71812 71812 71812 71812 71815A 71910A 72090 72110A 72510 9011906214 9011908079 9011908079 9011908079 9011908086 9011910116 9014950039 9016840043 9017908039 9017908039 9052308001 9053006001 9054006007 9161161020 9356015014
Part # Description Qty Price
58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570004

BU6#,8#,9#..TOY

BLUE,TRIM8#

 1
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95414

BU6#,70,8#,9#

 1
71011-95417

BU85..V;BU70,80,81;BU60,82,85..T1,TW1,TW2,TW4

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-95412

BU85..V;BU70,80,81;BU60,82,85..T1,TW1,TW2,TW4

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71013-95413

BU6#,70,8#,9#

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-9541801

BU60,62,82..06S

BLACK,TRIM4#,8#

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9547204

BU85..TOY..TD;BU62..TOY..DM2..IV3;BU80,81,82,90,93,95..TOY;BU62..TOY..(275,30T)..IV3;BU62..TOY..(DM2,DM3,T3)..WT..CBU;BU60,64,85..TOY..(DM1,DM4,T1,TW1,TW2,TW4)

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71071-9547404

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9547404

BU6#,80,81,82..TOY

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
71072-9548604

BU6#,80,81,82..TOY

BLUE,TRIM8#

 1
71072-95B2904

BU6#,80,81,82..TOY

BLUE,TRIM8#

 1
71072-95B3104

BU6#,80,81,82..TOY

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9547704

BU60,82,85..TOY..06S

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71073-9548204

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95B4904

BU60,82..TOY..06S

BLUE,TRIM8#

 1
71074-95B4704

BU60,82..TOY..06S

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95404

BU60,62,82..06S

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540004

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9546004

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
71410-9546404

BU85..TOY..TD;BU62..TOY..DM2..IV3;BU80,81,82,90,93,95..TOY;BU62..TOY..(275,30T)..IV3;BU62..TOY..(DM2,DM3,T3)..WT..CBU;BU60,64,85..TOY..(DM1,DM4,T1,TW1,TW2,TW4)

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9545804

BU6#,80,81,82..TOY

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
71420-9547104

BU6#,80,81,82..TOY

BLUE,TRIM8#

 1
71420-95B1504

BU6#,80,81,82..TOY

BLUE,TRIM8#

 1
71420-95B1704

BU6#,80,81,82..TOY

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9545904

BU60,82,85..TOY..06S

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71430-9546504

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95B0504

BU60,82..TOY..06S

BLUE,TRIM8#

 1
71440-95B0704

BU60,82..TOY..06S

BROWN,TRIM8#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95400

BU6#,70,8#,9#

 1
71511-95404

BU85..V;BU70,80,81;BU60,82,85..T1,TW1,TW2,TW4

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-95400

BU6#,80,81,82..TOY

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95404

BU6#,70,8#,9#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-95403

BU60,62,82..06S

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-95J00

BU85..V;BU70,80,81;BU60,82,85..T1,TW1,TW2,TW4

 2
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J0114

BU6#,8#,9#..TOY

BLUE,TRIM8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

BU82

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

BU82

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

BU82

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

BU82

 1
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J0014

BU6#,8#,9#..TOY

BLUE,TRIM8#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260304

BU60,82..TOY..06S

BLUE,TRIM8#

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540004

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408

BU6#,70,8#,9#

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95J0014

BU6#,8#,9#..TOY

BLUE,TRIM8#

 1
Common parts
90119-06214
90119-08079
90119-08086
90119-10116
90149-50039
90168-40043
90179-08039
90523-08001
90530-06001
90540-06007
91611-61020
93560-15014

(8708- )

Click highlighted areas on diagram

diagram 72110A 72111A 73800 73888 9010508075 9017908039 9161160816
Part # Description Qty Price
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408

BU6#,70,8#,9#

 1
72111A - RAIL, FRONT INNER SEAT TRACK, UPPER
72113-95402

BU85..V;BU82,85..06S;BU60,61,70,80,81,98

 1
73800 - SUSPENSION ASSY, SEAT, RH
73800-95402

BU85..V;BU82,85..06S;BU60,61,70,80,81,98

 1
73888 - HANDLE, SEAT SUSPENSION CONTROL
73888-95400

BU85..V;BU82,85..06S;BU60,61,70,80,81,98

 1
Common parts
90105-08075
90179-08039
91611-60816

(8708- )BU60,82..06S

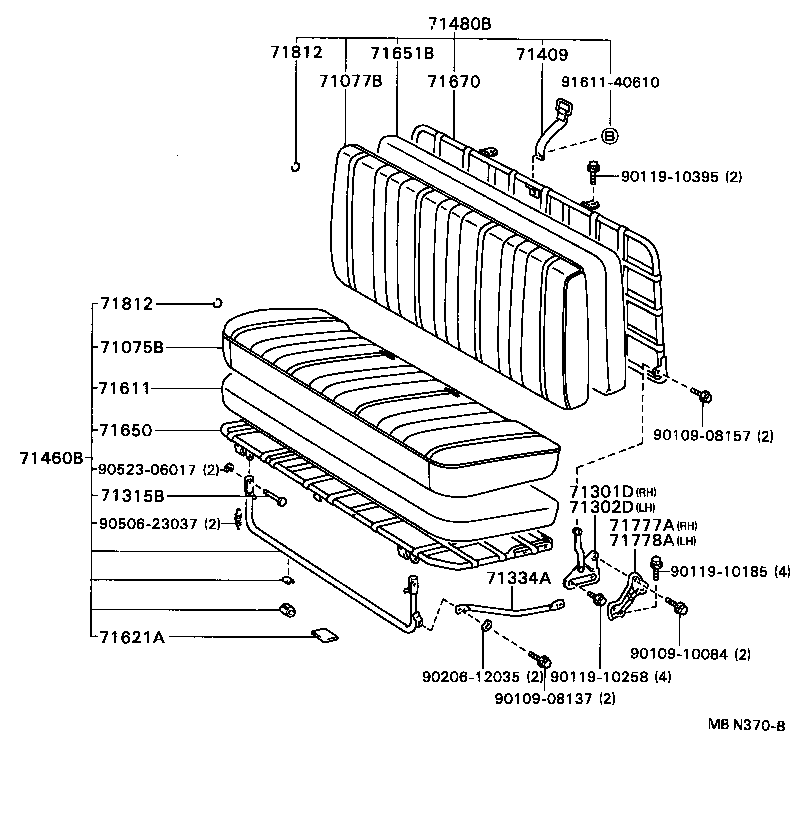

Click highlighted areas on diagram

diagram 71075B 71077B 71301D 71302D 71315B 71334A 71409 71460B 71480B 71611 71621A 71650 71651B 71670 71777A 71778A 71812 71812 9010908137 9010908157 9010910084 9011910185 9011910258 9011910395 9020612035 9050623037 9052306017 9161140610
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-9540404

BU60,82..TOY..06S

BROWN,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-9541104

BU60,82..TOY..06S

BLUE,TRIM8#

 1
71301D - HINGE SUB-ASSY, REAR SEAT, RH
71301-95401

BU60,82,85..06S

 1
71302D - HINGE SUB-ASSY, REAR SEAT, LH
71302-95401

BU60,82,85..06S

 1
71315B - PIN, REAR SEAT HINGE
71315-95011

BU60,82,85..06S

 2
71334A - STOPPER, REAR SEAT LEG
71334-95400

BU60,82,85..06S

 1
71409 - STOPPER SUB-ASSY, REAR SEAT BACK
71409-95A31

BU60,82..06S

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-9541704

BU60,82..TOY..06S

BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-9541104

BU60,82..TOY..06S

BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71611-95401

BU60,82..06S

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-95701

BU60,82..06S

 6
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-95404

BU60,82..06S

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-95400

BU60,82..06S

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-95402

BU60,82..06S

 1
71777A - PLATE, REAR SIDE SEAT HINGE, LOWER RH
71777-95400

BU60,82,85..06S

 1
71778A - PLATE, REAR SIDE SEAT HINGE, LOWER LH
71778-95400

BU60,82,85..06S

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

BU82

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

BU82

 1
Common parts
90109-08137
90109-08157
90109-10084
90119-10185
90119-10258
90119-10395
90206-12035
90506-23037
90523-06017
91611-40610
