BU82-MDPDTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU60,62,82,85..06S

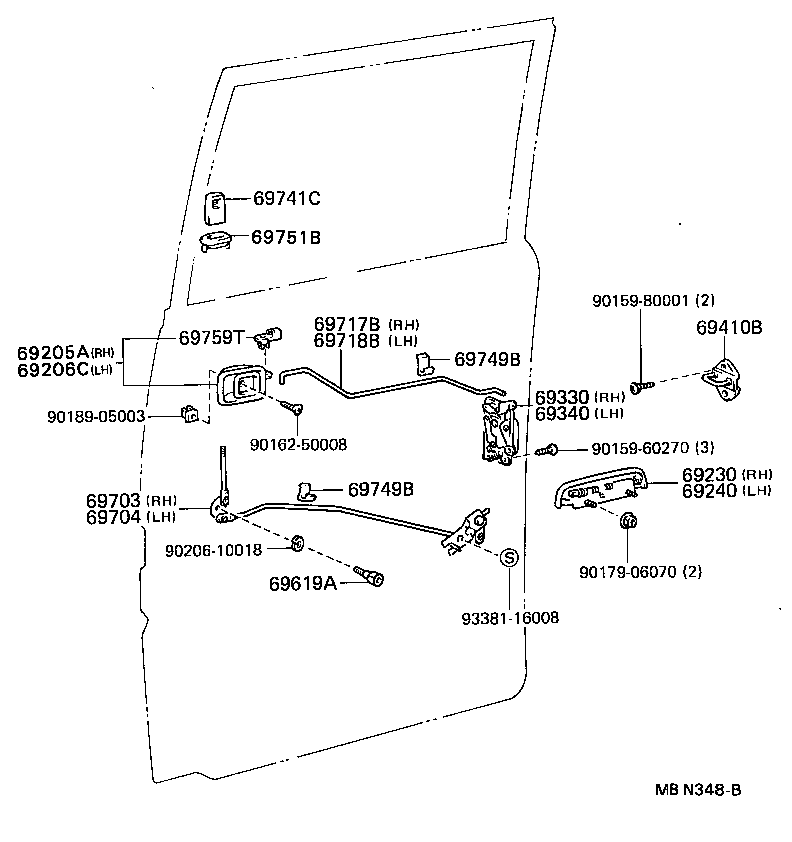

Click highlighted areas on diagram

diagram 69205A 69206C 69230 69240 69330 69340 69410B 69619A 69703 69704 69717B 69718B 69741C 69749B 69749B 69751B 69759T 9015960270 9015980001 9016250008 9017906070 9018905003 9020610018 9338116008
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-9570304

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-9570304

BU60,82,85..TOY..06S

BLUE,TRIM8#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-95400

BU60,62,82,85..06S

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-95400

BU60,62,82,85..06S

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-95401

BU60,62,82,85..06S

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-95402

BU60,62,82,85..06S

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-95010

BU60,62,82,85..06S

 2
69619A - BOLT
69619-95010

BU60,62,82,85..06S

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69701-95401

BU60,62,82,85..06S

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69702-95401

BU60,62,82,85..06S

 1
69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-95400

BU60,62,82,85..06S

 1
69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-95401

BU60,62,82,85..06S

 1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-2002001

BU60,62,82,85..06S

BLACK,TRIM4#,8#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

BU60,62,82,85..06S

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

BU60,62,82,85..06S

 2
69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR)
69751-2003101

BU60,62,82,85..06S

BLACK,TRIM4#,8#

 2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-24070

BU60,62,82,85..06S

左側

 1
69759-14050

BU60,62,82,85..06S

右側

 1
Common parts
90159-60270
90159-80001
90162-50008
90179-06070
90189-05003
90206-10018
93381-16008

(8708- )V

Click highlighted areas on diagram

diagram 69080 69240 69246 69246 69340 69388C 69410B 69473 69640C 69704 69747E 9011908532 9015960268 9048010102 9331116016 9338116010 9338516010
Part # Description Qty Price
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-95400

BU60,62,82,85..06S

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-95402

BU60,62,82,85..06S

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-95010

BU60,62,82,85..06S

 2
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69702-95401

BU60,62,82,85..06S

 1
Common parts
90119-08532
90159-60268
90480-10102
93311-16016
93381-16010
93385-16010
