BU82-MDPDTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU60,62,82,85..06S

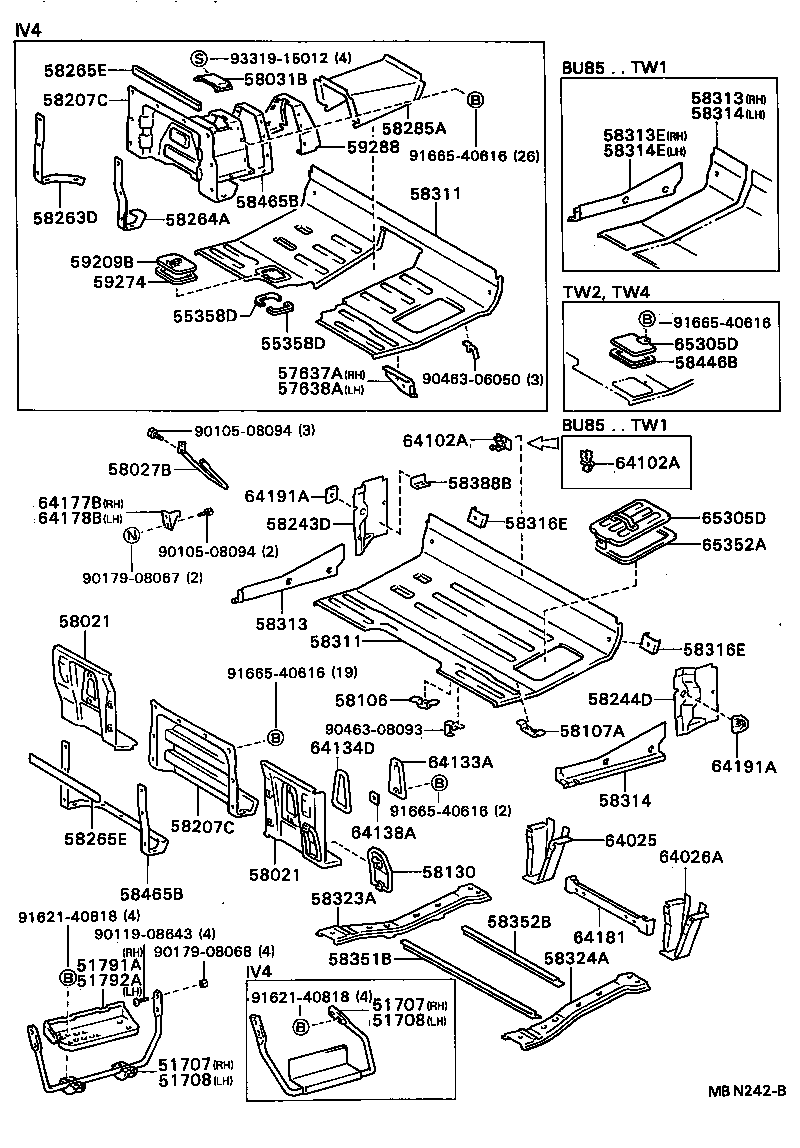

Click highlighted areas on diagram

diagram 51707 51707 51708 51708 51791A 51792A 55358D 55358D 57637A 57638A 58021 58021 58027B 58031B 58106 58107A 58130 58207C 58207C 58243D 58244D 58263D 58264A 58265E 58265E 58285A 58311 58311 58313 58313 58313E 58314 58314 58314E 58316E 58316E 58323A 58324A 58351B 58352B 58388B 58446B 58465B 58465B 59209B 59274 59288 64025 64026A 64102A 64102A 64133A 64134D 64138A 64177B 64178B 64181 64191A 64191A 65305D 65305D 65352A 9010508094 9010508094 9011908643 9017908067 9017908068 9046306050 9046308093 9162140818 9162140818 9166540616 9166540616 9166540616 9166540616 9331915012
Part # Description Qty Price
51707 - STEP SUB-ASSY, RH
58307-95403

BU60,82,85..06S

 1
51707 - STEP SUB-ASSY, RH
58307-95403

BU60,82,85..06S

 1
51708 - STEP SUB-ASSY, LH
58308-95400

BU60,82,85..06S

 1
51708 - STEP SUB-ASSY, LH
58308-95400

BU60,82,85..06S

 1
51791A - PANEL, STEP, REAR RH
51792-95400

BU60,82,85..06S

 1
51792A - PANEL, STEP, REAR LH
51792-95400

BU60,82,85..06S

 1
58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2
58106-95A00

BU60,82..06S

 1
58107A - BRACKET SUB-ASSY, CLAMP SET, NO.1
58107-95A00

BU60,82..06S

 1
58130 - COVER ASSY, RESERVE TANK SERVICE HOLE
58130-92600

BU60,62,70,82..HRF,SRF,TW1,TW2,TW4

 1
58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE
58207-92605

BU60,70,82..HRF,SRF,TW1,TW2,TW4

 1
58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE
58207-92605

BU60,70,82..HRF,SRF,TW1,TW2,TW4

 1
58243D - PANEL, FLOOR SIDE, REAR RH
58243-95415

BU60,62,82,85..06S

 1
58244D - PANEL, FLOOR SIDE, REAR LH
58244-95411

BU60,62,82,85..06S

 1
58265E - PACKING, TRANSMISSION COVER, C
58265-95400

BU60,62,70,82..HRF,SRF,TW1,TW2,TW4

 1
58265E - PACKING, TRANSMISSION COVER, C
58265-95400

BU60,62,70,82..HRF,SRF,TW1,TW2,TW4

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-95402

BU60,62,82..06S

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-95402

BU60,62,82..06S

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-95403

BU60,62,82..06S

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-95403

BU60,62,82..06S

 1
58316E - RETAINER, REAR SEAT SET
58316-95402

BU60,82,85..06S

 2
58316E - RETAINER, REAR SEAT SET
58316-95402

BU60,82,85..06S

 2
58465B - PACKING, TRANSMISSION SERVICE HOLE COVER
58465-92601

BU60,70,82..HRF,SRF,TW1,TW2,TW4

 1
58465B - PACKING, TRANSMISSION SERVICE HOLE COVER
58465-92601

BU60,70,82..HRF,SRF,TW1,TW2,TW4

 1
64025 - BRACKET SUB-ASSY, REAR MOUNTING, RH
64025-95401

BU60,62,82..06S

 1
64026A - BRACKET SUB-ASSY, REAR MOUNTING, LH
64025-95401

BU60,62,82..06S

 1
64102A - BRACKET SUB-ASSY, JACK HANDLE SUPPORT
64102-95403

BU60,82..06S

 2
64102A - BRACKET SUB-ASSY, JACK HANDLE SUPPORT
64102-95403

BU60,82..06S

 2
64133A - COVER, HEADER PANEL
64133-95400

BU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4

 2
64134D - PACKING, HEADER PANEL COVER
64134-95400

BU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4

 2
64138A - SEAL, HEADER PANEL COVER
64138-95400

BU60,82..06S

 4
64181 - REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR
64181-95401

BU60,82..06S

 1
64191A - BRACKET, REAR SEAT BELT ANCHORAGE, RH
64191-95405

BU60,62,82,85..06S

 2
64191A - BRACKET, REAR SEAT BELT ANCHORAGE, RH
64191-95405

BU60,62,82,85..06S

 2
65305D - COVER SUB-ASSY, BATTERY HOLE
65305-95A03

BU60,62,82,85..TW1

 1
65305D - COVER SUB-ASSY, BATTERY HOLE
65305-95A03

BU60,62,82,85..TW1

 1
65352A - PACKING, BATTERY HOLE COVER, NO.2
65352-95A02

BU60,62,82,85..06S

 1
Common parts
90105-08094
90119-08643
90179-08067
90179-08068
90463-06050
90463-08093
91621-40818
91665-40616
93319-15012

(8708- )V

Click highlighted areas on diagram

diagram 52305A 52350 57413 57414 57415 57416 58130 58207C 58243D 58244D 58265E 58307E 58311 58465B 61633A 61634A 64133A 64134D 64138A 65305D 65305D 65352A 65352A 9011908695 9011908695 9095001004 9095001009 9095001011 9095001024 9095001029 9095001029 9095001029 9095001029 9095001056 9095001234 9095001310 9166540616 9166540616
Part # Description Qty Price
58130 - COVER ASSY, RESERVE TANK SERVICE HOLE
58130-92600

BU60,62,70,82..HRF,SRF,TW1,TW2,TW4

 1
58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE
58207-92605

BU60,70,82..HRF,SRF,TW1,TW2,TW4

 1
58243D - PANEL, FLOOR SIDE, REAR RH
58243-95415

BU60,62,82,85..06S

 1
58244D - PANEL, FLOOR SIDE, REAR LH
58244-95411

BU60,62,82,85..06S

 1
58265E - PACKING, TRANSMISSION COVER, C
58265-95400

BU60,62,70,82..HRF,SRF,TW1,TW2,TW4

 1
58465B - PACKING, TRANSMISSION SERVICE HOLE COVER
58465-92601

BU60,70,82..HRF,SRF,TW1,TW2,TW4

 1
64133A - COVER, HEADER PANEL
64133-95400

BU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4

 2
64134D - PACKING, HEADER PANEL COVER
64134-95400

BU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4

 2
64138A - SEAL, HEADER PANEL COVER
64138-95400

BU60,82..06S

 4
65305D - COVER SUB-ASSY, BATTERY HOLE
65305-95A03

BU60,62,82,85..TW1

 1
65305D - COVER SUB-ASSY, BATTERY HOLE
65305-95A03

BU60,62,82,85..TW1

 1
65352A - PACKING, BATTERY HOLE COVER, NO.2
65352-95A02

BU60,62,82,85..06S

 1
65352A - PACKING, BATTERY HOLE COVER, NO.2
65352-95A02

BU60,62,82,85..06S

 1
Common parts
90119-08695
90950-01004
90950-01009
90950-01011
90950-01024
90950-01029
90950-01056
90950-01234
90950-01310
91665-40616
