BU82-MDPDTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

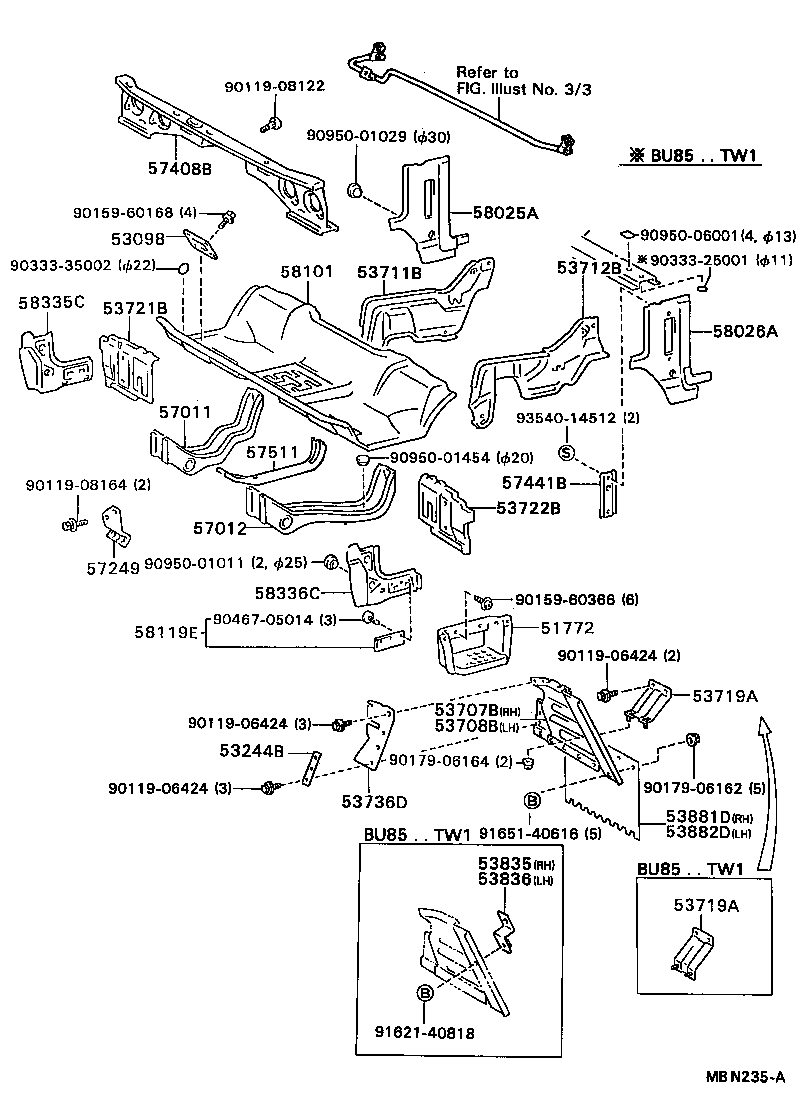

ILLUST NO. 1 OF 3(8708- )BU85..V ; (8708- )HRF,SRF,TW1,TW2,TW4

Click highlighted areas on diagram

diagram 51772 53098 53244B 53707B 53708B 53711B 53712B 53719A 53719A 53721B 53722B 53736D 53835 53836 53881D 53882D 57011 57012 57249 57408B 57441B 57511 58025A 58026A 58101 58119E 58335C 58336C 9011906424 9011906424 9011906424 9011908122 9011908164 9015960168 9015960366 9017906162 9017906164 9033325001 9033335002 9046705014 9095001011 9095001029 9095001454 9095006001 9162140818 9165140616 9354014512
Part # Description Qty Price
51772 - PLATE, STEP
51771-95406

BU6#,70,8#,9#

右側

 1
51772-95406

BU6#,70,8#,9#

左側

 1
53707B - APRON SUB-ASSY, FENDER SIDE, RH
53715-95405

BU60,62,82..06S

 1
53708B - APRON SUB-ASSY, FENDER SIDE, LH
53716-95404

BU60,62,82..06S

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-95410

BU6#,70,80,81,82

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-95414

BU6#,70,80,81,82

 1
53719A - BRACE, FENDER APRON
53719-92600

BU60,62,70,82..HRF,SRF,TW1,TW2,TW4

 2
53719A - BRACE, FENDER APRON
53719-92600

BU60,62,70,82..HRF,SRF,TW1,TW2,TW4

 2
53721B - APRON SUB-ASSY, FENDER SIDE, RH
53721-95402

BU6#,70,80,81,82

 1
53722B - APRON SUB-ASSY, FENDER SIDE, LH
53722-95403

BU6#,70,80,81,82

 1
53881D - MUDGUARD, FRONT RH
53881-95401

BU60,62,82..06S

 1
53882D - MUDGUARD, FRONT LH
53881-95401

BU60,62,82..06S

 1
57011 - MEMBER SUB-ASSY, FLOOR, RH
57011-95400

BU6#,70,8#,9#

 1
57012 - MENBER SUB-ASSY
57012-92602

BU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4

 1
57249 - BRACKET, FLEXIBLE HOSE, NO.1
57249-95400

BU6#,70,8#,9#..5F

 1
57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-95419

BU6#,70,80,81,82

 1
57441B - COVER, FLOOR SIDE RAIL PLATE
57441-92600

BU60,62,82,85..06S

 2
58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58025-95400

BU60,62,82,85..06S

 1
58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58026-95401

BU60,62,82,85..06S

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-95448

BU6#,70,80,81,82

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-95400

BU6#,70,8#,9#

 2
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-95402

BU6#,70,8#,9#

 1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-95402

BU6#,70,8#,9#

 1
Common parts
90119-06424
90119-08122
90119-08164
90159-60168
90159-60366
90179-06162
90179-06164
90333-25001
90333-35002
90467-05014
90950-01011
90950-01029
90950-01454
90950-06001
91621-40818
91651-40616
93540-14512

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

diagram 58223D 58224D 58407A 58410 58424D 58426B 58444B 58474A 71901A 9011908483 9033335002 9054006004 9054109126 9165140816 9165540616 9324016016
Part # Description Qty Price
58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB
58407-95423

BU6#,70,80,81,82

 1
58410 - COVER, ENGINE SERVICE HOLE
59208-95413

BU6#,70,80,81,82

GRAY(TRIM4,8)

 1
58424D - PACKING, ENGINE COVER
58424-95405

BU6#,70,8#,9#

 1
58426B - PROTECTOR, ENGINE SUB COVER
58426-95405

BU6#,70,8#,9#

 1
58444B - PACKING, ENGINE SUB COVER
58444-95402

BU6#,70,8#,9#

 1
58474A - PACKING, ENGINE SUB COVER, NO.2
58474-95401

BU6#,70,8#,9#

 1
71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT
71901-9570403

BU6#,70,80,81,82

SHADOW GRAY,TRIM4#,8#

 2
Common parts
90119-08483
90333-35002
90540-06004
90541-09126
91651-40816
91655-40616
93240-16016

ILLUST NO. 3 OF 3(8708- )

Click highlighted areas on diagram

diagram 64017 64017 64017 64017 64018 64018 64018 64108 64177A 64177A 64178A 64178A 9010508094 9010508094 9010508094 9010508094 9010508094 9010508094 9010508094 9010510086 9010510086 9010510086 9010510086 9017908056 9418041000 9418041000
Part # Description Qty Price
64018 - BAR SUB-ASSY, BODY
64018-95413

BU6#,70,81,82..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2,TW4)..5F

 1
64018 - BAR SUB-ASSY, BODY
64018-95413

BU6#,70,81,82..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2,TW4)..5F

 1
64018 - BAR SUB-ASSY, BODY
64018-95413

BU6#,70,81,82..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2,TW4)..5F

 1
Common parts
90105-08094
90105-10086
90179-08056
94180-41000

ILLUST NO. 1 OF 3(8808-9505)V ; (8808- )BU60,66,70,87,88..06S

Click highlighted areas on diagram

diagram 51772 53098 53244B 53707B 53708B 53711B 53712B 53718B 53719A 53719A 53721B 53722B 53736D 53835 53836 53881D 53882D 57011 57012 57249 57408B 57441B 57511 58025A 58026A 58101 58119E 58335C 58336C 9011906424 9011906424 9011906424 9011908122 9011908164 9015960168 9015960366 9017906162 9017906164 9033320001 9033335002 9046705014 9095001011 9095001641 9095001641 9095001832 9095006001 9162140818 9354014512
Part # Description Qty Price
Common parts
90119-06424
90119-08122
90119-08164
90159-60168
90159-60366
90179-06162
90179-06164
90333-20001
90333-35002
90467-05014
90950-01011
90950-01641
90950-01832
90950-06001
91621-40818
93540-14512
