BU82-MDPDTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )TOY

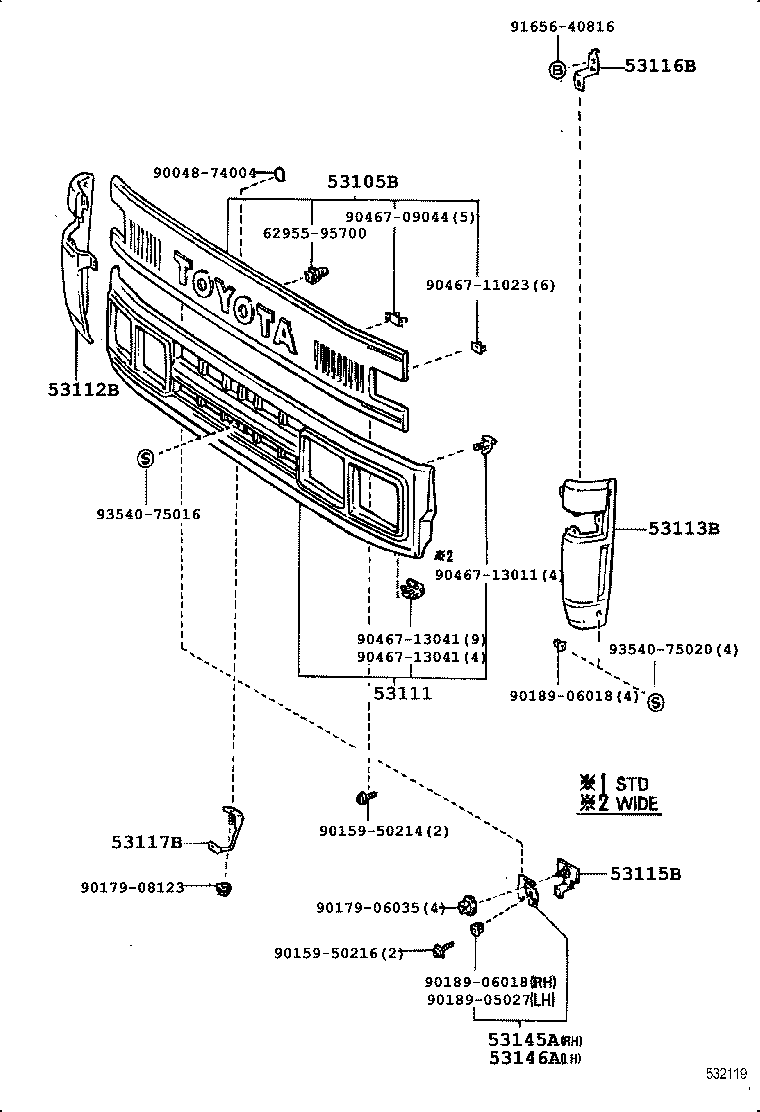

Click highlighted areas on diagram

diagram 53105B 53111 53112B 53113B 53115B 53116B 53117B 53145A 53146A 6295595700 9004874004 9015950214 9015950216 9017906035 9017908123 9018905027 9018906018 9018906018 9046709044 9046711023 9046713011 9046713041 9046713041 9165640816 9354075016 9354075020
Part # Description Qty Price
53105B - GARNISH SUB-ASSY, RADIATOR GRILLE
53105-95012

BU6#,80,81,82..TOY

 1
53105-95013

BU80..TOY..CBU;BU85..TOY..06S;BU6#,81,82..TOY

ｱﾘ(ﾒﾂｷ ﾗｼﾞｴ-ﾀ ｸﾞﾘﾙ)

 1
53111 - GRILLE, RADIATOR
53111-95026

BU6#,80,81,82..TOY

 1
53111-95027

BU80..TOY..CBU;BU85..TOY..06S;BU6#,81,82..TOY

ｱﾘ(ﾒﾂｷ ﾗｼﾞｴ-ﾀ ｸﾞﾘﾙ)

 1
53112B - GRILLE, RADIATOR SIDE, RH
53112-95011

BU6#,8#,90..TOY

 1
53112-95408

BU80..TOY..CBU;BU85..TOY..06S;BU6#,81,82..TOY

ｱﾘ(ﾒﾂｷ ﾗｼﾞｴ-ﾀ ｸﾞﾘﾙ)

 1
53113B - GRILLE, RADIATOR SIDE, LH
53113-95012

BU6#,8#,90..TOY

 1
53113-95410

BU80..TOY..CBU;BU85..TOY..06S;BU6#,81,82..TOY

ｱﾘ(ﾒﾂｷ ﾗｼﾞｴ-ﾀ ｸﾞﾘﾙ)

 1
53116B - BRACKET, RADIATOR GRILLE, NO.2
53116-95403

BU6#,70,80,81,82

 1
53117B - BRACKET, RADIATOR GRILLE, LOWER
53117-95404

BU6#,70,80,81,82

 1
Common parts
62955-95700
90048-74004
90159-50214
90159-50216
90179-06035
90179-08123
90189-05027
90189-06018
90467-09044
90467-11023
90467-13011
90467-13041
91656-40816
93540-75016
93540-75020
