BU82-MDPDTJ3 (1987)
Toyota Dyna/Toyoace
ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 91651-40820 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

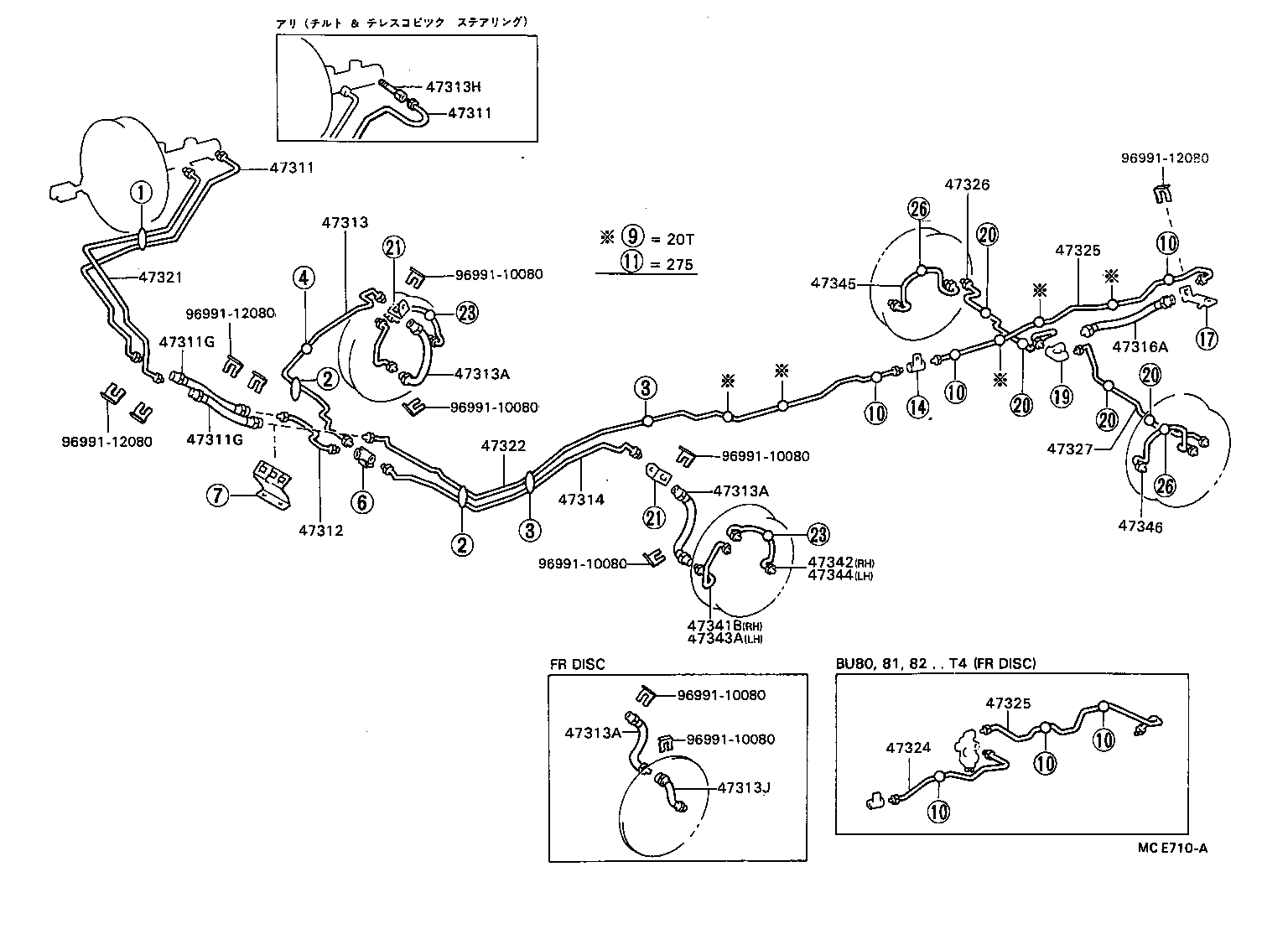

ILLUST NO. 1 OF 3(8708- )BU80,81,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36410 |
BU61,62,64,81,82..DM2,DM3,T2,T3,T4,TW1 |
1 | ||
| 47311-36380 |
BU61,62,64,81,82..DM2,DM3,T2,T3,T4,TW1 ｱﾘ(ﾘｼﾞﾂﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36410 |
BU61,62,64,81,82..DM2,DM3,T2,T3,T4,TW1 |
1 | ||
| 47311-36380 |
BU61,62,64,81,82..DM2,DM3,T2,T3,T4,TW1 ｱﾘ(ﾘｼﾞﾂﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33705 |
BU6#,70,80,81,82 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33705 |
BU6#,70,80,81,82 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36250 |
BU6#,70,80,81,82 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36160 |
BU60,61,62,70,80,81,82 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33305 |
BU60,62,64,82..(T3,TW1)..WT ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02470 |
BU60,62,64,82..(DM1,DM3,DM4,T3,TW1)..WT |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33305 |
BU60,62,64,82..(T3,TW1)..WT ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02470 |
BU60,62,64,82..(DM1,DM3,DM4,T3,TW1)..WT |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33305 |
BU60,62,64,82..(T3,TW1)..WT ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 90947-02470 |
BU60,62,64,82..(DM1,DM3,DM4,T3,TW1)..WT |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90404-12007 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02521 |
BU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(T3,TW1)..WT |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36230 |
BU60,61,62,70,80,81,82 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34005 |
BU80,81,82;BU60,61,62,70..DM3,HRF,SRF,T1,T3,TW1 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36280 |
BU6#,70,80,81,82 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36241 |
BU60,61,62,70,80,81,82..DM3,HRF,SRF,T1,T2,T3,T4,TW1,TW2,TW4 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36240 |
BU80,81,82 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36240 |
BU80,81,82 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-36140 |
BU85..V;BU62..IV4;BU82,85,93..(T3,TW1)..20T..DSL |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36140 |
BU85..V;BU62..IV4;BU82,85,93..(T3,TW1)..20T..DSL |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36090 |
BU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36030 |
BU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36090 |
BU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-36030 |
BU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36040 |
BU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36040 |
BU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU6#,70,80,81,82 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU6#,70,80,81,82 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12014 |
BU6#,70,8#,9# |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10125 |
BU85..V;BU8#,93..20T..DSL;BU62..(DM3,T3,TW1)..(20T,IV4);BU60,61,70..HRF,SRF,T1,T3,TW1 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10125 |
BU85..V;BU8#,93..20T..DSL;BU62..(DM3,T3,TW1)..(20T,IV4);BU60,61,70..HRF,SRF,T1,T3,TW1 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36130 |
BU6#,70,80,81,82 |
2 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36130 |
BU6#,70,80,81,82 |
2 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36171 |
BU60,61,62,70,80,81,82..DM3,HRF,SRF,T1,T2,T3,T4,TW1,TW2,TW4 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36171 |
BU60,61,62,70,80,81,82..DM3,HRF,SRF,T1,T2,T3,T4,TW1,TW2,TW4 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36070 |
BU6#,70,80,81,82 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36070 |
BU6#,70,80,81,82 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
BU60,61,62,70,80,81,82 |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
BU60,61,62,70,80,81,82 |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36060 |
BU60,61,62,70,80,81,82 |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90179-08146 | ||||
| 90201-10282 | ||||
| 90461-06112 | ||||
| 90461-08602 | ||||
| 90461-08779 | ||||
| 90461-10616 | ||||
| 90462-06017 | ||||
| 90480-08343 | ||||
| 90949-01005 | ||||
| 90949-01006 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 90949-01157 | ||||
| 90949-01159 | ||||
| 90949-01160 | ||||
| 90949-01164 | ||||
| 90949-01165 | ||||
| 90949-01188 | ||||
| 90949-01190 | ||||
| 91112-71030 | ||||
| 91611-60810 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91615-40814 | ||||
| 91615-61040 | ||||
| 91651-60614 | ||||
| 94110-40800 | ||||
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
