BU82-MDPDTJ3 (1987)
Toyota Dyna/Toyoace
(8708- )B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F |
4 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-77020 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-46010 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-78030 |
11B,13B..BU61,62,64,81,82,93..5F..(CBU,IV3) |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-58201 |
B,11B,13B..BU6#,70,8#,93,98..CBU,IV3 |
2 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22185-46010 |
11B,13B..BU61,62,64,81,82,85,93,98..5F 厚さ=0.40 |
4 | ||
| 22187-46010 |
11B,13B#..BU61,62,64,81,82,85,9# 厚さ=0.60 |
4 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-58200 |
B,11B,13B#..BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22161-54010 | ||||
| 22172-54020 | ||||
| 22395-54010 | ||||
| 22395-58200 | ||||
| 22612-54010 | ||||
| 90090-50605 | ||||
| 90093-00802 | ||||
| 90096-90024 | ||||
| 90099-00723 | ||||
| 90099-01449 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-10148 | ||||
| 90099-13017 | ||||
| 90099-13018 | ||||
| 90099-14047 | ||||
| 90099-14048 | ||||
| 90099-14049 | ||||
| 90099-14051 | ||||
| 90099-14052 | ||||
| 90099-14053 | ||||
| 90099-18022 | ||||
| 90201-08106 | ||||
| 90405-08016 | ||||
| 91611-60820 | ||||
| 93381-16016 | ||||
| 94120-40600 | ||||
| 94511-00600 | ||||
(8708- )11B,13B#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22102 - PLATE SET, VALVE HOLDER LOCK | ||||
| 22102-58230 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22103 - COVER SUB-ASSY, INJECTION PUMP | ||||
| 22103-58230 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F |
4 | ||
| 22105 - ELEMENT SUB-ASSY, INJECTION PUMP | ||||
| 22105-58440 |
13B..BU62,64,82,85,93,98..5F..(CBU,IV3) |
4 | ||
| 22106 - TAPPET SUB-ASSY, INJECTION PUMP | ||||
| 22106-46010 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22114 - RACK, CONTROL | ||||
| 22114-36010 |
11B,13B#..BU61,62,64,81,82,85,9#..CBU,IV3 |
1 | ||
| 22115 - SCREW, RACK GUIDE | ||||
| 22115-77020 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| 22116-56230 |
11B,13B#..BU61,62,64,81,82,85,9#..CBU,IV3 |
2 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22142 - SLEEVE, PLUNGER CONTROL | ||||
| 22142-58230 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-77020 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-46010 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22146 - CAMSHAFT, INJECTION PUMP | ||||
| 22146-58230 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22155 - PINION, PLUNGER CONTROL | ||||
| 22155-76010 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22156 - SCREW, PLUNGER CONTROL PINION CLAMP | ||||
| 22156-76010 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22157 - PLUG, INJECTION PUMP FELT PLATE | ||||
| 22157-48024 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-78030 |
11B,13B..BU61,62,64,81,82,93..5F..(CBU,IV3) |
1 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22164-76010 |
11B,13B..BU61,62,64,81,82,85,93,98..5F..(CBU,IV3) 厚さ=0.16 |
1 | ||
| 22165-76010 |
11B,13B..BU61,62,64,81,82,85,93,98..5F..(CBU,IV3) 厚さ=0.18 |
1 | ||
| 22166-78033 |
11B,13B..BU61,62,64,81,82,85,93,98..5F..(CBU,IV3) 厚さ=0.15 |
1 | ||
| 22166-78034 |
11B,13B..BU61,62,64,81,82,85,93,98..5F..(CBU,IV3) 厚さ=0.30 |
1 | ||
| 22166-78035 |
11B,13B..BU61,62,64,81,82,85,93,98..5F..(CBU,IV3) 厚さ=0.50 |
3 | ||
| 22166-78032 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=0.10 |
3 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22164-76010 |
11B,13B..BU61,62,64,81,82,85,93,98..5F..(CBU,IV3) 厚さ=0.16 |
1 | ||
| 22165-76010 |
11B,13B..BU61,62,64,81,82,85,93,98..5F..(CBU,IV3) 厚さ=0.18 |
1 | ||
| 22166-78033 |
11B,13B..BU61,62,64,81,82,85,93,98..5F..(CBU,IV3) 厚さ=0.15 |
1 | ||
| 22166-78034 |
11B,13B..BU61,62,64,81,82,85,93,98..5F..(CBU,IV3) 厚さ=0.30 |
1 | ||
| 22166-78035 |
11B,13B..BU61,62,64,81,82,85,93,98..5F..(CBU,IV3) 厚さ=0.50 |
3 | ||
| 22166-78032 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=0.10 |
3 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-58201 |
B,11B,13B..BU6#,70,8#,93,98..CBU,IV3 |
2 | ||
| 22174A - KEY(FOR SPLINE SHAFT) | ||||
| 90099-13023 |
11B,13B#..BU61,62,64,81,82,85,9#..5F..(CBU,IV3) |
1 | ||
| 22181 - FLANGE, INJECTION PUMP | ||||
| 22181-58230 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22181A - SEAL, OIL(FOR INJECTION PUMP FLANGE) | ||||
| 90099-14079 |
11B,13B#..BU61,62,64,81,82,85,9#..CBU,IV3 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22185-46010 |
11B,13B..BU61,62,64,81,82,85,93,98..5F 厚さ=0.40 |
4 | ||
| 22187-46010 |
11B,13B#..BU61,62,64,81,82,85,9# 厚さ=0.60 |
4 | ||
| 22194 - STOPPER, DELIVERY VALVE | ||||
| 22194-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
4 | ||
| 22195 - GASKET, BEARING COVER | ||||
| 22195-58230 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-58200 |
B,11B,13B#..BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90099-00894 | ||||
| 90099-00928 | ||||
| 90099-01451 | ||||
| 90099-18010 | ||||
| 90201-08106 | ||||
| 90401-10006 | ||||
| 94712-77121 | ||||

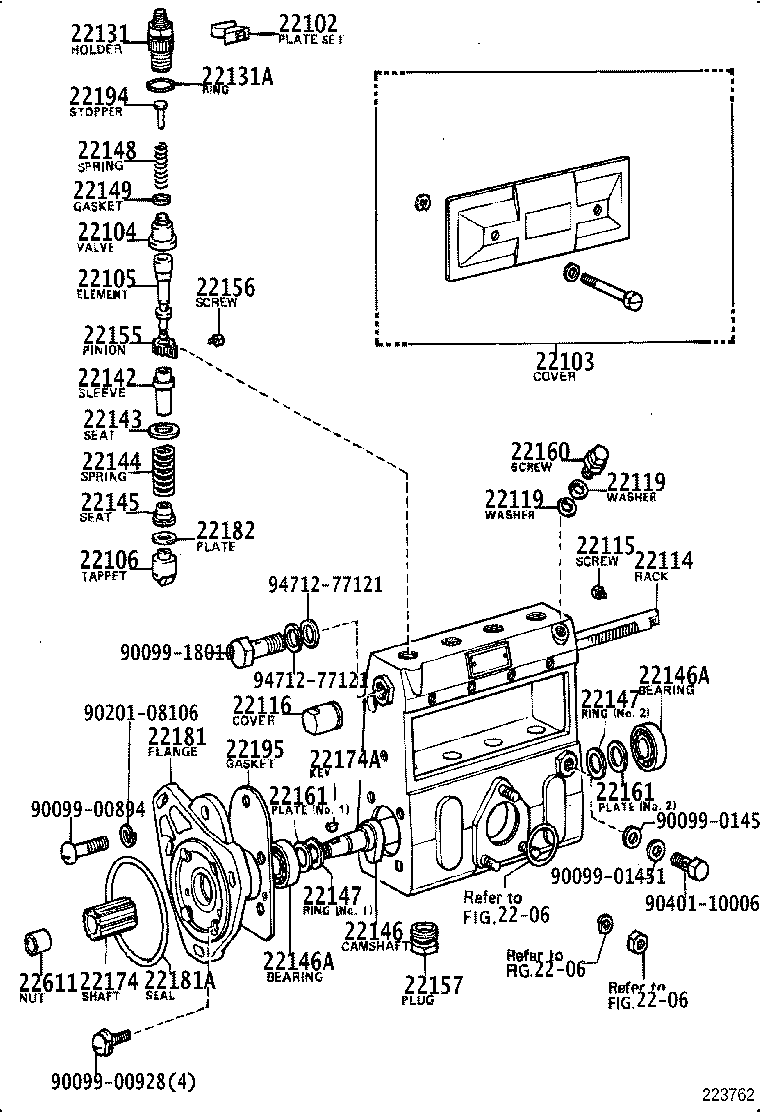

| Linked diagrams | ||||
| 2206 | ||||
