BU82-MDPDT3 (1987)
Toyota Dyna/Toyoace

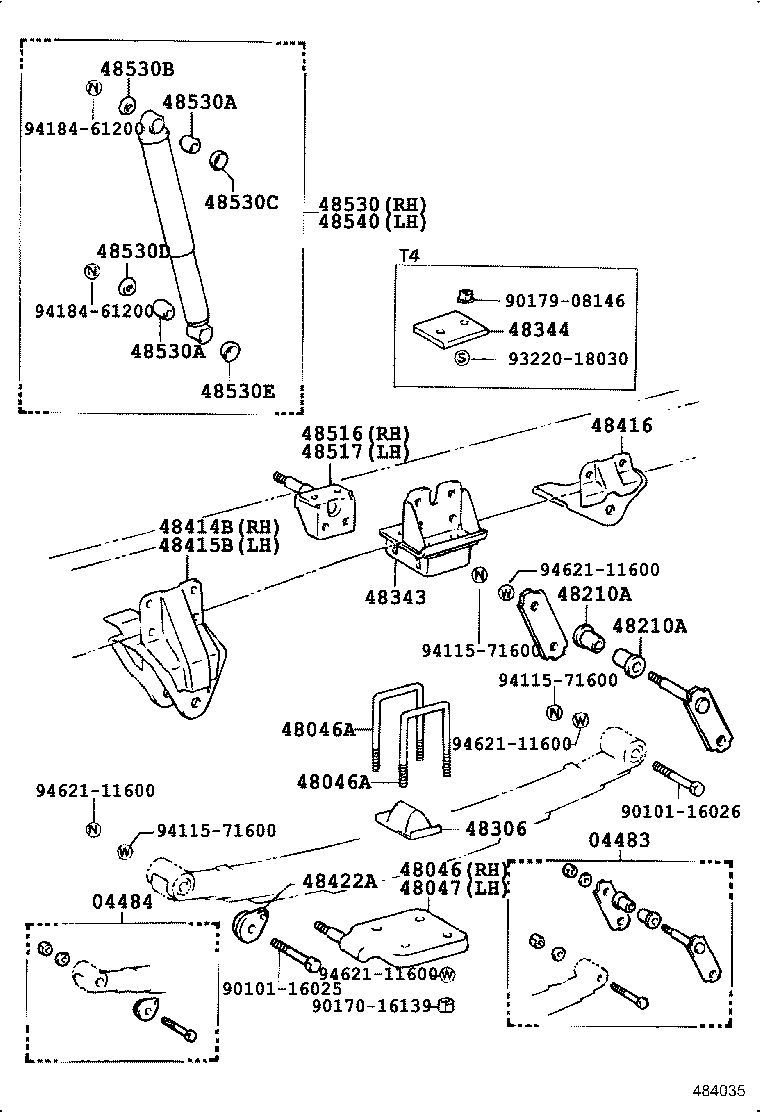

ILLUST NO. 1 OF 2(8708-8808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36070 |
BU8#,93,98 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36050 |
BU8#,93,98 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36100 |
BU85..V;BU62..IV4;BU8#,93..20T..DSL |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16115 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T 長さ=265,L=265 |
2 | ||
| 90117-16142 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T 長さ=255,L=255 |
6 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16115 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T 長さ=265,L=265 |
2 | ||
| 90117-16142 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T 長さ=255,L=255 |
6 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36100 |
BU85..V;BU62..IV4;BU8#,93..20T..DSL |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36190 |
BU82,90,95..T3,TW1 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36210 |
BU8#,93,98;BU62..275,30T,IV4 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36210 |
BU8#,93,98;BU62..275,30T,IV4 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36190 |
BU8#,93,98;BU62..275,30T,IV4 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36030 |
BU8#,93,98;BU62..275,30T,IV4 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36050 |
BU85..V;BU82,85..20T;BU60,61,62,80,81,98..WT |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36050 |
BU85..V;BU82,85..20T;BU60,61,62,80,81,98..WT |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39725 |
BU62..275,30T,IV4;BU64,80,81,82,90,95,98..TR |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
BU6#,70,8#,9# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
BU6#,70,8#,9# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU60,61,62,80,81,82,90,95,98..WT |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU6#,8#,9#..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
BU82,90,95,98;BU62..275,30T,IV4;BU64,80,81..DM1,DM4,T2,T4 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU6#,70,8#,9# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39725 |
BU62..275,30T,IV4;BU64,80,81,82,90,95,98..TR |
1 | ||
| Common parts | ||||
| 90101-16025 | ||||
| 90101-16026 | ||||
| 90170-16139 | ||||
| 90179-08146 | ||||
| 93220-18030 | ||||
| 94115-71600 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||

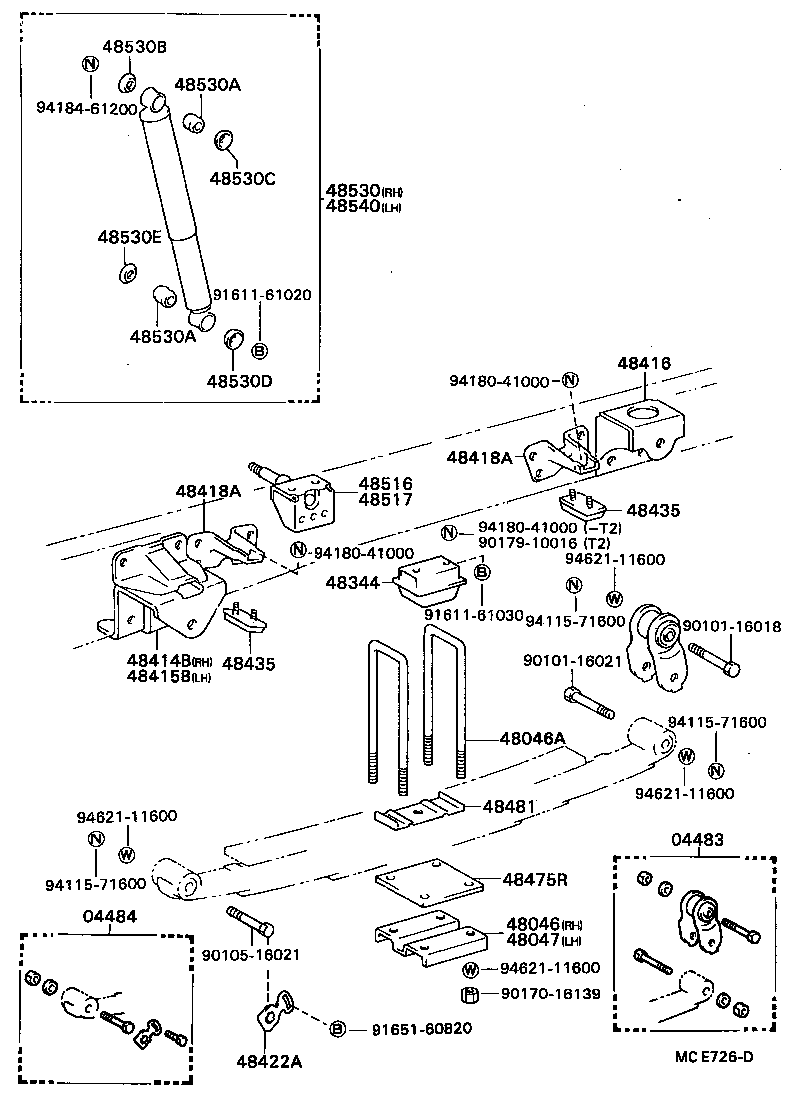

ILLUST NO. 1 OF 2(8708- )BU8#,93,98 ; (8708- )BU62..275,30T,IV4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36070 |
BU8#,93,98 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36050 |
BU8#,93,98 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36100 |
BU85..V;BU62..IV4;BU8#,93..20T..DSL |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16115 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T 長さ=265,L=265 |
2 | ||
| 90117-16142 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T 長さ=255,L=255 |
6 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36100 |
BU85..V;BU62..IV4;BU8#,93..20T..DSL |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36190 |
BU82,90,95..T3,TW1 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36210 |
BU8#,93,98;BU62..275,30T,IV4 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36210 |
BU8#,93,98;BU62..275,30T,IV4 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36190 |
BU8#,93,98;BU62..275,30T,IV4 |
2 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-36090 |
BU8#,93;BU62..275,30T,IV4 |
4 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-36090 |
BU8#,93;BU62..275,30T,IV4 |
4 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36030 |
BU8#,93,98;BU62..275,30T,IV4 |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU8#,93,98;BU62..275,30T,IV4 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU8#,93,98;BU62..275,30T,IV4 |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36040 |
BU85..V;BU62..ST..IV3;BU60,61,70..ST;BU8#,93..20T..DSL;BU62..(T3,TW1)..(20T,IV4)..(CBU,IV4) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36050 |
BU85..V;BU82,85..20T;BU60,61,62,80,81,98..WT |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36050 |
BU85..V;BU82,85..20T;BU60,61,62,80,81,98..WT |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39725 |
BU62..275,30T,IV4;BU64,80,81,82,90,95,98..TR |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
BU6#,70,8#,9# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
BU6#,70,8#,9# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU60,61,62,80,81,82,90,95,98..WT |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU6#,8#,9#..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
BU82,90,95,98;BU62..275,30T,IV4;BU64,80,81..DM1,DM4,T2,T4 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU6#,70,8#,9# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39725 |
BU62..275,30T,IV4;BU64,80,81,82,90,95,98..TR |
1 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90101-16021 | ||||
| 90105-16021 | ||||
| 90170-16139 | ||||
| 90179-10016 | ||||
| 91611-61020 | ||||
| 91611-61030 | ||||
| 91651-60820 | ||||
| 94115-71600 | ||||
| 94180-41000 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||

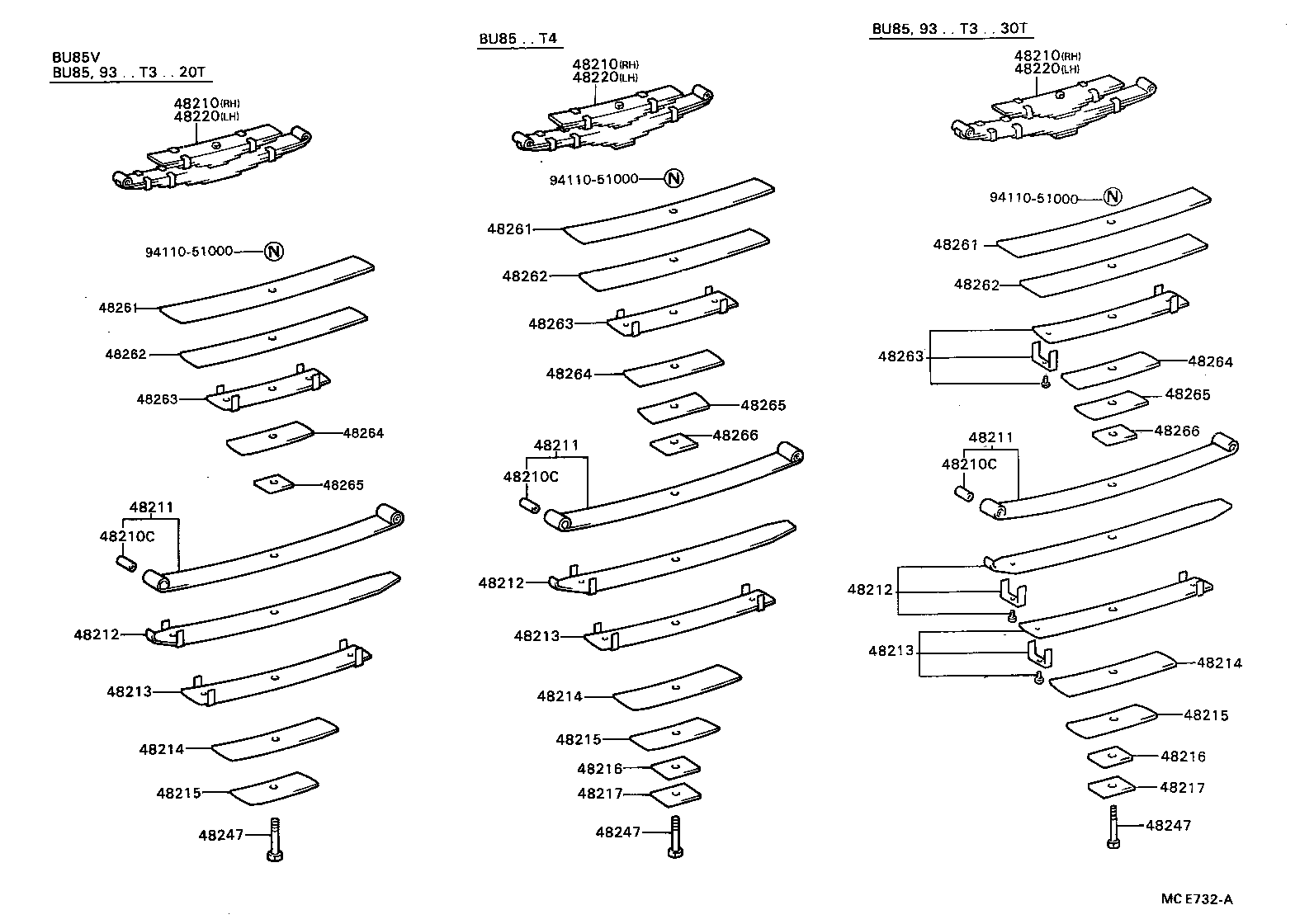

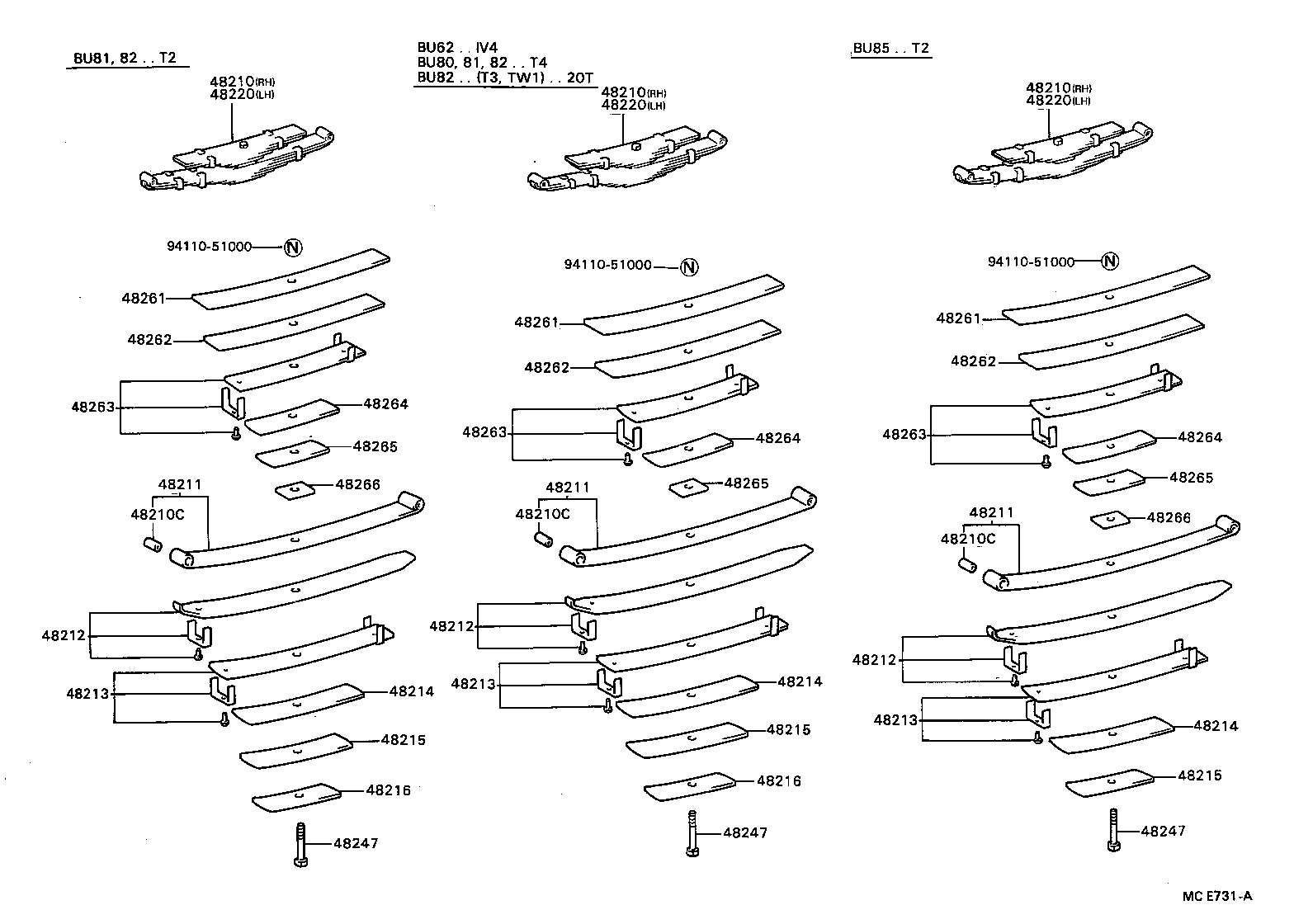

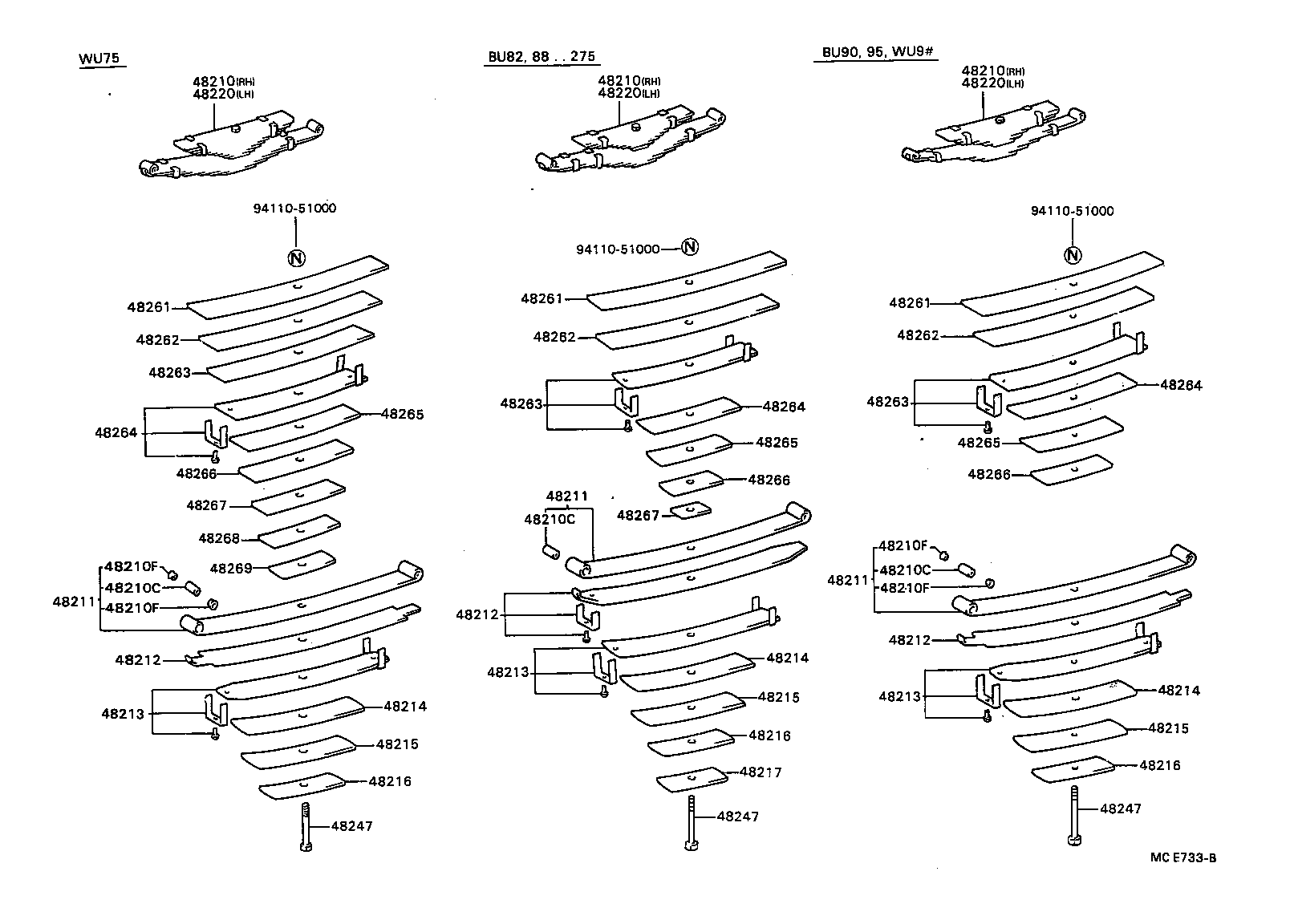

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BU85..275;BU80,81,98;BU82..20T,275;BU62..275,30T,IV4 |
2 | ||
| 90389-16005 |
BU85..275;BU62..275,30T,IV4;BU80,81,82..20T,275 ﾌﾛﾝﾄ |
2 | ||
| 90389-16003 |
BU80,81,98..T3,T4;BU62..275,30T,IV4;BU82..(T3,T4,TW1)..20T ﾘﾔ |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..(T3,TW1)..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..(T3,TW1)..20T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
