BU82-MDPDT3 (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

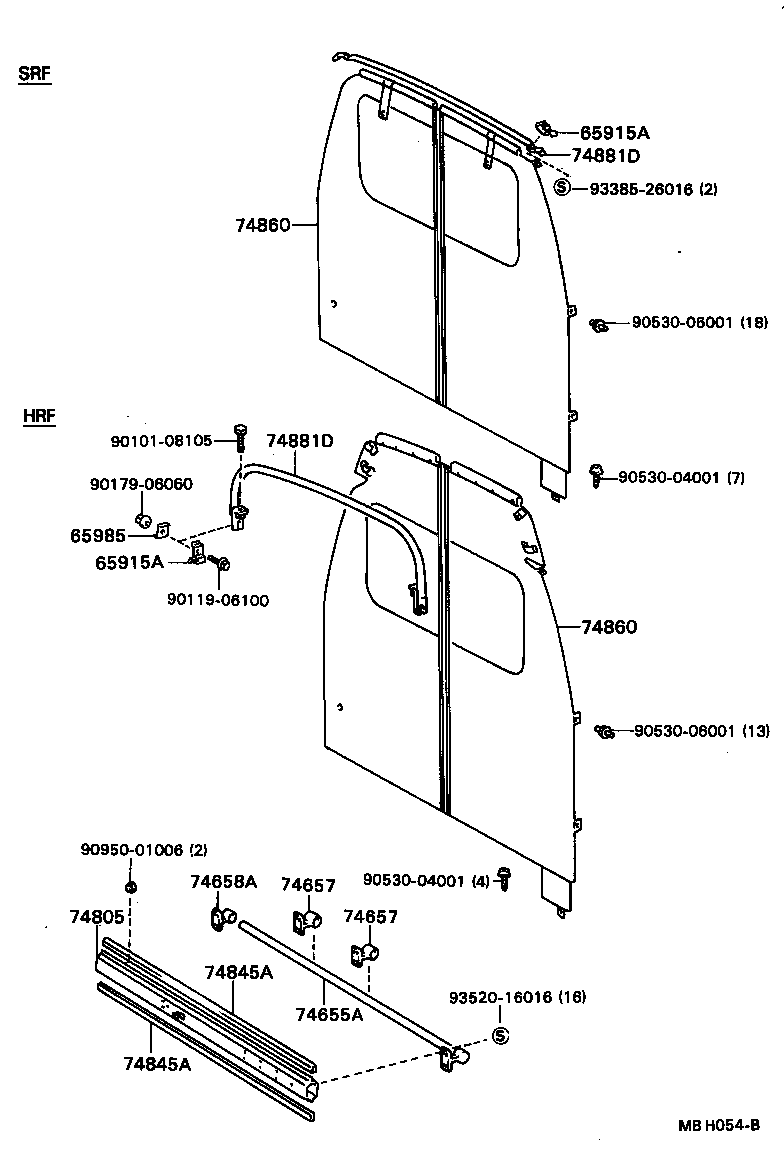

ILLUST NO. 1 OF 2(8409- )HRF,SRF,TW1,TW2,TW4

Click highlighted areas on diagram

diagram 65915A 65915A 65985 74655A 74657 74657 74658A 74805 74845A 74845A 74860 74860 74881D 74881D 9010108105 9011906100 9017906060 9053004001 9053004001 9053006001 9053006001 9095001006 9338526016 9352016016
Part # Description Qty Price
74805 - SEPARATOR SUB-ASSY
74805-92608

BU60,70,82..06S,09S

 1
74845A - ORNAMENT, FRONT SEAT BACK PANEL
74845-9260001

BU60,62,70,82..HRF,SRF,TW1,TW2,TW4

BLACK,BLACK

 2
74845A - ORNAMENT, FRONT SEAT BACK PANEL
74845-9260001

BU60,62,70,82..HRF,SRF,TW1,TW2,TW4

BLACK,BLACK

 2
Common parts
90101-08105
90119-06100
90179-06060
90530-04001
90530-06001
90950-01006
93385-26016
93520-16016
