BU82-MDPDT (1984)
Toyota Dyna/Toyoace

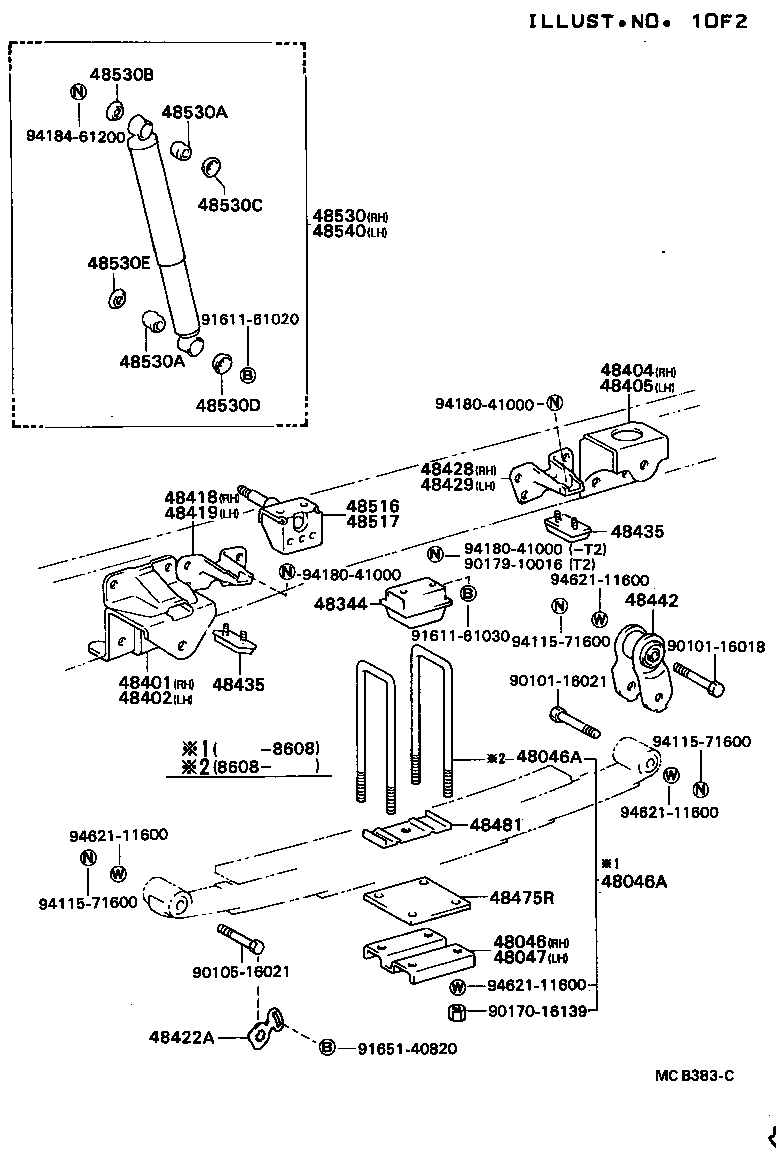

ILLUST NO. 1 OF 2(8409- )DTP ; (8409- )BU62..T3,TW1..WT ; (8409- )BU77,80,82,85,93
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36100 |
BU77,8#..20T..DSL |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16226 |
BU82..20T 長さ=255,L=255 |
4 | ||
| 90118-16227 |
BU80,81,82..20T 長さ=265,L=265 |
4 | ||
| 90117-16115 |
BU80,81,82..20T 長さ=265,L=265 |
4 | ||
| 90117-16142 |
BU82..20T 長さ=255,L=255 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16226 |
BU82..20T 長さ=255,L=255 |
4 | ||
| 90118-16227 |
BU80,81,82..20T 長さ=265,L=265 |
4 | ||
| 90117-16115 |
BU80,81,82..20T 長さ=265,L=265 |
4 | ||
| 90117-16142 |
BU82..20T 長さ=255,L=255 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36100 |
BU77,8#..20T..DSL |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36190 |
BU82,90,95 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-36210 |
BU8#,98 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-36210 |
BU8#,98 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-36190 |
BU8#,98 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-36190 |
BU8#,98 |
1 | ||
| 48418 - BRACKET, HELPER SPRING, FRONT RH | ||||
| 48418-36080 |
BU77,8#,98 |
1 | ||
| 48419 - BRACKET, HELPER SPRING, FRONT LH | ||||
| 48418-36080 |
BU77,8#,98 |
1 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36030 |
BU77,8#,93,98 |
2 | ||
| 48428 - BRACKET, HELPER SPRING, REAR RH | ||||
| 48418-36080 |
BU77,8#,98 |
1 | ||
| 48429 - BRACKET, HELPER SPRING, REAR LH | ||||
| 48418-36080 |
BU77,8#,98 |
1 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU77,8#,93,98 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BU77,8#,93,98 |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48042-36021 |
BU6#,7#,8#,93,98 |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
BU62..ST;BU62..IV4;BU81,82..20T;BU62..BTP,CTP,DTP;BU60,61,64,70..HRF,SRF,T1,T3,TW1 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36040 |
BU82..20T |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36050 |
BU62;BU85..ETP;BU60,61,8#..WT..(175,20T) |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36050 |
BU62;BU85..ETP;BU60,61,8#..WT..(175,20T) |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39725 |
BU62..DTP;BU64,80,81,82;BU62..(T3,TW1)..WT |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BU6#,7#,8#,9# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BU6#,7#,8#,9# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU62;BU85..ETP;BU85..20T..DSL;BU60,61,80,81,82,90,95..WT |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU6#,77,8#,9#..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
BU85..ETP;BU77,80,81,82,90,95;BU85..(20T,275)..DSL |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU6#,7#,8#,9# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39725 |
BU62..DTP;BU64,80,81,82;BU62..(T3,TW1)..WT |
1 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90101-16021 | ||||
| 90105-16021 | ||||
| 90170-16139 | ||||
| 90179-10016 | ||||
| 91611-61020 | ||||
| 91611-61030 | ||||
| 91651-40820 | ||||
| 94115-71600 | ||||
| 94180-41000 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||

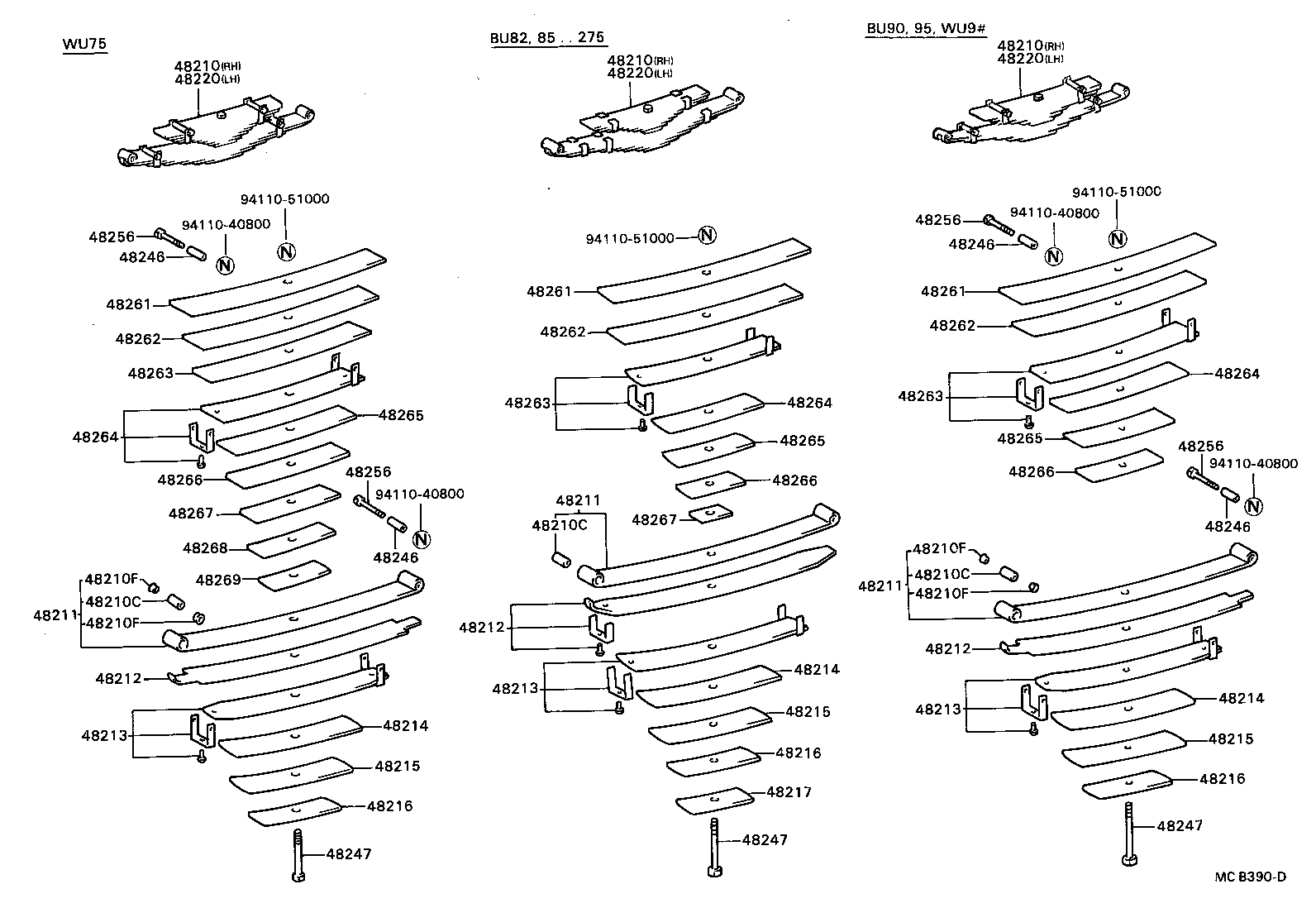

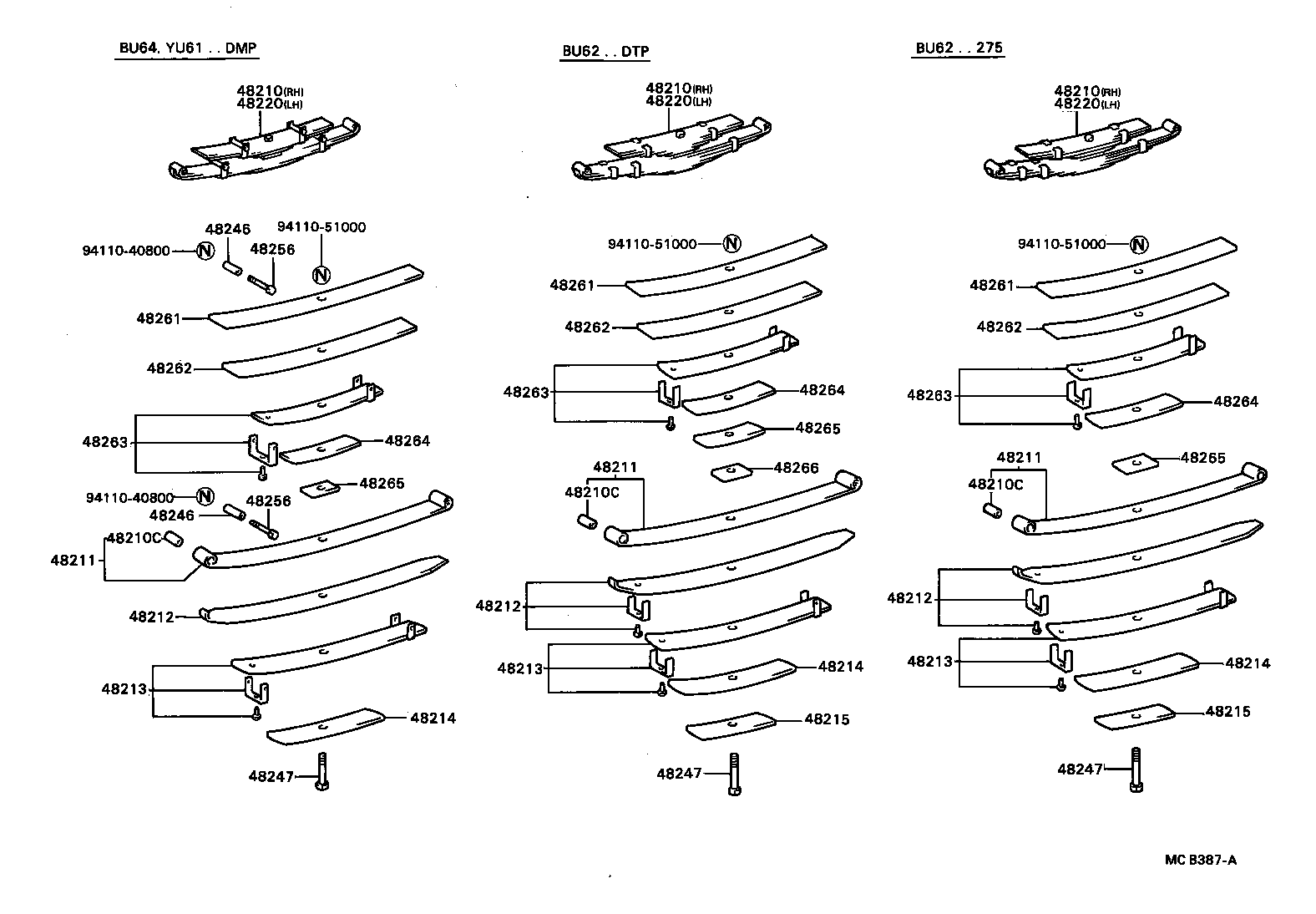

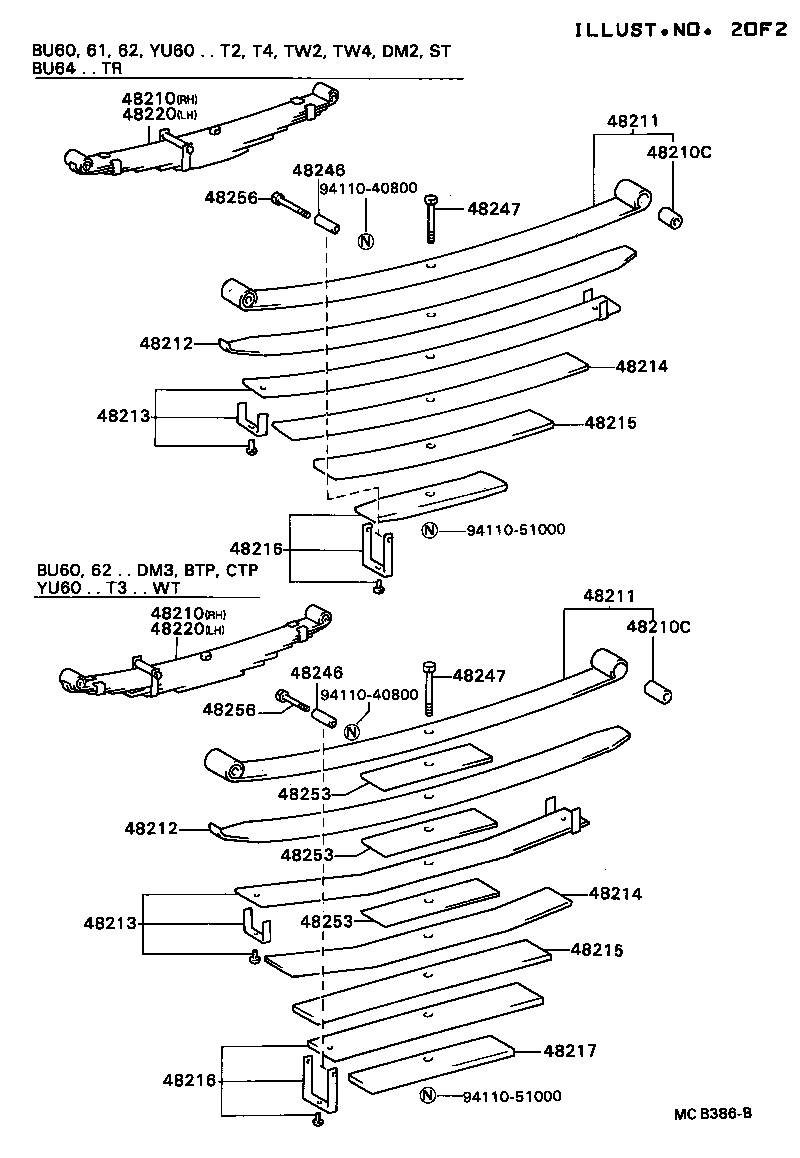

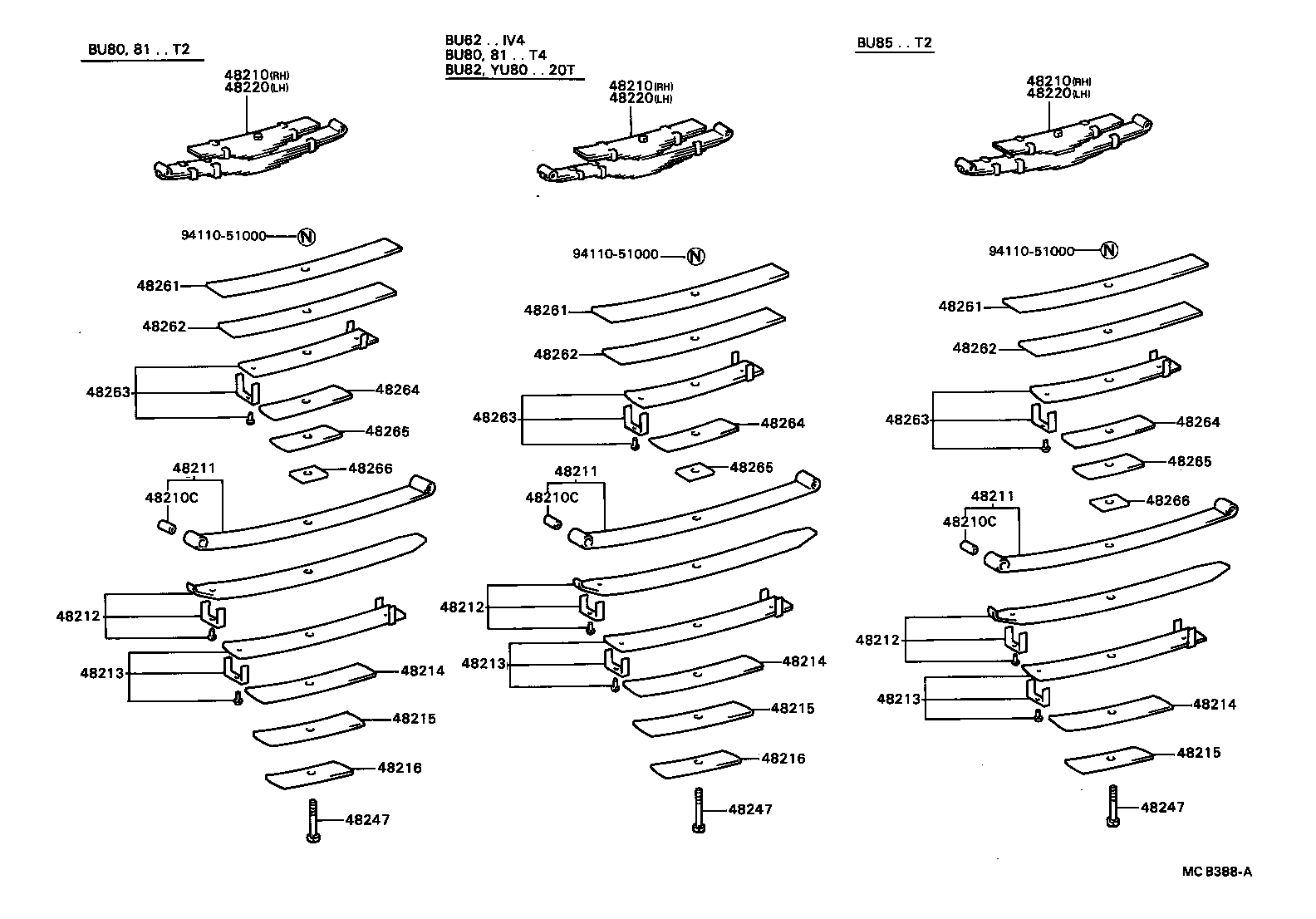

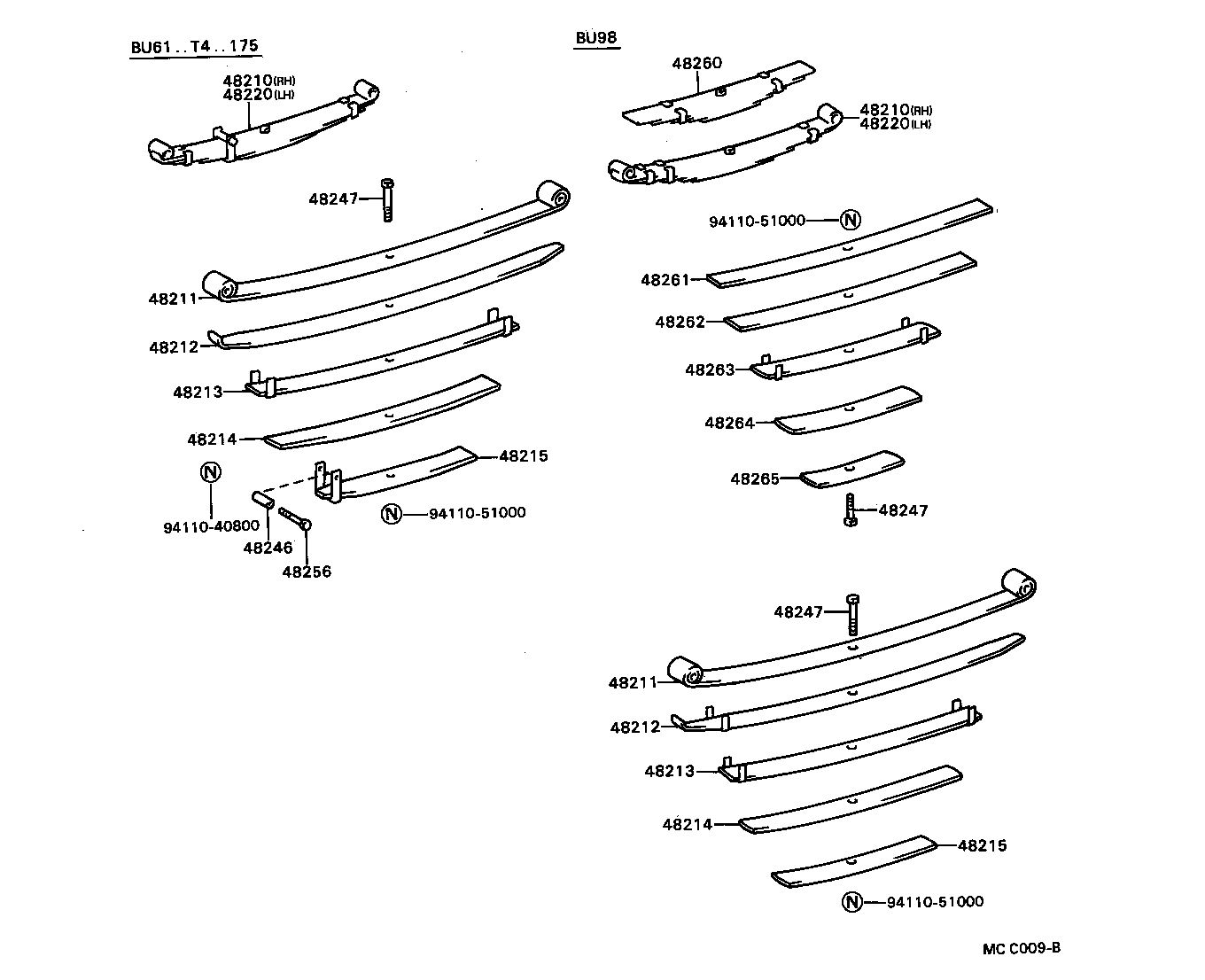

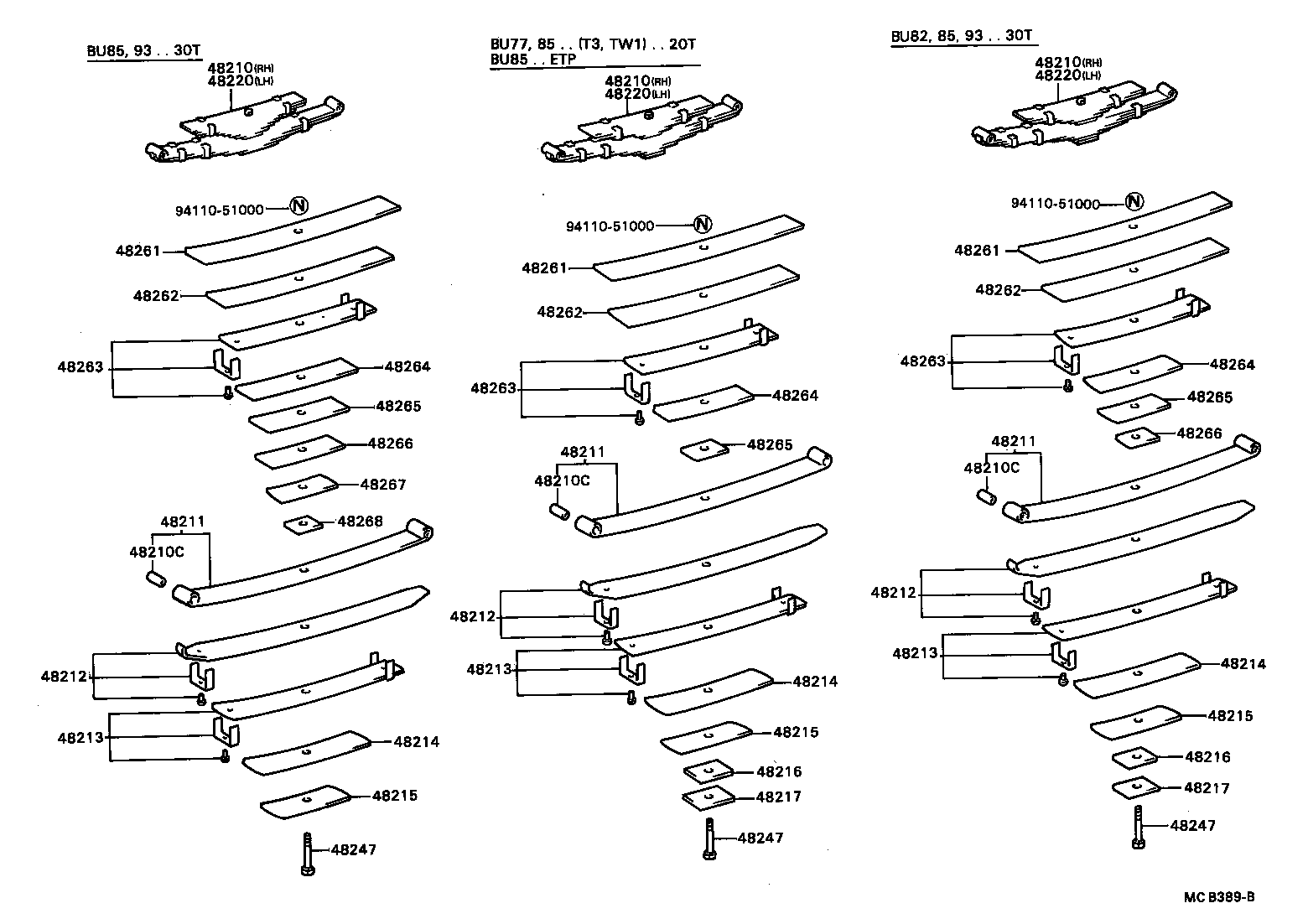

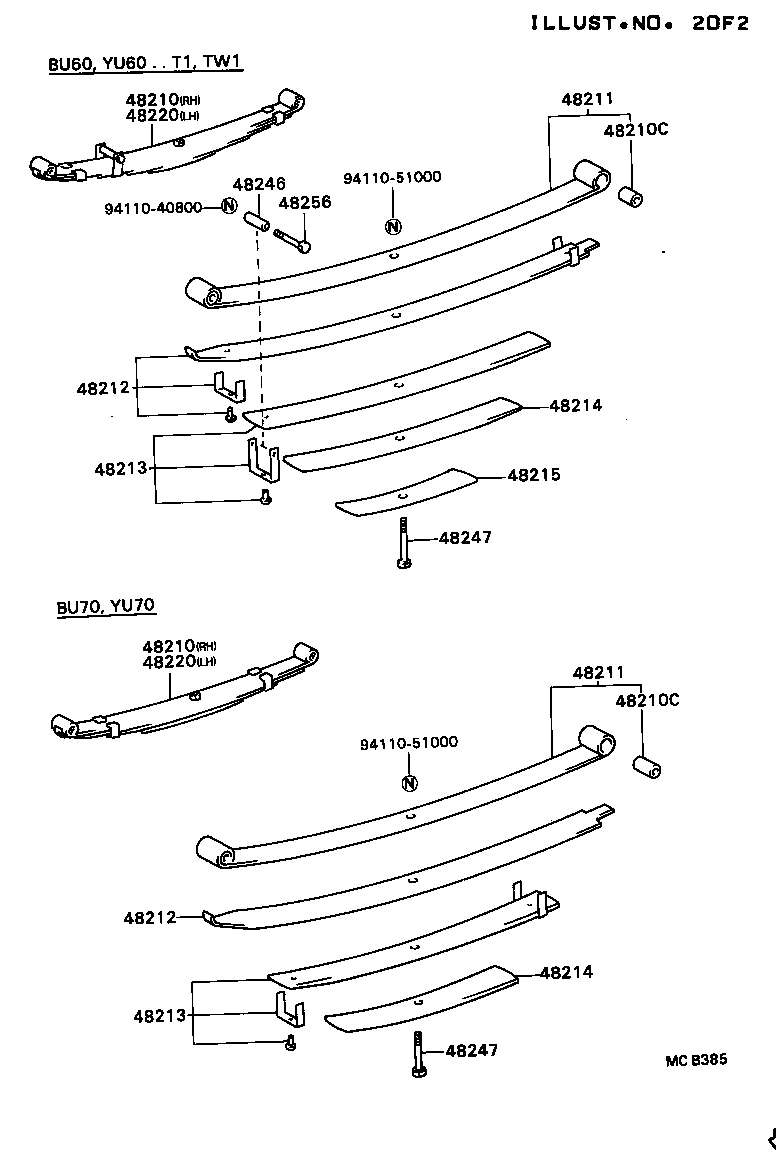

ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU6#;BU80,81,82..(T3,T4,TW1)..(20T,275) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..20T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36840 |
BU82..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36840 |
BU82..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36840 |
BU82..20T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ4枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36210 |
BU82..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36840 |
BU82..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-36840 |
BU82..20T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-36840 |
BU82..20T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36840 |
BU82..20T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36840 |
BU82..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
ILLUST NO. 1 OF 2(8708-8808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-16025 | ||||
| 90101-16026 | ||||
| 90170-16139 | ||||
| 90179-08146 | ||||
| 93220-18030 | ||||
| 94115-71600 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
