BU82-MDPDT (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8409- )BU6#,77,8#,9#

Click highlighted areas on diagram

diagram 38902 38902A 38902A 38903 38906 38910 38946A 9161160616 9161160816 9161160816 9165640825 9165640825 9411040800 9451200800 9461210800
Part # Description Qty Price
38902 - BRACKET SUB-ASSY, CONTROL SHAFT, UPPER
38902-96310

BU62..BTP,DTP;BU6#,80,81,82..(DM1,DM2,DM4,T1,T2,T3,T4,TW1,TW2,TW4)..5F

 1
38902-96310

BU62..BTP,DTP;BU60,62,80,82..(DM2,T1,T2,T3,T4,TW1)..5F..(20T,275,30T)

 1
38902A - BUSH, CONTROL SHAFT UPPER BRACKET
90386-13007

BU62..BTP,DTP;BU6#,77,8#,90,93,98..TR..5F

 2
90386-13007

BU82,85..06S

 2
38902A - BUSH, CONTROL SHAFT UPPER BRACKET
90386-13007

BU62..BTP,DTP;BU6#,77,8#,90,93,98..TR..5F

 2
90386-13007

BU82,85..06S

 2
38903 - KNOB SUB-ASSY, CONTROL
38908-96304

BU82,85..06S

 1
38908-36010

BU62..BTP,DTP;BU6#,77,8#,90,93,95..TR..5F

 1
38908-96304

BU62..BTP,DTP;BU6#,8#,9#..TR..5F

 1
38910 - LEVER ASSY, DUMP
38901-96309

BU62..BTP;BU6#,80,81,82..(DM1,DM2,DM4,T1,T2,T3,T4,TW1,TW2,TW4)..5F

 1
38901-96309

BU62..BTP;BU60,62,80,82..(DM2,T1,T2,T3,T4,TW1)..5F..(20T,275,30T)

 1
Common parts
91611-60616
91611-60816
91656-40825
94110-40800
94512-00800
94612-10800

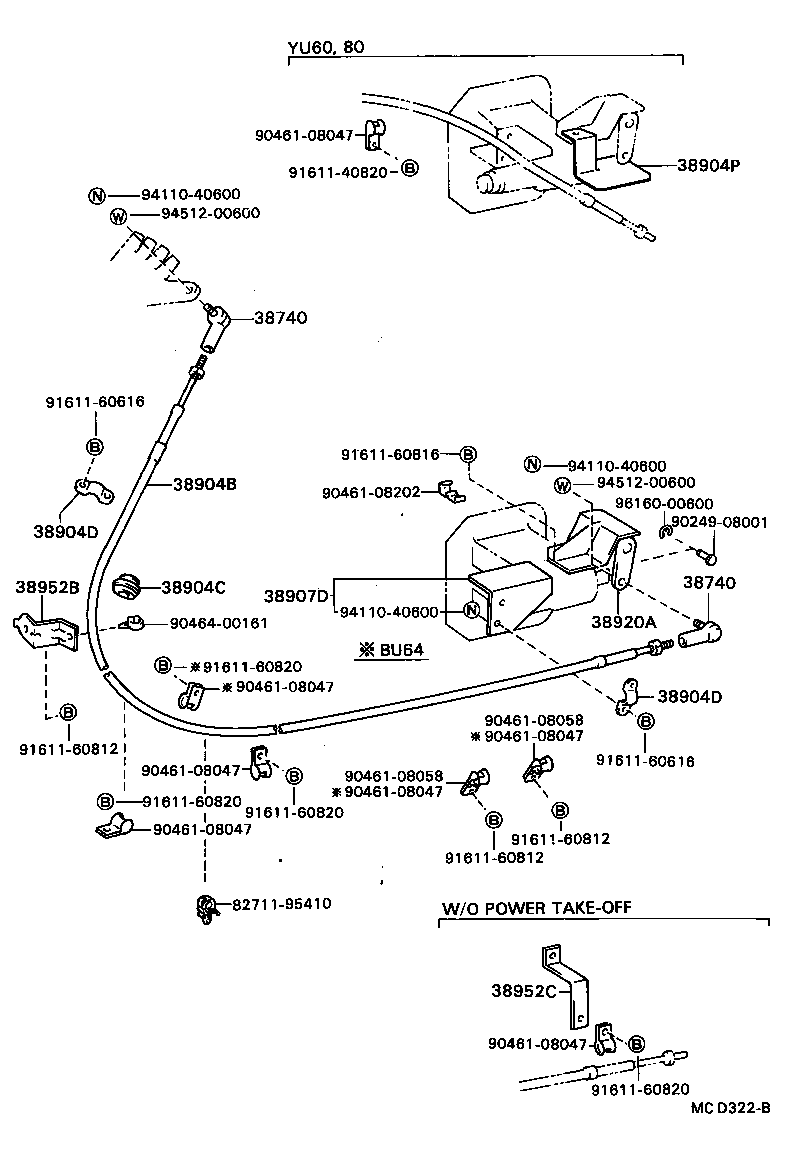

ILLUST NO. 2 OF 2(8409- )BU6#,80,81,82

Click highlighted areas on diagram

diagram 38740 38740 38904B 38904C 38904D 38904D 38904P 38907D 38920A 38952B 38952C 8271195410 9024908001 9046108047 9046108047 9046108047 9046108047 9046108047 9046108047 9046108047 9046108058 9046108058 9046108202 9046400161 9161140820 9161160616 9161160616 9161160812 9161160812 9161160812 9161160816 9161160820 9161160820 9161160820 9161160820 9411040600 9411040600 9411040600 9451200600 9451200600 9616000600
Part # Description Qty Price
38740 - END ASSY, CONNECTING ROD
33740-96301

BU82,85..06S

 2
33740-96301

BU62..BTP,DTP;BU6#,77,8#,90,93,95..DM1,DM2,DM4,T1,T2,T3,T4,TW1,TW2,TW4

 2
38740 - END ASSY, CONNECTING ROD
33740-96301

BU82,85..06S

 2
33740-96301

BU62..BTP,DTP;BU6#,77,8#,90,93,95..DM1,DM2,DM4,T1,T2,T3,T4,TW1,TW2,TW4

 2
38904B - CABLE ASSY, PUSH PULL
38930-93106

BU62..BTP,DTP;BU6#,80,82..(DM1,DM4,T1,T2,T3,T4,TW1)..5F..(20T,275,30T)

 1
38930-93106

BU62..BTP,DTP;BU6#,80,81,82..DM1,DM4,T1,T2,T3,T4,TW1,TW2

 1
38930-93109

BU62..BTP,DTP;BU60,61,62,80,81,82..TR..5F..(CBU,IV3)

 1
38904C - GROMMET, PUSH PULL CABLE
90480-22013

BU82,85..06S

 1
90480-22013

BU62..BTP,DTP;BU6#,77,8#,90,93,95..(DM1,DM2,DM4,T1,T2,T3,T4,TW1,TW2,TW4)..5F

 1
38904D - CLAMP, CABLE PUSH PULL
38982-96302

BU62..BTP,DTP;BU6#,77,8#,90,93,95..(DM1,DM2,DM4,T1,T2,T3,T4,TW1,TW2,TW4)..5F

 2
38982-96302

BU82,85..06S

 2
38904D - CLAMP, CABLE PUSH PULL
38982-96302

BU62..BTP,DTP;BU6#,77,8#,90,93,95..(DM1,DM2,DM4,T1,T2,T3,T4,TW1,TW2,TW4)..5F

 2
38982-96302

BU82,85..06S

 2
38907D - STAY SUB-ASSY, POWER TAKE-OFF CONTROL
38907-93103

BU82,85..06S

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93100

BU82,85..06S

 1
38952B - BRACKET, CONTROL CABLE CLAMP, NO.2
38962-96303

BU62..BTP;BU60,61,64,80,81..03S;BU62,82..(DM2,T2,T3,T4,TW1)..5F

 1
38962-96303

BU62..BTP,DTP;BU6#,80,81,82..(DM1,DM2,DM4,T1,T2,T3,T4,TW1,TW2,TW4)..5F

 1
Common parts
82711-95410
90249-08001
90461-08047
90461-08058
90461-08202
90464-00161
91611-40820
91611-60616
91611-60812
91611-60816
91611-60820
94110-40600
94512-00600
96160-00600

ILLUST NO. 1 OF 3(8808-9008)BU67..4FC ; (8808- )BU66,88..4FC ;(8808- )BU87..4FC..CBU ; (8808-

Click highlighted areas on diagram

diagram 38906B 38907A 38907E 38908C 38920A 38920A 38927 38970 8271195410 8413 9010906043 9024910110 9046107033 9048040004 9052015002 9111160670 9161160610 9161160855 9161161025 9161161055 9411040600 9411041000 9412041000 9451100600 9451101000 9461111600 9616000900 9645101000
Part # Description Qty Price
Common parts
82711-95410
90109-06043
90249-10110
90461-07033
90480-40004
90520-15002
91111-60670
91611-60610
91611-60855
91611-61025
91611-61055
94110-40600
94110-41000
94120-41000
94511-00600
94511-01000
94611-11600
96160-00900
96451-01000
Linked diagrams
8413
