BU82-MDGT (1987)
Toyota Dyna/Toyoace

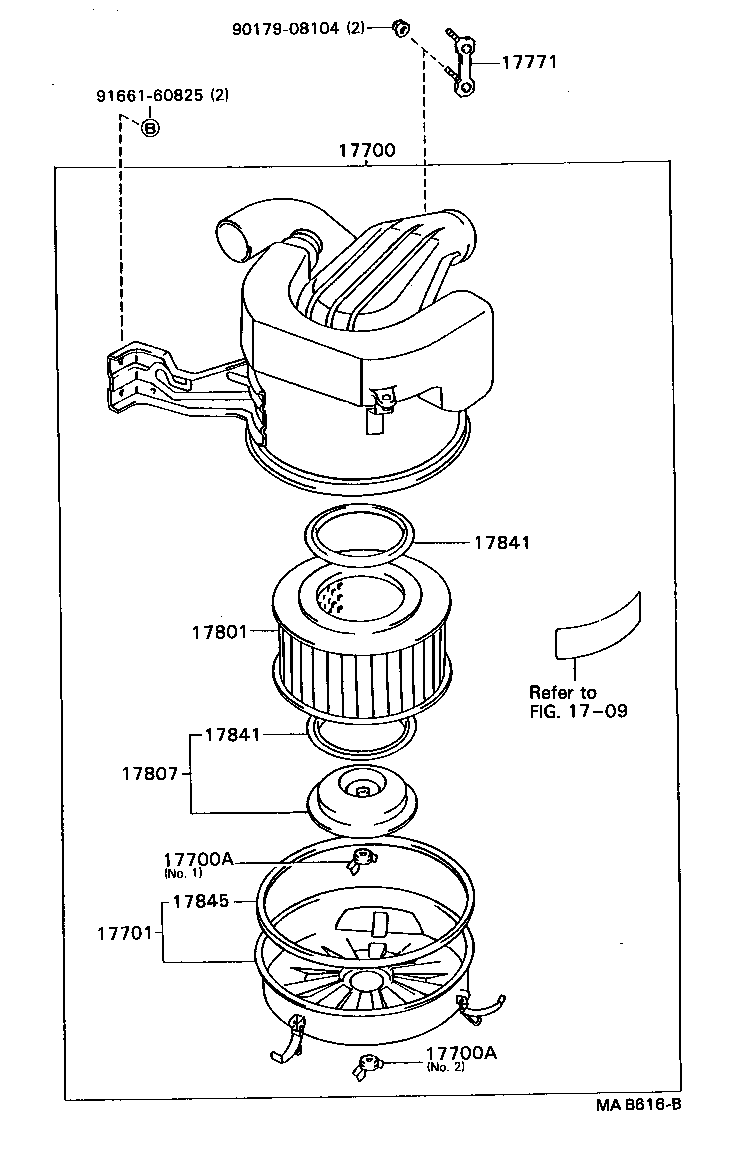

ILLUST NO. 1 OF 2(8708- )B,11B,13B..BU6#,70,80,81,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56390 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56130 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 17708 - BAFFLE SUB-ASSY, AIR CLEANER | ||||
| 17708-56010 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 17744 - CUP, PRECLEANER | ||||
| 17744-56010 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-56020 |
B,11B,13B..BU60,61,62,70,80,81,82 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56031 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56031 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56050 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

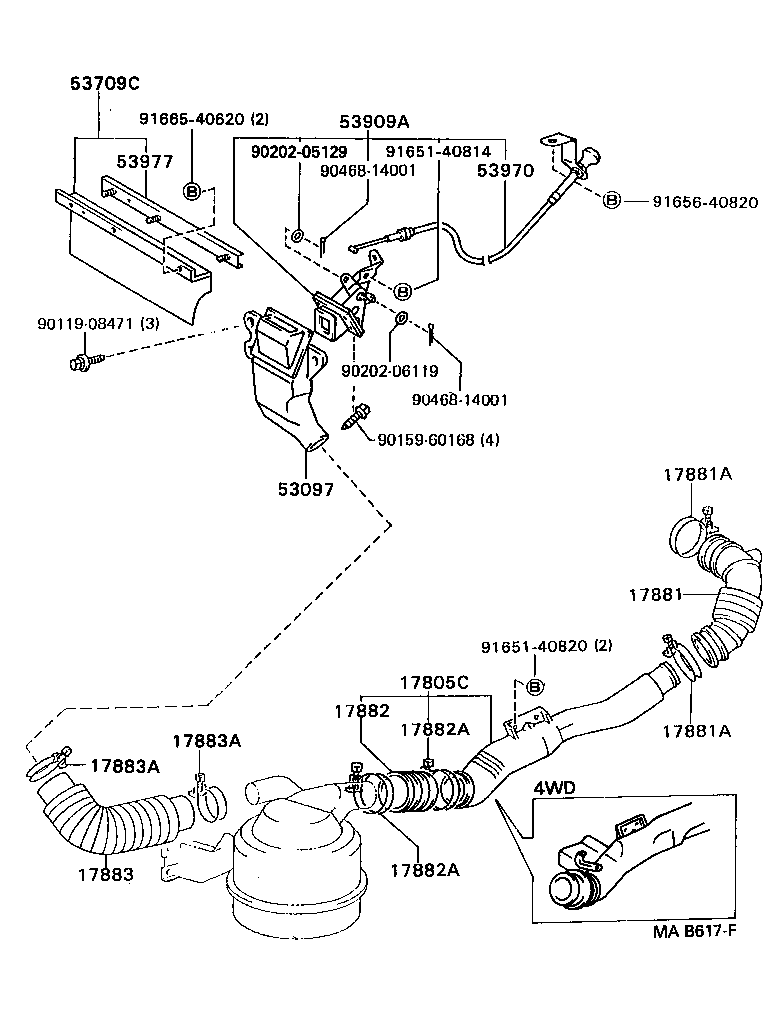

ILLUST NO. 2 OF 2(8708- )B,11B,13B..BU6#,70,80,81,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 17805-58060 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-58030 |
11B,13B..BU61,62,64,81,82 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
B,11B,13B..BU6#,70,80,81,82 PIPE SIDE |
1 | ||
| 96111-10780 |
11B,13B..BU61,62,64,81,82 INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
B,11B,13B..BU6#,70,80,81,82 PIPE SIDE |
1 | ||
| 96111-10780 |
11B,13B..BU61,62,64,81,82 INTAKE MANIFOLD SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,13B..BU6#,70,80,81,82 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,13B..BU6#,70,80,81,82 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95402 |
B,11B,13B..BU6#,70,80,81,82 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95412 |
BU6#,70,80,81,82 |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53709-95014 |
BU6#,70,80,81,82 |
1 | ||
| 53909A - BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1 | ||||
| 53909-95404 |
BU6#,70,80,81,82 |
1 | ||
| 53970 - CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL | ||||
| 53970-95400 |
BU6#,70,80,81,82 |
1 | ||
| 53977 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95400 |
BU6#,70,80,81,82 |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90179-06007 | ||||
| 90202-06119 | ||||
| 90387-08016 | ||||
| 90405-17004 | ||||
| 90467-23003 | ||||
| 90468-14001 | ||||
| 90480-16005 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91656-40820 | ||||
| 96111-10690 | ||||
ILLUST NO. 1 OF 2(8808-9008)B,11B,14B,3B..BU6#,70,83,84,87 ; (8910-9109)14B..BU72,73,74 ; (9008-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 2 OF 2(8808-9008)B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 ; (9008- )B,11B,14B,3B..BU6#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90202-05129 | ||||
| 90202-06119 | ||||
| 90468-14001 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91656-40820 | ||||
| 91665-40620 | ||||
