BU82-MDDHT3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )11B,13B#

Click highlighted areas on diagram

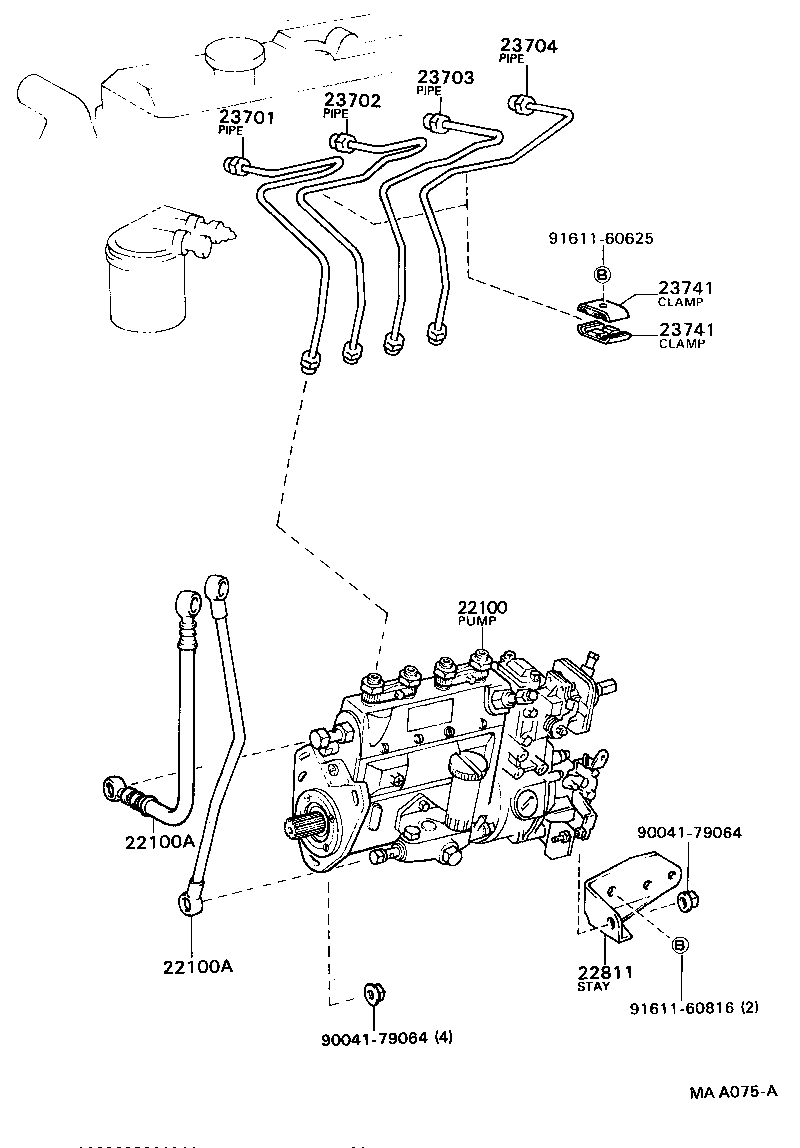

diagram 22100 22100A 22100A 22811 23701 23702 23703 23704 23741 23741 9004179064 9004179064 9161160625 9161160816
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-58450

13B..BU62,64,82,85,93..(DMP,TR)..5F..03S

ｱﾘ(ﾀｺﾒ-ﾀ)

 1
22100-58231

13B..BU85..5F;13B..BU62,64,82,93,98..5F..03S

ｶﾝﾚｲﾁ ｼﾖｳ

 1
22100-58420

13B..BU85..T4..IV3;13B..BU85..275..IV3;13B..BU85..5F..03S..CBU;13B..BU62,64,82,93..5F..03S

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾀｺﾒ-ﾀ)

 1
22100-58440

13B..BU62,64,82,85,93,98..5F..(CBU,IV3)

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

11B,13B#..BU61,62,64,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23802-56040

11B,13B#..BU61,62,64,81,82,85,9#

ﾎｰｽ 長さ=210

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

11B,13B#..BU61,62,64,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23802-56040

11B,13B#..BU61,62,64,81,82,85,9#

ﾎｰｽ 長さ=210

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-56040

11B,13B#..BU61,62,64,81,82,85,9#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

11B,13B#..BU61,62,64,81,82,85,9#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

11B,13B#..BU61,62,64,81,82,85,9#

 4
Common parts
90041-79064
91611-60625
91611-60816

(8708- )B

Click highlighted areas on diagram

diagram 22100 22811 22811 22821 23701 23702 23703 23704 23741 23741 23741 23741 23741 23741 23742 23802E 9011606037 9017906070 9017908022 9017908060 9017908060 9161160625 9161160625 9161160812 9161161016
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-58450

13B..BU62,64,82,85,93..(DMP,TR)..5F..03S

ｱﾘ(ﾀｺﾒ-ﾀ)

 1
22100-58231

13B..BU85..5F;13B..BU62,64,82,93,98..5F..03S

ｶﾝﾚｲﾁ ｼﾖｳ

 1
22100-58420

13B..BU85..T4..IV3;13B..BU85..275..IV3;13B..BU85..5F..03S..CBU;13B..BU62,64,82,93..5F..03S

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾀｺﾒ-ﾀ)

 1
22100-58440

13B..BU62,64,82,85,93,98..5F..(CBU,IV3)

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-56040

11B,13B#..BU61,62,64,81,82,85,9#

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-56040

11B,13B#..BU61,62,64,81,82,85,9#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

11B,13B#..BU61,62,64,81,82,85,9#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

11B,13B#..BU61,62,64,81,82,85,9#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

11B,13B#..BU61,62,64,81,82,85,9#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

11B,13B#..BU61,62,64,81,82,85,9#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

11B,13B#..BU61,62,64,81,82,85,9#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

11B,13B#..BU61,62,64,81,82,85,9#

 4
Common parts
90116-06037
90179-06070
90179-08022
90179-08060
91611-60625
91611-60812
91611-61016

(8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708- )13B..BU93,98..IV3;13B#..BU85,

Click highlighted areas on diagram

(8708- )13B#..BU85,9#..(T2,T3)..

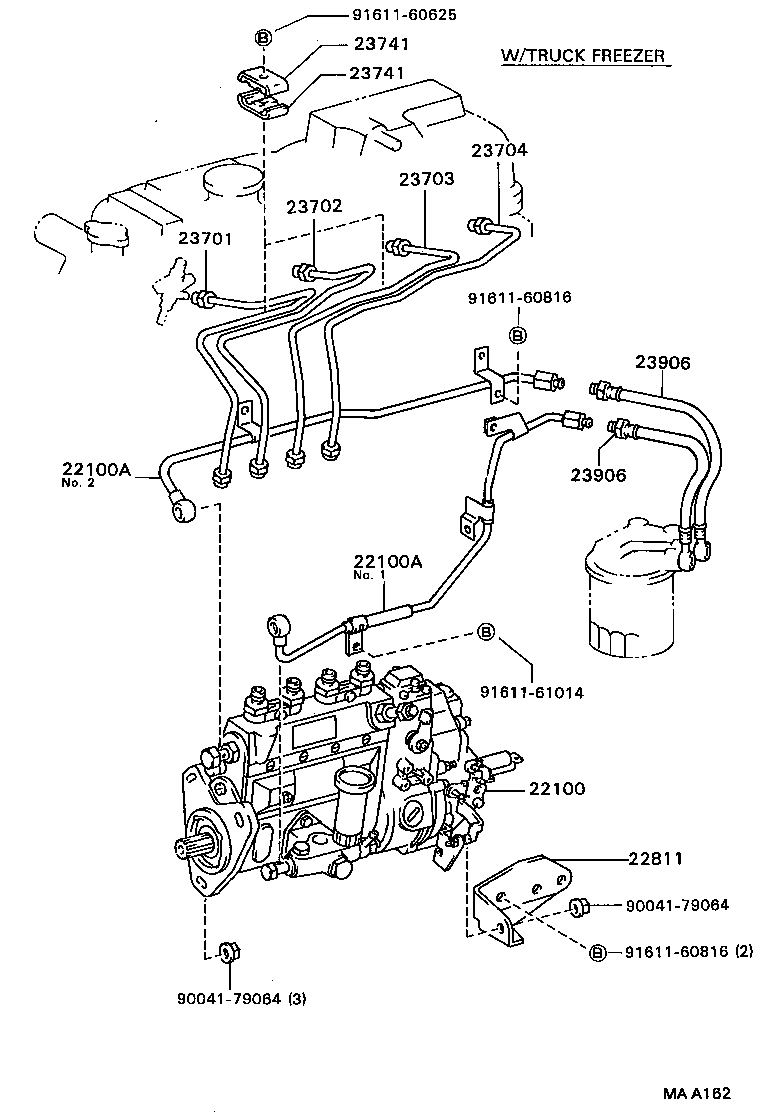

diagram 22100 22100A 22100A 22811 23701 23702 23703 23704 23741 23741 23906 23906 9004179064 9004179064 9161160625 9161160816 9161160816 9161161014
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-58450

13B..BU62,64,82,85,93..(DMP,TR)..5F..03S

ｱﾘ(ﾀｺﾒ-ﾀ)

 1
22100-58231

13B..BU85..5F;13B..BU62,64,82,93,98..5F..03S

ｶﾝﾚｲﾁ ｼﾖｳ

 1
22100-58420

13B..BU85..T4..IV3;13B..BU85..275..IV3;13B..BU85..5F..03S..CBU;13B..BU62,64,82,93..5F..03S

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾀｺﾒ-ﾀ)

 1
22100-58440

13B..BU62,64,82,85,93,98..5F..(CBU,IV3)

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

11B,13B#..BU61,62,64,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23802-56040

11B,13B#..BU61,62,64,81,82,85,9#

ﾎｰｽ 長さ=210

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-56060

11B,13B#..BU61,62,64,81,82,85,9#

ﾊﾟｲﾌﾟ 長さ=300

 1
23802-56040

11B,13B#..BU61,62,64,81,82,85,9#

ﾎｰｽ 長さ=210

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-56040

11B,13B#..BU61,62,64,81,82,85,9#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-56060

11B,13B#..BU61,62,64,81,82,85,9#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

11B,13B#..BU61,62,64,81,82,85,9#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

11B,13B#..BU61,62,64,81,82,85,9#

 4
Common parts
90041-79064
91611-60625
91611-60816
91611-61014
