BU81-MDGTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ST ; (8708- )BU85..V ; (8708- )BU62..275,30T ; (8708- )BU8#,90,

Click highlighted areas on diagram

diagram 51900 51900 51933A 51933A 51933A 51933A 51933A 51933A 51943 66273 9161160820 9161160820 9165140616
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-36101

BU60,61,62,81,82,85..DM2,T2,TW2

 2
51900 - CARRIER ASSY, SPARE WHEEL
51900-36101

BU60,61,62,81,82,85..DM2,T2,TW2

 2
51933A - STOPPER, SPARE WHEEL, NO.1
51933-36010

BU85..V;BU62..275,30T;BU80,81,82,93;BU85..T2,T3,TW1

 2
51933A - STOPPER, SPARE WHEEL, NO.1
51933-36010

BU85..V;BU62..275,30T;BU80,81,82,93;BU85..T2,T3,TW1

 2
51933A - STOPPER, SPARE WHEEL, NO.1
51933-36010

BU85..V;BU62..275,30T;BU80,81,82,93;BU85..T2,T3,TW1

 2
51933A - STOPPER, SPARE WHEEL, NO.1
51933-36010

BU85..V;BU62..275,30T;BU80,81,82,93;BU85..T2,T3,TW1

 2
51933A - STOPPER, SPARE WHEEL, NO.1
51933-36010

BU85..V;BU62..275,30T;BU80,81,82,93;BU85..T2,T3,TW1

 2
51933A - STOPPER, SPARE WHEEL, NO.1
51933-36010

BU85..V;BU62..275,30T;BU80,81,82,93;BU85..T2,T3,TW1

 2
Common parts
91611-60820
91651-40616

(8708- )BU81,82,85..T2

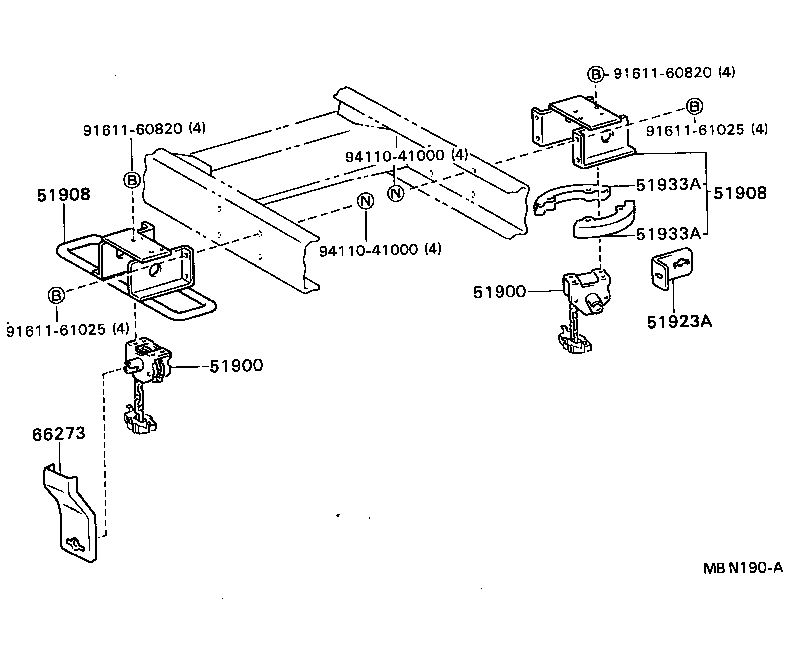

Click highlighted areas on diagram

diagram 51900 51900 51908 51908 51923A 51933A 51933A 66273 9161160820 9161160820 9161161025 9161161025 9411041000 9411041000
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-36101

BU60,61,62,81,82,85..DM2,T2,TW2

 2
51900 - CARRIER ASSY, SPARE WHEEL
51900-36101

BU60,61,62,81,82,85..DM2,T2,TW2

 2
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-36071

BU81,82,85..T2

右側

 1
51908-36080

BU81,82,85..T2

左側

 1
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-36071

BU81,82,85..T2

右側

 1
51908-36080

BU81,82,85..T2

左側

 1
51923A - GUIDE, SPARE WHELL CARRIER HANDLE
51923-36020

BU81,82..T2

 1
51933A - STOPPER, SPARE WHEEL, NO.1
51933-36010

BU85..V;BU62..275,30T;BU80,81,82,93;BU85..T2,T3,TW1

 2
51933A - STOPPER, SPARE WHEEL, NO.1
51933-36010

BU85..V;BU62..275,30T;BU80,81,82,93;BU85..T2,T3,TW1

 2
Common parts
91611-60820
91611-61025
94110-41000
