BU74-MDDTJ3 (1989)
Toyota Dyna/Toyoace

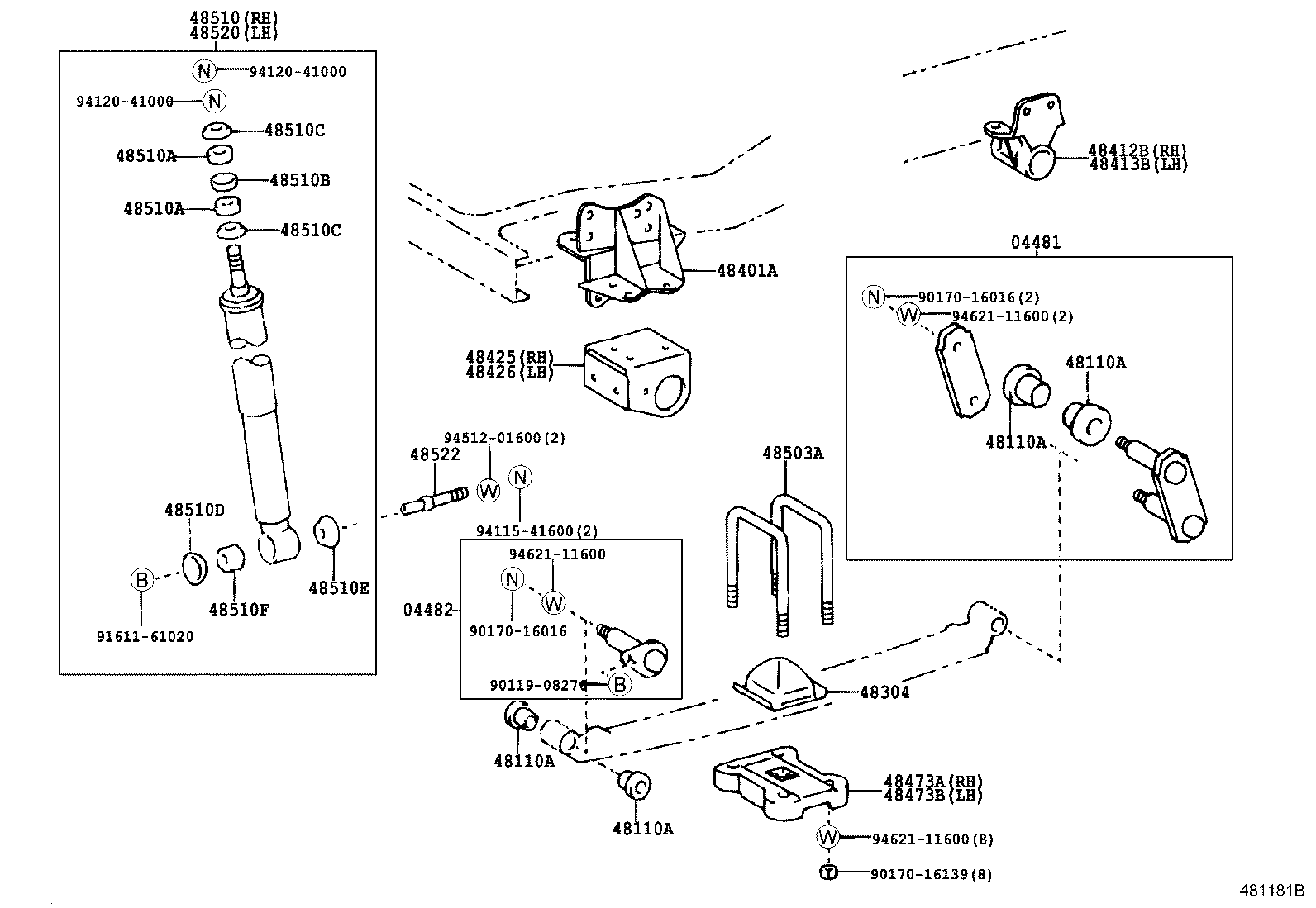

ILLUST NO. 1 OF 2(8910- )BU72,73,74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36070 |
BU6#,70,72,73,74,83,84,87 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36010 |
BU6#,70,72,73,74,83,84,87 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
BU6#,70,72,73,74,83,84,87 |
8 | ||
| 90385-23037 |
BU6#,70,72,73,74,83,84,87 |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
BU6#,70,72,73,74,83,84,87 |
8 | ||
| 90385-23037 |
BU6#,70,72,73,74,83,84,87 |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
BU6#,70,72,73,74,83,84,87 |
8 | ||
| 90385-23037 |
BU6#,70,72,73,74,83,84,87 |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
BU6#,70,72,73,74,83,84,87 |
8 | ||
| 90385-23037 |
BU6#,70,72,73,74,83,84,87 |
8 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36130 |
BU72,73,74..DM3,DM4,T3,TW1 |
2 | ||
| 48304-36130 |
BU72,73,74..DM3,DM4,T3 |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48411-36160 |
BU72,73,74 右側 |
1 | ||
| 48412-36160 |
BU72,73,74 左側 |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48413-36070 |
BU72,73,74 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48413-36070 |
BU72,73,74 |
1 | ||
| 48425 - BRACKET, SPRING, NO.1 LOWER RH | ||||
| 48425-36010 |
BU72,73,74 |
1 | ||
| 48426 - BRACKET, SPRING, NO.1 LOWER LH | ||||
| 48426-36010 |
BU72,73,74 |
1 | ||
| 48473A - SEAT, SPRING U BOLT, RH | ||||
| 48473-36160 |
BU72,73,74 |
1 | ||
| 48473B - SEAT, SPRING U BOLT, LH | ||||
| 48473-36160 |
BU72,73,74 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16034 |
BU72,73,74 長さ=190 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-39895 |
BU72,73,74 ﾏｰｸ 48511―36180 |
1 | ||
| 48511-80002 |
BU72,73,74 ﾏｰｸ 48511―36230 |
1 | ||
| 48511-80008 |
BU72,73,74 ﾏｰｸ 48511−36230 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU6#,7#,8#,9# |
4 | ||
| 90948-01003 |
BU6#,7#,8#,9# |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU6#,7#,8#,9# |
4 | ||
| 90948-01003 |
BU6#,7#,8#,9# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU6#,7#,8#,9# |
2 | ||
| 90948-02007 |
BU6#,7#,8#,9# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU6#,7#,8#,9# |
4 | ||
| 90948-02002 |
BU6#,7#,8#,9# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU6#,7#,8#,9# |
4 | ||
| 90948-02002 |
BU6#,7#,8#,9# |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
BU78,85,88,94..275,30T;BU6#,70,72,73,74,83,84,87,90,91,95,96 |
2 | ||
| 90948-03007 |
BU78,88,94..275,30T;BU6#,70,72,73,74,83,84,87,91,96 |
2 | ||
| 90948-03007 |
BU78,88,94..275,30T;BU6#,70,72,73,74,84,87,91,96 |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU78,88,94..275,30T;BU6#,70,72,73,74,84,87,91,96 |
2 | ||
| 90948-03004 |
BU78,88,94..275,30T;BU6#,70,72,73,74,83,84,87,91,96 |
2 | ||
| 90948-03004 |
BU78,85,88,94..275,30T;BU6#,70,72,73,74,83,84,87,90,91,95,96 |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16011 |
BU78,88,94..275,30T;BU6#,70,72,73,74,83,84,87,91,96 |
2 | ||
| 90385-16011 |
BU78,85,88,94..275,30T;BU6#,70,72,73,74,83,84,87,90,91,95,96 |
2 | ||
| 90385-16011 |
BU78,88,94..275,30T;BU6#,70,72,73,74,84,87,91,96 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-39895 |
BU72,73,74 ﾏｰｸ 48511―36180 |
1 | ||
| 48511-80002 |
BU72,73,74 ﾏｰｸ 48511―36230 |
1 | ||
| 48511-80008 |
BU72,73,74 ﾏｰｸ 48511−36230 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25010 |
BU78,85,88,94..275,30T;BU6#,70,72,73,74,83,84,87,90,91,95,96 |
2 | ||
| 48522-25010 |
BU78,88,94..275,30T;BU6#,70,72,73,74,84,87,91,96 |
2 | ||
| 48522-25010 |
BU78,88,94..275,30T;BU6#,70,72,73,74,83,84,87,91,96 |
2 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90170-16016 | ||||
| 90170-16139 | ||||
| 91611-61020 | ||||
| 94115-41600 | ||||
| 94120-41000 | ||||
| 94512-01600 | ||||
| 94621-11600 | ||||
ILLUST NO. 2 OF 2(8910- )BU60,61,66..T4..IV3 ; (8910- )BU72,73,74..DM3,DM4,T3 ; (9210- )BU6

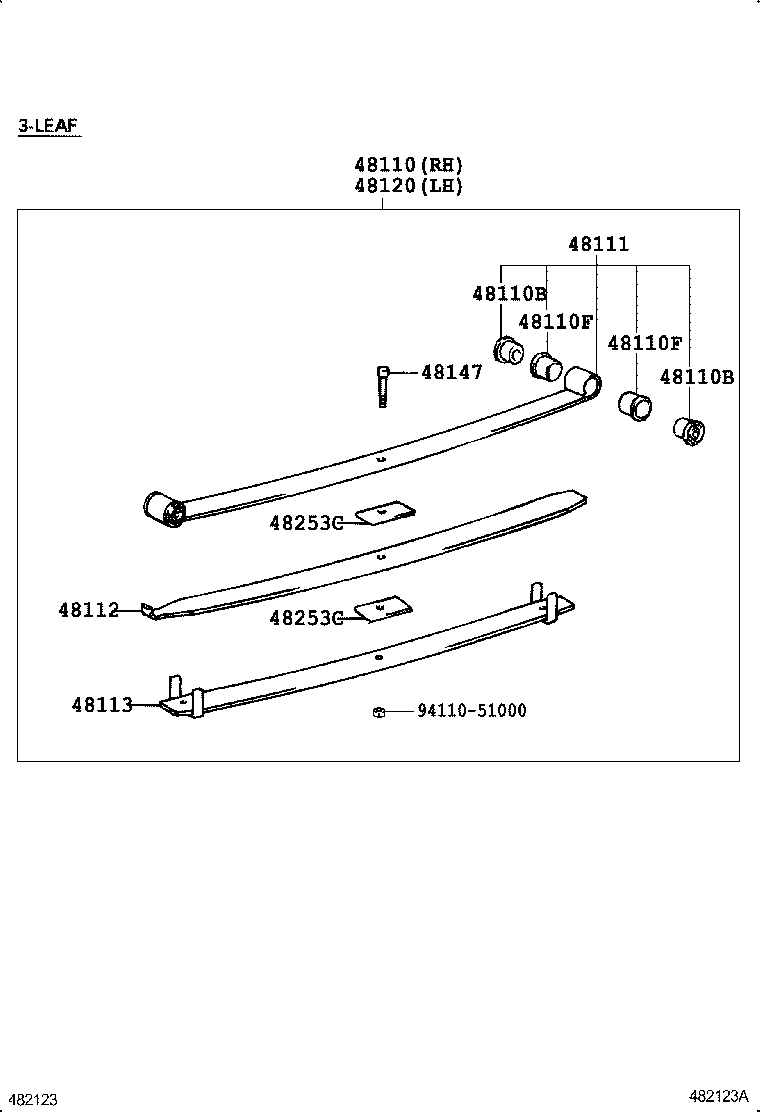

3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B670 |
BU72,74..DM3,DM4,T3 3枚ﾘｰﾌ |
1 | ||
| 48110-3B671 |
BU72,74..DM3,DM4,T3 3枚ﾘｰﾌ |
1 | ||
| 48110-3B672 |
BU72,73,74..DM3,DM4,T3 3枚ﾘｰﾌ |
1 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-23002 |
BU72,73,74 |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-23002 |
BU72,73,74 |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU60,61,67,70,72,73,74,83,84,87;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
8 | ||
| 48299-36010 |
BU60,61,66,67,70,72,73,74,83,84,87 |
8 | ||
| 48299-36010 |
BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;BU60,61,67,70,72,73,74,83,84,87..03S,06S |
8 | ||
| 48299-36010 |
BU6#,70,72,73,74,83,84,87 |
8 | ||
| 48299-36010 |
BU6#,70,72,73,74,84,87 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU60,61,67,70,72,73,74,83,84,87;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
8 | ||
| 48299-36010 |
BU60,61,66,67,70,72,73,74,83,84,87 |
8 | ||
| 48299-36010 |
BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4;BU60,61,67,70,72,73,74,83,84,87..03S,06S |
8 | ||
| 48299-36010 |
BU6#,70,72,73,74,83,84,87 |
8 | ||
| 48299-36010 |
BU6#,70,72,73,74,84,87 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B670 |
BU72,74..DM3,DM4,T3 運転席側 |
1 | ||
| 48101-3B680 |
BU72,74..DM3,DM4,T3 助手席側 |
1 | ||
| 48101-3B681 |
BU72,73,74..DM3,DM4,T3 助手席側 |
1 | ||
| 48101-3B671 |
BU72,73,74..DM3,DM4,T3 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B681 |
BU72,73,74..DM3,DM4,T3 助手席側 |
1 | ||
| 48112-3B670 |
BU72,74..DM3,DM4,T3 運転席側 |
1 | ||
| 48112-3B680 |
BU72,74..DM3,DM4,T3 助手席側 |
1 | ||
| 48112-3B671 |
BU72,73,74..DM3,DM4,T3 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B670 |
BU72,74..DM3,DM4,T3 運転席側 |
1 | ||
| 48102-3B680 |
BU72,74..DM3,DM4,T3 助手席側 |
1 | ||
| 48102-3B671 |
BU72,73,74..DM3,DM4,T3 運転席側 |
1 | ||
| 48102-3B681 |
BU72,73,74..DM3,DM4,T3 助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B680 |
BU72,74..DM3,DM4,T3 3枚ﾘｰﾌ |
1 | ||
| 48110-3B681 |
BU72,74..DM3,DM4,T3 3枚ﾘｰﾌ |
1 | ||
| 48110-3B682 |
BU72,73,74..DM3,DM4,T3 3枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B670 |
BU72,73,74..DM3,DM4,T3 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48254-3B730 |
BU72,73,74..DM3,DM4,T3 |
4 | ||
| 48253-3B730 |
BU72,74..DM3,DM4,T3 |
4 | ||
| 48253-3B440 |
BU72,74..DM3,DM4,T3 |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48254-3B730 |
BU72,73,74..DM3,DM4,T3 |
4 | ||
| 48253-3B730 |
BU72,74..DM3,DM4,T3 |
4 | ||
| 48253-3B440 |
BU72,74..DM3,DM4,T3 |
4 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(9905-0406)XZU400..IV3 ; (9905-0406)XZU430..35T,40T ; (9905-0406)XZU400..35T..CBU ;
2-LEAF 48110-37570,37760
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU400,401,41#,42#,430..295T,30T,35T ; (0406- )B
2-LEAF,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)48110-37640,3771
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T..IV3,IV6 ; (9905-0406)BU420,XZU410,420,430..40T ; (0406-
5-LEAF, ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price |
|---|
